Network pharmacology-based prediction of inhibiting leukocyte recruitment and angiogenesis of total glucosides of peony against rheumatoid arthritis

Introduction

Rheumatoid arthritis (RA) is a chronic autoimmune disease characterized by inflammatory changes in the synovial tissues, cartilage, and bones of the joints, ultimately leading to disability and death. The incidence of RA is on the rise, which poses a serious threat to health and quality of life (1). Steroidal anti-inflammatory drugs (glucocorticoids), nonsteroidal anti-inflammatory drugs, immunosuppressive drugs (chemical drugs and biological drugs), and Chinese natural medicines are applied to treat RA in the clinic. It requires chronic, even life-long treatments, so the safety of treatments is gaining attention. Recently, the development of natural products has attracted attention (2).

Total glucosides of peony (TGP) is extracted from Paeonia lactiflora Pallas (3). TGP capsules (Pavlin) have been approved for RA treatment since 1998. It is also used for systemic lupus erythematosus, Sjögren syndrome, psoriasis, ankylosing spondylitis, immune liver injury treatment in China (4-8). It could improve the clinical effects and reduce toxicity when used with methotrexate and leflunomide (9). Numerous studies have confirmed the anti-inflammatory and immunomodulatory effects of TGP. It could inhibit B cell activation, regulate macrophage polarization, prevent dendritic cells (DCs) from maturation and inhibit the abnormal proliferation of synoviocytes (3,10,11). Although research on the mechanisms of TGP for RA treatment has continued, no systematic and comprehensive understanding of the relationships between targets and pathways involved in the treatment has emerged. Otherwise, there are fifteen monoterpene glycosides, such as paeoniflorin (PF), albiflorin (AF) and oxypaeoniflorin (Oxy-PF) contained in TGP (1). Previous researches focused largely on the effects of PF, the major ingredient of TGP. The functions of other monoterpene glycosides have not been clarified.

Network pharmacology has been one of the new strategies for multi-target drug discovery based on bioinformatics and systems biology (12-14). In this study, we investigated the comprehensive mechanism of TGP for RA treatment using network pharmacology analysis (Figure 1). We analyzed the different targets of the components in TGP. We found the new effects of TGP on inhibiting leukocyte recruitment and angiogenesis. This provides a better understanding of TGP on the RA treatment.

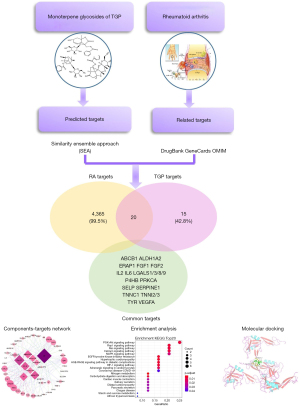

Figure 1 Flowchart of a network pharmacology-based strategy to investigate the pharmacologic mechanisms of TGP for treatment of rheumatoid arthritis. TGP, total glucosides of peony; OMIM, Online Mendelian Inheritance in Man.

Methods

Screen the included components

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The web of science, PubMed, CNKI Databases were searched to acquire information on TGP with the keywords “Total glucosides of peony”, “TGP”, “Paeonia lactiflora Pall”. Traditional Chinese Medicine Systems Pharmacology Database (TCMSP, https://old.tcmsp-e.com/tcmsp.php) (15) and Chinese Pharmacopoeia, relevant textbooks, reviews, and documents were also consulted for complete information.

Identify the potential targets of TGP components

There are four kinds of target-prediction methods: based on chemical similarity, molecular docking, machine learning and a combined forecast (16). In our study, the targets prediction was conducted on the Similarity Ensemble Approach (http://sea.bkslab.org/) based on chemical similarity (16). The simplified molecular-input line-entry system (SMILES) codes of the components in were gotten from Pubchem (listed in Table 1), and then were submitted to the Similarity Ensemble Approach server for target prediction based on chemical similarity. Predicted targets with P values were generated.

Table 1

The main monoterpene glycosides in TGP

PubChem CID	Components	Molecular formula	Molecular weight	Molecular structure	SMILEs
442534	Paeoniflorin	C23H28O11	480.5		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=CC=C5)OC6C(C(C(C(O6)CO)O)O)O)O
21631105	Oxy-paeoniflorin	C23H28O12	496.5		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=C(C=C5)O)OC6C(C(C(C(O6)CO)O)O)O)O
21631106	Benzoyl-paeoniflorin	C30H32O12	584.6		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=CC=C5)OC6C(C(C(C(O6)COC(=O)C7=CC=CC=C7)O)O)O)O
13811386	Benzoyloxy-peoniflorin	C30H32O13	600.6		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=C(C=C5)O)OC6C(C(C(C(O6)COC(=O)C7=CC=CC=C7)O)O)O)O
494717	Galloyl-paeoniflorin	C30H32O15	632.6		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=CC=C5)OC6C(C(C(C(O6)COC(=O)C7=CC(=C(C(=C7)O)O)O)O)O)O)O
101382399	Paeoniflorin sulfonate	C23H28O14S	560.5		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=CC=C5)OC6C(C(C(C(O6)CO)O)O)O)OS(=O)(=O)O
102516499	3'-O-Galloyl-paeoniflorin	C30H32O15	632.6		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=CC=C5)OC6C(C(C(C(O6)CO)O)OC(=O)C7=CC(=C(C(=C7)O)O)O)O)O
137705343	Debenzoylgalloyl-paeoniflorin	C23H28O14	528.5		CC12CC3(C4CC1(C4(C(O2)O3)CO)OC5C(C(C(C(O5)COC(=O)C6=CC(=C(C(=C6)O)O)O)O)O)O)O
71452334	Paeoniflorin B	C36H42O17	746.7		CC12CC3(C4CC1(C4(C(O2)O3)COC(=O)C5=CC=CC=C5)OC6C(C(C(C(O6)COC(=O)C7=CC=CC=C7)OC8C(C(C(C(O8)CO)O)O)O)O)O)O
51346141	Albiflorin	C23H28O11	480.5		CC12CC(C3CC1(C3(C(=O)O2)COC(=O)C4=CC=CC=C4)OC5C(C(C(C(O5)CO)O)O)O)O
50163461	Albiflorin R1	C23H28O11	480.5		CC12CC(C3CC1(C3(C(=O)O2)COC(=O)C4=CC=CC=C4)OC5C(C(C(C(O5)CO)O)O)O)O
102000323	Benzoyl-albiflorin	C30H32O12	584.6		CC12CC(C3CC1(C3(C(=O)O2)COC(=O)C4=CC=CC=C4)OC5C(C(C(C(O5)COC(=O)C6=CC=CC=C6)O)O)O)O
138108175	4-O-Galloyl-albiflorin	C30H32O15	632.6		CC12CC(C3CC1(C3(C(=O)O2)COC(=O)C4=CC=CC=C4)OC5C(C(C(C(O5)CO)O)O)O)OC(=O)C6=CC(=C(C(=C6)O)O)O
124079396	6'-O-Galloyl-albiflorin	C30H32O15	632.6		CC12CC(C3CC1(C3(C(=O)O2)COC(=O)C4=CC=CC=C4)OC5C(C(C(C(O5)COC(=O)C6=CC(=C(C(=C6)O)O)O)O)O)O)O
14605198	Lactiflorin	C23H26O10	462.4		CC12C3(CC4C3(C(O1)CC4=O)COC(=O)C5=CC=CC=C5)OC6C(O2)C(C(C(O6)CO)O)O

TGP, total glucosides of peony; SMILES, simplified molecular-input line-entry system.

The molecular mechanism of RA

The molecular related with the occurrence and development of RA was obtained from four sources: DrugBank (http://www.drugbank.ca/, version 4.3) (17), the GeneCards database (https://www.genecards.org/) (18), DisGeNET databases (https://www.disgenet.org/) (19) and the Online Mendelian Inheritance in Man (OMIM) database (http://www.omim.org/, updated on April 5, 2021) (20). The Gene ontology (GO) and the Kyoto Encyclopedia of Genes and Genomes (KEGG) enrich functions of these molecular were further analyzed in CTD database (http://ctdbase.org/tools/analyzer.go) (21).

Construct components-targets networks

Cytoscape 3.6.1 is an open-source bioinformatics software platform that helps visualize molecular interaction networks. The “Network Analyzer” plug-in was used to calculate the topology parameters of the network.

Enrichment analysis

Once we identified the targets of TGP for RA treatment, GO and KEGG functional annotations were carried out according to gene functions. Enrichment analysis was performed with R (version 3.6.0 for Windows). The KEGG database analyzes the pathways and the functions of these targets (22). Pathways were ranked according to the number of molecules in pathways and networks with a cut-off value (P<0.05) for significantly enriched pathways/networks.

Computational validation of components—targets interactions

The hub targets got from network analysis were further ascertain the interactions between active components. The crystal structure of these herb targets and components were obtained from the Research Collaboratory for Structural Bioinformatics (RCBS)-Protein Data Bank database (23). The structures of TGP components and targets proteins were optimized at AutoDockTools-1.5.6 based on least energy. The docking exercise was calculated through Autodock Vina software package (24) and the docking results were showed with PyMol (version 1.1) (25).

Results

The included components of TGP

TGP was extracted from the roots of Paeonia lactiflora Alba with clarification, organic solvent extraction and macroporous resin purification. There are a large amount of tannins, carbohydrate and more than 80 small molecular organic matters contained in the crude Paeonia lactiflora Alba extract (Figure 2A) (26). Approximately 15 monoterpene glycosides have been identified in TGP (Table 1), such as PF, AF, and their derivatives (Figure 2A) (27). PF accounts for over or equal to 40% (28). The quality and reproducibility of TGP extracted from the dried root is controlled by measuring the percentage of PF and AF, which the content should not be less than 40% and 10%, respectively (27). Clinical used TGP capsule (Pavlin) was required not to be less than 300 mg and the PF content should not be less than 104 mg (29).

Figure 2 The small ingredients in Paeonia lactiflora alba (A) and the compounds-targets network of TGP (B). TGP, total glucosides of peony.

Identify potential targets of TGP and construct the compounds-targets

Targets prediction was conducted on the Similarity Ensemble Approach. As AF and AF-R1 share same SMILES, we predicted the targets of 14 compounds except AF-R1. Figure 2B showed the compounds-targets network of TGP. The diamonds represent compounds; round nodes represent putative targets. The size will increase and the color darkens with increasing degree. There were 49 nodes and 161 edges in TGP compounds-targets network. The average degree was 7.23. 35 kinds of proteins were predicted as the putative targets of TGP and the top 10 were galectin-9 (LGALS9), tyrosyl-DNA phosphodiesterase 1 (TDP1), myelin-associated glycoprotein (MAG), galectin-1 (LGALS1), galectin-3 (LGALS3), fibroblast growth factor 2 (FGF2), fibroblast growth factor 1 (FGF1), vascular endothelial growth factor A (VEGFA), P-selectin (SELP) and multidrug resistance protein 1 (ABCB1) with higher degree values. These targets might be effective on the treatment of RA. PF, Oxy-PF, galloylpaeoniflorin (galloyl-PF3), PF-B, benzoylpaeoniflorin (benzoyl-PF), AF and 4-O-galloylalbiflorin (galloyl-AF4) were the major active compounds with more predicted targets. More than 50% of the predicted targets were common in these monoterpene glycosides, implying their synergistic effects.

PF and AF are the major components of TGP, the component-target network of the two components and their derivatives were analyzed separately (Figure 3A,3B). The major predicted targets of PF and its derivants were MAG, LGALS1, TDP1, LGALS3, FGF1, FGF2, LGALS9, VEGFA and SELP, while that were LGALS9, TDP1, ABCB1, AMY1A, FGF1, FGF2, LGALS1, LGALS3, protein kinase C alpha type (PRKCA) and VEGFA for AF and its derivants in degree orders (Figure 3A,3B). It should be noted that AF and its derivatives have more kinds of targets (35 kinds) than PF and its derivatives (29 kinds). The five unique targets of AF and its derivants were carbonic anhydrase 12 (CA12), carbonic anhydrase 9 (CA9), IL-6, Ras guanyl-releasing protein 3 (RASGRP3), and sodium/glucose cotransporter 4 (SLC5A4), which may show their differences in the therapeutic effects and adverse reactions.

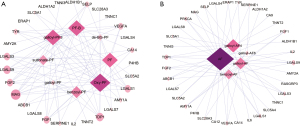

Figure 3 The component-target network of the PF (A) and AF (B) together with their derivatives. PF, paeoniflorin; AF, albiflorin.

The affinity score of each component with their predicted targets was ranged from 0.28 to 0.46 (Figure 4). Fifty percent of the putative targets of PF and AF were common, implying a close relationship between the two components. Debenzoylgalloyl-paeoniflorin, 6'-O-Galloyl-albiflorin and galloyl-paeoniflorin have high affinity with the TDP1 and SERPINE1, but their targets were not common to the major targets of TGP. Lactiflorin (LF) was reported to exist in the amounts of 0.35–0.64% in Paeoniae Radix with high performance liquid chromatography (HPLC) analysis, which was much less than PF (30). So far, there were no reported derivants of LF in TGP. The predicted targets of LF were SELP, PRKCA, LGALS9, LGALS7, LGALS3, LGALS1 and ABCB1, which were similar as PF and AF for chemical similarity.

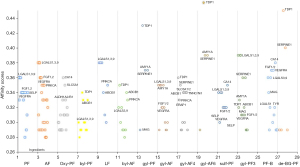

Figure 4 The affinity scores of the components of TGP with their predicted targets. TGP, total glucosides of peony; PF, paeoniflorin; AF, albiflorin; LF, lactiflorin.

Identify genes and proteins associated with RA

A total of 3,523 known protein-coding genes for RA were collected from the GeneCards database. Two hundred and ninety-six and 2,722 protein-coding genes for RA were obtained from the OMIM and DisGeNET databases, respectively. One hundred and twenty-four therapeutic targets for RA treatment were obtained from the TTD database. After elimination of redundancies and duplicate data, 4,750 symbols for RA were obtained (available online: https://cdn.amegroups.cn/static/public/apm-21-2203-1.xlsx). After removing the microRNA and the pseudogene, 4,385 symbols for RA were obtained. These biomarkers could be enriched into 940 KEGG pathways and their functions involving innate immune system, adaptive immune system, signaling by interleukins, metabolism, bone destruction, angiogenesis, and tissue remodeling, different manners of cell death, cell proliferation, cell differentiation, neurosensory function and signal transduction. The main function pathways were GPCR downstream signaling, signaling by insulin receptor, JAK-STAT signaling pathway, T cell receptor signaling pathway, toll-like receptor signaling pathway, IL-17 signaling pathway, Interleukin-6 signaling, NF-kappa B signaling pathway, estrogen signaling pathway, B cell receptor signaling pathway, Wnt signaling pathway, MyD88 pathways, and so on. The functions of Th17 cell differentiation, activation of B and T cells, natural killer cell mediated cytotoxicity, Th1 and Th2 cell differentiation, platelet activation, activation of C3/C5 and homeostasis, cellular response to hypoxia, the migration of neutrophils also play important roles in the RA processing (available online: https://cdn.amegroups.cn/static/public/apm-21-2203-2.xlsx).

Identify the targets of TGP relevant to the RA treatment

Venn diagram was drawn to perform intersection alignment with the TGP targets (Figure 5A). There were 20 coincidence targets predicted for RA treatment including ABCB1, mitochondrial aldehyde dehydrogenase X (ALDH1A2), endoplasmic reticulum aminopeptidase 1 (ERAP1), FGF1, FGF2, IL2, IL6, LGALS1/3/8/9, protein disulfide-isomerase (P4HB), PRKCA, SELP, plasminogen activator inhibitor 1 (SERPINE1), troponin C (TNNC1), troponin I 2/3 (TNNI2/3), tyrosinase (TYR) and VEGFA. Some of these targets were also the high degree ones among the TGP predicted.

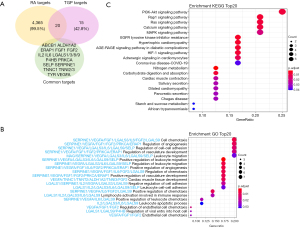

Figure 5 The intersection of RA targets and TGP targets (A) and the GO (B) and KEGG (C) enrichment results. RA, rheumatoid arthritis; TGP, total glucosides of peony; GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes.

Enrichment of the GO functions and KEGG pathways

To investigate the role of the predicted targets, we conducted enrichment of GO pathways to clarify the relevant biologic processes (P<0.01) (Figure 5B). For a brief demonstration, we intercepted the top 20 terms. The results indicated that numerous biologic processes were involved in RA treatment, including cell chemotaxis, the regulation of angiogenesis, cell-cell development, vasculature development, leukocyte migration, and so on. The mainly functions concentrate on the aspect of regulation of angiogenesis, regulation the leukocyte and the tissue remodeling. LGALS3/9, VEGFA, FGF1, SELP, IL-6 and IL-2 of TGP play critical roles in leukocyte traffic progress; VEGFA, FGF1, FGF2, PRKCA and ERAP1 proteins have important roles in anti-angiogenesis (Figure 5C). The enriched KEGG pathways including VEGFR pathway, interleukins signaling, PI3K-Akt pathway, platelet activation, extracellular matrix organization, and so on (Figure 6).

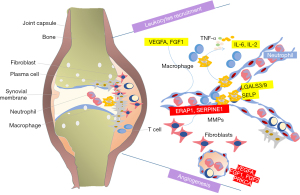

Figure 6 The components of TGP ameliorated RA mainly through inhibiting leukocyte recruitment and angiogenesis. (The angiogenesis related targets were marked in red and the leukocytes recruitment were marked in yellow). TGP, total glucosides of peony; RA, rheumatoid arthritis.

Docking exercises of hub targets and the major components

To ascertain the interaction between active components and their protein targets, computational docking exercises were conducted to mimic the binding characteristics. Here, the components of AF, PF and LF were selected for verification of molecular docking. The targets related to angiogenesis and leukocyte traffic progress were selected.

It is generally accepted that the binding energy value less than -4.25 kcal/mol indicates a certain binding activity, less than −5.0 kcal/mol indicates good binding activity, and less than −7.0 kcal/mol indicates strong binding activity. The binding energy of the AF, PF and LF with these hub targets was shown in Table 2. Binding affinities to these targets distributed within the range of −5.9 to −8.8 kcal/mol, indicating a good or strong binding activity. Docking results were visualized in the Pymol software. Figure 7 showed the three components docking with LGALS1/3/9 and SELP, which are mainly related to the leukocyte traffic progress; Figure 8 shows the three components docking with VEGFA, FGF1 and FGF2, which possess the function of angiogenesis.

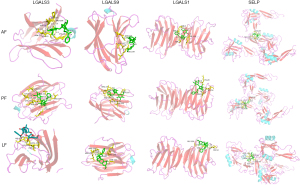

Figure 7 The three main ingredients docking with the targets mainly related with the leukocyte traffic progress. AF, albiflorin; PF, paeoniflorin; LF, lactiflorin.

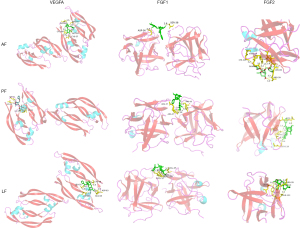

Figure 8 The three main ingredients docking with the targets mainly related with the function of angiogenesis. AF, albiflorin; PF, paeoniflorin; LF, lactiflorin.

Figure 9 showed the docking results of unique targets of AF involving the leukocyte traffic and angiogenesis progress.

Figure 9 The docking results of unique targets of AF involving the leukocyte traffic and angiogenesis progress. IL, interleukin; AF, albiflorin.

Discussion

TGP has been widely used in China to treat RA through balancing proinflammatory cytokines and anti-inflammatory cytokines and regulating immune cells. In a 24-week, open label, randomized multicenter clinical trial, more patients in TGP group achieved a European League Against Rheumatism (EULAR) good response or moderate response at 12 and 24 weeks (31). TGP can decrease the population of IFN-γ, IL-17-producing cells in RA patients (9). While, several issues need to be studied, such as how these constituents interact with each other, what is the most important component in TGP, whether these components share similar targets, and so on. Therefore, we investigated the comprehensive mechanism by which TGP acts in RA using network pharmacology.

There are 15 monoterpene glycosides identified in TGP. PF and AF are the major contents, which account for more than half of TGP. The other components are the derivatives of PF and AF except the LF. There were no LF associated derivatives. The effects of PF have been well explored, and found that PF is able to help diminish joint pain, reduce joint swelling, inhibit synovial hypertrophy, alleviate the damage of cartilage and bone erosion in experimental arthritis (10). So far, AF is reported to inhibit lung inflammation in asthmatic mice, alleviate high fat, decreased the cholesterol gallstone formation, alleviate neuropathic pain and promote the recovery of bone marrow hemopoietic function (32,33). However, what the functions of AF are in the clinical RA treatment, nobody is carrying out research on it. In our analysis, we found that AF and its derivatives have more kinds of targets than PF and its derivatives. They shared the common targets such as ABCB1, ALDH1A2, ALDH1B1, AMY1A, AMY2A, CA14, ERAP1, FGF1, FGF2, IL2, LGALS1/3/4/7/8/9, MAG, P4HB, SELP, SERPINE1, SLC28A3, SLC5A1/2, SLC5A2, TDP1, TNNC1, TNNI3, TNNT2, TYR and VEGFA, but AF and its derivatives have five unique targets, CA12, CA9, IL-6, RASGRP3 and SLC5A4. This may influence their therapeutic effects and adverse reactions. We should pay attention that only AF and its derivatives target the key cytokine IL-6, which means that the significant role of AF and its derivatives should not be disregarded in RA treatment. Another component worth further investigating is LF, as no reports on its functions so far. In our analysis, we found LF shared the common targets, such as SELP, PRKCA, LGALS9, LGALS3, LGALS1 and ABCB1 with AF and PF. Nevertheless, the level of LF in TGP is very low and the reports on the effects of LF are less; how it affects the therapeutic effects of TGP should be further researched.

Previous researches focused on the effects of TGP on immune cells (T, B-lymphocytes, macrophages, dendritic cells, synoviocytes, endothelial cells, etc.). In our analysis, targets of TGP for RA treatment were ABCB1, ALDH1A2, ERAP1, FGF1, FGF2, IL2, IL6, LGALS1/3/8/9, P4HB, PRKCA, SELP, SERPINE1, TNNC1, TNNI2/3, TYR and VEGFA. Biologic processes of TGP were enriched in cell chemotaxis, the regulation of angiogenesis, cell-cell development, vasculature development, leukocyte migration. The regulation of leukocyte migration and angiogenesis causes our interest as they were not well been reported.

Aberrant recruitment and activation of leukocytes were the special character of RA (34). Leukocytes migrating out of the blood, across the endothelium and through inflamed tissues, further causes a cascade of pathological process, especially in the disease early stage (35). In patients with early RA, a substantial number of leukocytes accumulate under the synovium, and the degree of infiltration correlating with disease activity rather than symptom duration (36). Limiting pathogenic leukocytes trafficking into the joint is possible a new treatment. In our analysis, the predicted targets LGALS3/9, VEGFA, FGF1, IL-6, IL-2 and SELP involve in the regulation of leukocyte recruitment, migration and apoptosis. LGALS3 and LGALS9 belong to a family of lectins, which have been linked to important functions such as differentiation, migration, neutrophil activation and intracellular trafficking (37,38). These proteins are highly expressed in neutrophils (37-39). Galectin-3 was reported involved in the activation, adhesion, and apoptosis of neutrophils (40). By increasing disulfide reductase activity at the plasma membrane, galectin 9 alters the plasma membrane redox state and enhances cell migration (41). Galectin 9 also induces cytokine (IL-6, IL-8, IL-12) and chemokine (CCL2) production (39,42,43), by which control the leukocytes trafficking (44,45). VEGFA induces proliferation and migration of vascular endothelial cells, and is essential for angiogenesis. This protein could promote inflammation by facilitating recruitment of inflammatory cells. SELP is one of important cell adhesion molecules, which have roles in cell proliferation, differentiation, motility, trafficking, apoptosis and tissue architecture (46). SELP mediates the rapid rolling of leukocyte rolling over vascular surfaces and also mediates the interaction of activated endothelial cells or platelets with leukocytes with the help of VEGFA (47). Most components in TGP could bind to these targets, meaning a significant regulation of leukocytes accumulating. This mechanism of TGP on RA treatment has not ever been reported so far.

Uncontrolled neovascularization plays a critical role in joint edema and osteoclastic bone erosion (48). Inhibit the angiogenesis process could ameliorated CIA joint vascularization, swelling and bone destruction (49). In our analysis, the predicted targets VEGFA, FGF1, FGF2, SERPINE1, PRKCA and ERAP1 involve in the TGP’s angiogenesis regulation. It is well known that VEGF-A and FGF2 are the key regulators of angiogenesis (50). VEGF and FGF2 binding to their receptors on endothelial cells starts the angiogenesis process (51). VEGF-A promotes angiogenesis through many mechanisms, including activating the endothelial cells, increasing vascular permeability activity, and promoting cell migration of endothelial cells (52). FGF2 could promote the proliferation, migration and vascular tube formation of endothelial cell apoptosis (53). Activated RA macrophages and synovial tissue fibroblasts induce the expression and secretion of VEGFA and FGF2, and further trigger angiogenesis (54). In experimental arthritis models, anti-VEGF antibody delayed the collagen induced arthritis onset, joint swelling and vascularization (55). TNF, IL-1β, IL-6 inhibitors and Cox-2 inhibitors may function through inhibiting angiogenesis (51-53). PRKCA has been reported to play roles in cell adhesion and transformation (56). SERPINE1, the specific inhibitor of urokinase-type plasminogen activator (uPA) also is recognized to play a vital role in angiogenesis by promoting the proliferation of vascular endothelial cells (57). ERAP1 is involved in the final trimming of peptides within the endoplasmic reticulum for presentation by major histocompatibility complex (MHC) class I molecules, which was found to be associated with ankylosing spondylitis in a genome-wide association study of nonsynonymous single nucleotide polymorphisms (58). The role of ERAP1 in angiogenesis and migration in tumor has attracted attention recently, but no such association has ever been reported in RA (59). VEGFA, FGF1, FGF2, SERPINE1, PRKCA and ERAP1 were the predicted targets of TGP, meaning a significant regulation of angiogenesis through which TGP exerts therapeutic effect on RA. Current study of TGP is focusing on the tissue of anti-inflammatory, immunoregulation and analgesic effects, and the study of angiogenesis was poor reported. The anti-angiogenic effect of Paeonia lactiflora Pallas in the retina of diabetic retinal microvasculopathy has been proved through murine model (60). Previous reports about the regulation of PF on angiogenetic effects were opposite in different diseases. PF performed the pro-angiogenetic effect in vitro and accelerating wound healing in vivo (61), while attenuated the in vitro angiogenesis in oxidized low density lipoprotein-induced human umbilical vein endothelial cells (HUVECs) by inhibiting the VEGF/VEGFR2 (62). However, PF shows angiogenic actions on endothelial progenitor cells of ischemic stroke rat model by increasing the secretion of pro-angiogenic factors (63). The effects of PF on the angiogenesis of RA especially in the inflammatory infiltration environment need further researches. The angiogenesis effects of other components in TGP have not been researched.

Patients with RA experience a higher rate of cardiovascular disease (CVD) events compared with controls. Chronic inflammation contributes to this risk and cumulative inflammation predicted coronary plaque progression in RA (64). Overexpression and secretion of galectin-1, galectin-3 and galectin-9 are associated with heart failure and atherosclerosis. Galectin-1 and galectin-9 were proved to be the biomarkers of endothelial activation and dysfunction in rare systemic autoimmune diseases, which are implications for cardiovascular risk (65). It has been well reported about the contribution of inflammatory cytokines IL-6 and IL-2 to the progression of left ventricular dysfunction, myocardial damage and chronic heart failure syndrome (64-66). FGF1, FGF2 and VEGFA are the vascular growth factors. High concentrations of VEGFA, FGF1 and FGF2 have been found in CVD patients with an unfavorable prognosis and disease severity (67). The relationship between VEGFA and the heart is double-sided. VEGFA activates cardiomyocytes, further promotes the morphogenesis, contractility and wound healing. However, it is also associates with inflammation, mechanical stress and cytokine stimulation in the CVD (68). Therefore, these main predicted targets of TGP remind us the cardiovascular protective effects of TGP on RA treatment. Previous research had demonstrated the myocardial protective effects of TPG in both isoprenaline-induced myocardial ischemia rat and acute myocardial infarction rat (69,70). TGP also suppressed myocardial remodeling by regulating the NF-κB pathway (71). The effects of TGP on CVD protection in RA patients lack of clinical evidence in RA, which deserves further investigation.

Our research firstly predicted the inhibiting of leukocyte migration and angiogenesis of TGP. These predictions revealed new treatment for RA. However, certain limitations existed in our study. Firstly, more methods and databases should be used for targets prediction to get more related targets. Second, due to the difficulty of data acquisition, the database may not include all known or unknown targets and protein-protein interactions. This situation could be improved in the future when more data were available. If possible, the differential gene expression in patients only receiving TGP treatment should be detected to prove the predicted targets. However, there were not enough patients to meet the criteria so far. Further clinical and experimental validation is needed.

Conclusions

In the present study, we revealed 20 potential targets of 14 monoterpene glycosides in TGP, and predicted these targets to ameliorate RA through inhibiting leukocyte recruitment and angiogenesis. The role of these targets in CVD events also reminds the possible CVD protection effects of TGP in RA patients. Our research helped to illustrate the mechanisms involved in the action of TGP and may provide a better understanding of its anti-RA effects in terms of inhibiting leukocyte recruitment and angiogenesis.

Acknowledgments

We would like to thank Prof. Minglin Liu for his help in polishing our paper.

Funding: This study was funded by National Natural Science Foundation of China (No. 81903934) and Tianjin Health Science and Technology Project (No. ZC20205).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://apm.amegroups.com/article/view/10.21037/apm-21-2203/coif). All authors report receiving funding support from the National Natural Science Foundation of China (No. 81903934) and Tianjin Health Science and Technology Project (No. ZC20205). The authors have no other conflicts of interest to declare.

Ethical Statement:The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
