Radiofrequency ablation for headache pain: an updated systematic review
Review Article | Symptom Management in Palliative Medicine and Palliative Care

Radiofrequency ablation for headache pain: an updated systematic review

Esha Jain1 ORCID logo, Justin K. Tram2, Morgen A. Owens1, Caroline A. Varlotta1, Kenneth J. Fiala3, Farrah S. Asaad1, Ahish Chitneni4, Alaa Abd-Elsayed5

1Department of Rehabilitation and Human Performance, Icahn School of Medicine at Mount Sinai, New York, NY, USA; 2Albany Medical College, Albany, NY, USA; 3University of Wisconsin School of Medicine and Public Health, Madison, WI, USA; 4Department of Rehabilitation and Regenerative Medicine, New York-Presbyterian Hospital, Columbia and Cornell, New York, NY, USA; 5Department of Anesthesiology, University of Wisconsin School of Medicine and Public Health, Madison, WI, USA

Contributions: (I) Conception and design: E Jain, A Abd-Elsayed; (II) Administrative support: E Jain, MA Owens, KJ Fiala; (III) Provision of study materials or patients: E Jain, JK Tram; (IV) Collection and assembly of data: E Jain, MA Owens, JK Tram, CA Varlotta, FS Asaad; (V) Data analysis and interpretation: E Jain, MA Owens, CA Varlotta; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Esha Jain, MD. Department of Rehabilitation and Human Performance, Icahn School of Medicine at Mount Sinai, 1468 Madison Ave, New York, NY 10029, USA. Email: esha.jain346@gmail.com.

Background: Radiofrequency ablation (RFA) has many treatment capabilities, one of which includes long term management of chronic headache. As a result, it has been increasingly used, especially in cases of refractory headache pain. Headaches can be classified as primary and secondary and can result from a variety of serious conditions. Types of primary headaches include tension, migraine, and cluster headaches whereas secondary headaches include headaches because of infection or vascular disease, and cervicogenic headaches. Both types can result in serious debility and diminished quality of life. The treatment of chronic headache pain commonly consists of lifestyle modifications, oral medications, and injectable medications. The aim of this study was to investigate the primary and secondary outcomes of RFA for chronic headache pain.

Methods: A systematic review was conducted using three different databases including PubMed, MEDLINE, and the Cochrane Database. The key concepts of “radiofrequency ablation” and “headache” were used. The search took place in June 2023, and it included articles from the past twenty years.

Results: Of the 580 articles found, 32 were included in the review. Most studies focused on pain scores, duration of relief, function, and patient satisfaction. In several studies, RFA was used to target various nerves as the pain generator and compared with modalities such as local anesthetic or corticosteroid.

Conclusions: Overall, RFA shows favorable outcomes in the management of chronic headache pain. Therefore, RFA can serve as an alternative treatment option for patients who fail other conservative treatment regimens. Understanding the outcomes of RFA for headache pain can provide patients and clinicians with evidence for the most appropriate treatment strategies.

Keywords: Radiofrequency ablation (RFA); headache; chronic pain


Submitted Sep 06, 2023. Accepted for publication Mar 26, 2024. Published online Jul 05, 2024.

doi: 10.21037/apm-23-528


Highlight box

Key findings

• This study reviews the most current evidence associated with radiofrequency ablation for treatment of chronic headache.

What is known and what is new?

• It is known that radiofrequency ablation can serve as an effective treatment for chronic headache pain.

• This manuscript demonstrates favorable outcomes in terms of pain scores, duration of pain relief, functional outcomes, and patient satisfaction levels.

What is the implication, and what should change now?

• Radiofrequency ablation can serve to reduce pain scores, provide lasting pain relief, increase function, and increase patient satisfaction. Clinicians and patients should consider this treatment as a strategy in refractory, chronic headache pain.


Introduction

Background

Headache is a symptom of multiple pathologies that has been experienced by most people (1). In many cases, headaches can be benign and are not caused by a significant pathology, leading to very little interruption to quality of life and productivity. However, in the case of recurrent headache, individuals and society can experience significant repercussions (2). A multination study used a cross-sectional survey to estimate direct and indirect costs of headache; they predicted the cost of headaches to be well over 100 billion dollars annually with the vast majority of those costs being caused by indirect costs as defined as loss of productivity and work absenteeism (3).

Headaches can stem from a variety of serious conditions and are divided into two classification groups, including primary and secondary headaches. The three most common primary headaches are tension, migraine, and cluster (4). Primary headaches can be quite debilitating as patients can experience significant nausea, photophobia, pulsating pain, and headache that increases with any type of movement. In terms of secondary headaches, the etiology can be a result of serious diseases that require close management. This can include head or neck trauma, cranial vascular disease, substance use or withdrawal, infection such as meningitis, and psychiatric disorders. It is important for clinicians to be able to identify serious, life-threatening signs of secondary headaches. For example, new onset of severe headache may be a diagnosis of intracranial hemorrhage. Therefore, if a patient is presenting with a worsening headache pattern, focal neurological deficits, or systemic illness, the patient should be worked up for serious etiology (5).

Treatment for headache varies according to headache type. As with most ailments, primary headaches are initially treated conservatively—with lifestyle modification and over the counter medication. In the case of migraines and cluster headaches, both abortive and preventative prescription medications may also be employed (4). Other noninvasive procedures such as botulinum toxin may also be considered for treatment of refractory headache (6).

Rationale and knowledge gap

The above treatment strategies may offer some patients functional recovery but require either scheduled medication adherence or frequent in person visits. Radiofrequency ablation (RFA) is a possible longer term—and potentially permanent—treatment for chronic headache. RFA has been in use for facet joint pain since 1971 after it was first used for lumbar facet pain by Norman Shealy (7). The procedure has been adapted for various uses and typically is applied continuously or pulsed. Continuous RFA is administered using high-frequency current to induce necrosis of the targeted tissue. In contrast, pulsed radiofrequency (PRF) is administered using short high voltage burst currents, which has been observed to cause less complications (8). Both techniques are now being studied for the treatment of multiple headache syndromes.

Objective

Previous studies have addressed the use of RFA and PRF for the management of chronic headache. The aim of this review was to identify the evidence in terms of efficacy and outcomes in the management of headache pain. We present this article in accordance with the PRISMA reporting checklist (available at https://apm.amegroups.com/article/view/10.21037/apm-23-528/rc).


Methods

Search strategy

The authors conducted a literature search through PubMed, MEDLINE, and the Cochrane Databases identifying all potentially relevant published articles until the date June 15th, 2023. The following MeSH terms were searched: “headache” and “radiofrequency ablation”, “radiofrequency ablation”, “radio-frequency”, “RF”, “RFA”, “radiofrequency lesioning”, “ablation”, “neurolysis”, “radiofrequency” therapy”, and “pain”, “analgesia”.

Inclusion criteria

The inclusion criteria included adults with chronic headache lasting at least one month, RFA-related technology (continuous or pulsed), and original studies. Review articles that were identified were reviewed for additional sources. Studies utilizing the visual analog scale (VAS) or numeric rating scale (NRS) pain scores were included in the analysis, if papers did not assess the pain scores then the paper was analyzed further in the discussion. Furthermore, functional, physical disability, and patient satisfaction scores were analyzed if present. If use of medical analgesic therapy was assessed in an article, it was also added to the results of this review.

Exclusion criteria

Papers were excluded if they were animal studies, non-English, non-RFA technologies, non-headache pain related, if the targeted nerve was not relevant to treat headache, and if the research was only available in poster or abstract form.

Quality of assessment of studies

Study quality and eligibility was determined by two researchers. In the case of different opinions regarding article relevance, all authors reviewed and reached a consensus. The information extracted includes the following: publication year, author’s last name, clinical diagnosis, study design, sample size, ablation technique used, RFA settings utilized (temperature and duration) if available, mean pain improvement, mean duration of improvement, side effects, secondary outcome if analyzed, and significant conclusions. The articles were additionally assessed through quality through the risk of bias in non-randomized studies of interventions tool (ROBINS) (Figure 1) and risk of bias visualization tool (ROBVIS) (Figure 2) (9).

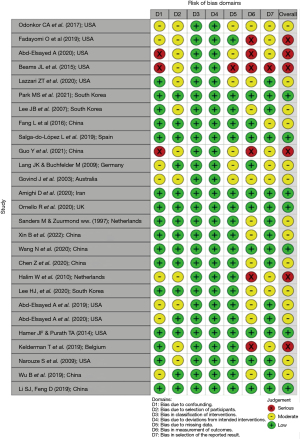

Figure 1 Traffic plot detailing risk of bias in non-randomized studies (ROBINS-I).
Figure 2 Traffic light plots of the risk of bias assessment of the RCT studies (ROBVIS). RCT, randomized controlled trial.

Results

Through the search strategy, 580 studies were initially identified: 330 in PubMed, 154 in MEDLINE, and 82 in the Cochrane Database. Fourteen studies were found in the references of relevant articles found through the search. The PRISMA flow diagram is shown in Figure 3. Non-English and articles with animal studies were excluded. Based on initial screening through title and abstract, 465 articles were excluded. A total of 32 full-text articles were included as they met the inclusion criteria of the study (Table 1).

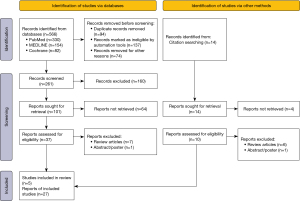

Figure 3 PRISMA flow diagram showing literature search.

Table 1

Study characteristics of articles included in present systematic review

Author (year) Diagnosis Sample size (n) Mean age (years) Female (%) Study design Ablation technique Ablated nerve Mean duration of pain Duration of relief Secondary outcomes (pain, functional, and satisfaction scores) Side effects Conclusion
Odonkor CA et al. (2017) Cervicogenic headache 1 27 100% Case report Bilateral thermal RFA with 90 ℃ with total lesion time of 150 s (25 s ramp time and 125 s burn time) C1–C2 joint 9 years >12 weeks VAS improved from 9 to 7. NDI decreased by 10% from baseline score None C1–C2 joint ablation may be considered as a reasonable long-term treatment option for cervicogenic headaches
Park MS et al. (2021) Cervicogenic headache 57 49.8 73.70% Retrospective PRF at 42 ℃ for 2 minutes (50 V, 240 pulses) Bilateral C3 to C5 medial branches 47.7 months 12 months VAS decreased from baseline 6.21 to post- ablation 1.54 5 pts with transient hypo- esthesia, nausea, or dizziness Patients with intractable cervicogenic headache may experience long-lasting relief with PRF targeting the mid-cervical medial branches
Sanders M & Zuurmond WW (1997) Episodic (group a) and chronic (group b) cluster headache Group A: 56, group B: 10 Group A: 33.4, group B: 33.6 Group A: 16%, group B: 20% Prospective observational Three RFA lesions at 70 ℃ for 60 s. This was performed within 10 days after symptom onset if episodic cluster headache SPG 32.8 months Complete relief of pain was achieved 60.7% of individuals in Group A and in 30% of individuals in Group B at 29 and 24 months post-procedure, respectively N/A 8 pts had temporary post- operative epistaxis, 11 with cheek hematoma, 4 with a partial RF lesion of the maxillary nerve, 9 with hypesthesia of the palate, all resolved within 3 months RFA to the SPG by the infrazygomatic approach may provide relief for patients with cluster headache unresponsive to medication
Xin B et al. (2022) Refractory migraine, cluster headache 24 50.33 58.30% Retrospective 90 ℃ for 120 s SPG 9.71 years >24 months In patients with migraine, VAS ranged at baseline from 2–6 and decreased to 1–2 post-procedure. The quality of sleep (PSQI score) improved in both groups Hypertension, arthrolithiasis, ophthalmoparalysis RFA of the SPG is a safe, reliable treatment option for individuals with refractory migraines and cluster headaches with rapid onset and long duration
Wang N et al. (2020) Refractory cluster headache 74 48 56.76% Retrospective Low temperature plasma RFA performed at 45 W for 30 s, and repeated after 30 s pause SPG 12.8 years >24 months (duration of study) N/A 38.7% of pts experienced facial numbness immediately after ablation, 2.7% of pts had mild masseter weakness, 12% had cheek hypoesthesia, and 2.7% had cheek hematoma, all self-resolved within 3 months Targeted low temperature plasma RFA to the SPG is an effective and safe procedure for refractory cluster headache
Wu B et al. (2019) Unilateral cervicogenic headache 27 47.5 51.80% Retrospective Coblation performed 100 kHz, 52 Watts, 6–10 s/cycle, six ablations for one min each C2 cervical nerve root 8.85 months >24 weeks Baseline mean VAS was 7.38, with decrease to 1.85 one day post-procedure, 2.0 at three days, 2.62 at one week, 2.62 at two weeks, 2.77 at four weeks, 2.85 at 8 weeks, 2.96 at 12 weeks, 3.04 at 16 weeks, 3.12 at 20 weeks, 3.08 at 24 weeks One pt had transient neck torticollis for three days, and two patients had ecchymotic lesion at needle puncture site C2 nerve coblation produces significant and long-lasting relief for individuals with cervicogenic headache
Lazzari ZT et al. (2020) Cluster headache 14 39.5 35.70% Case series PRF for 10 min, 42 ℃, 100 V, pulse width 20 ms, and pulse frequency of 2 Hz SPG 5.6 years 24 weeks N/A 35.7% of pts reported temporary post-procedure worsening of cluster headache frequency/intensity, 14% with jaw stiffness and soreness, one pt with intranasal bleeding, and one pt with facial hematoma PRF of the SPG may provide relief for chronic cluster headache unresolved with medication
Lee JB et al. (2007) Chronic cervicogenic headaches 30 54 46.67% Prospective observational Radiofrequency neurotomy 80 ℃ for 90 s Medial branch of posterior primary ramus at C3–C4 >6 months 73.3% of pts pain relief by greater than 75% at 12 months Mean preoperative VAS: 6.8 Immediate post-procedure ataxia in 13.3%, which resolved within a few days, posterior neck soreness in 40% of pts, resolving within one week post-procedure Radiofrequency cervical facet joint neurotomy provides pain relief for individuals with chronic cervicogenic headache
Average headache-days per week decreased from 6.2 to 2.8 days
Fang L et al. (2016) Refractory cluster headaches 16 Episodic CH: 43.8, chronic CH: 48.0 12.50% Prospective observational PRF 42 ℃ for two sections each 120 s SPG Episodic CH: 7.7 years, chronic CH: 20.0 years >9 months N/A None Individuals with refractory episodic cluster headaches may benefit from computerized tomography-guided PRF of SPG
Yang Y et al. (2015) Chronic migraine 40 43.5 82.50% Randomized control trial PRF C2–C3 posterior medial branches PRF group: 15.25 years; control group: 18.75 years >6 months when effective VAS decreased by 2.52 points in treatment group compared to 0.55 points in sham group at the 6-months Mild pain at injection site in one pt, which self resolved within 6 hours PRF on C2–C3 posterior medial branches may provide relief from cluster headaches without obvious adverse effects
Mean decrease of headache duration in the treatment group was 8.9 days per month
Salgado-López L et al. (2019) Cluster headache 37 40 PRF: 12.5%, RFA: 30.7% Prospective observational PRF: 42 ℃, 40 V, 120 s. Conventional RF: 80 ℃ for 60 s SPG 4 years The mean effectiveness period was 5.21 mo with conventional RFA and 4.69 mo with PRF N/A None RFA of the SPG is a safe modality that may provide pain relief. Even though conventional RFA provided longer relief, there is greater theoretical risk of thermal complications
Chen Z et al. (2020) Episodic and chronic cluster headache 59 Episodic CH: 31.2, chronic CH: 38.5 Episodic CH: 15.56%, chronic CH: 14.28% Retrospective PRF: 42 ℃ for 120 s SPG Episodic CH: 49.4 months, chronic CH: 54.2 months Episodic CHs: 92.3% at 9 mo, 66.4% at 12 mo, 31.4% at 14 mo, and 18.6% at 27 mo N/A Six pts developed numbness along the maxillary nerve distribution The SPG-targeted PRF procedure is effective, safe, and can be repeated for recurrent cluster headaches
Halim W et al. (2010) Cervicogenic headache 86 50 62.80% Retrospective PRF: 45 V, 2 Hz, and 10 ms for 10 min C1–C2 9.4 years The percentage of patients who had >50% pain relief at 2 months, 6 months, and 1 year was 50% (43/86), 50% (43/86), and 44.2% (38/86), respectively. Baseline VAS score: 8.5 One pt complained of increased severity of occipital headache for several hours RFA of the lateral C1–2 facet joint is feasible and safe for cervicogenic headaches nonresponsive to other techniques
Guo Y et al. (2021) Cluster headache Episodic CH: 50; chronic CH: 26 Episodic CH: 48.4; chronic CH: 48.5 Episodic CH: 56%; chronic CH: 42.3% Prospective observational Low temperature PRF, 45 W, 30 s, twice, 30 s interval between SPG Episodic CH: 11.7 years; chronic CH: 6.8 years Chronic CH: clinical improvement 92.3% and 73.1% of pts at 12 and 24 months follow up. Episodic CH, improvement in 84% and 68% of pts at 12 and 24 months after the operation N/A 20 pts with episodic CH and 10 with chronic CH had palate or teeth numbness after the LTPRA. Ptosis was found in 2 cases with episodic cluster headache, 1 recovered in 3-month but another 1 did not during 24-month follow-up Low temperature PRF had satisfactory effectiveness and safety in the treatment of chronic and episodic cluster headaches
Bovim G et al. (1992) Cervicogenic headache 50 45.1 86% Randomized, sham-controlled, double-blinded “Liberation” operation (“neurolysis”) Greater occipital nerve 10.1 years 1 year N/A None This present study shows that other therapeutic approaches should be searched for in cervicogenic headache aside from neurolysis
Lee HJ et al. (2020) Cervicogenic headache 45 63 53.33% Retrospective Three cycles of PRF: 42 ℃, each cycle lasting 90 s C2 DRG 12 months 13/45 (28.9%), 17/45 (37.8%), and 18/45 (40.0%) with >50% pain relief after 1, 3, and 6 months N/A None reported C2 DRG PRF may be an effective treatment for patients with cervicogenic headache, particularly in patients who have experienced a 50% pain reduction with a previous C2 DRG block
Li SJ and Feng D (2019) Cervicogenic headache 139 47.5 34.50% Retrospective PRF at 42 ℃, at 60 Hz for 5 min C2 DRG 50.4 months At 2 years, significant reduction was found in the both groups (11.25 versus 40.00) Follow-up VAS scores for the combination PRF and steroid group were lower (n=20) compared to the steroid only group (n=60) at 2 years None The combination of PRF for the C2 DRG and epidural steroid injection is a relatively safe therapy for cervicogenic headache
No participants in combined group reported inability to work at 2 years compared to 50% of pts with epidural steroid injection
Abd-Elsayed A et al. (2019) Chronic headache 168 43.6 75.59% Retrospective RFA: 80 ℃ for 180 s. 94.7% of the 244 procedures were non-pulsed and 5.3% were pulsed 33.6% bilateral GON/LON 16% bilateral supraorbital and supratrochlear nerve, 7.4% right GON/LON N/A 182.8 days N/A 3 pts with swelling of eyelids after bilateral supraorbital and supratrochlear RFA, 2 with worsening of symptoms, 1 with superficial infection at site of procedure RFA is a safe and effective treatment for patients with chronic headache conditions associated with pericranial neuralgias
Abd-Elsayed A et al. (2020) Chronic headache 211 45 75.35% Retrospective N/A Most commonly bilateral greater and lesser occipital nerves (33.7%) followed by bilateral supraorbital and supratrochlear nerves (14.7%) N/A 199 days N/A N/A RFA continues to show strong results in the treatment of headaches and leads to decreased pain scores and decreased frequency of emergency visits
Stovner LJ et al. (2004) Cervicogenic headache 12 Age range provided: 34–64 years old 50% Randomized control trial 3–4 lesions at 85 ℃ for 60 s Ipsilateral facet joints C2–6 5.5 years At 3 months, 4 patients in the treatment group and 2 in the sham group had clinical response. At 24 months 1/5 pts in the treatment group and 2/5 in the sham group had a similar effect N/A N/A This procedure may not beneficial in cervicogenic headache
Lang JK and Buchfelder M (2010) Chronic headache 31 46 38.70% Prospective observational RFA: 80 ℃ for 90 s Third occipital nerve and the medial branches of the cervical dorsal rami of C3 and C4 >12 months 125.11 days VAS improved day 1 post-procedure, pain relief >70% in all procedures. In 38 procedures (62.2%) pain relief was 100% All participants complained of numbness in the neck or the occipital region. One participant complained of burning dysesthesia over a coagulated facet Our results indicate that this therapy may be effective in individuals with underlying diseases of primarily degenerative origin
11 patients on long-term sick leave returned to work. 8 patients returned full-time
Govind J et al. (2003) Third occipital headache 49 Not specified 57.14% Prospective observational 80 to 85 ℃ for 90 s with an oblique and sagittal pass Occipital nerve N/A 297 days N/A Slight ataxia, numbness, and temporary dysaesthesia and did not require intervention Use of the revised procedure greatly improved the rather low success rate previously encountered with third occipital neurotomy
Haspeslagh SR et al. (2006) Cervicogenic headache 30 RF group: 47.5; control group: 49.1 RF group: 73.33%; control group: 73.33% Randomized control trial RFA: 60 s 67 ℃ lesion Posterior primary rami of the facet joints C3–C6 >2 years 16 weeks after the initial treatment, the reduction in pain of >50% rate in Group I was 66.7%, and 55.3% in Group II (not statistically significant). After 1 year, was no difference of the success rate in Group I (53.3%) and Group II (50%) The VAS difference between the different time points (8 weeks, 16 weeks, 6 months, 12 months) compared to the initial VAS showed an improvement at each time point None This study did not demonstrate evidence that RFA of cervical facet joints and upper DRG is a better treatment than the infiltration of the greater occipital nerve, followed by TENS for patients fulfilling the clinical criteria of cervicogenic headache
The amount of headache days on the different time points compared to pre-procedure decreased during the study
Hamer JF & Purath TA (2014) Cervicogenic headache or occipital neuralgia 44 46.9 88.64% Retrospective RFA: 80 ℃ for 90 s C2 DRG and/or third occipital nerves N/A 5–6 months 92.5% of pts reported they would undergo the procedure again if severe symptoms returned 12.5% reported hyperesthesia along the greater and lesser occipital nerve for 1 and 6 months. 1 pt reported occipital hyperesthesia worse than her headaches. 1 pt had exacerbation of her baseline dizziness Radiofrequency ablation of the C2 DRG and/or third occipital nerve can provide many months of greater than 50% pain relief in the vast majority of recipients with an expected length of symptom improvement of 5–6 months
Cohen SP et al. (2015) Occipital neuralgia or migraine with occipital nerve tenderness 81 RF group: 41.67; control group: 41.08 RF group: 47.62%; control group: 46.15% Randomized control trial RFA 20 ms pulses in a 1-s cycle, 120 s duration per cycle, 42 ℃, for 3 cycles Greater occipital nerve RF group: 6.44 years; control group: 5.36 years 6 months PRF group had reduction in headache frequency and higher patient satisfaction rates, though this did not reach significance at any interval Steroid group: 1 pt with dizziness for 2 days, 2 pts with swelling at the injection site, 2 pts with temporary worsening of their headache, 1 pt with vomiting which self resolved, and new-onset eye pain and blurred vision not attributable to steroid. PRF: 1 pt with worse headaches, 1 pt with swelling, and 1 pt with rash RFA can provide greater pain relief for occipital neuralgia and migraine with occipital nerve tenderness than steroid injections but the superior analgesia may not be accompanied by comparable improvement on other outcome measures
Kelderman T et al. (2019) Cluster headache 21 Median: 50 Not specified Retrospective PRF 45 V for 240 s with max temp 42 ℃ Ganglion and/or nerve root of C1 and C2 Median 5 years 3 months 10 pts (47.6%) reported no meaningful effect, 4 pts (19%) reported a meaningful reduction of <50%, and 7 pts (33.3%) reported a reduction in headache burden of at least 50% in the 3 months post-procedure 1 pt with increase in contralateral attacks. 1 pt with recurrence of contralateral cluster attacks 11 months after the procedure Upper cervical PRF appears to be a safe and effective treatment for individuals with refractory chronic cluster headaches
Abd-Elsayed A (2020) Migraine headache 13 35.2 92.30% Case series 80 ℃ for 180 s Supraorbital, supratrochlear, greater and lesser occipital nerves bilaterally Not specified 331.2 days Average improvement of 70.5% post-procedure N/A Targeting the noted eight nerves by other interventions, such as neuromodulation, cryotherapy, and more may also improve pain from bilateral migraine headache
Narouze S et al. (2009) Cluster headache 15 Not specified Not specified Retrospective Two radiofrequency lesions at 80 ℃ for 60 s each Sphenopalatine ganglion Not specified 18 months The PDI improved from 55 (baseline) to 17.2 and 25.6 at 6 and 12 months respectively (P<0.001) 50% (7/15) reported temporary paresthesias in the upper gums and cheek that lasted for 3–6 weeks with complete resolution. In only one patient, a coin-like area of permanent anesthesia over his cheek persisted Percutaneous radiofrequency ablation of the sphenopalantine ganglion is an effective modality of treatment for patients with intractable chronic cluster headaches
Amighi D et al. (2020) Cluster headache 19 46 47.83% Prospective observational RFA: 80 ℃, duration: 90 s 2 cycles/point, and at two close points Sphenopalatine fossa >6 months 6 months N/A 1 pt demonstrated soft tissue infection. 1 pt with sensory deficit over the maxillary dermatome of the trigeminal nerve SPG RFA can effectively decrease the pain intensity of the patients with cluster headache for at least several months
Beams JL et al. (2015) Hemicrania continua 4 Age range 30–49 75% Case series N/A Atlanto-axial joint, C2 DRG or SPG Not specified 2.5 years All participants stated they would be willing to repeat their procedures again None There are several radiofrequency ablation procedures as effective as indomethacin for hemicrania continua
Fadayomi O et al. (2019) Cluster headache 1 32 0% Case report PRF: 42 ℃ for 90 s C2 DRG 3 years 8 months at time of last follow up N/A None Ultrasound-guided C2 DRG PRF may be beneficial in patients with cluster headache
Ornello R et al. (2020) Chronic unilateral neuralgiform headache attacks with SUNCT and SUNA 9 49.56 66.67% Prospective observational PRF: 10 min, 42 ℃, 100 V, pulsed width of 20 ms, 2 Hz SPG Median duration: 4 years 7 pts responded to the treatment, 1 pt had 40% improvement, 1 pt without improvement N/A None PRF of the SPG is a safe and effective treatment modality for chronic unilateral neuralgiform headache attacks with SUNCT and SUNA

pt, patient; mo, month; RFA, radiofrequency ablation; VAS, visual analog scale; NDI, neck disability index; PRF, pulsed radiofrequency ablation; SPG, sphenopalatine ganglion; RF, radiofrequency ablation; PSQI, Pittsburgh sleep quality index; CH, cluster headache; LTPRA, low-temperature plasma radiofrequency ablation; DRG, dorsal root ganglion; GON, greater occipital nerve; LON, lesser occipital nerve; TENS, transcutaneous electrical nerve stimulation; PDI, pain disability index; SUNCT, short-lasting unilateral neuralgiform headache attacks with conjunctival injection and tearing; SUNA, short-lasting unilateral neuralgiform headaches with autonomic symptoms.

Characteristics of the studies and quality assessment

The studies included with their characteristics are shown in Table 1. The studies compared included 13 retrospective studies, 9 prospective studies, 3 case series, 2 case reports, and 5 randomized control studies. Many of the included studies were retrospective studies. The sample sizes for quantitative studies ranged from 1 to 211 (10-12). Study quality ranged from low risk of bias to serious risk of bias. Most studies focused on chronic headache pain for at least 2 years (10,11,13-31). There were 10 studies from the United States (10-12,18,29,32-36). The remaining 22 studies were from other countries (13-17,19-28,30,31,37-41).

Evidence associated with the use of RFA in treatment of headache

Targeted nerves

Eleven of the 32 studies targeted the sphenopalatine ganglion (SPG) (14-16,18,19,21,22,24,31,36,37). Seven studies targeted medial branches of the cervical facet joints (10,13,20,23,27,28,41). Six studies targeted a combination of nerves (12,30,32-35,39). Three studies targeted the greater occipital nerve (25,29,38). Three studies targeted the C2 dorsal root ganglion (DRG) (11,26,40). The remaining study targeted the C2 cervical nerve root (17).

Pain scores

Ten of the 32 studies collected pain scores of the patients at various time points to assess RFA treatment outcomes (10,13,15,17,20,23,26,28,39,41).

Duration of analgesia

Short-term and long-term relief was documented in all 32 studies. Three of the 32 studies found RFA provided short-term pain relief (10,27,30). Twenty-four of the 32 studies found RFA provided more long-term relief including relief up to four months (39), five months (21), six months (12,18,20,29,33,35,37), eight months (11), nine months (19,22,38), and almost one year or more (13-16,25,26,32,34,36,41). The remaining five studies demonstrated both short-term and long-term relief from RFA (23,24,28,31,40).

Functional outcomes

Eleven of the 32 studies investigated functional outcomes after RFA treatment. Four of these studies investigated headache frequency or burden (28,30,32,41). Two studies examined headache duration changes (20,29). The remaining studies used functional measurements including the neck disability index (NDI) (10), Pittsburgh sleep quality index (PSQI) (15), pain disability index (PDI) (36), and the ability to work (26,39).

Patient satisfaction levels

Three of the 32 studies reported on patient satisfaction levels (29,34,35). In each study, patients were assessed whether they would undergo treatment again.

RFA administration technique

One of the 32 studies directly compared RFA versus PRF on the SPG as a cause of headache pain (21). In the study, the mean effectiveness period was reported.


Discussion

This review sought to investigate and characterize the outcomes of RFA on patients with chronic headache pain. We found 32 studies that suggest that RFA can reduce pain scores, provide lasting pain relief, increase function, and increase patient satisfaction. Nearly all studies had a reduction in pain reflecting short-term and long-term improvement of pain relief. Similarly, several studies showed improvement of disability scores or functional scores of patients after RFA. Lastly, a few of these studies examined patient satisfaction of RFA treatment suggesting that RFA was associated with high levels of satisfaction.

Targeted nerves

The majority of the 32 studies solely targeted the SPG suggesting that this nerve can be targeted for chronic headache pain (14-16,18,19,21,22,24,31,36,37). The remaining studies targeted various nerves or areas suggesting that there is not one consistent target for ablation for chronic headache pain. Previous studies have found occipital nerves and pericranial nerves as optimal targets for RFA (12,42,43).

Pain relief scores

About a third of the studies collected pain scores through the VAS of the patients at various time points to assess RFA treatment outcomes (10,13,15,17,20,23,26,28,39,41). All these studies found a reduction in VAS scores suggesting that RFA for chronic headache reduces overall pain scores from baseline. For instance, Yang et al. and Haspeslagh et al. conducted randomized controlled trial (RCT) studies and found that VAS scores improved at the time of follow-up, respectively (20,28). Specifically, Yang et al. found VAS scores were decreased by 2.52 points in the treatment group compared to 0.55 points (P<0.001). Studies that targeted various cervical joints including C1–C2 (10,23) and cervical medial branches (13,39) demonstrated a similar reduction in VAS scores suggesting various RFA targets can reduce pain scores. Odonkor et al. found a VAS score improvement from 9 to 7 (10). Halim et al. reported an average VAS score of 8.5 and responders had more than 50% pain relief (23). Park et al. found VAS scores decreased from baseline of 6.2 to post ablation 1.54 (13). Lastly, Lang et al. reported 70% improvement in pain relief, with VAS improvement 1 day post procedure (39). PRF of the C2 DRG was also shown to reduce VAS scores at 12 months (41) and 2 years (26). Lastly, VAS scores were reduced through ablation of the SPG (15) and C3 cervical root (17) suggesting that higher cervical targets can provide headache pain relief. Xin et al. found that VAS scores decreased from a range of 2–6 before treatment to 1–2 following treatment with RFA of the SPG (15). Wu et al. found that VAS scores reduced from 7.38±1.13 to 2.96±0.96 and 3.08±1.38 at 12 weeks and 24 weeks, respectively (17).

Duration of analgesia

In terms of pain relief, short-term relief is defined as up to three months whereas long-term relief is defined as beyond three months (44). All studies documented duration of pain relief through follow-up. Few studies documented short-term relief (10,27,30), most studies documented long-term relief (11-16,18-22,25,26,29,32-39,41), and several studies documented both short-term and long-term relief (23,24,28,31,40).

In terms of short-term relief, Odonkor et al. found that after RFA of the C1-C2 medial branch nerve, the patient had relief of at least three months (10). Likewise, Stovner et al. performed an RCT and found that RFA of medial branch nerves from C2-C6 on the ipsilateral side of pain, most patients had response in the first three months (27). Kelderman et al. performed a retrospective study in which PRF of the nerve root or ganglion of C1–C2 gave short-term pain relief (30). These outcomes suggest ablation of higher medial branches and nerve roots can deliver short-term pain relief.

Many studies found RFA provided long-term pain relief ranging from four months (39) to over one year (13-16,25,26,32,34,36,41). Lang et al. performed a prospective observational study in which RFA was conducted on the occipital nerve and medial branches of C3 and C4. The authors found that patients had an average relief of about four months (39). Salgado-López et al. performed a similar designed study of PRF and RFA on the SPG. The authors found a mean relief of about five months (21). In the studies that found pain relief up to six months, various nerves were targeted including cervical medial branches, SPG, greater occipital nerves with either RFA and PRF suggesting that targeted nerve and technique do not correlate with duration of relief (12,18,20,29,33,35,37). Fadayomi et al. performed a case report of PRF on the C2 DRG of a patient and found pain relief up to eight months (11). Several studies measured pain relief up to nine months (19,22,38) and up to one year or more (13-16,25,26,32,34,36,41). These studies similarly did not have one common target or technique suggesting that RFA and PRF is effective for pain relief but there is not a superior method.

The remaining studies demonstrated both short-term and long-term relief from RFA suggesting that ablation for chronic headache pain can deliver both short-term and long-term pain relief (23,24,28,31,40).

Functional status

Functional status was assessed in most studies through headache frequency or burden (28,30,32,41), headache duration changes (20), functional measurements such as the NDI (10), PSQI (15), PDI (36), and the ability to work (26,39). In terms of headache frequency, several studies demonstrated a decrease in headache days from baseline suggesting more pain free days for activities of daily living (28-30,32,41). Yang et al. similarly found in a group of 40 participants comparing sham treatment and PRF, headache duration days significantly decreased (20). Odonkor et al. found NDI decreased from 10% from baseline after RFA treatment of the C1-C2 facet joint (10). Xin et al. performed a retrospective study on 24 patients to evaluate CT-guided RFA on the SPG and found that the quality of sleep (PSQI) scores decreased in both migraine and cluster headache patients (15). Narouze et al. performed a retrospective study on 15 patients who had RFA on SPG and found that PDI significantly improved at 6 and 12 months (36). Function was also assessed through ability to work as participants reported an increased ability to work at follow-up (26,39).

Patient satisfaction

Chronic headache pain can highly impact one’s quality of life (45). Patient satisfaction was observed in several studies and reported through various scales (29,34,35). Cohen et al. performed an RCT with 81 participants to compare steroid injections with PRF. The authors used the Likert scale to compare treatments and measure patient satisfaction. Although there was no significant difference between groups, patient satisfaction did increase in the PRF group, suggesting that patients were satisfied at the end of treatment (29). Similarly, Hamer et al. performed a single center retrospective study of 40 participants to evaluate RFA of the C2 DRG and/or third occipital nerves. The authors reported that 92.5% of patients would repeat the procedure if his or her severe symptoms recurred suggesting patients were highly satisfied with results (35). Lastly, Beams et al. described a series of four patients with indomethacin-responsive hemicrania who underwent RFA of the C2 ventral ramus, C2 DRG, or SPG. All patients stated they would repeat RFA treatment as they had a significant headache response (34).

RFA administration technique

Chronic headache pain can be treated with RFA or PRF. Salgado-López et al. directly compared RFA versus PRF on the SPG in a prospective study. The authors found in 37 patients, the mean effectiveness period of RFA versus PRF was 5.21 versus 4.69 months, respectively, with no significant difference (21). Both RFA and PRF have been observed to be successful for headache pain, however, more studies are needed to directly compare the approaches.

Strengths and limitations

This study serves as an update to the literature of the evidence associated with RFA for management of chronic headache pain. Previous systematic reviews have been performed on the topic (46); however, this study uniquely highlights outcomes of ablation such as targeted nerves, pain scores, pain relief duration, functional status, and patient satisfaction levels. Understanding these outcomes is important in clinical practice to improve and optimize patient care. This review had several limitations including the retrospective nature of most studies and the lack of consistency of approach and targeted nerves. Further studies are needed to establish a headache RFA treatment protocol and provide clinicians with stronger strategies for treatment.


Conclusions

This study reviewed the evidence associated with RFA for treatment of chronic headache. RFA is a favorable treatment for headache that has shown benefit through pain scores, duration of pain relief, functional outcomes, and patient satisfaction levels. All the included studies show positive outcomes towards RFA for management of headache. This study was limited by its retrospective nature as each study had varying methodology. Additional, larger RCT studies are needed to better analyze the efficacy and safety of RFA in patients with chronic headache.


Acknowledgments

Funding: None.


Footnote

Provenance and Peer Review: This article was commissioned by the editorial office, Annals of Palliative Medicine, for the series “Advances in Radiofrequency Ablation”. The article has undergone external peer review.

Reporting Checklist: The authors have completed the PRISMA reporting checklist. Available at https://apm.amegroups.com/article/view/10.21037/apm-23-528/rc

Peer Review File: Available at https://apm.amegroups.com/article/view/10.21037/apm-23-528/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://apm.amegroups.com/article/view/10.21037/apm-23-528/coif). The series “Advances in Radiofrequency Ablation” was commissioned by the editorial office without any funding or sponsorship. A.A.E. served as the unpaid Guest Editor of the series and serves as an unpaid editorial board member of Annals of Palliative Medicine from June 2022 to May 2024. A.C. and F.S.A. received honorarium fees from Pain Medicine News. A.A.E. received the consulting fees from Avanos. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


References

  1. Jensen R, Stovner LJ. Epidemiology and comorbidity of headache. Lancet Neurol 2008;7:354-61. [Crossref] [PubMed]
  2. Leonardi M, Ruiz De La Torre E, Steiner TJ, et al. Value of treatment of headache patients and need to improve headache patients' journey. Neurol Sci 2018;39:115-6. [Crossref] [PubMed]
  3. Linde M, Gustavsson A, Stovner LJ, et al. The cost of headache disorders in Europe: the Eurolight project. Eur J Neurol 2012;19:703-11. [Crossref] [PubMed]
  4. Hale N, Paauw DS. Diagnosis and treatment of headache in the ambulatory care setting: a review of classic presentations and new considerations in diagnosis and management. Med Clin North Am 2014;98:505-27. [Crossref] [PubMed]
  5. Hainer BL, Matheson EM. Approach to acute headache in adults. Am Fam Physician 2013;87:682-7. [PubMed]
  6. Jensen R, Olesen J. Tension-type headache: an update on mechanisms and treatment. Curr Opin Neurol 2000;13:285-9. [Crossref] [PubMed]
  7. Russo M, Santarelli D, Wright R, et al. A History of the Development of Radiofrequency Neurotomy. J Pain Res 2021;14:3897-907. [Crossref] [PubMed]
  8. Jena BR, Paswan A, Singh Y, et al. A comparative study of continuous versus pulsed radiofrequency discectomy for management of low backache: Prospective randomized, double-blind study. Anesth Essays Res 2016;10:602-6. [Crossref] [PubMed]
  9. McGuinness LA, Higgins JPT. Risk-of-bias VISualization (robvis): An R package and Shiny web app for visualizing risk-of-bias assessments. Res Synth Methods 2021;12:55-61. [Crossref] [PubMed]
  10. Odonkor CA, Tang T, Taftian D, et al. Bilateral Intra-Articular Radiofrequency Ablation for Cervicogenic Headache. Case Rep Anesthesiol 2017;2017:1483279. [Crossref] [PubMed]
  11. Fadayomi O, Kendall MC, Nader A. Ultrasound-Guided Pulsed Radiofrequency of C2 Dorsal Root Ganglion as Adjuvant Treatment for Chronic Headache Disorders: A Case Report. A A Pract 2019;12:396-8. [Crossref] [PubMed]
  12. Abd-Elsayed A, Falls C, Luo S. Radiofrequency Ablation for Treating Headache: a Follow-up Study. Curr Pain Headache Rep 2020;24:15. [Crossref] [PubMed]
  13. Park MS, Choi HJ, Yang JS, et al. Clinical Efficacy of Pulsed Radiofrequency Treatment Targeting the Mid-cervical Medial Branches for Intractable Cervicogenic Headache. Clin J Pain 2021;37:206-10. [Crossref] [PubMed]
  14. Sanders M, Zuurmond WW. Efficacy of sphenopalatine ganglion blockade in 66 patients suffering from cluster headache: a 12- to 70-month follow-up evaluation. J Neurosurg 1997;87:876-80. [Crossref] [PubMed]
  15. Xin B, Xie K, Luo G, et al. Long-Term Follow-Up Safety and Effectiveness of CT-Guided Radiofrequency Thermocoagulation of Sphenopalatine Ganglion in Refractory Headache Treatment. Pain Ther 2022;11:1011-23. [Crossref] [PubMed]
  16. Wang N, Dou Z, He L, et al. Sphenopalatine ganglion-targeted low-temperature plasma radiofrequency ablation in the treatment of refractory cluster headache. Wideochir Inne Tech Maloinwazyjne 2020;15:313-8. [Crossref] [PubMed]
  17. Wu B, Yue L, Sun F, et al. The Feasibility and Efficacy of Ultrasound-Guided C2 Nerve Root Coblation for Cervicogenic Headache. Pain Med 2019;20:1219-26. [Crossref] [PubMed]
  18. Lazzari ZT, Palmisani S, Hill B, et al. A prospective case series of sphenopalatine ganglion pulsed radiofrequency therapy for refractory chronic cluster headache. Eur J Neurol 2020;27:1190-6. [Crossref] [PubMed]
  19. Fang L, Jingjing L, Ying S, et al. Computerized tomography-guided sphenopalatine ganglion pulsed radiofrequency treatment in 16 patients with refractory cluster headaches: Twelve- to 30-month follow-up evaluations. Cephalalgia 2016;36:106-12. [Crossref] [PubMed]
  20. Yang Y, Huang X, Fan Y, et al. Efficacy of Pulsed Radiofrequency on Cervical 2-3 Posterior Medial Branches in Treating Chronic Migraine: A Randomized, Controlled, and Double-Blind Trial. Evid Based Complement Alternat Med 2015;2015:690856. [Crossref] [PubMed]
  21. Salgado-López L, de Quintana-Schmidt C, Belvis Nieto R, et al. Efficacy of Sphenopalatine Ganglion Radiofrequency in Refractory Chronic Cluster Headache. World Neurosurg 2019;122:e262-9. [Crossref] [PubMed]
  22. Chen Z, Ren H, Zhao C, et al. Long-term Outcomes of Computerized Tomography-Guided Sphenopalatine Ganglion-Targeted Pulsed Radiofrequency for Refractory Cluster Headache. Pain Pract 2020;20:289-96. [Crossref] [PubMed]
  23. Halim W, Chua NH, Vissers KC. Long-term pain relief in patients with cervicogenic headaches after pulsed radiofrequency application into the lateral atlantoaxial (C1-2) joint using an anterolateral approach. Pain Pract 2010;10:267-71. [Crossref] [PubMed]
  24. Guo Y, Wang X, Bian J, et al. Low-temperature plasma radiofrequency ablation for the management of refractory cluster headache. Wideochir Inne Tech Maloinwazyjne 2021;16:362-8. [Crossref] [PubMed]
  25. Bovim G, Fredriksen TA, Stolt-Nielsen A, et al. Neurolysis of the greater occipital nerve in cervicogenic headache. A follow up study. Headache 1992;32:175-9. [Crossref] [PubMed]
  26. Li SJ, Feng D. Pulsed radiofrequency of the C2 dorsal root ganglion and epidural steroid injections for cervicogenic headache. Neurol Sci 2019;40:1173-81. [Crossref] [PubMed]
  27. Stovner LJ, Kolstad F, Helde G. Radiofrequency denervation of facet joints C2-C6 in cervicogenic headache: a randomized, double-blind, sham-controlled study. Cephalalgia 2004;24:821-30. [Crossref] [PubMed]
  28. Haspeslagh SR, Van Suijlekom HA, Lamé IE, Kessels AG, van Kleef M, Weber WE. Randomised controlled trial of cervical radiofrequency lesions as a treatment for cervicogenic headache BMC Anesthesiol 2006;6:1. [ISRCTN07444684]. [Crossref] [PubMed]
  29. Cohen SP, Peterlin BL, Fulton L, et al. Randomized, double-blind, comparative-effectiveness study comparing pulsed radiofrequency to steroid injections for occipital neuralgia or migraine with occipital nerve tenderness. Pain 2015;156:2585-94. [Crossref] [PubMed]
  30. Kelderman T, Vanschoenbeek G, Crombez E, et al. Safety and efficacy of percutaneous pulsed radiofrequency treatment at the C1-C2 level in chronic cluster headache: a retrospective analysis of 21 cases. Acta Neurol Belg 2019;119:601-5. [Crossref] [PubMed]
  31. Ornello R, Palmisani S, Murphy M, et al. Sphenopalatine Ganglion Pulsed Radiofrequency for the Treatment of Refractory Chronic SUNCT and SUNA: A Prospective Case Series. Headache 2020;60:938-45. [Crossref] [PubMed]
  32. Abd-Elsayed A. The ALblation Technique for Treating Migraine Headache. Curr Pain Headache Rep 2020;24:29. [Crossref] [PubMed]
  33. Abd-Elsayed A, Nguyen S, Fiala K. Radiofrequency Ablation for Treating Headache. Curr Pain Headache Rep 2019;23:18. [Crossref] [PubMed]
  34. Beams JL, Kline MT, Rozen TD. Treatment of hemicrania continua with radiofrequency ablation and long-term follow-up. Cephalalgia 2015;35:1208-13. [Crossref] [PubMed]
  35. Hamer JF, Purath TA. Response of cervicogenic headaches and occipital neuralgia to radiofrequency ablation of the C2 dorsal root ganglion and/or third occipital nerve. Headache 2014;54:500-10. [Crossref] [PubMed]
  36. Narouze S, Kapural L, Casanova J, et al. Sphenopalatine ganglion radiofrequency ablation for the management of chronic cluster headache. Headache 2009;49:571-7. [Crossref] [PubMed]
  37. Amighi D, Majedi H, Tafakhori A, et al. The Efficacy of Sphenopalatine Ganglion Block and Radiofrequency Denervation in the Treatment of Cluster Headache: A Case Series. Anesth Pain Med 2020;10:e104466. [PubMed]
  38. Govind J, King W, Bailey B, et al. Radiofrequency neurotomy for the treatment of third occipital headache. J Neurol Neurosurg Psychiatry 2003;74:88-93. [Crossref] [PubMed]
  39. Lang JK, Buchfelder M. Radiofrequency neurotomy for headache stemming from the zygapophysial joints C2/3 and C3/4. Cent Eur Neurosurg 2010;71:75-9. [Crossref] [PubMed]
  40. Lee HJ, Cho HH, Nahm FS, et al. Pulsed Radiofrequency Ablation of the C2 Dorsal Root Ganglion Using a Posterior Approach for Treating Cervicogenic Headache: A Retrospective Chart Review. Headache 2020;60:2463-72. [Crossref] [PubMed]
  41. Lee JB, Park JY, Park J, et al. Clinical efficacy of radiofrequency cervical zygapophyseal neurotomy in patients with chronic cervicogenic headache. J Korean Med Sci 2007;22:326-9. [Crossref] [PubMed]
  42. Abd-Elsayed A, Kreuger L, Wheeler S, et al. Radiofrequency Ablation of Pericranial Nerves for Treating Headache Conditions: A Promising Option for Patients. Ochsner J 2018;18:59-62. [PubMed]
  43. Abd-Elsayed A, Yapo SA, Cao NN, et al. Radiofrequency ablation of the occipital nerves for treatment of neuralgias and headache. Pain Pract 2024;24:18-24. [Crossref] [PubMed]
  44. Treede RD, Rief W, Barke A, et al. A classification of chronic pain for ICD-11. Pain 2015;156:1003-7. [Crossref] [PubMed]
  45. Orhurhu V, Sidharthan S, Roberts J, et al. Radiofrequency Ablation for Craniofacial Pain Syndromes. Phys Med Rehabil Clin N Am 2021;32:601-45. [Crossref] [PubMed]
  46. Orhurhu V, Huang L, Quispe RC, et al. Use of Radiofrequency Ablation for the Management of Headache: A Systematic Review. Pain Physician 2021;24:E973-87. [PubMed]
Cite this article as: Jain E, Tram JK, Owens MA, Varlotta CA, Fiala KJ, Asaad FS, Chitneni A, Abd-Elsayed A. Radiofrequency ablation for headache pain: an updated systematic review. Ann Palliat Med 2024;13(4):948-962. doi: 10.21037/apm-23-528
