Effectiveness of different silicone oil remove methods after vitrectomy and light silicone oil tamponade in elderly patients

Introduction

At present, vitrectomy combined with silicone oil tamponade has obvious advantages for closing retinal holes, resetting the retina and restoring vision for the treatment of complicated retinal detachment, severe eye trauma, suppurative endophthalmitis and intraocular tumors (1). Due to the biological actions of the eye tissue, the silicone oil used to fill the eye will often emulsify after a certain period of time and can cause various complications (2), such as complicated cataract, secondary glaucoma, corneal endothelial decompensation and band-shaped corneal degeneration. Cheng et al. (3) found that long-term silicone oil placement in the eye can cause degenerative changes of the retina, leading to dissolution and breakage of the retinal tissue structure. Most scholars believe that it is the best to remove silicone oil 3–6 months after the retina has stabilized (4).

There are many ways to remove silicone oil. Depending on the incision locations, oil can be removed from the corneal tunnel through the pupil or from the pars plana. The incision diameter may be 20-gauge (G), 23G or 25G. In terms of incision repair after surgery, remove may be sutured or sutureless. The suction method used can involve active aspiration or passive perfusion (5). Remove via the corneal tunnel through the pupil is often used in cases with incomplete lens capsule; however, it has limitations and can cause corneal endothelium damage. Currently, increasing numbers of medical institutions remove silicone oil through the sclera plana using a 20G incision since the method is efficient, simple and economical. However, this method also has disadvantages, such as the need to cut open the conjunctiva, the large incision required at the conjunctiva and sclera, the lack of microcannula protection at the incision, the repeated passage of the oil remove needle into and out of the vitreous cavity, and the creation of iatrogenic retinal holes and retinal redetachment caused by pulling the retina surrounding the incision. In recent years, with the extensive clinical application of 23G and 25G vitrectomy, many clinicians have used these systems for active silicone oil remove to avoid the shortcomings of remove via 20G sclera plana incision, which include large incisions, injury and a lack of microcannula protection. However, 23G and 25G vitrectomy methods also have disadvantages in clinical application, such as the high cost of 23G and 25G surgical kits, the low efficiency of oil remove and the likelihood of eye collapse due to the high negative pressure of the machine during oil remove (6). Therefore, we cut a section of the polyethylene infusion tube and connected it to a 5-mL syringe. Approximately 3 mm of the polyethylene infusion tube was exposed. The tube was placed on the microcannula of the supratemporal 23G scleral puncture, perpendicular to the scleral surface. The silicone oil was removed by the negative pressure generated by pulling the piston handle by hand. Compared with methods of vitrectomy system, this method is simple and has excellent efficacy. We report this method below.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-949).

Methods

Subjects

Patients who had undergone vitrectomy combined with light silicone oil tamponade 3–6 months were recruited from our hospital between Jan 2016 and Jan 2018. The study was approved by the ethics committee of the hospital, and all patients signed informed consent. The eyes were stable, the retinas were recovered, and the holes were closed. A total of 130 patients (130 eyes) were included in the study, including 73 males (73 eyes) and 57 females (57 eyes). The age ranged from 60 to 75 years, and the average age was 65.6±15.7 years. Prior to the surgery, all patients underwent best corrected visual acuity testing (LogMAR BCVA), intraocular pressure testing, slit-lamp microscopy, indirect ophthalmoscopy and A and B-mode ultrasound evaluation. Patients with glaucoma, recurrent retinal detachment, choroidal hemorrhage and detachment prior to the operation were excluded. According to Random number table, patients were randomly divided into two groups, including 65 eyes in the manual oil remove group and 65 eyes in the vitrectomy system oil remove group. The 23G silicone oil removes of the patients in both groups were completed by the same physician.

The general conditions of the two groups of patients did not differ significantly (P>0.05) (Table 1).

Table 1 Comparison of the general conditions of the two groups of patients
Full table

Procedure

Prior to surgery, the pupils of both groups were fully dilated, and the patients underwent retrobulbar anesthesia with 2.5 mL 0.75% ropivacaine. If combined cataract surgery was required, the patients first underwent phacoemulsification cataract surgery and intraocular lens implantation, followed by silicone oil remove. An Alcon 23G paracentesis knife was inserted to the vitreous cavity vertical to the sclera in the infratemporal and supratemporal quadrants of the surgical eye, 3.5–4.0 mm from the cornea. A microcannula was placed at the incision after the paracentesis knife was removed. A perfusion tube was placed at infratemporal area and was connected to a bottle of lactated Ringer’s solution. The perfusion pressure of the Constellation vitrectomy machine (Alcon) was set at 30 mmHg. (I) Manual oil remove group: a prepared polyethylene tube (which could be cut from the infusion tube) was connected to a 5-mL syringe. A section of the tube was cut with scissors, and approximately 3 mm of the tube was exposed (Figure 1). The cut surface of the tube should be smooth and flat to ensure airtightness and avoid unnecessary conjunctival injury. The syringe that was connected to the polyethylene tube was placed perpendicular to the scleral surface onto the ace onto the surface ontoocannula on the supratemporal sclera. The piston handle of the syringe was pulled to generate negative pressure, and the silicone oil was aspirated into the syringe (Figure 2). When aspirating the silicone oil, it is important to release the force according to the load change sensed by the finger to prevent additional pulling if the perfusion fluid is aspirated and the load disappears suddenly. Otherwise, a sudden drop in intraocular pressure may result, leading to eyeball collapse, retinal redetachment, choroidal detachment and even massive suprachoroidal hemorrhage. When the oil and fluid interface was observed in the pupil area, the position of the scleral puncture was adjusted to ensure that the silicone oil was aspirated smoothly and to reduce sudden changes in intraocular pressure caused by the sudden aspiration of the perfusion fluid. The silicone oil was removed completely when the perfusion fluid had a linear shape and no obvious oil droplets floated in the vitreous cavity. (II) The 23G vitrectomy system oil remove group: Silicone oil was removed by the Constellation 23G vitrectomy system by the Alcon company (with negative pressure set at −500 mmHg, 1 mmHg =0.133 kPa), and the remove was stopped when no obvious silicone oil droplets were detected in the vitreous under microscopy. (III) The duration from the beginning to the end of oil remove was recorded for each eye. The scleral and bulbar conjunctival incisions were closed using an 8-0 Ethicon synthetic absorbable surgical suture, and the operation was completed after the eye was sealed with tobramycin and dexamethasone ophthalmic ointment.

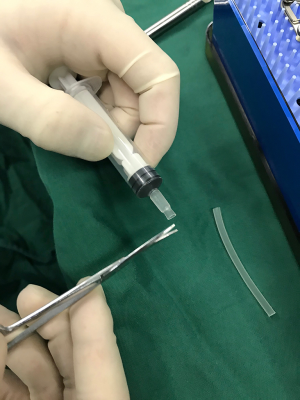

Figure 1 A section of the tube was cut.

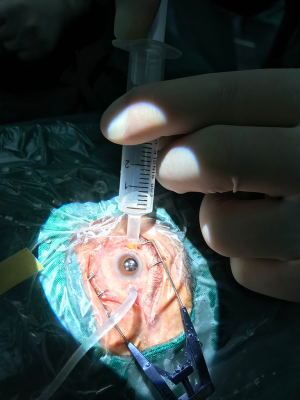

Figure 2 The silicone oil was aspirated into the syringe.

Observation indicators

The following indicators were observed: the oil remove duration of the affected eyes in both groups; the average intraocular pressure of the affected eyes before surgery and at 1 day, 1 week and 1 month after surgery; the total incidence of postoperative complications, including retinal redetachment, silicone oil residue, massive suprachoroidal hemorrhage, choroid detachment, transient intraocular hypotension, vitreous hemorrhage and endophthalmitis.

Statistical analysis

Data were analyzed with SPSS 13.0 statistical software. Continuous variables were expressed as the mean ± standard deviation (SD) and compared using an unpaired two-sided Student’s t-test when normal distribution and equal dispersion were confirmed. Categorical variables were expressed as percentages (%) and compared using χ² analysis or Fisher’s exact test if necessary. Differences with P<0.05 were considered statistically significant.

Results

The average oil remove durations of the manual group and the vitrectomy system group were 5.92±1.34 and 8.87±1.68 min, respectively, and the two groups differed significantly (P<0.05, Table 2).

Table 2 The average oil remove duration and intraocular pressure at 1 day, 1 week and 1 month after the procedure
Full table

The average intraocular pressures at 1 day after the procedure for the manual group and the vitrectomy system group were 10.2±2.7 and 9.8±2.4 mmHg, respectively. Those at 1 week after the procedure were 15.2±3.5 and 15.5±3.1 mmHg, respectively, and those at 1 month after the procedure were 17.2±3.1 and 16.8±3.4 mmHg, respectively. The two groups did not differ significantly (Table 2).

In the manual oil remove group, one patient had retinal redetachment, 5 patients had silicone oil residue, no patients had suprachoroidal hemorrhage, 1 patient had choroid detachment, and the incidence rate of complications was 10.7692%. In the vitrectomy system oil remove group, 4 patients had retinal redetachment, 5 patients had silicone oil residue, 1 patient had suprachoroidal hemorrhage, 1 patient had choroid detachment, and the incidence rate of complications was 17.69%. The two groups differed significantly in the incidence of complications (χ²=4.2787, P=0.0386). None of the affected eyes were complicated with transient intraocular hypotension (7), vitreous hemorrhage or endophthalmitis.

Discussion

Silicone oil has been used as an intraocular filler since 1962 (8). Although with the continuous evolution and progress of vitreous surgery, inert gas (C3F8) or filtered air have been used as replacements for silicone oil for intraocular tamponade during vitreous surgery, silicone oil is still irreplaceable in many vitreous surgeries, including those for complicated retinal detachment, proliferative diabetic retinopathy, complicated ocular trauma, intraocular tumors and endophthalmitis. If long-term silicone oil tamponade causes secondary glaucoma, complicated cataract, band-shaped corneal degeneration and silicone oil emulsification (9,10), the silicone oil can be removed normally 3–6 months after vitrectomy, when the retina has recovered, the eye is stable, and there is little emulsified silicone oil.

Consensus indicates that silicone oil remove methods should be efficient, safe, and convenient and that consumables should be low in cost. The manual 23G silicon oil remove method that we developed has a low cost associated with consumables, is safe, and only requires the connection of a small piece of disposable polyethylene infusion tube to a 5-mL syringe. Oil is removed by the physician pulling the syringe with the fingers. During the procedure, the operator can sense the sudden drop in force when perfusion fluid is aspirated; thus, the pulling on the syringe can be released immediately to prevent eyeball collapse and related complications, such as retinal redetachment, choroid hemorrhage (even massive suprachoroidal hemorrhage), and ciliary body epithelial detachment. The use of 10-mL syringes is not recommended. On one hand, a 10-mL syringe is so long that it is not easy to pull it by hand or to control the direction of the microcannula during the procedure. On the other hand, silicone oil is directly aspirated through the microcannula, and not much pulling force is required to smoothly remove silicone oil with a viscosity of 5000.

Compared to the conventional 20G method, in which oil is removed by placing a trocar through the scleral plana, the manual 23G silicone oil remove method is safer: it involves placing the polyethylene tube on the 23G microcannula at the supratemporal sclera so that the tube is in close contact with the conjunctiva on the scleral surface, which creates negative pressure that is used to remove the silicone oil. In contrast, the 20G scleral planar oil remove method requires insertion of the cannula into the vitreous cavity; if intraocular perfusion fluid is accidentally removed and the eyeball collapses, it may damage the retina, leading to retinal detachment and bleeding in the eye tissue. Additionally, our manual 23G method does not require cutting the conjunctiva; in contrast, making a 20G incision leads to considerable damage. Furthermore, our method does not require repeated insertion of the cannula into the eye, which causes retinal rupture close to the incision and leads to recurrent retinal detachment.

In recent years, the vitrectomy system has been used for oil remove. In 2010, Patwardhan et al. (11) reported the application of the vitrectomy system for the remove of silicone oil with a viscosity of 1,000. Song et al. (12) and Garodia et al. (13) used a specialized aspiration system through the 23G vitrectomy system to remove highly viscous silicone oil and assessed the efficacy and safety this system. With the increasing popularity of minimally invasive 23G and 25G vitrectomy systems, these systems have overcome many disadvantages of conventional 20G oil remove through the scleral plana and have gradually gained favor among many clinicians. However, they still present some difficulties: (I) the scleral puncture diameter is small, making it difficult for the silicone oil to pass through smoothly and making the procedure very time consuming. Additionally, with the high negative pressure, aspiration does not stop immediately when the perfusion fluid in the vitreous cavity is accidentally aspirated; this causes sudden collapse of the eyeball, which may lead to massive suprachoroidal hemorrhage, choroid detachment and recurrent retinal detachment (14,15). (II) Oil remove materials are expensive, increasing the cost of surgery. In addition, this method cannot be performed on a large scale due to lack of appropriate equipment at some medical institutions. Comparing the manual 23G oil remove method with the 23G vitrectomy system oil remove method, we made the following observations: (I) the oil remove duration is shorter with the manual method; consequently, this method is more efficient. The reason for this reduced duration is that in the manual method, the polyethylene tube is placed outside of the 23G cannula of t; this presses the surrounding conjunctiva and sclera perpendicularly and creates excellent sealed negative pressure during remove, so that the silicone oil is aspirated directly from the cannula. In contrast, with the vitrectomy system oil remove method, the needle is inserted directly into the cannula for oil remove; the diameter of the needle is too small for the silicone oil to pass through smoothly, making the process very time consuming and less efficient than the manual 23G oil remove method. (II) The intraocular pressure at 1 day, 1 week and 1 month after the procedure did not differ significantly between the two groups. (III) Due to the large internal diameter of the 23G cannula, the negative pressure used for oil remove in the manual method was not high, and the operator’s fingers could sense the accidental aspiration of the perfusion fluid in the vitreous cavity at all times and stop it immediately. As a result, the incidences of postoperative retinal redetachment, silicone oil residue, massive suprachoroidal hemorrhage and choroidal detachment were lower than those of the vitrectomy system oil remove method, making the manual method safer.

Conclusions

The objectives of the oil remove procedure are to remove as much silicone oil as possible, reduce the operation duration and improve surgical efficiency under the premise of preventing complications (16-20). An analysis of the effects of manual 23G oil remove shows that the procedure is highly efficient and safe. Therefore, we offer an efficient, safe, simple and economical silicon oil remove method that is convenient for extensive use by medical institutions at all levels.

Acknowledgments

First and foremost, I would like to show my deepest gratitude to my supervisor, Dr. Yong Liang, a respectable, responsible and resourceful scholar who has provided me with valuable guidance in every stage of the writing of this thesis. Without his enlightening instruction, impressive kindness and patience, I could not have completed my thesis. His keen and vigorous academic observation has enlightened me not only regarding this thesis but also regarding my future study. I extend my thanks to Mrs. JL and Mr. QL for their kindness and help. I would also like to thank all my teachers, who have helped me to develop the fundamental and essential academic competence. My sincere appreciation also goes to the teachers from the Guangxi Medical University, who participated this study with great cooperation. Last but not least, I would like to thank all my friends, especially my college classmate Mr. Haorang Lu for his encouragement and support.

Funding: Self-financing Scientific Research Project of the Health and Family Planning Commission of Guangxi Zhuang Autonomous Region (No. Z20180388). Scientific Research Foundation Project of Guangxi Health Commission (No. Z20180388).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-949

Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-949

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-949). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by the ethics committee of the hospital, and all patients signed informed consent.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
