Safety analysis of application of mediastinal CO₂ aeration in mediastinal esophagectomy

Introduction

Esophageal cancer (EC) is an ordinary malignancy that ranks 9th most common cancer worldwide and the fifth most frequent in China (1,2). Esophageal squamous cell carcinoma accounts for almost 80% of EC cases in South-Eastern Asia (3,4). Due to the difficulty of prophase clinical diagnosis, most of EC patients develop high rate of metastasis and recurrence with the overall 5-year survival rate below 10% (5).

Surgical resection remains the main treatment for EC. Traditional thoracic esophagectomy, which requires cervical, thoracic, and abdominal dissections, is still considered to be an invasive procedure. Among these procedures for EC patients, the thoracic procedure is considered to be the most invasive (6). To avoid the need for conventional thoracotomies as minimally invasive esophagectomy (MIE) requires, thoracoscope and/or laparoscope or transhiatal esophagectomy have become a standard procedure for resection of EC which reduces perioperative morbidity and mortality. The esophagectomies and lymphadenectomies in the mediastinum performed under thoracoscopically requires selective single-lung ventilation to ensure an adequate operative space (7). Traditionally, transhiatal esophagectomy has been another option for patients with early esophageal carcinoma and for high-risk patients because this procedure enables the surgeon to avoid a standard thoracotomy (8,9). However, this approach is less radical and may often induce paralysis of the left recurrent laryngeal nerve because the majority of procedures must be performed in a blind manner (10). A review of more than 100 esophagectomy cases suggests that the upper mediastinum is the most difficult and important space in the dissection of the thoracic esophagus.

A recent study introduced the application of CO₂ aeration in mediastinal esophagectomy to provide a better surgical vision and reduce the difficulty of the surgery (11,12). In this article, we aimed to research the safety of CO₂ aeration in mediastinoscopic esophagectomies through the neck approach. We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-804).

Methods

Animals

Experiments were performed under a project license (No. 46728585-5) granted by the Animal Ethics Committee of Changzhou First People’s Hospital, in compliance with the Animal Ethics Committee of Changzhou First People’s Hospital guidelines for the care and use of animals.

A total of 15 pigs construct an experimental animal model of mediastinal CO₂ aeration. They were divides to three groups based on the pressure of CO₂ aeration, 5, 10 and 15 mmHg. Each pig was subjected to only 5, 10 or 15 mmHg. The clinicopathological features of those pigs in both groups are similar.

Circulation function indicators

The central venous pressure (CVP), heart rate (HR) and mean arterial pressure (MAP) of pigs in different group was collected from ECG monitor. Cardiac output (CO) of pigs in different group was measured by esophageal ultrasound.

Respiratory function indicators

Blood gas analysis measured the partial pressure of oxygen (PaO₂) and partial pressure of carbon dioxide (PaCO₂), cLac, PaO₂/FiO₂, SaO₂ and pH value of pigs in different group was measured by blood gas analyzer.

Surgical procedures

All pigs were placed in a supine position with the neck slightly extended while they were under general anesthesia. A 10 cm left cervical collar incision was made, and the carotid artery, the jugular vein, and the left recurrent laryngeal nerve were exposed. A 12-mm trocar was inserted through the incision, and a pursestring suture was made to prevent gas leakage and the dislocation of the trocar. Carbon dioxide was then insufflated up to different pressure (5, 10 and 15 mmHg), and a flexible laparoscope (EL2-TF410; Fuji Photo Optical Co., Tokyo, Japan) was inserted through the 12-mm trocar in the neck.

Statistical analysis

SPSS 17.0 (SPSS, Chicago, IL, USA) was utilized to statistical analyze. Results were presented as mean ± SD. Chi-square test and student t-test were selected when appropriate. It was considered statistically significant, when P<0.05.

Results

The effects of different inflation pressures on the circulatory function of pigs

In Figure 1, the results of animal experiments showed that under 5–10 mmHg CO₂ inflation pressure, circulation function indicators (CVP, MAP, HR, CO) in pigs had no significant difference compared with the indicators before inflation; and under 15 mmHg CO₂ inflation pressure, CVP and HR increased, while MAP and CO values decreased.

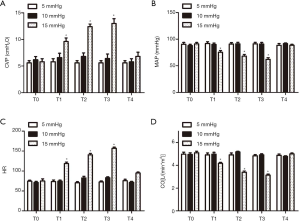

Figure 1 The effects of different inflation pressures on the circulatory function of pigs. (A) The effects of different inflation pressures on the CVP of pigs. (B) The effects of different inflation pressures on the MAP of pigs. (C) The effects of different inflation pressures on the HR of pigs. (D) The effects of different inflation pressures on the CO of pigs. Data are presented as the mean ± standard error of the mean. *, P<0.05.

The effects of different inflation pressures on the respiratory function of pigs

In Figure 2, the results of animal experiments showed that under 5–10 mmHg CO₂ inflation pressure, respiratory function indicators (PaCO₂, cLac, PaO₂/FiO₂, SaO₂, pH value) in pigs had no significant difference compared with the indicators before inflation; and under 15 mmHg CO₂ inflation pressure, PaCO₂ and blood cLac increased, while PaO₂, SaO₂ and pH values decreased.

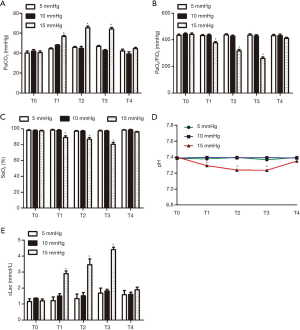

Figure 2 The effects of different inflation pressures on the respiratory function of pigs. (A) The effects of different inflation pressures on the PaCO₂ of pigs. (B) The effects of different inflation pressures on the PaO₂/FiO₂ of pigs. (C) The effects of different inflation pressures on the SaO₂ of pigs. (D) The effects of different inflation pressures on the pH value of pigs. (E) The effects of different inflation pressures on the cLac of pigs. Data are presented as the mean ± standard error of the mean. *, P<0.05.

The effect of different inflation pressures on visual field using mediastinoscopy

In Figure 3, the results of animal experiments showed that the visual field using mediastinoscopy under 15 and 10 mmHg CO₂ inflation pressure was better than that under 5 mmHg CO₂ inflation pressure. Moreover, no adverse events, such as bleeding or airway trauma, happened during the mediastinoscopic dissection.

Figure 3 The effect of different inflation pressures on visual field using mediastinoscopy. The visual field using mediastinoscopy under 15 and 10 mmHg CO₂ inflation pressure was better than that under 5 mmHg CO₂ inflation pressure. However, no significant difference was seen between 15 and 10 mmHg CO₂ inflation pressure.

Discussion

The incidence of EC has increased globally for the past 2 decades. Approximately 482,300 people were diagnosed with EC every year (12). Patients with squamous cell carcinoma of the esophagus are frequently smokers and heavy drinkers, and consequently have several chronic diseases, including those of the cardiovascular, pulmonary, and hepatic systems (13).

MIE has the advantages of less trauma, quick recovery, less influence on cardiopulmonary function and less postoperative pain, which can theoretically solve the problems of conventional EC surgery (14). Compared with other endoscopic resection of EC, mediastinoscopic resection of EC can reduce the incidence and mortality of postoperative complications for patients with serious complications, such as heart and lung diseases (15). However, due to the characteristic of esophageal anatomical location, the operation space for surgical separation and resection is limited, which is easy to cause damage to blood vessels and nerves (15). The dissection of lymph nodes is also controversial. The development of MIE is slow. How to improve the skills of mediastinoscopic resection of esophagus and reduce the risk of surgery is a new challenge for minimally invasive surgery of esophagus (16).

It has been reported that since the establishment of artificial CO₂ pneumoperitoneum, the pneumoperitoneum pressure, the length of operation time and other factors, the internal environment has been effected, including circulatory system, respiratory system, acid-base balance, metabolism and so on (17). Pneumoperitoneum will influence body hemodynamics which most of the patients can fit it well (16). According to the 2001 European Association of Endoscopic Surgery Clinical Practice Guidelines, the effect of cardiac output will not have clinical impact on patients without other diseases when the standard pneumoperitoneum pressure is 15 mmHg (18). However, patients with potential heart diseases need special attention when undergoing laparoscopic surgery. Increased HR and afterload, combined with increased systemic vascular resistance, can potentially increase the tension of ventricular wall which may lead to myocardial ischemia. Safran et al. studied the hemodynamic effects of laparoscopy on patients with severe heart disease (AAA grade III or IV). They found that MAP and SVR increased significantly and CO decreased significantly when pneumoperitoneum pressure was 15 mmHg. Half of the patients suffered from decreased oxygen delivery accompanied by significant increase in pulmonary artery pressure due to increased intra-abdominal pressure. The authors pointed out that during pneumoperitoneum, these patients experienced temporary cardiac decompensation due to the decrease of left ventricular reserve. In another research, researchers found that MAP, sVR and pulmonary artery wedge pressure increased significantly during laparoscopic surgery. Moreover, among the 17 patients, 3 patients needed nitroglycerin to control the blood pressure during surgery. However, there were no intraoperative complications or long-term postoperative complications in the two studies, and there were no cases of conversion to laparotomy. The authors believe that laparoscopic surgery is safe for patients with heart diseases, but these patients need to be closely monitoring. Metzelder et al. applied 10 mmHg pressure CO₂ pneumoperitoneum to healthy adult pigs for 180 min. The results showed that prolonged CO₂ pneumoperitoneum had no obvious effect on adult pigs. In recent years, CO₂ inflation technology has been gradually applied in mediastinoscopy, which has the following advantages: (I) expanding the operation space; (II) making the tissue spaces looser; (III) the operator can change from one-handed operation to two-handed operation. Therefore, compared with the traditional mediastinal approach surgery, mediastinal CO₂ assisted EC surgery has the advantages of better exposure of the operation field, shorter operation time and more thorough lymph node dissection. However, there is no relevant literature to study the safety of CO₂ inflation technology in mediastinoscopy.

The impact of mediastinal CO₂ inflation on the circulatory system is mainly related to the increase of pressure in mediastinum, which may affect venous reflux, thus affecting the change of blood flow (preload) and sympathetic nerve excitation, catecholamine release, renin-angiotensin system activation, increased vascular tension (afterload) caused by hypercapnia. The main manifestations are changes in cardiac output, heart rate, arterial blood pressure and other indicators. The reasons may as follows. (I) The increase of pressure in mediastinum leads to contraction of visceral vessels and reduction of inferior vena cava reflux, thus reducing cardiac preload; aeration of mediastinum leads to increase of intrathoracic pressure, resulting in decrease of lung volume, increase of airway resistance, resulting in changes in heart and large blood vessels and increase of atrial and superior and inferior vena cava pressure, thus further reducing the change of blood volume and the preload of heart. (II) The direct effect of the increase of mediastinal internal pressure is to cause the increase of peripheral resistance. The average arterial pressure is positively correlated with cardiac output and peripheral vascular resistance. The effect of the increase of peripheral resistance is greater than that of the decrease of cardiac output, and the average arterial pressure is slightly increased. (III) PaCO₂ in the experimental group increased during the operation, accompanied by a decrease in pH, resulting in mild respiratory acidosis. CO₂ retention excites sympathetic nerve and increases catecholamine secretion, which increases heart rate, vasoconstriction, cardiac pumping function and blood pressure. Hypercarbonic acid can also indirectly stimulate aortic body chemoreceptors, increasing the concentration of catecholamine in blood, which activates renin-angiotensin system and releasing vasopressin, resulting in increased vascular resistance. Decrease of cardiac output will also cause reflex increase activity of cardiac sympathetic nerve. (IV) Anesthetic effect. (V) Tracheal intubation stress reaction before mediastinal inflation or ketamine-induced heart rate increase. Elevated catecholamines caused by hypercapnia can increase cardiac contractility. Cardiac output decreases cause a reflex increase of cardiac sympathetic nerve activity, and also produces positive inotropic effect. In the experiment, the fluid infusion speed is adjusted according to the CVP, so the CVP is relatively constant and the circulation stability is maintained. In this experiment, pigs were inflated in mediastinum for 2 hours. The results showed that when the pressure was 15 mmHg, HR, myocardial contractility and CI decreased, while preload and afterload increased. Pre-load increased in 5 and 10 mmHg groups, while HR, post-load and CI did not change significantly. High inflation pressure in mediastinum leads to decrease of cardiac output, stroke output, HR and MAP, and increase of systemic vascular resistance. The possible mechanism is that high inflation pressure in mediastinum compresses superior and inferior vena cava which increases cardiac preload and decreases cardiac output. Through sympathetic nerve excitation or renin-angiotensin system, the hypercapnic environment formed by CO₂ further affects myocardial metabolism which eventually leads to further decrease of myocardial contractility.

Mediastinal CO₂ inflation pressure causes compression of mediastinal pleura, resulting in an increase in intrathoracic pressure which leads to compression of alveoli at the bottom of the lung. Lung compliance, functional residual volume, tidal volume and alveolar ventilation are decreased, and airway resistance and pressure are increased which affect ventilation function. In 15 mmHg group, PaCO₂ increased, accompanied by a decrease in pH, showing mild respiratory acidosis, which did not change with time. The higher inflation pressure of mediastinum CO₂ reduces the effective ventilation volume of alveoli, thus raising the partial pressure of carbon dioxide at the end of respiration. In addition, due to the decrease of pulmonary ventilation volume, carbon dioxide retention results in hypoxemia and hypercapnia, and increases the partial pressure of carbon dioxide at the end of respiration. The higher inflation pressure of mediastinal CO₂ leads to higher the internal pressure of mediastinal cavity which restrains the lung compliance and increases the airway pressure. Due to the decrease of functional residual volume and total lung volume and imbalance of ventilation/blood flow, the absolute amount of gas exchange in lung is reduced, which ultimately affects the ventilation and air exchange function of the lung and results in hypoxemia in animals in autonomous respiratory state.

To sum up, mediastinal CO₂ inflation mainly affects respiratory system by affecting ventilation, oxygenation and acid-base balance. In this experiment, although PaCO₂ began to rise 30 min after mediastinal inflation and gradually leveled off, the pH decreased only slightly and quickly returned to the normal range after inflation, suggesting that bicarbonate should not be used in a hurry when the mediastinal inflation pressure is not very high for patients with normal cardiopulmonary function. In addition, PaO₂ and SaO₂ were similar in the experimental group and control group, suggesting that the decrease of lung compliance during mediastinal inflation has no effect on oxygenation. Endotracheal intubation was adopted for all animals to ensure airway patency and maintain effective ventilation. CO₂ mediastinal inflation has certain effects on respiration and circulation of adult pigs but can be compensated quickly. In addition, in the 15 mmHg group, the carbon dioxide partial pressure at the end of respiration and the airway peak pressure were both higher than that before the inflation, and then tended to be flat, while the pulse and oxygen saturation showed a downward trend. CO₂ has the most significant influence on respiratory system in the 15 mmHg group. The carbon dioxide partial pressure at the end of respiration and the airway peak pressure increase rapidly after mediastinal inflation. With the increase of inflation pressure, the impact of CO₂ mediastinal inflation on respiratory system also increases. The inflation pressure should be 5–10 mmHg and should not exceed 15 mmHg.

The advantage of mediastinoscopy is minimally invasive damage to the body. However, mediastinal inflation is a new damaging factor to the body, so we should monitor vital signs and arterial blood gas closely. The results of this study showed that in adult pigs, normal inflation pressure has no significant effect on respiratory and circulatory function, while higher inflation pressure has significant effect on respiratory and circulatory function, which will exist in a short time after mediastinal inflation. However, more than 30 min after mediastinal inflation, vital signs and arterial blood gas can be restored to a level comparable to that before mediastinal inflation. After the experiment, the adult pigs were sent to the animal room and fed. No death occurred. Therefore, healthy pigs can tolerate short-term mediastinal inflation under close monitoring.

Besides, as the mediastinal CO₂ inflation is a newly method and has not been widely used in operation, our study still has limitations. All participated pigs were presumably young and healthy, and we are unable to assess the tolerability of this procedure on comparable pigs. The parameters were only monitored for 90 minutes, which is markedly less time than most esophagectomies, and so extrapolation of the available data for longer periods of time is questionable. Moreover, as those pigs were sacrificed immediately after completion of the procedure, the delayed events cannot be predicted and analyzed. The mediastinal CO₂ inflation needs more clinical practice and further studies to clarify its value in mediastinal esophagectomy.

Conclusions

The inflation pressure in clinical inflatable mediastinoscopy surgery is usually controlled at about 10 mmHg. This animal experiment completely simulated clinical surgery and found that the inflation pressure controlled within 10 mmHg has no significant effect on the respiratory and circulatory function in healthy pigs. further experiments are needed to confirm the determination of CO₂ mediastinal inflation pressure and duration safety range.

Acknowledgments

Funding: The present study was supported by the Science and Technology Project of Changzhou (grant CJ20179040) and the Science and Technology Project of Changzhou (grant CJ20179039).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-804

Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-804

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-804). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No. 46728585-5) granted by the Animal Ethics Committee of Changzhou First People’s Hospital, in compliance with the Animal Ethics Committee of Changzhou First People’s Hospital guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
