Thalidomide inhibits the gene promoter of connective tissue growth factor in human embryonic lung fibroblasts

Introduction

Idiopathic pulmonary fibrosis (IPF) is a common type of lung disorders with an incidence of 8.6–31.6/100,000 around the world (1,2). Currently, the causes of IPF remain unclear, and the prognosis is extremely poor (3). The pathogenesis of interstitial lung disease is complex, the progress of interstitial lung disease is irreversible, early diagnosis is difficult yet vital to the clinical medicine treatment. Therefore, at present, the pathogenesis of interstitial lung disease has become a hot topic at home and abroad.

At present, the etiology and pathogenesis of IPF are still unclear. From the chronic inflammatory hypothesis proposed in the 1980s to the abnormal repair after epithelial cell injury proposed in the early 21st century, the pathogenesis of IPF remains controversial and there is no conclusion (4). It’s well-known that the pathogenesis of IPF involves many cells, cytokines, chemokines, and gene phenotypes. After unexplained lung injury, various cells and cytokines interact with each other to eventually form pulmonary interstitial fibrosis (5,6). It can be seen that various cells and cytokines play an important role in the pathogenesis of IPF. Transforming growth factor β1 (TGF-β1) induces increased expression of connective tissue growth factor (CTGF) in various cells such as lung fibroblasts, which is considered to be an important process in the pathogenesis of pulmonary fibrosis (7,8). Therefore, it’s highlighted that more studies on the role of CTGF in IPF should be conducted to elucidate the mechanism of IPF.

Thalidomide is currently used for the treatment of diseases such as leprosy and multiple myeloma (9,10). Several studies (11-13) have found that thalidomide may also has good anti-pulmonary fibrosis effects, but the underlying pharmacological mechanisms have not been well-elucidated. Therefore, more studies on this issue are warranted. In this study, we aimed to analyze the effect of thalidomide on the activation of CTGF gene promoter induced by TGF-β1 in human embryonic lung fibroblast (HELF), thereby providing further evidence on the treatment of IPF.

Methods

Ethics approval

This present study obtained ethics approval from the ethics committee of our hospital (2018-1029-c1) and was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Study design

This present study was generally divided into two parts (Figure 1): Part one focused on the effects of TGF-β1 on CTGF gene promoter in HELF, and part two focused on the role of THALIDOMIDE with different concentration on the CTGF gene promoter in HELF. As Figure 1 presented, we used different TGF-β1 (0, 2.5, 5, 10 and 20 µg/L respectively) to stimulate HELF to identify the optimal concentration for gene promoter of CTGF, thus providing basis for the conducts of Part two. In parts two, we investigated the pharmacological effects of THALIDOMIDE with different concentration (0, 25, 50 and 10 µg/L respectively) on gene promoter of CTGF. With this two parts combined, we attempted to identify the role of THALIDOMIDE on gene promoter of CTGF in HELF.

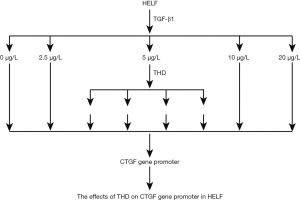

Figure 1 The flow chart of study design. CTGF, connective tissue growth factor; HELF, human embryonic lung fibroblast; TGF-β1, transforming growth factor-β1.

Materials

DMEM cell culture solution (Combo, German); calf serum (S100, Mingqi, China); CTM DNA ladder, XIG MasterMix kit and competent E. coli DH5α (Fiksy, Guangzhou, China); Endonuclease HindIII and BglII (Toyobo); W4 DNA ligase (WKE, Nanjing, China); pGL3-Basic plasmid, pRL-SV40 plasmid and luciferase assay kit Dual-Luciferase Reporter Assay System (Crisky, Japan); PCR product extraction Kit and Detulin Plasmid Kit (Biosida, German), GeneFinderTM Nucleic Acid Dye (Fangzheng, Xiamen, China); Agarose (Nexy, Wuahan, China); Liposomal Polyplus-transfection Kit (Brant, USA); Human Recombinant TGF-β1 (Xiyuan, Shanghai, China); THALIDOMIDE (Sigma, USA).

The culture of HELF

The HELF cells were provided by the Cell Center of Chinese Academy of Medical Sciences. The obtained HELF cells were inoculated into a 150 mm culture dish containing 10% calf serum and DMEM medium. and the cells were cultured in 5% CO₂, 37 °C until the degree of cell fusion is about 70%, then we used DMEM medium containing no calf serum to culture for 24 h, and then further drug treatment were made.

Drug treatment

When the HELFs were prepared, the recombinant plasmid pGL3-CTGFP was transfected into the cultured HELF cells with liposome, and the pRL-SV40 plasmid containing Renilla luciferase was transfected as an internal reference. After 24 h of culture, TGF-β1 with concentration of 0, 2.5, 5, 10 and 20 µg/L was added respectively in the experiments of Part one. Or with 5 µg/L TGF-β1 adding, further THALIDOMIDEs with concentrations of 0, 25, 50 and 100 µg/L were added in the experiments of part two.

Construction of luciferase reporter gene recombinant plasmid pGL3-CTGFP

According to human CTGF gene promoter sequence (GenBank, AF316368), primers were synthesized by professional gene-editing company (Hengsheng, Shanghai), the upstream primers were 5'-GCCAGATCTTCCCTTTTTCTGGAAACATTGATGG-3' (Bgl II), and the downstream primers were 5'-CTGAAGCTTCTGACAGGGCGAGGAGGAGGAC-3' (Hind III). The human CTGF gene promoter fragment was obtained by PCR amplification using normal human peripheral blood leukocyte cDNA was selected as template. The length of the PCR product was 1,026 bp. The reaction conditions were: pre-denaturation at 94 °C for 2 min, 94 °C for 30 s, 60 °C for 30 s, 68 °C 1 min, a total of 35 cycles. The vector pGL3-Basic was digested with restriction endonucleases BglII and HindIII, and the PCR target fragment was ligated into the restriction vector with T4 ligase to construct the pGL3-CTGFP recombinant plasmid. The recombinant plasmid was then sent to senior gene company (Hua Da Gene, China) for verification.

Detection on the expression of CTGF gene promoter

The HELF cells were cultured and transfected accordingly. In accordance to the Operating Manual of Dual-Luciferase Reporter Assay System Kit (Hengsheng, Shanghai), using the MD-SpectraMax C5 (Olympia X90, Japan) to detect the luminescence of two luciferases at 560 and 465 nm, with firefly luciferase luminescence values, and the ratio of firefly luciferase luminescence/renal luciferase luminescence (F/R) was defined as relative luciferase activity to reflect the activity of the CTGF gene promoter, the examination was repeated 3 times for each group.

Hematoxylin and eosin (HE) staining

We used HE staining to detect how cells survive. HE staining was conducted as previously described (14). The specimens were examined and photographed by a light microscope (Olympus OX 90) at 40× and 100× field of view.

Statistical analysis

Data were analyzed using SPSS 11. 0 statistical software. The continuous variables are presented as mean and standard deviation. Comparisons between groups were performed by one-way analysis of variance (ANOVA), and the Bonferroni method was used for inter-group comparison. P<0.05 was considered that the difference was statistically significant.

Results

The culture of HELF

The morphology of fibroblasts was observed under inverted micro-scope. It was indicated that the HELF was successfully cultured (Figure 2A,B), and further verified by HE staining (Figure 2C,D).

Figure 2 The verification of human embryonic lung fibroblast (HELF) culture. (A,B) Morphology of fibroblasts observed under inverted micro-scope (A ×40, B ×100); (C,D) HE staining of HELF (C ×40, D ×100).

Identification of recombinant plasmid pGL3-CTGFP

The PCR amplification product of CTGFP-biotin probe showed a clear band at 1,000 bp (1,026 bp) after electrophoresis on 1% agarose gel, which was consistent with the expected size of the amplified fragment, indicating that CTGFP-biotin probe was successfully amplified, as shown in Figure 3.

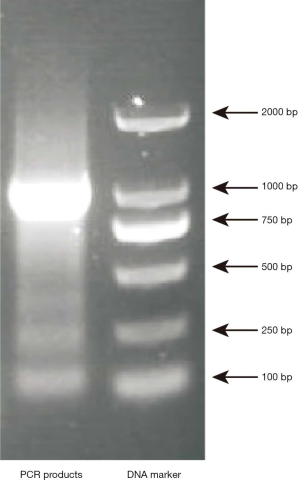

Figure 3 Gel electrophoresis of connective tissue growth factor-biotin probe amplified by PCR.

Effect of TGF-β1 on CTGF gene promoter activity in HELF cells

As Figure 4 showed, the relative luciferase activity increased significantly with the stimulation of TGF-β1, and the relative luciferase activity peaked in the 5 µg/L group. Therefore, we chose the 5 µg/L group for further thalidomide intervention.

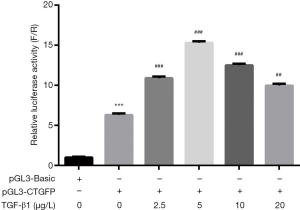

Figure 4 The dose-effect relationship of connective tissue growth factor gene promoter activation by TGF-β1 in human embryonic lung fibroblast. ***, P<0.001 vs. blank group (with pGL3-Basic alone); ^###, P<0.001 vs. control group (with pGL3-CTGFP alone); ^##, P<0.01 vs. control group (with pGL3-CTGFP alone). TGF-β1, transforming growth factor-β1.

Thalidomide inhibited the TGF-β1-induced activation of CTGF gene promoter

As Figure 5 showed, the thalidomide produced a significantly inhibited effect on the TGF-β1-induced activation of CTGF gene promoter in HELF, and the effect peaked in the 25 µg/L group.

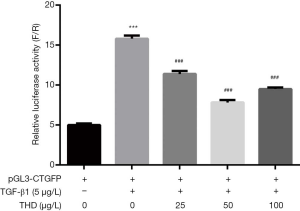

Figure 5 Effects of thalidomide on TGF-β1-induced activation of connective tissue growth factor gene promoter in human embryonic lung fibroblast. ***, P<0.001 vs. non-TGF-β1 group; ^###, P<0.001 vs. control group (with pGL3-CTGFP and TGF-β1 yet without thalidomide). TGF-β1, transforming growth factor-β1.

Discussion

CTGF is a cysteine-rich, secreted polypeptide, which is widely found in many tissues and organs such as human heart, lung, liver, kidney etc. (15,16). It’s been reported that CTGF is mitogenic, it can stimulate the cell migration, cell adhesion, and it promotes the cell phenotypic transformation and fibroblast proliferation, by which promoting the biological process of angiogenesis (17-19). The over-expressed CTGF is closely related to the pathogenesis of organ fibrosis such as pulmonary fibrosis, cirrhosis, and diabetic nephropathy (20,21). Previous study has found that CTGF mRNA and protein expression are up-regulated in the alveolar lavage fluid and fibrotic lung tissue in patients with IPF (22). Meanwhile, in situ hybridization and immunohistochemistry have observed up-regulation of CTGF mRNA and protein expression in lung tissue of patients with IPF, and it’s positively correlated with the expression level of fibronectin (23). CTGF is involved in the transformation of lung fibroblasts into myofibroblasts, and myofibroblasts are the main source of collagen fibers in the IPF (24,25). Furthermore, it’s been reported that CTGF-siRNA can inhibit the proliferation, phenotypic transformation and extracellular matrix synthesis of lung fibroblasts (26).

It’s been found that TGF-β1 is one of the most important fibrotic factors in organ fibrosis and is overexpressed in liver, lung, kidney and other organ fibrosis models (27,28). Previous studies have shown that CTGF is an important downstream factor mediating TGF-β1 profibrosis (29-31). In vitro cell culture experiments have showed that lung fibroblasts can not only express CTGF, but also induce a significant increase in CTGF expression when TGF-β1 is added to the culture medium. There is a TGF-β response element at the CTGF promoter-157 to -145, and the mutations in this region can abolish the induction of TGF-β1 to CTGF (29). Therefore, the antisense CTGF technology can potentially block the profibrotic effects caused by TGF-β1 (32). However, the TGF-β1 plays a double-sided act, which not only plays a positive role in inhibiting inflammation and excessive cell proliferation, but it also can cause negative effects such as tissue organ fibrosis (33). It’s been reported that the mice that have knocked out the TGF-β1 gene died of systemic inflammation soon after birth because of the loss of inhibition of inflammation (34), This limits the use of therapeutic strategies that antagonize TGF-β1 as a treatment target. The expression of CTGF is low and it’s mainly expressed in the stroma cell, the effect is also limited to connective tissue, antagonizes CTGF without adverse clinical response may occur after blocking TGF-β1 (35). Therefore, the anti-fibrotic effects can be achieved by blocking CTGF and it may be potentially more specific and safer than TGF-β1.

Several published studies (36-39) have shown that thalidomide has a certain therapeutic effect on liver, kidney, lung and other organ fibrosis. Previous study has found that thalidomide can increase the overall clinical treatment efficiency, reduce the lesion region in the chest CT and improved the lung function in elderly patients with pulmonary fibrosis (40). Besides, it’s been reported that thalidomide can reduce the expression of IL-18 and TNF-α in the alveolar lavage fluid in patients with IPF (41). It can be seen that thalidomide potential provides a good anti-pulmonary fibrosis effect (42,43). However, the underlying mechanism remains unclear. To further understand the anti-fibrotic mechanism of thalidomide, this present study used the luciferase reporter gene system to observe the effect of thalidomide on the activity of the CTGF gene promoter. In this experimental study, we have constructed the CTGF promoter-driven luciferase reporter vector pGL3-CTGFP and have transfected it into HELF as a test for the effect of thalidomide on CTGF gene promoter activity. The results showed thalidomide could significantly inhibit the gene promoter of CTGF in HELF.

Several limitations in this present study must be considered. Firstly, due to budget limitation, we only used the luciferase reporter gene system to observe the effect of thalidomide on the activity of the CTGF gene promoter, no other experiments were performed. Secondly, we only detect the effects of thalidomide con gene promoter of CTGF in vitro but not in vivo, further investigations in vivo are highlighted in future studies. Thirdly, we only identified the potential relationship among thalidomide, CTGF and TGF-β1, the underlying mechanisms remain unclear, which warrant further investigations.

In conclusion, this present study has found that thalidomide produces a significant inhibitory effect on the activation of CTGF promoter induced by TGF-β1, and this effect may be closely associated with the anti-fibrosis effect of thalidomide. This finding of thalidomide could significantly inhibit the gene promoter of CTGF in HELF may provide new insights into the treatment of anti-pulmonary fibrosis. However, the underlying mechanisms for the role of thalidomide on pulmonary fibrosis warrant further investigation in the future.

Acknowledgments

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-19-398). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This present study obtained ethics approval from the ethics committee of our hospital (2018-1029-c1) and was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
