Ma-Nuo-Xi decoction has an immunostimulating effect in cyclophosphamide-immunosuppressed mice

Introduction

Ma-Nuo-Xi decoction (MNXD), a Tibetan formulated medicine, comprises four medicinal materials: Tinospora sinensis (Lour.) Merr., Inula racemosa Hook.f., Rubus biflorus Buch., and Zingiber officinale Rosc., at a ratio of 20:20:6:5 (w/w) (1). Hundreds of Tibetan formulated medicines have been derived from this prescription since it was initially quoted in rGyud-bzhi between 748–765 AD, earning it the name the “Mother of Decoction” (2,3). Suka Ningni-duojie, who founded the South-school of Tibetan medicine in the 14th century, carried out thorough research of MNXD and its derivatives, and developed them to be the clinical drugs that are most in accord with the theory of treatment determination based on syndrome differentiation in Tibetan medicine (4). I. racemosa, T. sinensis, and R. biflorus comprised the basic prescription of MNXD, and Z. officinal was the auxiliary prescription that could be substituted with other medicinal materials according to the patient’s specific symptoms (5). Currently, the recipes of MNXD and its derivative preparations are based on the experience of the treating clinician. The scientific basis for the addition of the auxiliary prescription to the basic prescription is still ambiguous.

T. sinensis, I. racemosa, R. biflorus, and Z. officinal. is the simplest recipe among the serial prescriptions of MNXD. According to the records in rGyud-bzhi (748–765 AD) and Somaradza (mid-13th century AD), the ability of MNXD to effectively relieve exterior syndrome and induce perspiration has led to its use as a treatment for plague, fever, rheumatoid arthritis, and other diseases (5). Hong et al. (3) found that the phagocytic index and ear tumidity of mice were significantly improved (P<0.05 and P<0.01, respectively) after 1 week of treatment with 0.5–2.0 g/kg of MNXT granules. Chen et al. (6) found that the phagocytic index, ear tumidity, and the extent of hemolysis of sheep red blood cells (SRBC) were significantly promoted by the oral administration of 1.3–2.6 g/kg of MNXT for 3 days in cyclophosphamide (CTX)-immunosuppressed mice (P<0.05). However, the effects of basic and auxiliary MNXD prescriptions on immunomodulation have yet to be illuminated. To investigate the compatibility theory of MNXD, we aimed to compare the effect of the auxiliary MNXD prescription with that of the basic MNXD prescription on the immunostimulating effect of MNXD in CTX-immunosuppressed mice, by evaluating the immune organ index, peripheral white blood cell (WBC) count, red blood cell (RBC) count, platelet count, phagocytosis, macrophage-secreted nitric oxide (NO) and cytokines, natural killer (NK) cytotoxic activity, lymphocyte proliferation, splenic T-Lymphocyte subpopulations, serum cytokine, and quantitative hemolysis of SRBC (QHS) assays. We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-1492).

Methods

Plant materials and chemicals

T. sinensis, I. racemosa, R. biflorus, and Z. officinale were purchased from Qinghai Fukang Pharmaceutical Company (Xining, China) on October 15, 2018, and identified by Prof. Yuzhi Du, Northwest Institute of Plateau Biology, Chinese Academy of Sciences (CAS) in Xining, China. The herbarium samples were recorded as IR20181015 for I. racemosa, TS20181015 for T. sinensis, RB20181015 for R. biflorus, and ZO20181015 for Z. officinale, and were deposited in Qinghai Provincial Key Laboratory of Tibetan Medicine Pharmacology and Safety Evaluation.

CTX was bought from Jiangsu Hengrui Medicine Co. (Lianyungang, Jiangsu, China). SRBCs, chicken red blood cells (CRBCs), guinea pig complements, RPMI-1640 complete medium, and Hank’s Balanced Salt Solution (HBSS) were purchased from Gibco, Thermo Fisher Scientific (Grand Island, NY, USA). Lipopolysaccharide (LPS), concanavalin A (ConA), 3-(4,5-dimethyl thiazolyl-2)-2,5-diphenyl tetrazolium bromide (MTT), Giemsa stain, and limulus amebocyte lysate (LAL) assay kits were obtained from Sigma-Aldrich (St. Louis, MO, USA). Mouse interleukin (IL)-2, IL-4, and interferon (INF)-γ enzyme-linked immunosorbent assay (ELISA) kits were purchased from Invitrogen, Thermo Fisher Scientific (Carlsbad, CA, USA). Tumor necrosis factor (TNF)-α and interleukin 1 beta (IL-1β) ELISA kits, anti-CD4, and anti-CD8 antibodies were bought from eBioscience of Thermo Fisher Scientific (San Diego, CA, USA). NO kits were obtained from Beyotime Biotechnology (Nantong, Jiangsu, China).

Preparation of the herbal decoction

MNXD preparation consists of four medicinal materials: T. sinensis, I. racemosa, R. biflorus, and Z. officinale (in a weight ratio of 20:20:6:5). MNXD-BD preparation is composed of three medicinal materials: T. sinensis, I. racemosa, and R. biflorus (in a weight ratio of 20:20:6). MNXD-AD preparation comprises Z. officinale alone. All three of the preparations were respectively decocted in boiling water at a solid-to-liquid ratio of 1:20 (w/v) for 3 hours. The the extracts were then centrifuged at 10,000 rpm for 30 min to remove insoluble residues, and the supernatants were concentrated to certain volumes to generate MNXD (full prescription decoction), MNXD-BD (basic prescription decoction), and MNXD-AD (auxiliary prescription decoction), which were stored at −80 °C before use. The endotoxin content of the experimental samples was determined to be <0.015 EU/mg using a LAL assay kit.

Animals and treatment

Six-to-eight-week-old male BALB/c mice were supplied by Charles River Laboratories (SCXK [Jing] 2016-0006; Beijing, China). The mice were housed under a 12/12-hour light-dark cycle at an ambient temperature of 25 °C. During the experiments, the mice were given free access to standard laboratory chow and distilled water.

Animal handling procedures were conducted according to the ARRIVE guidelines and the National Institutes of Health Guide for the Care and Use of Laboratory Animals (NIH Publications No. 8023). All animal experiments were approved by the ethics committee of Northwest Plateau Institute of Biology, CAS (NWIPB20171106-01).

After 1 week of acclimatization, the mice were randomly divided into 6 groups (n=10 in each group): the normal control group, the model control group, the positive control group (levamisole, an immunopotentiating agent), the MNXD group, the MNXD-BD group, and the MNXD-AD group. Apart from the normal control group, the mice were intraperitoneally injected with 50 mg/kg of CTX daily for 3 days, and then orally administered 0.2 mL of drugs for 14 days. The normal control group mice were only orally treated with 0.2 mL of sterile water per day for 14 days. In the positive control group, the dose of levamisole was 10 mg/kg bw/day. In the three experimental groups, the doses of MNXD, MNXD-BD, and MNXD-AD were 1.6, 1.44, and 0.16 g/kg bw per day of the original plant materials, respectively, which are their clinically equivalent dosages (1,7). Whole blood was collected 24 hours after the last administration from the orbit. After weighing, the mice were sacrificed by decapitation. Their spleens and thymuses were promptly collected, and the indices (the ratio of organ weight to body weight) were calculated.

Peripheral WBC, RBC, and platelet counts

The number of the peripheral WBCs, RBCs, and platelets were counted using an LH780 Hematology Analyzer (Beckman Coulter, Inc., Brea, CA, USA).

Preparation of spleen cell suspension

The spleens of the mice were minced in iced HBSS, and then pressed gently through a 200-mesh metal sieve to remove major tissue aggregates. The filtrates were lysed with hemolysis solution (7 g/L NH₄Cl and 2.6 g/L Tris-HCl) and centrifuged at 180 ×g for 10 min to remove the erythrocytes, and the spleen cell suspensions were finally obtained. The spleen cells were suspended in 1 mL of cell culture medium (RPMI-1640 complete medium containing 10% v/v FBS, 100 U/mL of penicillin, and 0.1 mg/mL of streptomycin), and an MTT assay was performed to determine the cell viability (8).

Phagocytic function of peritoneal macrophages

After the last drug administration, the mice were immunized by intraperitoneal injection of 1 mL of 20% CRBCs, and then sacrificed 30 min later. Peritoneal cells were obtained by treating the peritoneal cavities of the mice with the peritoneal lavage. The phagocytic function of peritoneal macrophages was determined using a 4% Giemsa-PBS stain solution, and the phagocytic rate and phagocytic index were calculated as described by Gao et al. (8).

NK cytotoxic activity of splenocyte assays

A splenocyte assay was carried out to detect NK cytotoxic activity as described by Tsa and Won (9). Briefly, 5×10⁵ cells/mL of splenocytes (effector cells, E) were mixed with YAC-1 cells (target cells, T) at an E:T ratio of 100:1. After incubation at 37 °C in a humidified 5% CO₂ incubator for 20 hours, the mixture was centrifuged at 400 ×g for 5 min, and then subjected to an MTT assay. NK cytotoxic activity was calculated as follows: NK cytotoxic activity (%) = (A_T − (A_S − A_E))/A_T × 100%, where A_T is the absorbance value of the control target cells at 570 nm, A_S is the absorbance value of the test samples at 570 nm, and A_E is the absorbance value of the control effector cells at 570 nm.

Lymphocyte proliferation assay

An aliquot of 100 µL of the splenocyte suspension (5×10⁶ cells/mL) was seeded into each well of a 96-well plate along with either 5 µg/mL ConA or 10 µg/mL LPS. After 48 hours of preincubation at 37 °C in a humidified 5% CO₂ incubator, the cell viability was determined by MTT assay (8).

Splenic T-lymphocyte subpopulation assay

For the splenic T-lymphocyte subpopulation assay, the splenocyte suspension was adjusted to a concentration of 1×10⁶ cells/mL and mixed with 10 µL of either anti-CD4 or anti-CD8 antibody. After 60 min of incubation at 4 °C, the cells were washed twice with PBS, and then resuspended in 1% paraformaldehyde (PFA). The CD⁴⁺ and CD⁸⁺ T-lymphocyte counts were determined using a flow cytometer (BD FACSCalibur, NJ, USA) and expressed as the percentages of the total counts of T lymphocytes (10).

Quantitative hemolysis of SRBC (QHS) assay

On day 12, mice were intraperitoneally injected with 0.2 mL of 10% SRBC suspension. After initial sensitization for 5 days, the splenocyte suspension was prepared and adjusted to a concentration of 1×10⁶ cells/mL in PBS, before incubation with 1 mL each of 0.2% SRBCs and 10% guinea pig serum complement at 37 °C for 1 hour. After centrifugation at 3,000 rpm for 3 min, the supernatant was used to determine the extent of hemolysis of SRBCs at 413 nm (11).

Determination of serum cytokines

Blood samples were obtained from the mice by retro-orbital phlebotomy 24 hours after the last administration of drugs. Serum was obtained from the samples by centrifugation at 3,000 rpm for 3 min. The IL-2, IL-4, and INF-γ contents in the serum were assayed using ELISA kits.

Preparation of peritoneal macrophages and determination of NO and cytokine secretion

Peritoneal cells were obtained using a peritoneal lavage, and then incubated in a 6-well plate at 37 °C for 3 hours. After the removal of the non-adherent cells with cold PBS, the adhered peritoneal macrophages were collected. The macrophage suspension was seeded into 96-well plates at a concentration 4×10⁵ cells/well. After 48 hours of culture, the supernatants were obtained, and the secretions of NO and cytokines were detected using ELISA kits.

Statistical analysis

To ensure a completely randomized experimental design, all data were presented as the mean ± standard deviation (SD) and subjected to analysis of variance. Multiple t-tests were conducted to identify the differences among means using GraphPad Prism software (Version 7.00). P<0.05 was considered to be statistically significant.

Results

Effects of MNXD, MNXD-BD, and MNXD-AD on body weight and immune organ indexes

CTX, which is currently the most widely used alkylation agent in tumor chemotherapy, often results in an immunosuppressive effect (12). In this study, the body weights and spleen and thymus indices of the model group were significantly decreased by intraperitoneal injection of CTX for 3 days; however, these decreases in CTX-treated mice were significantly ameliorated by oral administration of MNXD, MNXD-BD, or MNXD-AD for 14 days (P<0.05) (Table 1). The spleen and thymus indices in MNXD, MNXD-BD, and MNXD-AD groups were 39.32% and 65.91%, 33.71% and 94.31%, and 37.45% and 67.05% higher, respectively, than those in the model group. However, no significant differences existed between the three experimental groups. Moreover, the body weights of the mice in the MNXD, MNXD-BD, and MNXD-AD groups, the spleen index in the MNXD group, and the thymus indexes in the MNXD-BD and MNXD-AD groups were all higher than those in the levamisole group, indicating a positive effect of immunostimulation induced by MNXD, MNXD-BD, and MNXD-AD on atrophy.

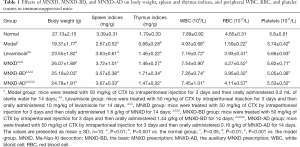

Table 1 Effects of MNXD, MNXD-BD, and MNXD-AD on body weight, spleen and thymus indices, and peripheral WBC, RBC, and platelet counts in immunosuppressed mice
Full table

Effects of MNXD, MNXD-BD, and MNXD-AD on hematopoietic function

As shown in Table 1, the peripheral RBC, WBC, and platelet counts were significantly decreased in CTX-immunosuppressed mice, but were elevated remarkably by oral administration of MNXD, MNXD-BD, or MNXD-AD for 14 days. These results suggested that MNXD, MNXD-BD, and MNXD-AD can inhibit the myelosuppression induced by CTX. However, no significant differences existed between the three treatments.

Effects of MNXD, MNXD-BD, and MNXD-AD on macrophages

Macrophages play a pivotal role in the initiation and regulation of the immune response by interacting with lymphocytes and acting as phagocytic, microbiocidal, and tumoricidal effector cells (13). As shown in Figure 1A, the phagocytic rate and index of the CTX-treated model group were markedly lower than those of the normal group. Meanwhile, MNXD, MNXD-BD, and MNXD-AD promoted the recovery of the phagocytic rate and index of peritoneal macrophages in CTX-immunosuppressed mice (P<0.001). Compared with the CTX-treated model group, the percent recoveries were 12.63% and 18.72% (MNXD), 16.67% and 11.10% (MNXD-BD), and 17.67% and 13.96% (MNXD-AD), respectively. In particular, the phagocytic index of the MNXD group was significantly higher than that of the MNXD-BD group (P<0.05).

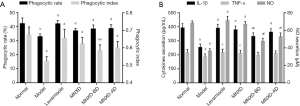

Figure 1 Effects of MNXD, MNXD-BD, and MNXD-AD on (A) phagocytosis, and (B) the secretion of IL-1β, TNF-α, and NO by macrophages in immunosuppressed mice. The values are presented as mean ± SD, n=10. ^a, P<0.05; ^b, P<0.001 vs. the normal group; ^c, P<0.05; ^d, P<0.001 vs. the model group; ^e, P<0.05; ^f, P<0.001 vs. the MNXD group. MNXD, Ma-Nuo-Xi decoction; MNXD-BD, the basic MNXD prescription; MNXD-AD, the auxiliary MNXD prescription; NO, nitric oxide.

The levels of cytokine and NO secretion by macrophages were also analyzed using the Griess method and ELISA. As shown in Figure 1B, CTX decreased the secretions of IL-1β, TNF-α, and NO from macrophages, but MNXD prevented this decrease (P<0.05). In the MNXD group, the secretions of IL-1β, TNF-α, and NO were increased by 49.60%, 14.62%, and 83.97%, respectively, compared with the model group. MNXD-BD and MNXD-AD also significantly promoted the secretion of IL-1β and NO in CTX-immunosuppressed mice (P<0.001); however, the increases in TNF-α secretion induced by these treatments were not significant. Furthermore, the NO level of the MNXD-AD group and the IL-1β and NO levels of the MNXD-BD group were significantly lower than those of the MNXD group (P<0.05).

Effects of MNXD, MNXD-BD, and MNXD-AD on NK cytotoxic activity

NK cytotoxic activity is another essential function of the non-specific immune system (14). As shown in Table 2, only the cytotoxicity values of the MNXD-AD-treated group were significantly increased compared with the model group (38.14%) (P<0.01). MNXD and MNXD-BD did not significantly abrogate the decrease in NK cytotoxic activity induced by CTX.

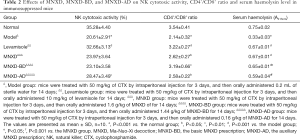

Table 2 Effects of MNXD, MNXD-BD, and MNXD-AD on NK cytotoxic activity, CD4⁺/CD8⁺ ratio and serum haemolysin level in immunosuppressed mice
Full table

Effects of MNXD, MNXD-BD, and MNXD-AD on splenic lymphocyte proliferation

Lymphocytes are one of the essential components of the host defense against invading pathogens, and their proliferation is an important event in the activation cascade of both cellular and humoral immune responses (15). As shown in Figure 2A, treatment with MNXD, MNXD-BD, or MNXD-AD significantly enhanced the proliferations of ConA-induced T-cells and LPS-induced B-cells in CTX-immunosuppressed mice (P<0.01). Compared with the model group, the increases in the T- and B-cell proliferation rates were 89.76% and 71.97% (MNXD), 54.71% and 52.71% (MNXD-BD), 40.96% and 59.15% (MNXD-AD), respectively. Moreover, MNXD showed significantly stronger abilities than levamisole, MNXD-BD, and MNXD-AD to augment T-lymphocyte proliferation (P<0.05).

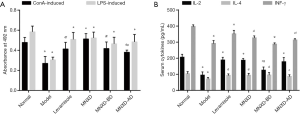

Figure 2 Effects of MNXD, MNXD-BD, and MNXD-AD on (A) splenic lymphocyte proliferation, and (B) cytokine concentrations in serum. The values are presented as mean ± SD, n=10. ^a, P<0.001 vs. the normal group; ^c, P<0.05; ^d, P<0.01; ^e, P<0.001 vs. the model group; ^f, P<0.05; ^g, P<0.001 vs. the MNXD group. MNXD, Ma-Nuo-Xi decoction; MNXD-BD, the basic MNXD prescription; MNXD-AD, the auxiliary MNXD prescription.

Effect of MNXD, MNXD-BD, and MNXD-AD on serum cytokine concentrations

Cytokines are especially important in the immune system and modulate the balance between humoral and cell-based immune responses through receptors (16). As shown in Figure 2B, CTX significantly decreased the concentrations of IL-2, IL-4, and INF-γ in the serum of mice (P<0.001). However, this effect was suppressed after the administration of MNXD, MNXD-BD, or MNXD-AD, as shown by the significant increases in the concentrations of these cytokines in the three groups (all P<0.05, other than the concentration of INF-γ in the MNXD-BD group). Furthermore, the concentrations of IL-2 and INF-γ in the MNXD-BD group and the INF-γ concentration in the MNXD-AD group were significantly lower than those in the MNXD group (P<0.05).

Effect of MNXD, MNXD-BD, and MNXD-AD on splenic T-lymphocyte subpopulations

T-lymphocyte subpopulations are closely associated with T-cell homeostasis and immune regulation. Among these subpopulations, CD4⁺ T-cells (helper T-lymphocytes, Th cells) and CD8⁺ T-cells (killer T-lymphocytes, Tc cells) are critical (17). As shown in Table 2 and Figure 3, the ratio of CD4⁺/CD8⁺ was strikingly decreased in the model group compared to the normal group (P<0.001). In contrast, treatment with MNXD, MNXD-BD, and MNXD-AD significantly recovered the CD4⁺/CD8⁺ ratio (P<0.05), inducing increases of 22.43%, 49.07%, and 20.56%, respectively, which suggested that oral administration of these decoctions can help to restore the ratio of splenic T-lymphocyte subpopulations.

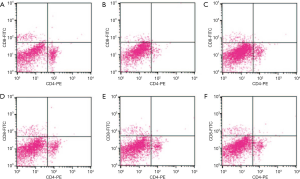

Figure 3 Effects of MNXD, MNXD-BD, and MNXD-AD on splenic T-lymphocyte subpopulations. (A) The normal group, (B) the model group, (C) the levamisole group, (D) the MNXD group, (E) the MNXD-BD group, and (F) the MNXD-AD group. MNXD, Ma-Nuo-Xi decoction; MNXD-BD, the basic MNXD prescription; MNXD-AD, the auxiliary MNXD prescription.

Effect of MNXD, MNXD-BD, and MNXD-AD on serum haemolysin formation

To further investigate the effect of the three decoctions on the humoral immune response to cellular antigens, the serum levels of haemolysins were measured. As shown in Table 2, serum haemolysin production was significantly suppressed in the model group compared to the normal group (P<0.05). However, in the MNXD, MNXD-BD, and MNXD-AD groups, the serum haemolysin levels were significantly increased (P<0.001), with increases of 103.03%, 96.97%, and 78.79%, respectively.

Discussion

In Tibetan medicine, MNXD and its derivative prescriptions are well known to be in line with the theory of treatment determination based on syndrome differentiation. However, to date, physicians still decide the composition of the herbs of these prescriptions without any experimental evidence, based only on personal experience and classical literature. In our published study, we aimed to investigate the immunostimulating effect of the polysaccharide components from Ma-Nuo-Xi decoction (18), but in the present study, we aimed to evaluate the immunopotentiation of MNXD, its basic prescription decoction (MNXD-BD), and its auxiliary prescription decoction (MNXD-AD), so as to elucidate the scientific basis for the contribution of auxiliary prescription to basic prescription. Since MNXD and its hundreds of derivative preparations, are the prescriptions that are well in line with the theory of treatment determination based on syndrome differentiation in Tibetan medicine, our findings will provide the scientific basis of the clinical usage of MNXD for Tibetan medicine physicians and promote the its modern development. In this study, we revealed that MNXD and its basic and auxiliary decoctions exerted immunomodulatory effects in CTX-induced immunosuppressed mice through regulating immune organs, immune cells, and immune cytokines. Treatment with MNXD, MNXD-BD, and MNXD-AD increased the spleen and thymus indexes and peripheral WBC count, and promoted phagocytosis, NO and cytokine secretion by macrophages, NK cytotoxic activity, and lymphocyte proliferation. Furthermore, there were also increases in the CD4⁺/CD8⁺ T-cell ratio, serum cytokine concentrations, and haemolysin formation. Moreover, peripheral RBC and platelet count assays showed that MNXD protected against CTX-induced myelosuppression.

In the prescription of MNXD, I. racemosa is considered as the “monarch drug”, and its chemical profiling revealed the presence of alantolactones and isoalantolactones, sitosterol, daucosterol, inunolide, aplotexene, phenylacetonitrite, isoinunal, and aliphatic and eudesmalolide esters (19-22). Meanwhile, I. racemosa extracts were reported to have anti-atherogenic, cardioprotective, antiasthmatic, and antidiabetic activities; however, no immunostimulating activity has been noted to date (23-29). T. sinensis is another important component in the MNXD prescription. A variety of bioactive metabolites, such as tinosporinone, 1,1-dibenzoyl methane, allyloxyflavone, kokusaginine, menispermacide, palmatine, cycloeuphordenol, dinorditerpene glucosides, and lignan glucosides, have been isolated from T. sinensis (30). Pharmacological studies have indicated that the aqueous extract of T. sinensis led to remarkable increases in the WBC count of Swiss albino mice. Arabinogalactan from T. sinensis has been shown to be polyclonally mitogenic to β-cells and to augment antibody response as well as to enhance T-cell responses to model antigens, which suggests an immunomodulatory activity (31-33). In the basic prescription of MNXD, R. biflorus is the ingredient used in the lowest amount (by weight). It was revealed by chemical composition analysis to contain triterpenoids, steroids, and flavones, among which rutin and hyperoside were used as quality reference standards (34-36). To date, its pharmacological activity has not been reported. In this study, MNXD-BD, which is composed of the above three herbs, exhibited some immunomodulatory effects in CTX-induced immunosuppressed mice. However, the clinically equivalent dosage of MNXD-BD did not significantly promote macrophage secretion of TNF-α and NO or NK cytotoxic activity in CTX-treated mice.

As for the auxiliary prescription, Z. officinale (ginger) has been used as a raw material in many traditional preparations since ancient times. In Tibetan medicine, dried ginger is used for stomach ache, impotence, lung disease, vomiting, and diarrhea accompanied by cold extremities and a faint pulse (37). In recent years, the beneficial effects of ginger have been demonstrated in a vast range of clinical and experimental inflammatory disorders, and are considered to be mainly attributable to the gingerols, shogaols, zingerone, and paradols (38,39). The immunological activity of ginger is consistent with the results of our study. The clinically equivalent dosage of MNXD-AD recovered non-specific and specific immunity in CTX-treated mice. Meanwhile, with the addition of MNXD-AD to MNXD-BD, more significant recoveries were observed in the phagocytic index, macrophage-secreted IL-1β and NO, ConA-induced T-lymphocyte proliferation, serum IL-2 and INF-γ levels, and haemolysin formation, as compared with the addition of MNXD-BD. These results indicate that the addition of MNXD-AD to MNXD-BD produced a better effect on enhancing non-specific and specific immunity against CTX-induced immunosuppression. Thus, ginger is seemingly an immunomodulator, which may be in line with the clinical experience of Tibetan medicine physicians, who have used ginger to promote the efficacy of the basic prescription of MNXD. Some studies revealed that the possible therapeutic potentials of ginger in the treatment of the autoimmune diseases may exert mainly through the regulation of the Th1-, Th2-, Th9-, Th17-, Th22- and Treg cell-related immune responses, down-regulation of the B cell-related immune responses, modulation of the macrophages-related responses, modulation of the production of pro- and anti-inflammatory cytokines, down-regulation of the arachidonic acid-derived mediators, interfering with the toll like receptor-related signaling pathways, suppression of the inflammasomes, down-regulation of the oxidative stress, reduction of the adhesion molecules expression, and down-regulation of the expression of the chemokines and chemokine receptors (40-42). However, not all questions can be answered together in one study, so we will investigate the mechanism of immunostimulating effect of MNXD, MNXD-BD, and MNXD-AD in our further study, including detecting lysosomal enzyme and procoagulant activity of macrophage.

Conclusions

In this study, a CTX-immunosuppressed mouse model was established to evaluate the immunopotentiation of MNXD and its basic (MNXD-BD) and auxiliary (MNXD-AD) decoctions. The results showed that MNXD, MNXD-BD, and MNXD-AD significantly recovered the non-specific and specific immunity of CTX-immunosuppressed mice, and exerted a protective effect against CTX-induced myelosuppression. Compared with MNXD-BD, MNXD obtained more significant recoveries in the phagocytic index, IL-1β and NO secretion by macrophages, ConA-induced T-lymphocyte proliferation, serum IL-2 and INF-γ levels, and haemolysin formation, which indicates a better stimulating capacity produced by the addition of MNXD-AD to MNXD-BD against CTX-induced immunosuppression. Therefore, MNXD-AD (ginger-decoction) is potentially an immunomodulator, which may be in line with the clinical experience of Tibetan medicine physicians, who have used ginger to promote the efficacy of the basic prescription of MNXD.

Acknowledgments

Funding: This work was supported by National Key R&D Program of China (2018YFC1708006), National Natural Science Foundation of China Regional Science Fund Project (81760396), China Postdoctoral Science Foundation-funded project (2019M652982), Innovation Platform Program (2017-ZJ-Y08) and Natural Science Foundation of Qinghai Province (2018-ZJ-902), Qinghai Provincial Health and Family Planning Medical and Health Science and Technology Project (2017-wjzdx-07), the International Partnership Program (153631KYSB20160004) and Central Asian Drug Discovery and Development Center of CAS (CAM201806), and Youth Innovation Promotion Association CAS.

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-1492

Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-1492

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-1492). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Animal handling procedures were conducted according to the ARRIVE guidelines and the National Institutes of Health Guide for the Care and Use of Laboratory Animals (NIH Publications No. 8023). All animal experiments were approved by the ethics committee of Northwest Plateau Institute of Biology, CAS (NWIPB20171106-01).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
