Effect of evolocumab on the progression and stability of atherosclerotic plaques as evaluated by grayscale and iMAP-IVUS

Introduction

Atherosclerosis is a common pathological phenomenon observed in several cardiovascular diseases, and is a serious threat to human health (1). It is characterized by the massive accumulation of lipids and inflammation (2,3). However, the pathophysiology of atherosclerosis is a complicated one. Multiple factors are thought to be involved in the induction of atherosclerosis, including cholesterol, low-density lipoprotein cholesterol (LDL-C), and certain inflammation cytokines (4). Therefore, the reduction of lipid accumulation and suppression of inflammation may serve as crucial strategies in the prevention and treatment of atherosclerosis.

The onset of atherosclerosis is marked by chronic inflammation, which is caused by the imbalance of lipid metabolism. This subsequently results in the accumulation of cellular cholesterol, which stimulates the adaptive immune response. The chronic inflammation induces the formation of atherosclerotic plaques in the vascular tissues. The formation of atherosclerotic plaques is primarily triggered by lipid accumulation and the secretion of inflammatory cytokines. It has been reported that the considerable accumulation of LDL-C can promote atherosclerosis by inducing the formation of atherosclerotic plaques in the media intima of the arteries. On the contrary, high-density lipoprotein cholesterol (HDL-C) inhibits atherosclerosis by transporting cholesterol into the liver, and thereby reduces the cellular cholesterol content (5). Monocyte chemoattractant protein-1 (MCP-1), also known as CC-chemokine ligand 2, is actively involved in the initiation and progression of atherosclerosis (6-8). Increasing evidence suggests that the expression of MCP-1 is up-regulated in patients diagnosed with atherosclerosis (9-11). Transforming growth factor-β (TGF-β) is an important anti-inflammatory cytokine with pleiotropic functions (12). TGF-β is known to control calcification and the immune response, both of which are major components of the atherosclerotic process (13,14). Toll-like receptors (TLRs) are pattern recognition receptors that play a critical role in regulating the inflammatory response and in maintaining inflammatory homeostasis. Toll-like receptor 4 (TLR4) has been implicated in the pathophysiology of atherosclerosis (15) and is over-expressed in both human and murine atherosclerotic lesions at different stages of atherogenesis (16-20).

The atherosclerotic plaques can change from a stable state to an unstable state, undergo erosion and finally rupture, leading to thrombosis. From a clinical viewpoint, it is therefore crucial to explore the strategies for stabilizing atherosclerotic plaques. Several methods, including histopathological examination (21,22), grayscale intravascular ultrasound (IVUS) (23), and intravascular ultrasound elastography (IVUSE) (24) have been previously employed in animal studies for studying the stability and progression of atherosclerotic plaques. However, only a few animal studies have used color IVUS form to determine the stability and progression of atherosclerotic plaques. The iMAP (Boston Scientific, MA, USA) color IVUS systems has a relatively new software package for analysis of the fibrotic, lipidic, necrotic, calcific plaque components of atherosclerotic plaques on the basis of the backscattered ultrasound frequency spectrum (25,26). The feasibility of using IMAP-IVUS in diagnosis of plaque vulnerability and prediction of plaque components in patients with acute coronary syndrome has been confirmed (27,28).

Evolocumab is an inhibitor of the proprotein convertase subtilisin/kevin type 9 (PCSK9) protein. It has been reported that PCSK9 promotes atherosclerosis by increasing the serum levels of LDL-C (29). The inhibition of PCSK9 has been shown to significantly reduce the plasma levels of LDL-C in atherosclerotic patients, thus reducing the incidence and mortality of cardiovascular diseases (30-32). In this study, we investigated the relationship between inflammation and evolocumab, and the effects of evolocumab on the serum levels of lipids and the plaque components in the abdominal arteries of a rabbit model of atherosclerosis using iMAP-IVUS.

We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-690).

Methods

Experimental animals

Twenty-seven 4-month-old New Zealand white male rabbits (mean weight 1.84±0.13 kg) were provided by the Jinan Xilingjiao Culture and Breeding Center, Jinan, China (license number: SCXK(LU) 20160005). The animals were fed with an atherogenic diet containing 1% cholesterol and 99% normal rabbit diet (150 g/day) for 2 weeks. The abdominal aortic endothelium of all the rabbits was balloon-injured after 2 weeks of administration of the atherogenic diet, as described in previous studies (33-35). At the end of week 10, the rabbits were randomly divided into three groups: the Ato group (n=9), in which the rabbits received intragastric administration of 2 mg/kg atorvastatin calcium (Pfizer, NY, USA) through a stomach tube once a day for 8 weeks; the Evo group (n=9), in which 7 mg/kg evolocumab (Amgen Inc., Thousand Oaks, CA, USA) was administered biweekly via subcutaneous injections; and the control group in which the animals received normal saline. The dosage of atorvastatin and evolocumab was determined according to the body surface area and body weights of humans and animals. Doses of 2 mg/kg atorvastatin calcium and 7 mg/kg evolocumab in rabbits were equivalent to doses of 40 mg atorvastatin calcium and 140 mg evolocumab in humans, respectively.

Experiments were performed under a project license (No. 2016061) granted by the ethics committee of Jinan Central Hospital Affiliated to Shandong University, in compliance with the Guide for the Care and Use of Laboratory Animals published by the US National Institutes of Health (NIH Publication No. 85-23, revised 2011). All the aseptic operations were performed under general anesthesia to minimize the suffering of the rabbits.

Plasma assays

Blood was drawn from the marginal ear vein of the rabbits that had been starved overnight for 12h. The blood samples were collected at baseline (beginning of the study) and at weeks 10 and 18. The supernatant was collected after centrifugation at 4,000 rpm for 8 min on a TGL-16B high speed centrifuge (Anke Science Instrument Factory, Shanghai, China) and stored at −80 °C. The serum levels of triglycerides (TG), total cholesterol (TC), HDL-C, and LDL-C were measured using a biochemical autoanalyzer (Cobas 8000 c701; Roche Diagnostics, Mannheim, Germany). The levels of inflammatory factors including MCP-1 and TGF-β, were determined by enzyme-linked immunosorbent assay.

Immunohistochemical staining

All the rabbits were euthanized at the end of the study, and their abdominal aortas (5 cm long proximal to the iliac arterial bifurcation) were harvested. The abdominal aortas were fixed in 4% formaldehyde and serially cut into 5-mm-thick segments. The segments were embedded in paraffin and dehydration. The segments were subsequently sliced into 4-µm thick sections, which were immunohistochemically stained with a murine antibody against rabbit TLR4 (cat. no. ab22048; Abcam, Cambridge, MA, USA) using a diaminobenzidine kit (Zhongshan Golden bridge Biotechnology, Beijing, China).

The histological images were captures with an optical microscope (Olympus, Tokyo, Japan) and the images were analyzed using an image analysis system (Image Pro Plus 6.0, Media Cybernetics Inc, MD, USA). Ten high-power fields (400×) were randomly selected from each section, and five sections were selected from each animal for measurement. The level of TLR4 was expressed in terms of the integrated optical density (IOD).

IVUS measurement

At the end of 10 and 18 weeks, the plaque volume and composition of the target segments of the abdominal aorta (10-mm-long segments with minimal luminal cross-sectional area, devoid of side branches) were determined by IVUS. A 2.5-F, 40-MHz imaging catheter (Atlantis SR Pro2 and iLab Ultrasound Imaging System, Boston Scientific, Natick, MA, USA) was inserted into the abdominal aorta via the right femoral artery. The transducer of the catheter was positioned on the left renal artery ostium and withdrawn at a speed of 0.5 mm/s. The images obtained by IVUS were recorded on a DVD for further offline analyses. The bifurcation of the iliac artery was used as the reproducible landmark to synchronize the target segment at both time points (end of 10 and 18 weeks).

The data obtained by IVUS was processed according to the methods described in published guidelines (36) using special software (echoPlaque version 4.0, Indec Systems, CA, USA). The percent atheroma volume (PAV) was calculated as described in a previous study (37). PAV is defined as the percentage of vessel volume that is occupied by a plaque in the target segment. The following formula was used for calculating the PAV:

$$\text{PAV}=\frac{\sum \left(\text{EEMcsa}-\text{LUMENcsa}\right)}{\sum \text{EEMcsa}}\times 100$$[1]

where, the abbreviations EEM and csa stand for external elastic membrane and cross-sectional area, respectively. The iMAP-IVUS radio frequency imaging system was used to characterize the tissues. The imaging system uses a pattern-recognition algorithm to decipher the spectra obtained from the Fast Fourier transformation of a human autopsy database of coronary atheroma (26). The iMAP system uses color-coding and depicts fibrotic tissues in light green, lipidic tissues in yellow, necrotic tissues in pink, and calcified tissues in blue. The fibrotic%, lipidic%, necrotic%, and calcified% represent the percentages of the total volume of the atheroma in the target segment that is occupied by fibrous, lipidic, necrotic, and calcified components, respectively. The following formulae were used for calculating the fibrotic%, lipidic%, necrotic%, and calcified%:

$$\text{Fibrotic\%}=\frac{\text{Fibrotic volume}}{\text{Total atheroma volume}}\times 100$$[2]

$$\text{Lipidic\%}=\frac{\text{Lipidic volume}}{\text{Total atheroma volume}}\times 100$$[3]

$$\text{Necrotic\%}=\frac{\text{Necrotic volume}}{\text{Total atheroma volume}}\times 100$$[4]

$$\text{Calcified\%}=\frac{\text{Calcified volume}}{\text{Total atheroma volume}}\times 100$$[5]

Statistical analysis

The continuous variables are presented as the mean ± standard deviation for the normally distributed variables and median values (interquartile range) of the nonparametric data. The differences in the paired continuous variables between the groups were estimated by the paired sample t-test. One-way analysis of variance was performed to compare the differences between the groups when the homogeneity of the variance assumptions was satisfied. In other cases, the Kruskal-Wallis H test was applied. The Tukey’s test or the Dunn-Bonferroni test was used for multiple post-hoc comparisons. The Spearman’s correlation and multivariate linear regression analyses were performed to assess the relationships between the IVUS-derived parameters and the serum levels of lipids, and biomarkers. All the data were analyzed using SPSS version 22.0 (IBM, NY, USA). For the two-tailed tests, P<0.05 was considered to be statistically significant.

Results

Evolocumab decreases lipid profiles in atherosclerotic rabbits

After 10 weeks of administration of the atherogenic diet, the serum levels of TG, TC and LDL-C increased markedly, while the levels of HDL-C decreased in the serum (Figure 1A,B,C,D). After 8 weeks of treatment with evolocumab, the serum levels of TG, TC, and LDL-C significantly decreased, while the serum levels of HDL-C significantly increased (Figure 1E). In this study, we used atorvastatin as the positive control. Atorvastatin belongs to the statin class of drugs, and is used to lower the lipid levels in the serum. The results demonstrated that evolocumab was more effective in reducing the serum levels of TG, TC, and LDL-C, than atorvastatin (Figure 1E), but there was no difference in the serum levels of HDL-C following treatment with either evolocumab or atorvastatin.

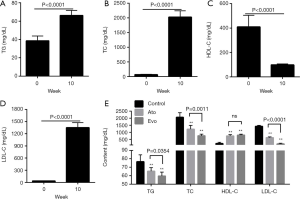

Figure 1 Effect of the atherogenic diet and treatment with atorvastatin and evolocumab on the serum lipid profiles. HDL-C, high-density lipoprotein cholesterol; LDL-C, low-density lipoprotein cholesterol; TC, total cholesterol; TG, triglyceride; NS, non-significant (P≥0.05). **, P<0.001 vs. control.

Evolocumab reduces inflammation in atherosclerotic rabbits

After 10 weeks of administration of the atherogenic diet it was observed that the serum levels of MCP-1 significantly increased, while the levels of TGF-β significantly decreased (Figures 2A,B). The administration of evolocumab and atorvastatin significantly reversed these changes; however, evolocumab was more effective at reducing the serum levels of MCP-1 and increasing the levels of TGF-β compared to the efficacy exhibited by atorvastatin (Figure 2C). Additionally, the results of immunohistochemical staining assays revealed that both evolocumab and atorvastatin significantly reduced the expression of the TLR4 protein (Figures 2D,E). The expression of the TLR4 protein in the abdominal aorta of atherosclerotic rabbits that received evolocumab was significantly lower than that of the rabbits that were treated with atorvastatin (Figure 2E).

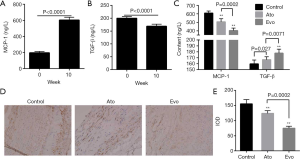

Figure 2 Response of inflammatory biomarkers and TLR4 to the atherogenic diet and treatments with atorvastatin and evolocumab. (A,B) Serum levels of MCP-1 and TGF-β, respectively, at the baseline and at week 10; (C) the comparison of the serum levels of MCP-1 and TGF-β levels across the three experimental groups at the 18 weeks; (D) the representative images obtained from the immunochemistry assay for the TLR4 protein (400×); (E) the comparison of the integrated optical density (IOD) values for the TLR4 protein. NS, non-significant (P≥0.05). **, P<0.001 vs. control.

Grayscale and iMAP-IVUS volumetric parameters

After 8 weeks of treatment with atorvastatin and evolocumab, the PAV of the atherosclerotic rabbits in the treatment groups decreased significantly (Figure 3A). The fibrotic% increased significantly (Figure 3B) while the necrotic% decreased (Figure 3C), compared to those of the control group at the end of 18 weeks. The necrotic% of the atorvastatin and evolocumab groups was significantly lower than that of the atherosclerotic rabbits in the control group at the end of 10 weeks. There were no differences in the lipidic% and calcified% in the abdominal aorta (Figure 3D,E). The representative grayscale and corresponding iMAP-IVUS images are illustrated in Figure S1.

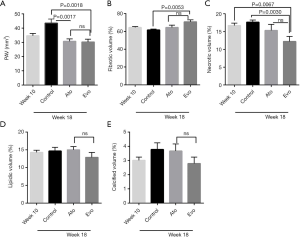

Figure 3 Effect of the atherogenic diet and treatments with atorvastatin and evolocumab on the atherosclerotic plaques. (A) The percent atheroma volume (PAV) in abdominal aorta; (B,C,D,E) the fibrotic%, necrotic%, lipidic%, and calcified% in the abdominal aorta of the rabbits, respectively. NS, non-significant (P≥0.05).

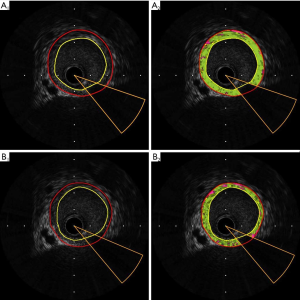

Figure S1 Representative grayscale and corresponding iMAP-IVUS images. (A1) Representative grayscale IVUS transverse image of a section of the abdominal aorta of a rabbit in the Evo group at 10 weeks. (A2) Corresponding iMAP-IVUS image for A1. (B1) Grayscale IVUS transverse image of the same section in A1 at 18 weeks. (B2) Corresponding iMAP-IVUS image for B1. The four tissue compositions are depicted in light green (fibrotic), yellow (lipidic), pink (necrotic), and blue (calcific). The cross-sectional area of the plaque in A1 is 4.68 mm², while the area of the plaque in B1 is 3.59 mm².

Bivariate correlations analysis and multivariate linear regression analysis

Figure 4 depicts the relationships between PAV and the biomarkers at 18 weeks. The values of PAV were found to be positively correlated with the serum levels of TG (r=0.596, P=0.001), TC (r=0.549, P=0.003), LDL-C (r=0.560, P=0.002), MCP-1 (r=0.575, P=0.002), and TLR4 expression (r=0.511, P=0.006), while it was negatively correlated with the levels of TGF-β (r=−0.437, P=0.023). Correlation analyses (Table 1) revealed that the fibrotic% was negatively correlated with the TC (r=−0.696, P<0.001), TG (r=−0.385, P=0.048), LDL-C (r=−0.651, P<0.001), calcified% (r=−0.603, P=0.001), MCP-1 (r=−0.412, P=0.033) and TLR4 (r=−0.463, P=0.015) at the end of 18 weeks. Fibrotic% was found to be positively correlated with the expression of TGF-β at 18 weeks (r=0.396, P=0.041). However, necrotic% was found to be positively correlated with TC (r=0.793, P<0.001), TG (r=0.556, P=0.003), LDL-C (r=0.751, P<0.001), calcified% (r=0.517, P=0.006), MCP-1 (r=0.457, P=0.016), and TLR4 expression (r=0.493, P=0.009). Necrotic% was found to be negatively correlated with the expression of TGF-β (r=−0.453, P=0.018).

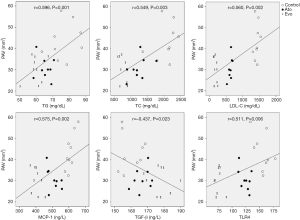

Figure 4 The variables intravascular ultrasound (IVUS) had significant positive correlation with the percent atheroma volume (PAV).

Table 1 Relationships between fibrotic and necrotic volume and other biomarkers at week 18
Full table

A multivariate analysis was performed using the variables derived from IVUS, namely, PAV, fibrotic%, and necrotic%, using the following candidate predictors: the different treatments (converting to two dummy variables: Ato and Evo), TG, TC, HDL-C, LDL-C, MCP-1, TGF-β, and TLR4. The values of all the aforementioned variables represented the follow-up values for week 18. It is evident from Table 2 that the type of treatment was the consistent predictor for the variables derived from IVUS, and evolocumab had higher absolute values of regression coefficients compared to those of atorvastatin (34.46 vs. 21.007, 12.326 vs. 2.509, and 7.753 vs. 2.133, for evolocumab vs. atorvastatin, respectively). It was additionally observed that LDL-C correlated with the variables derived from IVUS.

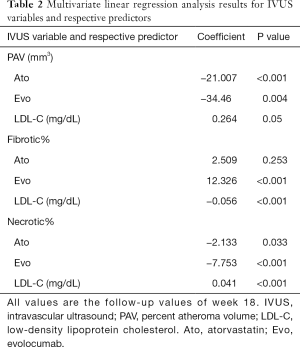

Table 2 Multivariate linear regression analysis results for IVUS variables and respective predictors
Full table

Discussion

The present study demonstrates the efficacy of the PCSK9 inhibitor, evolocumab, in inhibiting the progression and stability of atherosclerotic plaques in rabbits using grayscale IVUS and iMAP-IVUS. Evolocumab was more effective than atorvastatin in reducing the progression and stability of atherosclerotic plaques. The PAV was found to be significantly correlated with the serum levels of TG, TC, LDL-C, MCP-1, and TGF-β, and the expression of TLR4 in the abdominal aorta.

Previous studies in human subjects have demonstrated that statins can reduce the volume of atherosclerotic plaques (38-41). The GLAGOV (Global Assessment of Plaque Regression with a PCSK9 Antibody as Measured by IVUS) trial demonstrated that PCSK9 inhibitors could effectively reduce the volume of atherosclerotic plaques (42), similar to the results obtained in our study. Previous studies have demonstrated the plaque-stabilizing effects of statins. Using IB-IVUS and optical coherence tomography (OCT), Hattori and colleagues have verified that pitavastatin increases the thickness of fibrous caps and reduces the lipidic% in human coronary plaques (43). Using OCT, Komukai and colleagues obtained similar results with atorvastatin (44). Although the iMAP-IVUS method differed from IB-IVUS with respect to the imaging mechanism, similar results were obtained in our study due to the fact that the necrotic% determined with iMAP was positively correlated with the lipid pool calculated using IB-IVUS (45). By employing the iMAP-IVUS method and multivariate linear regression analysis, we additionally observed that evolocumab had a more significant effect on the regression and stabilization of the atherosclerotic plaques than the effect exhibited by atorvastatin, as indicated by the increased fibrotic% and decreased necrotic% following evolocumab treatment.

LDL is vital to the formation of atherosclerotic plaques. As inhibitors of 3-hydroxy-3-methylglutaryl coenzyme A, statins are standard anti-atherosclerotic pharmacotherapeutic agents that are used to lower the levels of lipid in the blood. PCSK9 inhibitors can reduce the recycling of the LDL receptor to the hepatic surface, thereby limiting the removal of LDL particles from the circulation (29). As evolocumab is a type of monoclonal antibody against PCSK9, it can notably reduce the levels of LDL-C when administered alone or in combination with statins (46). In the present study, evolocumab was more effective than atorvastatin in reducing the serum levels of TG, TC, and LDL-C. These results are consistent with those of previous studies.

The development of atherosclerosis may have an inflammatory and immune basis (47). TLRs are important innate immune receptors that also function as pattern-recognition receptors. Some TLRs, including TLR4, can directly promote atherosclerotic progression via the stimulation of macrophages (48,49). TLR4 is expressed in the arterial walls of normal subjects at low levels, but is overexpressed in atheroma, and is mainly concentrated in the shoulder region where the plaque is most likely to rupture (50). Therefore, TLR4 can be an ideal marker for indicating plaque vulnerability. The progress of atherosclerotic inflammation is mediated by the TLR4-nuclear factor-κB (NF-κB) pathway, which induces the overexpression of several inflammatory cytokines including MCP-1 (18). MCP-1 recruit monocytes to the vessel wall and is expressed in the macrophage-rich regions of atherosclerotic plaques (51). The proatherosclerotic effects of MCP-1 have been proved by gene deletion experiments (52). The results of the present study indicated that atorvastatin reduced the expression of TLR4 and MCP-1, and this effect was intensified by treatment with evolocumab. These results indicated the anti-inflammatory effect of evolocumab was mediated via the decrease in the expression of MCP-1/TLR4 and an increase in the expression of TGF-β. These findings provide novel evidence for elucidating the mechanisms underlying the anti-inflammatory effects of evolocumab.

In conclusion, the results of our study suggested that evolocumab probably regulated the levels of lipid and cholesterol via the inflammatory pathways. Additionally, the use of IVUS techniques would help to elucidate the mechanism underlying the inhibition of atherosclerotic plaques by evolocumab.

Acknowledgments

Funding: This study was supporteded by the National Science Foundation of China (81670245) and Beijing Linghang Fund (LHJJ20159227).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-690

Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-690

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-690). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No. 2016061) granted by the ethics committee of Jinan Central Hospital Affiliated to Shandong University, in compliance with the Guide for the Care and Use of Laboratory Animals published by the US National Institutes of Health (NIH Publication No. 85-23, revised 2011).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
