Reduction in rectal doses of pelvic radiotherapy with excessive rectal gas extraction: a single-institution case report

Introduction

Radiation therapy (RT) is one of the most effective treatment modalities for a wide range of malignancies, about 70% of cancer patients are treated with RT during the disease course. Stereotactic body radiotherapy (SBRT) yields excellent control rates for many types of solid malignancies, especially in oligometastatic and metastatic tumors (1,2). High dose rate brachytherapy (HDR-BR); with the advantage of precise positioning of the source, infinitely variable dwell times/positions, and shorter treatment time, is widely used to treat gynecological malignancies (3-5). HDR-BR serves to boost the gross tumor and has been confirmed to improve tumor control and survival rates (6,7). However, extreme caution should be taken not to over-irradiate the adjacent organs at risk (OARs) because of high fractionation size in SBRT and HDR-BT.

The rectum is one of the important OARs, which should be strictly protected during pelvic radiotherapy. Radiation-induced rectal toxicities such as inflammation, bleeding, and even rectovaginal fistula formation, will impair the patient’s quality of life and impact the course of treatment. Furthermore, the variable gas filling in the rectum adds difficulty to the radiotherapy treatment planning. Related studies (8) have shown that in as many as 35% of cases, gas accumulation occurs for the entire course of RT. Several methods have been proposed to reduce rectal dose rates clinically, such as use of a radioprotective spacer to shift the rectum away from the lesion or an endorectal balloon to reduce the internal target volume (ITV) (9-11). Because currently in China both of the above techniques are widely unavailable, we alternatively hypothesized that removal of the rectal gas can achieve the similar effect by reducing the rectal volume and ITV. This is because the distance of the rectum to lesions can be increased with decreasing rectal volumes, which also makes it easy for the physicists to avoid the rectum during field arrangement. Besides, a reduced ITV can be obtained due to constancy in the rectal volume, as with use of an endorectal balloon.

We present the following article in accordance with the Case Series reporting checklist (available at http://dx.doi.org/10.21037/apm-20-1063).

Methods

Three cases of patients with pelvic malignancies receiving SBRT or HDR-BT were retrospectively analyzed in single center. Our institution is a comprehensive hospital integrating teaching, scientific research and clinical practice. The case report is presented following the CARE Guidelines (12). All patients underwent simulation computed tomography (sim-CT) scans with proper bladder and bowel preparations prior to either SBRT or HDR-BT. After the first acquisition of CT images, excessive gas in the rectum was confirmed and subsequently extracted by inserting a catheter into the rectum. Then, a second sim-CT was taken, and together with the first one transported to the radiotherapy treatment planning system (TPS). Both SBRT and HDR-BT plans were made based on the two sim-CTs, and compared using dose-volume histograms (DVH). The patients had no discomfort after a catheter in section. We further present the clinical factors, treatments, ages, and stages of the patients in Table 1.

Table 1 Patient characteristics
Full table

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Case 1

A 61-year-old man with prostate cancer had received pelvic radiation for five years after surgery. At the time of admission, the patient had multiple bone metastases with continuous endocrine therapy and was diagnosed as stage IV. Before admission, the patient was found to have pain in their left lower limb and left hip. A pelvic magnetic resonance imaging (MRI) scan revealed a soft-tissue mass near the left piriformis muscle. A positron emission computed tomography (PET-CT) scan suggested there to be a high metabolism rate; therefore, a new local metastasis was considered. The use of a local lesion SBRT for palliative and analgesic treatment was planned, and the prescribed dose was 2,400 cGY/3F, 800 cGY/f, 5F/W. The sim-CT (Figure 1) scan found the rectum to be significantly inflated after the patient’s stool was drained. The closest point of the rectal mucosa to the tumor target was 0.1 cm, as shown by the yellow arrow in Figure 1A. After a single prescription dose of 800 cGY was given to the target planning target volume (PTV), the dose D2 cm³ of rectal was as high as 662 cGY. Considering that the patient had a history of pelvic radiotherapy, the rectal reaction of the patient was severe after direct treatment was administered; therefore, the rectal dose needed to be urgently reduced. During SBRT treatment, catheters were inserted into the rectum after defecation, and the excess gas in the rectum was extracted using a 50 mL syringe after each treatment. The radiotherapy plan was reformulated to treat the patient according to the real-time rectal volume. Table 2 shows the data diagram of the rectal irradiation doses after rectal gas was extracted during the first three SBRT treatments. The pictures of the first three SBRT treatments are shown in Figure 1B,C,D. Next, we calculated the distance between the rectal mucosa and the target volume after the rectal gas was extracted. We then compared the results with the sim-CT (Figure 1A), which was widened to 2.04, 2.0, and 2.14 cm (as shown by the yellow arrow Figure 1B,C,D). The patient’s rectal D2 cm³ dose was reduced to 385 cGY (Figure 1B), 408 cGY (Figure 1C), and 578 cGY (Figure 1D) (Table 2). Rectal D0.1 cm³ dose was reduced to 403 cGY (Figure 1B), 423 cGY (Figure 1C), and 673 cGY (Figure 1D). The DVH of the rectal irradiation dose is shown in Figure 2. Compared with the sim-CT image without the catheter (Figure 1A), the patient’s rectal D2 cm³ dose reduction was 43%, 39%, and 14%, respectively. The rectal D0.1 cm³ dose reduction was 51.6%, 49.2%, and 19.2%, respectively (Table 2).

Figure 1 Changes of rectal volume and distance between rectum and tumor target area before and after extraction of gas by catheter in different SBRT groups. (A) shows the relationship between the rectum and the target area during the CT positioning, which is the initial image with no catheter insertion. The yellow arrow indicates a gap of 0.1 cm. (B,C,D) The SBRT images obtained three times after rectal gas was extracted. The yellow arrow represents the widened distance. (E) The relationship between the four images of the rectum and the target area after fusing the images. (F) The image of the rectum’s sagittal plane after the insertion of the catheter. The blue arrow shows the catheter. SBRT, stereotactic body radiotherapy.

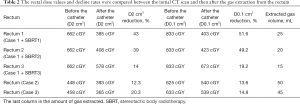

Table 2 The rectal dose values and decline rates were compared between the initial CT scan and then after the gas extraction from the rectum
Full table

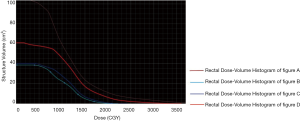

Figure 2 DVH of rectal irradiation dose in four SBRT radiotherapy plans. DVH, dose-volume histogram; SBRT, stereotactic body radiotherapy.

Case 2

The patient, female, 60 years old, was diagnosed with poorly differentiated endometrioid adenocarcinoma. The postoperative pathological stage was IA. The patient had several high-risk factors after surgery, prompting an HDR-BT of the vaginal stump. For postoperative high-dose-rate vaginal brachytherapy, we preferred regimens include 5.5GY*4 fractions prescribed to 5 mm below the vaginal surface in our department (NCCN 2020). The rectum dosage was evaluated at D2 cm³ and D0.1 cm³. The patient had excessive gas before the insertion of the catheter (Figure 3A). 50 mL of gas was extracted by inserting the catheter, as shown by the blue arrow in Figure 3B. The prescription dose in the target volume remained unchanged, and the rectal doses required in Figure 3A,B were calculated. D2 cm³ was 448 cGY and 393 cGY, and D0.1 cm³ was 625 cGY and 540 cGY, respectively. The dosimetry of D2 cm³ and D0.1 cm³ decreased by 12.3% and 13.6%, respectively, after the catheter was inserted (Table 2).

Figure 3 Rectal volume before and after insertion of a catheter. (A) The relationship between the significantly expanded rectum and the target volume, before the insertion of the catheter. (B) The relationship between the rectum and the target volume after the extraction of 50 mL gas. The blue arrow represents the catheter.

Case 3

The patient, a 53-year-old female, was admitted to the radiotherapy department after being diagnosed with cervix middle differentiated squamous cell carcinoma (stage IIB). The patient was treated with external irradiation plus three-dimensional brachytherapy. HRCTV D90 600 cGY was given as a single prescription dose for BR treatment. The individual was treated with CT-guided three-dimensional brachytherapy, and the rectum dose was evaluated with D2 cm³ and D0.1 cm³. The CT scan of the patient revealed a slight increase in rectal gas, as shown in Figure 4A. A catheter was inserted, and 45 mL of gas was extracted with a syringe. The CT image was then rescanned (Figure 4B). The prescribed dose of HRCTV D90 600 cGY was given, the dose of rectal irradiation was D2 cm³ was 458 cGY and 365 cGY, respectively. Simultaneously, D0.1 cm³ was 633 cGY and 539 cGY, respectively. The dosimetry of D2 cm³ and D0.1 cm³ decreased by 20.3% and 14.8%, respectively, after the catheter was inserted (Table 2).

Figure 4 Rectal volume before and after insertion of a catheter. (A) The rectal volume before the insertion of the catheter. The rectum is filled with gas. (B) An image of 45 mL of gas extracted after the insertion of the catheter. The blue arrow represents the catheter.

Discussion

Although patients were recommended not to eat less gas-producing food during treatment, we still find that many patients can accumulate large quantities of gas in the rectum and even the whole intestine before and during radiotherapy. These accumulations happen because the origins of gas are poorly understood.

In the first case (prostate cancer patient), we found that the rectal lumen still expanded significantly after the patient emptied his stool. There was no space between the intestinal wall and the target volume. After the prescribed dose was given, the volume dose of rectal D2 cm³ was as high as 662 cGY. The patient had undergone pelvic radiotherapy in the past, so it was urgent to reduce the doses of rectal irradiation. During the three SBRT treatments, gas extraction ranged from 10 to 20 mL each time. The rectum D2 cm³ volume was significantly reduced by 43%, and the distance between the rectum and the target area was widened sharply. The maximum distance between the rectum and the target area was widened by about 2.14 cm. This method dramatically reduces radiation exposure and doses to the rectum while being very safe and straightforward.

In SBRT of tumors near the rectum, sparing of the rectal wall is a prerequisite for the safe delivery of doses beyond 78 Gy, as it is an organ at risk (9). However, rectal doses exceeding 70 Gy are predictors of rectal toxicity (10); therefore, it is very important to reduce the rectal radiation doses required. There are many clinical methods for reducing rectal doses, and each has its advantages and disadvantages. Spatial sparing of the rectum can be achieved by introducing a spacer material into the rectoprostatic space, thus separating the anterior rectal wall from the PTV (13-15). However, hyaluronate gel injection requires local anesthesia and intravenous sedoanalgesia, which is time-consuming and traumatic for the patients. Also, since tissues may become fibrotic after RT, it seems unreasonable that HGI would be meaningful and feasible in the reirradiation setting. HGI works by widening the distance between the rectum and the vagina or prostate to lower the rectal doses, but it does not address the problem of rectal volume caused by rectal inflation. If the patient has no previous history of pelvic radiotherapy, rectal aspiration plus hyaluronate gel injection may be the best option.

Among the two patients with gynecological diseases treated with HDR-BR, the second case had rectal flatulence. The transverse diameter of the intestinal cavity was larger than 5 cm, which could not be alleviated by an oral laxative. After performing rectum aspiration on the patient, the patient was repositioned with CT, and the radiotherapy plan was customized to ensure that the patient received the highest prescribed dose with the lowest possible organ toxicity. The patient’s rectal dose dropped by up to 20% using this method. Based on a conclusion drawn from these three patients, we believe that there is a positive correlation between the decrease in rectal dose and the amount of aspiration. However, the specific scope and degree still need to be verified with a larger number of patients. This part of the work is being collected and conducted clinically by our unit.

An intravaginal balloon catheter (16) was developed in 2004, which has decreased high-dose-rate-induced organ toxicity in the bladder and rectum. Nevertheless, in a randomized study of patients with cervical carcinoma treated with HDR-BT (17), one patient was reported to have a minor vaginal tear as a result of overinflation of the bladder-rectum spacer balloon. Furthermore, there are some other clinical methods, such as the use of volumetric modulated arc therapy (VMAT), to reduce rectal dose in radiotherapy for prostate cancer (18). However, the use of this method in reducing the dose is limited.

Conclusions

Our rectal gas extraction technique is feasible in reducing rectal toxicities during pelvic SBRT and HDR-BT.

Acknowledgments

Funding: This study was supported by a grant from the Natural Science Foundation of Zhejiang Province (grant number: LQ19H160033).

Footnote

Reporting Checklist: The authors have completed the Case Series reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-1063

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-1063). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
