Dynamic programming for solving a simulated clinical scenario of sepsis resuscitation

Introduction

Dynamic programming (DP) is both a mathematical optimization method and a computer programming method that solves problems by combining the solutions to subproblems (1). The Wikipedia definition states that “[DP is a] method for solving complex problems by breaking them down into simpler subproblems”. A dynamic-programming algorithm solves each subproblem just once and then saves its answer in a table, thereby avoiding the work of recomputing the answer every time it solves each subprogram. The idea of DP is to search a good policy (i.e., the policy to maximize the long-term reward) by using the value function. DP is closely related to the idea of reinforcement learning (RL) but builds on a known Markov Decision Process (MDP). The MDP comprises state, action and reward sets, denoted byS, A, and R, respectively. These terms can be explained in the context of clinical medicine. The state is constructed by features such as blood pressure, body temperature and laboratory tests in clinical medicine. The action refers to any treatment that the physician can prescribe. Reward refers is a quantity that is defined to quantify the goodness of a state transition. If the state is improving, e.g., transitioning from poor state to good state, a positive reward is usually assigned. The transition probability from one state to another under action a is denoted asp(s',r|s,a), wheres∈S, a∈A(s), r∈R and s'∈S+. s'is an instance of a successive state of s, with its value updated at the last time step.

The article explains key concepts of DP in a clinical scenario and illustrates how DP can be used to solve clinical questions. The clinical question in this article is how to select an appropriate intervention to rescue patients with septic shock (2-4). Typically, a patient with septic shock should be rapidly managed with sepsis bundles in the emergency room. This bundle includes early antibiotic administration, fluid resuscitation, balance of oxygen supply and demand, and monitoring of urine output and serum lactate (5-7). Many states can be defined for septic shock and here we define the state space with mean arterial pressure (MAP) and lactate. The action space is comprised of vasopressor and fluid administration. The aim of the DP algorithm is to find an optimal policy at any states. In other words, the optimal treatment strategy can be quite different for patients with different states (e.g., high MAP and low lactate versus those with low MAP and low lactate). The adoption of optimal treatment strategy means the patient can get the best clinical outcome given his/her own current states. The idea of DP is well described in the RL bible (8), and we just illustrate this algorithm in a clinical scenario with R code (Figure 1).

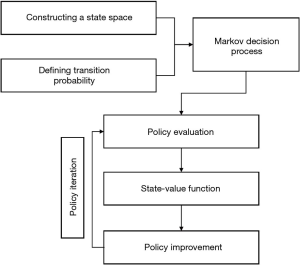

Figure 1 Workflow of the dynamic programming.

Methods

Constructing a state space

The background knowledge for the clinical management of sepsis is explained in this section. Since the study did not involve real human subjects, ethical approval was waived for the study. Sepsis is an organ dysfunction syndrome caused by uncontrolled inflammation in response to infection. Septic shock is a severe form of sepsis and is potentially life-threatening, which requires rapid response and initiation of resuscitation bundle. The key to successful treatment is to increase arterial blood pressure and restore effective circulatory volume (9). Physicians typically use vasopressor and fluid to rescue shock status (hypotension and hypoperfusion). Fluid can help to restore total blood volume to raise the blood pressure, and vasopressors can increase vascular tone thereby increasing the arterial blood pressure. Blood pressure is important for the maintenance of tissue perfusion. Here we construct a state space comprising MAP and lactate, with different combinations of the two variables relating to different pathological states. The action space is comprised of treatment options (i.e., fluid and vasopressor) that can be applied to a given patient.

To simplify the problem, the state space is constructed with a two dimensional 4×4 grid, with two feature variables of lactate and MAP. In other words, it is assumed that a patient’s condition can be fully captured with these two variables. The termination state is defined as Died and Alive at hospital discharge; note that patients with extremely low MAP and high lactate are more likely to die. The terminal states are irreversible (Figure 2). In real world setting, the state space can be constructed with higher dimensional features, but the idea to solve the problem is the same.

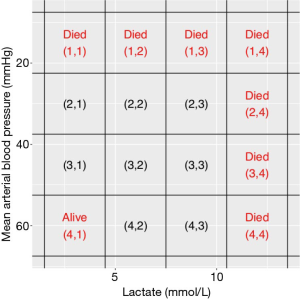

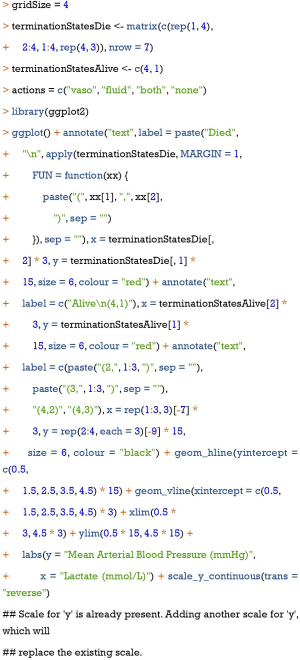

Figure 2 Schematic illustration of the state space with a 4×4 grid. The red annotated cells represent the terminal states. The agent cannot leave the terminal states. The state space is defined by mean arterial blood pressure (y axis) and lactate (x axis). There are nine possible next states s' for a given non-terminal state s.

Transition probability

The finite MDP dictates that all components of the set S,A,R have the finite number of elements. The random variable R_t and S_t have well defined probability distributions conditional on previous states S_t−1 and actions A_t−1. For an instance of s'∈S and r∈R, the probability of the instance can be written as (8):

p(s′,r|s,a)=Pr(St=s′,Rt=r|St−1=s,At−1=a)[1]

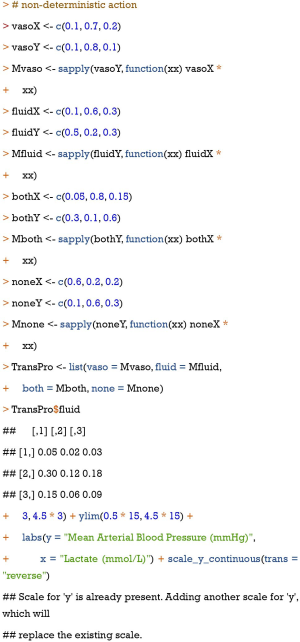

In our example, there is nine possible next positions given a current position. The probability of each transition given a particular actionais defined in the following list of transition matrices. Specifically, the TransPro object is a list with each of the component referring to a specific action, namely, vaso, fluid, both or none. Each component is a matrix of transition probability that defines the state transition probability under each action. The requirement of a known transition matrix for each action is also a limitation of the DP algorithm because the transition matrices are typically not known in reality.

The above output shows the transition probability under action fluid (i.e., we give fluid to a patient). The probability of transition from current state to the left cell (e.g., from (2,2) to (2,1) is 0.30; and the probability of staying in current position is 0.12. Note that the sum of all cells equals to 1. The action is called non-deterministic action because when one takes an action, the next position is a stochastic distribution of all possible positions.

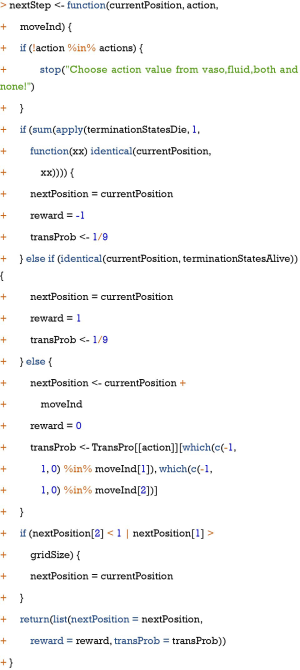

The above code defines the nextStep() function, which receives current position, action and move index as input; and output the next position, reward value and transition probability. The move index is a two elements numeric vector which defines the direction of movement for the next step. When the current position is the terminal state Died, it will stay in the current position with a reward of −1. Because there are nine possible move index, we assign the transition probability of 1/9 so that the sum of all transition probability for a given terminal state is 1 (i.e., we will loop over all possible movement index in the following functions). When the current position is the terminal state Alive, the next position remains unchanged and the reward is 1. Otherwise, the agent moves from current position to the next position by a given move index. The reward for all non-terminal states is 0. If the next position moves out of the grid, it returns to the current position (position unchanged). Now let’s experiment with the nextStep() function.

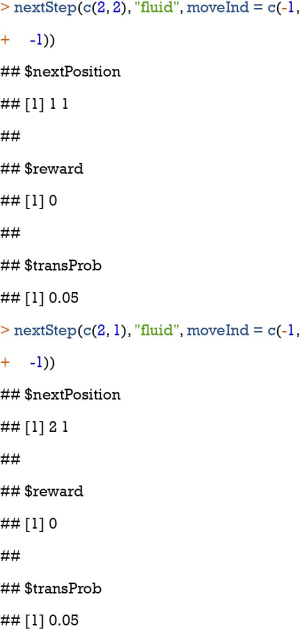

The above code shows two instances of movement in the grid. When the current state is (2,2) and the move index is (left(−1),upper(−1)), it moves to the position (1,1) with the reward of 0 and the transition probability is 0.05. Also note that a reward is added when the agent moves away from the corresponding cell. Thus, when moving away from (2,2) to (1,1), the agent receives reward 0 rather than −1. In contrast, when the current position is (2,1), the (left,upper) movement will move out of the left limit and the next position remains unchanged.

Statistical analysis (policy evaluation)

Policy evaluation refers to the calculation of state-value function v_π under a given policy π. This is referred to as the prediction problem. If the dynamic system of MDP is well known, the state-value function can be written as (8):

vπ(s)=Eπ[Gt|St=s]=Eπ[Rt+1+γGt+1|St=s]=Eπ[Rt+1+γvπ(St+1)|St=s]=∑aπ(a|s)∑s′,rp(s′,r|s,a)[r+γvπ(s′)][2]

where G_t is the long term reward from time t, also known as the return. The expected return under policy π for state s is the state-value function. Also note that the returns at successive time steps (G_t,G_t+1,G_t+2) are related to each other by a reward R and discounting factor γ. s' is the next posion of s. The equation indicates that the current state-value (k step) is updated upon the last state-value (k−1 step) in the iterative process. A value table can be used to store state values. This table maps each state to real numbers. For instance, the state (2,1) can take a value 10, and the terminal state (1,1) takes 0. The value table is updated iteratively by using values obtained in the last step. Thus, we need two value tables, one is used to store current state values and the other is used to store previous state values. The update rule for state s can be written as (8):

vk+1(s)=Eπ[Rt+1+γvk(St+1)|St=s]=∑aπ(a|s)∑s′,rp(s′,r|s,a)[r+γvk(s′)][3]

the subscript t refers to the time step. For example, if the current position at time t is S_t=s(2,2), the next position at time t+1 can be S_t+1=s(1,1) by a move index of (−1,−1). The subscript k refers to the iterative step that each one will update the state-values for all states once. If the MDP dynamics are known, the Expectation Eπ can be obtained by summing over all possible next states S_t+1. s' is an instance of S_t+1 for the state s. The total number of time step T can be very large (e.g., 5,000 in our default setting). The state-value is guaranteed to converge if γ<1 in finite number of iterations.

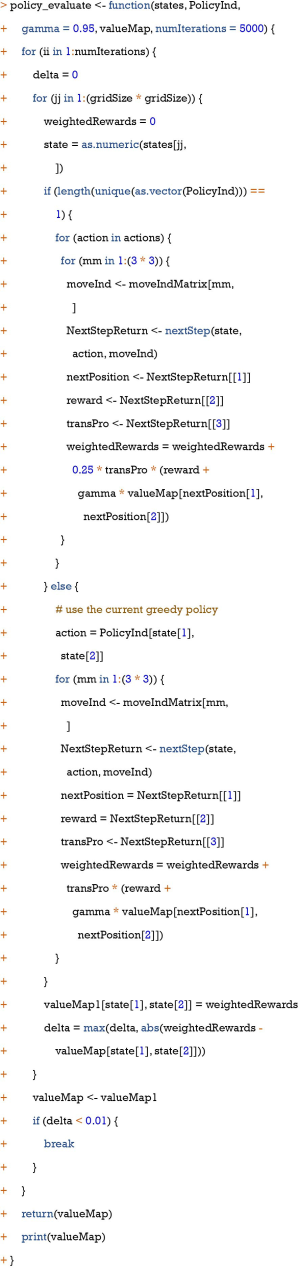

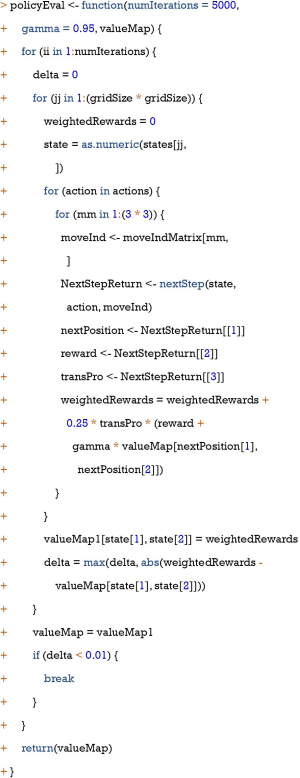

The above code defines a policy evaluation function for a random policy, which takes a value map as input and output an updated value map. The value map is a 4×4 grid that each cell represents a value for that corresponding state. Now let’s execute the code with random policy. The treatment option is selected at random at any state S, thus π(a|s)=0.25 for any state s (i.e., there are four treatment options in the example).

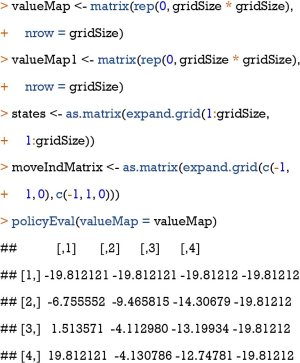

The output of the policyEval() function is the state-value for the random policy. Note that each state is assigned a value. This value is the long-term expected return (sum of reward) of starting from the corresponding state. The state-value has the lowest value at the terminal state of Died, and the highest value at the terminal state of Alive. The states approaching the Alive cell have greater values than those near the Died cells. From this state-value table, the optimal treatment at each state can be identified to maximize the long-term return. However, the state-value table will change if the policy changed.

State-value function for a specified policy

The above function returns a matrix of state-values corresponding to a random policy. It is also interesting to estimate state-value for a given policy. A given policy specifies a treatment option for each of the states.

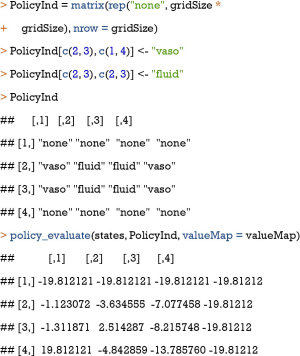

For example, we can define an arbitrary policy in a 4×4 grid and calculates the state-value function.

The state-values of the current policy is different from that of the random policy. But the values at terminal states are all the same because actions have no effect on terminal states.

Results

Policy improvement

The purpose of computing the state-value function is to find a better policy. The state-action value function is used to address this problem. This value can be thought of selectingain s and following policy π thereafter.

qπ(s,a)=Eπ[Rt+1+γvk(St+1)|St=s,At=a]=∑s′,rp(s,r|s,a)[r+γvk(s)][4]

If qπ(s,a)≥vπ(s), it will be better to select a in s than follow the policy π all the time. The policy improvement theorem is described as follows in Eq. [5]. Suppose there are two deterministic policies π₁ and π₂ such that for all s∈S, qπ1(s,π2(s))≥vπ1(s), then π₂ is better than or equal to π₁. The greedy policy can be the policy to maximize the state-action value at each iterative step.

πgreedy(s)≐argmaxaqπ(s,a)=argmaxaE[Rt+1+γvπ(St+1)|St=s,At=a]=argmaxa∑s′,rp(s′,r|s,a)[r+γvπ(s′)][5]

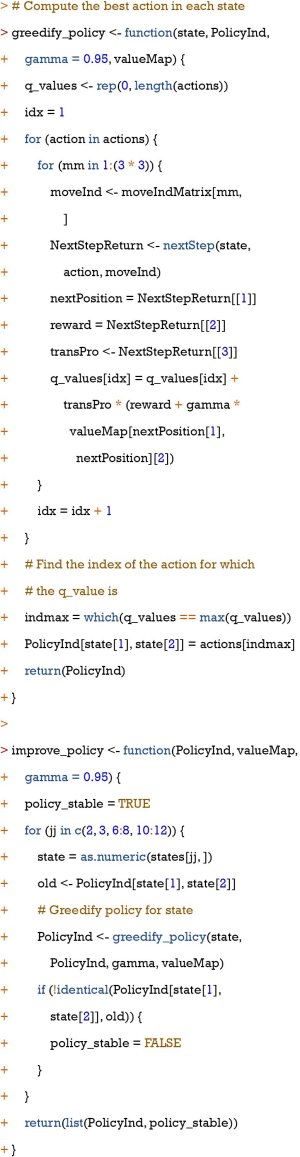

The greedy policy takes the action that maximize the q value at short time, but it is not necessarily the best action in the long run. The greedy policy for each state under a given state-value table can be implemented with the following greedify_policy() function. Note that this function will not change the state-value table. It returns an updated policy f or one state. Then the improve_policy() function improves policy over all states, except for the terminal states.

Let’s see an example to better understand the above two functions.

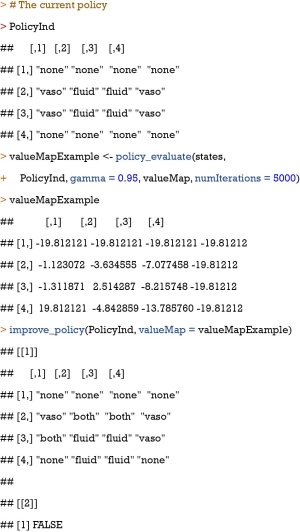

The results show that the updated greedy policy is different from the initial policy. For example, the initial policy adopts “fluid” intervention in state (2,2), while the update policy adopts “both” intervention in this state.

Policy iteration

The purpose of policy iteration is to iteratively improve the policy π given the constantly updating state-value tables v_π. The process of the policy iteration can be written as:

π0→Evπ0→Iπ1→Evπ1→Iπ2→E⋯→Iπ*→Ev*[6]

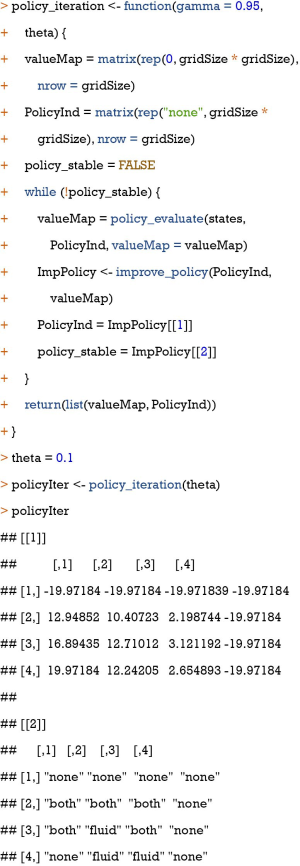

The policy evaluation and improvement intersect with each other and the algorithm can finally achieve a converge d optimal policy π* and value function v*. The policy iteration process can be implemented with the following code. Except for the first policy evaluation which starts from an initial value map with all 0 input, each subsequent policy evaluation is started from the value map of the previous policy.

The above output shows the optim al value function v* and optimal policyπ*. At the terminal states, the initial “none” treatment is not changed during policy iteration. The optimal treatment strategy such as “both” and “fluid” are employed in other non-terminal states.

Discussion

This article illustrates how DP can be used to solve a clinical problem. We show that DP is a potential useful tool to tailor treatment strategy to patients with different conditions/states. The key concepts of DP include policy evaluation, policy improvement and policy iteration. The final output of the DP is an optimal policy that maximizes the final outcome. The complexity of septic shock is the rapidly changing states over the disease course (10). Clinicians need to make rapid decisions to these changing states. There have been numerous clinical practice guidelines for the management of septic shock, but most of these guidelines provide uniform recommendation for all septic shock patients, failing to account for the heterogeneity of individual patients (11-13). On the other hand, many literatures demonstrated that sepsis is a heterogeneous syndrome that the One-size-fit-all paradigm is not working perfectly (14-17). Thus, it is mandatory to utilize the concept of precision medicine for the management of septic shock. The potential implications in clinical practice of the DP algorithm are that it can help to tailor resuscitation strategy conditional on patients’ current state. Remember that all states are assigned a value to indicate next appropriate action to take. However, DP is not widely used in real world setting because of its computational complexity. In reality, the state space may be formed by hundreds of features that the size of the feature space is intractable. Another limitation of DP is the requirement of a known MDP, which is usually not the case in clinical researches. Thus, we need more advanced methods such as deep RL, or other methods based on temporal difference. However, the key concept of RL can be captured by DP, as illustrated in this article.

Conclusions

This article illustrates how DP can be used to solve a clinical problem. We show that DP is a potential useful tool to tailor treatment strategy to patients with different conditions/states. Potential audience of the paper are those who are interested in using DP for solving clinical problems with dynamic changing states.
