Application of hollow fiber centrifugal ultrafiltrate purification as the pretreatment technology for traditional Chinese medicine: its application for analysis of honokiol and magnolol in TCM preparations containing Cortex Magnoliae Officinalis

Introduction

Currently, Chinese medicines (CMs) are gaining increased attention globally due to their distinguished therapeutic effects, and the safety and efficacy of CMs have become major concerns for health authorities and the public (1,2). Quality assessment and control is important for ensuring the safety and efficacy of CMs. The active components and their synergistic effects are generally understood to be responsible for the pharmacological and/or toxicological properties of CMs (3), hence, the characterization of active components is crucial for validating its clinical efficacy.

Various detection techniques have been applied in CM analysis, such as high-performance liquid chromatography (HPLC) (4), liquid chromatography-mass spectrometry (LC-MS) (5,6), capillary electrophoresis (CE) (7), and gas chromatography (GC)/GC-MS (8,9). However, pretreatment of the sample is indispensable prior to modern instrumental analysis, due to the complexity of the matrixes of CMs (3).

Protein precipitation, liquid-liquid extraction (LLE), and solid phase extraction (SPE) are widely applied pretreatment techniques, often necessitating complex time-consuming multi-step procedures, including extraction, purification, drying, concentration, and so on. It has been reported that pretreatment steps greatly influence the reliability and accuracy of analysis results (10), and complex multi-step procedures can foster contamination and result in low accuracy. Besides, the primary procedure of sample pretreatment is extraction of target analytes. Generally, the extraction is a phase change process, thus mass transfer of the target analyte may be incomplete, which can easily lead to the loss of analytes and a lower recovery rate.

Moreover, sample preparation is the main source of errors and discrepancies, and preparation can greatly affect analytical precision. The variance of the result increases as the number of steps increases (11). From a variety of detailed protocols (12,13), many more than 10 processing steps are required until final analysis. Therefore, reducing the number of operating steps and improving analytical precision is an urgent requirement for optimizing sample preparation.

Thirdly, the length of the entire analytical procedure is determined by sample preparation, which accounts for approximately 2/3 of total analysis time (10). Productivity would be greatly increased by reductions in sample preparation time sample preparation time. The most effective way to approach this is to handle samples with as few as possible processing steps. Our team has always been committed to the development of a simpler and faster method for pretreatment of samples with complex matrixes.

The hollow fiber centrifugal ultrafiltrate (HFCF-UF) product (our patented product, composed of a tube and a u-shaped hollow fiber; project no: 2009100744294) has been used to separate the macro-molecules from complicated matrixes such as plasma (14,15). The HFCF-UF is good for class separation by different molecular weight cut-off, and HPLC enables high-efficiency fractionation; therefore, HFCF-UF-HPLC has been shown to be an effective means in analysis of various components in complex matrixes.

In this study, the HFCF-UF device was employed to analyze honokiol and magnolol in Huoxiang Zhengqi Oral Liquid (HXZQOL). WE explored the feasibility of HFCF-UF technology for the determining the contents of bioactive components in traditional Chinese medicine (TCM) preparations.

The liquid herbal formula, HXZQOL, is very popular in China. It is used to induce diaphoresis and treat sunstroke. It is made up by many kinds of TCM ingredients, such as Pogostemonis Rhizoma, Cortex Magnoliae Officinalis (Chinese Pinyin: Hou Po), Pericarpium Citri Reticulatae, Poria, Rhizoma Pinelliae, and so on. Hou Po is the key ingredient of the formula. It has been reported that Hou Po has anti-inflammatory, analgesic, and central-depressant effects. As the main active components of Hou Po, honokiol and magnolol are the index of quality control.

In this study, we evaluated the development and application of HFCF-UF as a purification procedure of honokiol and magnolol in TCM preparations before LC analysis. In contrast with traditional methods, this method is simple, rapid, and low cost. After just 1 step of centrifugation by our device, the filtrate could be directly injected onto the HPLC system for analysis. Thus, it greatly simplified the pretreatment steps, and improved the sensitivity of analytic methods.

We present the following article in accordance with the MDAR checklist (available at http://dx.doi.org/10.21037/apm-21-242).

Methods

Instrumentation

The HPLC system consisted of a system controller (CTO-10A), pump (LC-10AT.vp), UV detector (SPD-10A), and electronic integrator (Class-vp) (all from Shimazu, Kyoto, Japan). The analytical column used was a Diamonsil C₁₈ (Dikma Tech., Foothill Ranch, CA, USA) (150 mm × 4.6 mm ID, 5 µm particles).

Reagents and materials

The standard of honokiol and magnolol were purchased from the National Institute for Food and Drug Control (Beijing, China). We obtained HXZQOL from Tong Ren Tang Technologies Co., Ltd. (Beijing, China). The HPLC-grade methanol and acetonitrile were acquired from Fisher Scientific (Fair Lawn, NJ, USA). Ultrapure water was obtained from a Milli-Q water purification system (Millipore, Bedford, MA, USA).

Polypropylene hollow fiber membrane (200 µm wall thickness, molecular cut off 6,000 Da) was from FoShan Power-full Enviromental Protection Technology Co., Ltd. (FoShan, China). Hollow fibers were cut into 15 cm segments, sonicated in methanol then ultrapure water, and dried before use.

Chromatographic conditions

Separation of honokiol and magnolol was achieved on the Diamonsil C₁₈ column with the detector set at 294 nm and the column maintained at 30 °C. The mobile phase was a mixture of 44:22:34 v/v/v methanol-acetonitrile-0.5% acetic acid solution, and the flow rate was maintained at 1 mL/min. The sample injection volume was 10 µL.

Standard solutions

A combined stock solution of honokiol (820 µg/mL) and magnolol (404 µg/mL) was prepared in methanol and stored at 4 °C. A second dilution was made to prepare a combined standard solution containing honokiol 205 µg/mL and magnolol 101 µg/mL. Working dilutions in methanol were prepared when needed.

Sample preparations

We diluted 1 mL HXZQOL to 10 mL with methanol. About 8 mL of the obtained solution was placed in a centrifuge tube. A HFCF-UF device (Figure 1) was placed in the sample solution. Finally, the tube was centrifuged for 15 min at 3.8×10³ g. After ultrafiltration, the solution obtained in the lumen of the hollow fiber was withdrawn into the syringe and 10 µL was injected in the HPLC system.

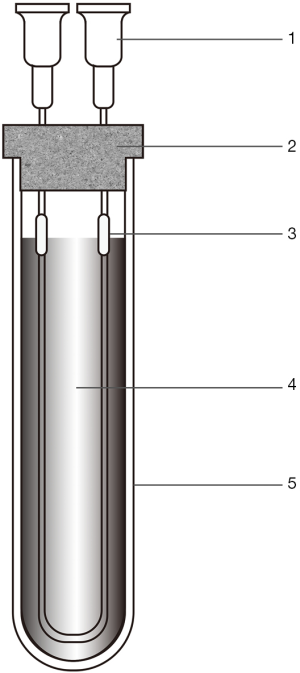

Figure 1 Hollow fiber centrifugal ultrafiltration device. 1, syringe needle; 2, rubber bung; 3, hollow fiber; 4, sample solution; 5, centrifuge tube.

Statistical analysis

The precision of the method was evaluated by 6 determinations of the same test solutions, as RSD considering acceptability less than 5%. Accuracy of the method was calculated by recovery experiments using the standard addition technique. The recoveries were calculated by (A_found-A_added)/A_added×100% (A is analyts).

Results

HPLC chromatograms

Under the conditions described above, the HPLC chromatograms of standard solution with honokiol at concentration of 205 µg/mL and magnolol at 101 µg/mL, and the test sample solution are shown in Figure 2. The retention time for honokiol and magnolol were approximately 13.9 and 22.8 min, respectively. The peaks were sharp and symmetrical with good baseline resolution and minimal tailings, thus facilitating accurate measurement of the peak areas. No interfering peaks were observed at the retention time window of honokiol or magnolol.

Figure 2 HPLC chromatograms of mixed reference substances (A) and sample treated by HFC-UF (B); 1, honokiol; 2, magnolol. HPLC, high performance liquid chromatography; HFC-UF, hollow fiber centrifugal ultrafiltrate.

Method validations

Linearity, repeatability, precision, recovery, detection-quantification limits, and stability were used to evaluate the performance of the proposed HFCF-UF-HPLC method.

The combined standard solution of honokiol and magnolol was diluted to give a series of standard solutions (6.40–205 µg/mL for honokiol and 3.15–101 µg/mL for magnolol) for the calibration curves. Typical regression equations of the calibration cures were y=1.26×10⁴x−5.38×10³ (r=0.9999) for honokiol and y=1.25×10⁴x−1.53×10³ (r=0.9999) for magnolol. The limits of detection (LOD) and limits of quantification (LOQ) were calculated as 3 and 10 times the signal-to-noise ratio, respectively. The LOD was measured to be 0.32 µg/mL and the LOQ was 0.16 µg/mL for both analytes with relative standard deviation (RSD) less than 10%. These results indicated that the proposed method is applicable for determination of honokiol and magnolol in herbal samples.

The precision of the method was evaluated by 6 determinations of the same test solutions, as RSD considering acceptability less than 5%, and the RSD of the honokiol and magnolol were less than 1.6% and 1.9%, respectively. Repeatability was assessed by 6 determinations in 1 day. Repeatability for the 2 analytes proved to be less than 2.2% and 2.5%, respectively.

Accuracy of the method was calculated by recovery experiments using the standard addition technique. The recoveries were determined by spiking the mixed working solutions of standard at the concentration level of honokiol 93.0 µg/mL and magnolol 44.2 µg/mL into HXZQOL test solutions. Relative recoveries were 92.6–101.7%, with a variation of less than 5% for the 2 analytes. The results are shown in Table 1.

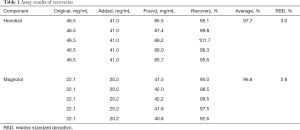

Table 1 Assay results of recoveries
Full table

Stability of the sample solutions were tested 0, 2, 4, 6, 8, and 12 h post preparation. Under the stated conditions, stock solutions were shown to be stable for at least 12 h.

Sample analysis

Quantitative analysis of the 2 analytes in HXZQOL was performed by use of the developed method. A total of 3 independent series of HXZQOL samples were analyzed, and samples from each series were measured 3 times. Results are presented in Table 2.

Table 2 Determination of honokiol and magnolol in Huoxiang Zhengqi Oral Liquid (n=3)
Full table

Discussion

Selection of the hollow fiber

Different types of the hollow fiber (polypropylene, polyvinylidene difluoride) were compared in the experiments. It is widely accepted that non-specific adsorption (NSA) of analyte onto the membrane is a universal phenomenon in membrane isolation techniques, and NSA can significantly affect the outcome of the assay in sample analyses. Hollow fiber membrane is some kind of polymer material, and the compound may be physically adsorbed to the membrane by van der Waals force. It means that the hollow fiber may have NSA to the analytes. The extent of the NSA was evaluated by a specific recovery, which can be expressed by the ratio of analyte concentration in the filtrate after HFCF-UF to the initial analyte concentration in the aqueous sample. The recoveries for honokiol and magnolol obtained by polypropylene hollow fiber were 100.7% and 100.4% respectively, and were 102% and 98.3%, respectively, by polyvinylidene difluoride hollow fiber. The results demonstrated that both types of hollow fiber have no NSA to the 2 analytes. Given that the mechanical stability of the polypropylene hollow fiber was superior, the experiments were finally performed using polypropylene hollow fiber.

Selection of the relative centrifugal force

In the HFCF-UF procedure, the transmembrane pressure was provided by the relative centrifugal force (RCF), and the efficiency of ultrafiltration was correlated with the RCF. The RCF was optimized to obtain the most efficient filtration. Samples, prepared according to the section of ‘Sample Preparations’, were centrifuged at 700–7.8×10³ g for 15 min, respectively. Resultingly, in a prefixed time, too weak a force would result in a small volume of filtrate which could not fulfill the lumen of the hollow fiber, and with the increase of the RCF the volume of filtrate increased. Consequently, 3.8×10³ g was used for subsequent experiments because it had already provided enough filtrate for analysis.

Effect of dilution agents

The experiment was carried out using methanol and alcohol as the dilution agents to prepare the sample solutions. A higher permeability for the honokiol and magnolol was obtained using methanol as the dilution agent than with alcohol. This was probably due to the likelihood of honokiol and magnolol combining with each other in an alcohol solution to form a supramolecular assembly and increase the apparent molecular weight over the molecular weight cut-off (MWCO) of the hollow fiber. During the ultrafiltration process, they could not pass though the membrane, thus leading to low measurement results for the target analytes.

Another possible explanation is it might bind with some coexisting materials to form a composite and be retained by the hollow fiber, resulting in a low permeability for the honokiol and magnolol. Meanwhile, when methanol is used as a diluent solvent, it can not only remove the bulk of foreign substances which are high polarity and present a minor dissolubility in methanol or alcohol, but also can destroy the polymerization status of the analytes. As a result, the permeability of honokiol and magnolol would be increased, and the analytical results obtained would be more accurate.

Comparison with the traditional extraction method

Based on the literatures, SPE (17) and LLE (16,18) have been widely used to extract the target analytes from sample solution for clean-up purpose. SPE use expensive materials, are labor-consuming, usually have carry over effects. On the other hand, in the case of LLE, the main disadvantages are the use of large amounts of potentially toxic and normally expensive organic solvents, it is time-consuming and the manipulation of evaporation to dryness can easily lead to the loss of the analytes.

In some reports (19-22), a diluted sample was directly injected into the HPLC system to measure the analytes. In the chromatography analysis of herbal extracts, stationary phase compaction is consistently challenging, as the coexisting high molecular components can accumulate on the head of the column and shorten its service life. As an analytical sample, HXZQOL is a very complex matrix. The macromolecules that may exist in HXZQOL are mainly from Poria and Rhizoma Pinelliae, in which there are lots of polysaccharides and proteins. In addition, liquid sample solutions also contain small amounts of high molecular solutes, such as gummi, enzyme, and so on. If these solutes were injected onto the HPLC system, it would impact upon the performance of the column analysis and further influence the accuracy and the precision of the analytical results. In the present study, with the new HFCF-UF device, the macromolecule components were easily removed and the filtrate was directly injected onto the HPLC system for analysis without further manipulation. In addition, there was no cross-contamination during sample preparation because each segment of the hollow fiber was single use, according to the very low costs of hollow fiber. The method is simple, rapid, and environmentally friendly, and it provides a simple and cheap pretreatment means for the analysis of honokiol and magnolol in HXZQOL.

Comparison with the conventional commercial available UF device

Traditional ultrafiltration technology is mainly used in the production of TCM preparations, in which large-scale equipment is employed. In this work, a homemade small device used for the separation and purification of small molecular target compounds with small samples (3–5 mL), so as to be further analyzed by liquid chromatography. At present, there are some reports of commercial ultrafiltration devices for determining protein binding rate and free drug concentration in plasma, but no reports for the pretreatment of TCM samples.

The HFCF-UF method is facile, utilizing both centrifugal ultrafiltration force and a hollow fiber membrane to retain high molecular solutes. Compared to the conventional commercially available UF device, the direction of centrifugal force is parallel to the hollow fiber, so the concentration polarization on the membrane has been eliminated. Due to the type of ecto-entad filtering process, ultrafiltration performance, pore size, and MWCO might not be influenced by the centrifugal force. This stability made it suitable for pretreatment of viscous sample solutions, especially the herbal sample solutions rich with macromolecule components. It is also beneficial for improving the efficiency of the column performance and the durability of the method.

Conclusions

In this study, a simple 1-step purification method using our patent device HFCF-UF without any further clean-up steps was proposed for analyzing honokiol and magnolol in TCM preparations. The pretreatment step and time were all limited, which tangibly improved the reliability and accuracy of analysis results.

The HFCF-UF method (15) is mainly applied to the purification process of aqueous samples. However, some water-insoluble components, for some reason (maybe the interaction of the complex matrix), dissolve in sample solutions. For the analysis of such samples, LLE and SPE are usually used for purification. Here, the present study for the first time applied the HFCF-UF method in organic solution as a sample pretreatment, the proposed method was applied to analysis of honokiol and magnolol in methanol, and a good analytical performance was achieved. This provides a new, simple means for the separation and analysis of the nonpolar components in sample matrixes rich in macromolecule components.
