A tolerability and safety analysis of adding granulocyte-macrophage colony-stimulating factor to local radiotherapy in a case series of seven patients with thoracic cancer

Introduction

In the treatment of early-stage cancer, radiotherapy is a highly efficacious strategy. For patients with stage I non-small cell lung cancer (NSCLC), stereotactic body radiotherapy (SBRT) has shown comparable survival outcomes versus surgery (1). However, there is another voice demonstrating that the overall survival (OS) and disease-free survival (DFS) for patients with stage I NSCLC in the surgery group were slightly superior to those in the SBRT group (2). Therefore, radiotherapy alone might not be enough for patients with thoracic cancer, especially for those with advanced disease.

In order to decrease the incidences of distant metastasis and prolong progression-free survival (PFS), systemic chemotherapy is administrated. Immune checkpoint inhibitors (ICIs) have revolutionized the treatment of cancer patients during the recent ten years. PD-1 inhibitors, pembrolizumab and nivolumab, have been recommended to NSCLC. Moreover, PD-L1 inhibitors, atezolizumab and durvalumab, are preferred for small cell lung cancer (SCLC). Additionally, anti-PD-1/PD-L1 therapy is also a promising treatment option for patients with thymic carcinoma (3,4).

Currently, numerous clinical studies are conducted to explore the combination strategy of radiotherapy and immunotherapy. Clinicians and researchers considered that adding ICIs to radiotherapy and/or chemotherapy might be a more efficacious strategy to increase the chance of surgery for locoregionally advanced thoracic cancer patients (5,6). Combined with radiotherapy, immunotherapy could provide a better immunological efficacy called abscopal effect, in which CD4 and CD8 positive T cells exert critical roles (7,8). Granulocyte-macrophage colony-stimulating factor (GM-CSF), the key factor, is a cytokine that promotes maturation of dendritic cells for antigen presentation and generates T- and B-lymphocyte anti-cancer response. Previous studies indicated that GM-CSF with radiotherapy product abscopal effect in metastatic cancer (9). On the other hand, combining ipilimumab with GM-CSF significantly improves the survival of metastatic melanoma (10).

In published studies, the common application of GM-CSF was 125 μg/m² or 250 μg subcutaneously injected for consecutive 14 days and no severe adverse event was reported (9,10). However, in a meeting report (11), Liu found that eight of 24 enrolled patients suffered high fever in the combination therapy of radiotherapy and GM-CSF (125 μg/m² from d8 to d22). In the real world, when patients experience high fever, whether the injection of GM-CSF is continuously executed remains contradictory.

Therefore, in this study, we intend to exhibit a novel and tolerable GM-CSF therapeutic regimen in patients with thoracic cancer. We present the following article in accordance with the AME Case Series reporting checklist (available at http://dx.doi.org/10.21037/apm-20-2248).

Methods

Patients

A total of seven patients who were pathologically diagnosed with thoracic cancer at Union Hospital, Tongji Medical College, Huazhong University of Science and Technology between June 2020 and September 2020 were retrospectively enrolled in the present study. Four patients were histologically diagnosed with NSCLC, two were SCLC, and the other one was thymic carcinoma. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study design was approved by the Ethics Committee of the Union Hospital, Tongji Medical College, Huazhong University of Science and Technology (No. [2020]IEC-J071). All patients had written informed consent to participate in this study.

Study design and treatment strategy

The Eastern Cooperative Oncology Group (ECOG) performance status of eligible patients should be 0 or 1 and life expectancy was expected more than three months. Patients received single radiotherapy (times ≥25, lung V20<30%) and were administered 200 μg GM-CSF (Te er li, Xiamen Amoytop Biotech) subcutaneous injection q.o.d from the initiation of radiotherapy, followed by every Monday, Wednesday, and Friday GM-CSF injection till the end of radiotherapy (Figure 1). GM-CSF was discontinued for documented white blood cell count greater than 30×10⁹/L and for any significant toxicity to be caused by GM-CSF, like fever over 39.0 degrees C or 102.3 degrees F). Patients who received concomitant radiotherapy with chemotherapy or targeting therapy were excluded.

Figure 1 Timeline events of enrolled thoracic cancer patients.

Outcomes

The primary endpoint was adverse event. Safety was assessed by an evaluation of the incidence of hematological (anemia, leukocytosis, lymphopenia, thrombocytopenia, leucopenia, neutropenia, increased cTnI, increased creatinine, increased alanine aminotransferase/aspartate aminotransferase levels, etc.) and non-hematological (hypertension, esophagitis, fatigue, nausea, vomiting, myalgia, cough, etc.) toxicities, which were graded according to the Common Terminology Criteria for adverse events (CTCAE, version 5.0). Since CD4 and CD8 positive T cells might indirectly reflect the treatment responses, these two cohorts of lymphocytes were tested before and at the end of the radiotherapy. Computed tomography (CT) was used to evaluate the toxicities or tumor response if patients experience fever.

Statistical analysis

Comparisons for CD4+ T cells and CD8+ T cells between post-treatment and baseline were calculated by GraphPad Prism 6 software by paired two-tailed Student’s t-test. A P value <0.05 was considered statistically significant.

Results

Characteristics and tolerability

From Jun 2020 to Sep 2020, of seven thoracic cancer patients treated with combination therapy of radiotherapy and GM-CSF, six were men and one was a woman. All patients had an ECOG performance status of 0. The median age was 68 years old (range, 58–79). Three types of cancer were enrolled, including NSCLC (n=4), SCLC (n=2), and thymic carcinoma (n=1). The total GM-CSF dose of each patient was over 3,000 μg. Among the seven patients, two had proposed to discontinue the injection of GM-CSF because they were not sure about the benefits of GM-CSF. However, they finished the combination therapy finally. Table 1 displays the basic characteristics of these patients.

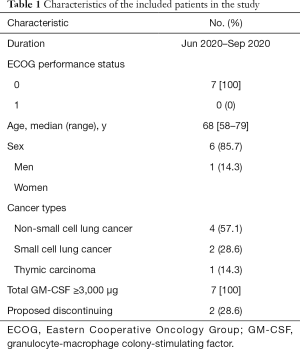

Table 1 Characteristics of the included patients in the study
Full table

Hematological toxicities

Only one patient with grade 3 lymphopenia was detected. The most frequently reported hematological toxicities of any grade were lymphopenia (n=6) and thrombocytopenia (n=3). Leucopenia (grade 2, n=1), neutropenia (grade 2, n=1), increased cTnI (grade 1, n=1), and increased creatinine (grade 1, n=1) were observed. We did not find anemia, leukocytosis (grade ≥3), or increased alanine aminotransferase/aspartate aminotransferase levels.

Figure 2A showed that the median counts of white blood cell, neutrophile granulocyte, and monocyte were 12.51×10⁹/L (range, 12.17–22.38×10⁹/L), 11.20×10⁹/L(range, 10.10–18.65×10⁹/L), and 0.72×10⁹/L (range, 0.53–1.28×10⁹/L) respectively. At week 1, five of the seven patients reached their highest levels of monotherapy. Three patients achieved the highest levels of white blood cell at week 2. Three patients each reached the highest levels of neutrophile granulocyte at week 2 and 4 (Figure 2B).

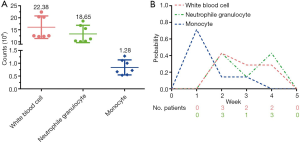

Figure 2 The variation characteristics of white blood cell, neutrophile granulocyte, and monocyte. (A) Highest values of white blood cell, neutrophile granulocyte, and monocyte during the treatment; (B) the percentages of patients achieving the highest values of white blood cell, neutrophile granulocyte, and monocyte at each week.

Non-hematological toxicities

No grade 3 or more non-hematological toxicities were showed during the combination therapy. The most frequently reported grade 1-2 non-hematological toxicities were hypertension (n=5) and esophagitis (n=3), followed by fatigue (n=2), nausea/vomiting (n=2), myalgia (n=2), and cough (n=2). One patient had experienced grade 1 fever. Anaphylaxis, injection site reaction, arthralgia, mucositis, and autoimmune disorder were not recorded.

Percentage of T lymphocytes

Compared to the baseline values, the percentage of CD4 (P=0.166) and CD8 (P=0.842) T cells showed no significant difference after the combination therapy of radiotherapy and GM-CSF (Figure 3).

Figure 3 Radiotherapy plus GM-CSF had no significant effect on the percentages of CD4 and CD8 T cells. GM-CSF, granulocyte-macrophage colony-stimulating factor.

Discussion

In this study, we showed that radiotherapy plus GM-CSF 200 μg subcutaneously q.o.d is well tolerable with a safety profile. Lymphopenia and hypertension are the most common hematological and non-hematological adverse events respectively.

Key elements in the immune response activated by radiotherapy include immunostimulatory cytokines, dendritic cells maturation, and T lymphocyte recruitment and stimulation (12). CD8 T cells have a critical role in mediating anti-tumor effects. The infiltration of CD8 T cells in the tumor microenvironment is associated with a better prognosis in multiple types of cancer (13,14). Furthermore, CD4 T cells also play a central role in tumor control and correlate with good clinical prognosis. Although GM-CSF is an important factor for dendritic cell development under anti-tumor conditions, the application of GM-CSF failed to against the lymphopenia caused by radiotherapy in our study (Table 2). Fortunately, no statistical differences were observed after the combination therapy in terms of the percentage of CD4 and CD8 positive T cells.

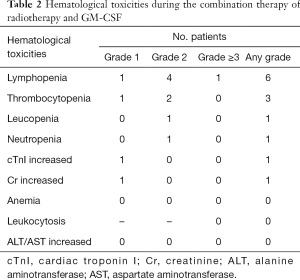

Table 2 Hematological toxicities during the combination therapy of radiotherapy and GM-CSF
Full table

Since the lymphocyte count decreased, the efficacy of adding immunotherapy to radiotherapy remains controversial. In Golden’s study, abscopal effects were observed when patients received localized radiotherapy and GM-CSF. But the enrolled patients were given systemic chemotherapy as well (9). Therefore, it might be an unprecise conclusion that single radiotherapy plus GM-CSF produced abscopal responses. A recent phase 2 clinical trial conducted by McBride showed no improvement in response and no evidence of abscopal effects with the combination of anti-PD-1 therapy and stereotactic body radiotherapy versus anti-PD-1 therapy alone in advanced head and neck squamous cell carcinoma (15). In another randomized clinical trial, researchers found that anti-CTLA-4 therapy plus GM-CSF significantly improved survival in metastatic melanoma patients compared to anti-CTLA-4 therapy (10).

Therefore, we suspect whether the triple combination therapy of radiotherapy, ICI inhibitors, and GM-CSF could have higher clinical effects. In the case study reported by Zhao et al., a patient with refractory metastatic esophageal squamous cell carcinoma received stereotactic body radiotherapy plus anti-PD-1 therapy (sintilimab) and GM-CSF. Although abscopal effects were observed, the patient died of severe pneumonia (16). In this case report, GM-CSF 200 μg daily was subcutaneously injected for 14 days. However, the authors did not exhibit the incidence of leukocytosis and the cell counts of white blood cell, neutrophile granulocyte, and monocyte.

GM-CSF is commonly used to prevent hospitalization for febrile neutropenia during systemic chemotherapy or local radiotherapy (17,18). Additionally, fever is one of the frequent adverse events after GM-CSF injection that we mainly focus on, because it might be associated with the high level of white blood cell and autoimmune disorders. We are eager to know the highest number of white blood cell, neutrophile granulocyte, and monocyte during the GM-CSF treatment. In our study, the highest cell counts were 22.38×10⁹/L for white blood cell, 18.65×10⁹/L for neutrophile granulocyte, and 1.28×10⁹/L for monocyte, with good tolerability (Figure 2A). Considering the high incidence of fever in the combination therapy of radiotherapy and GM-CSF (11), we suggest that the reasonability of consecutive 14 days injection of GM-CSF is needed to be challenged.

Only one patient in our study occurred fever. The details of white blood cell, neutrophile granulocyte, and monocyte are shown in Figure 4. After a week of combination therapy, the monocyte reached the highest value. Then the white blood cell and neutrophile granulocyte reached the highest value at week 2. Nonetheless, the transient grade 1 fever (38.2 °C) happened at the end of radiotherapy. Thus, we did not deem the fever was directly associated with radiotherapy or GM-CSF. The chest CT scan did not find pneumonia either (Figure 5).

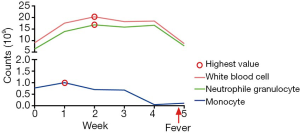

Figure 4 Cell counts curves of white blood cell, neutrophile granulocyte, and monocyte in the non-small cell lung cancer patient.

Figure 5 The non-small cell lung cancer patient who suffered fever with a partial response but without pneumonia.

There were several limitations in this study. First, this was a retrospective single-arm study, thus selection bias of patients should be existed. Second, considering that the addition of single GM-CSF treatment to radiotherapy might not strongly elevated the efficacy of radiotherapy and did not show significant improvement on the percentage of CD4 and CD8 positive T cells, anti-PD-1/PD-L1 therapy is recommended to the future clinical studies. Third, the assessment of treatment responses was absent in this study owing to the different therapeutic purposes of radiotherapy. However, based on our study, GM-CSF 200 μg subcutaneously q.o.d could be an alternative treatment strategy to ensure the tolerability and continuity of GM-CSF therapy.

In summary, radiotherapy combined with GM-CSF 200 μg subcutaneously q.o.d is tolerable and feasible. Future clinical studies are warranted to explore the benefits and safety profiles of adding ICIs to the combination therapy of radiotherapy and GM-CSF.
