Nomograms incorporating preoperative RDW level for the prediction of postoperative complications and survival in colorectal liver metastases after resection

Qichen Chen, Rui Mao, Jianjun Zhao, Xinyu Bi, Zhiyu Li, Zhen Huang, Yefan Zhang, Jianguo Zhou, Hong Zhao, Jianqiang Cai

Department of Hepatobiliary Surgery, National Cancer Center/National Clinical Research Center for Cancer/Cancer Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing, China

Contributions: (I) Conception and design: H Zhao, J Cai; (II) Administrative support: H Zhao, J Cai; (III) Provision of study materials or patients: Q Chen, R Mao; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: Q Chen; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Hong Zhao; Jianqiang Cai. Department of Hepatobiliary Surgery, National Cancer Center/National Clinical Research Center for Cancer/Cancer Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing, China. Email: pumczhaohong@126.com; caijianqiang188@sina.com.

Background: This study aimed to investigate the predictive significance of preoperative red cell volume distribution width (RDW) level for prognosis and to establish nomograms incorporating preoperative blood markers to predict postoperative complications and survival in patients with colorectal liver metastases (CRLM).

Methods: This retrospective study included 380 enrolled CRLM patients who underwent hepatic resection. Predictors of postoperative complications were explored using binary logistic regression analysis. Covariates associated with overall survival (OS) and progression-free survival (PFS) were evaluated through univariate and multivariate Cox regression analyses. Only variables that reached statistical significance at P<0.1 in the univariate analysis were allowed to enter the multivariate analyses. The independent predictors that retained in the final multivariate model were incorporated into nomograms.

Results: The optimal cut-off point of preoperative RDW-CV was 16%, and elevated RDW-CV was significantly associated with better prognosis (mPFS: 5.0 vs. 8.9 months, P=0.007; mOS: 59.0 vs. 42.0 months, P=0.041). The optimal cut-off point of preoperative RDW-SD was 43.9 fl, and elevated RDW-SD was significantly associated with worse prognosis (mPFS: 8.0 vs. 13.0 months, P<0.001; mOS:36.8 vs. 70.2 months, P=0.001). A nomogram predicting postoperative complications was constructed based on preoperative gamma-glutamyl transpeptidase (GGT) ≥34.5 U/L, preoperative RDW-CV ≥14.1%, and intraoperative blood loss ≥200.0 mL, with AUROC of 0.658. The calibration curves and Hosmer-Lemeshow test revealed desirable model calibration (chi-square: 3.99, P=0.91). A nomogram predicting PFS was constructed based on preoperative GGT ≥31.0 U/L, preoperative D-dimer ≥0.251 mg/L, preoperative RDW-CV <16.0%, preoperative RDW-SD ≥43.9 fl, positive lymph node metastasis, bilobar liver distribution, and R0 resection with good discrimination (C-index: 0.676±0.016) and calibration. A nomogram for the prediction of OS was constructed with favorable discrimination (C-index: 0.700±0.021) and calibration. Significant differences in PFS and OS were shown among patients stratified into three different risk groups (P<0.001) based on the nomograms.

Conclusions: This study first revealed the relationship between preoperative RDW-SD, RDW-CV, and prognosis in patients with CRLM. It also established nomograms especially considering preoperative blood markers to predict postoperative complications, PFS, and OS, which facilitated physicians to determine the optimal clinical management strategies.

Keywords: Colorectal liver metastases; red cell volume distribution width (RDW); nomogram; prognosis


Submitted Dec 03, 2020. Accepted for publication Feb 03, 2021.

doi: 10.21037/apm-20-2418


Introduction

Colorectal cancer (CRC) is the third most common malignancy with more than 1.8 million new cases worldwide per year, and it accounts for 9% of all cancer-related deaths (1). Liver is the predominant site of distant metastases with 25–30% of CRC patients developing metastases in this organ (2,3). Liver resection of colorectal liver metastasis (CRLM) offers the best chance for a cure and long-term survival, as it has a five-year survival of up to 47–60%. Recurrences occur in 40–75% of patients with CRLM (2,4) and the incidence of postoperative complications is approximately 38–54% (5,6). Therefore, effective prediction of the survival of patients with CRLM in this specific clinical scenario is urgently needed. Accurate prognostic assessment helps manage appropriate treatment and follow-up plans. Nomograms incorporating and illustrating important prognostic factors have been widely used as reliable tools for predicting survival probabilities for individual patients. Chen et al. (7) established a comprehensive evaluation of relapse risk score based on KRAS status, primary node status, extrahepatic disease, carcinoembryonic antigen (CEA) level, and tumour burden score to predict the prognosis of patients with CRLM. Liu et al. (8) revealed that a nomogram constructed according to tumour size, liver metastasis number, RAS mutation status, and primary lymph node metastasis has a favorable calibration and C-index for predicting survival in patients with CRLM.

In recent years, various blood markers with different changes were hypothesized to have a relationship with prognosis of malignant tumour diseases. Previous findings demonstrated that high serum gamma-glutamyl transpeptidase (GGT) levels and D-dimer levels were significantly associated with worse prognosis in lung cancer, hepatocellular carcinoma, etc. (9-12). It has been reported that the red cell volume distribution width (RDW) level of patients with malignant tumours including rectal cancer, colon cancer and bladder cancer is correlated with diagnosis, staging, and prognosis (13-15). However, no study has revealed the relationship between RDW level and prognosis in patients with CRLM after liver resection, and no nomogram has incorporated preoperative blood markers. Therefore, the aim of this study was as follows: (I) to investigate the predictive significance of preoperative RDW level for prognosis; (II) to establish nomograms incorporating preoperative blood markers to predict postoperative complications and survival in patients with CRLM. We hypothesized that nomograms incorporating preoperative RDW level will enhance the predictive ability and facilitate physicians to determine the optimal clinical management strategies for CRLM patients. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-2418).


Methods

Patients

There were 380 enrolled CRLM patients who underwent hepatic resection between February 2009 and February 2018 in Cancer Hospital, Chinese Academy of Medical Sciences. This study was conducted with approval from the Institute Research Ethics Committee of the Cancer Hospital, Chinese Academy of Medical Sciences (ID: NCC2019C-016). The study conformed to the provisions of the Declaration of Helsinki (as revised in 2013). Informed consents from patients have been obtained. Eligibility criteria were: (I) histologically proven colorectal adenocarcinoma liver metastases; (II) patients underwent hepatic resection and colorectal resection for therapeutic purpose. The exclusion criteria were: (I) with other malignancies; (II) loss to follow-up or incomplete clinical data. Flow diagram for the selection of CRLM included in the final analyses of this study was shown in Figure 1. By using peripheral venous punctures, blood samples for the evaluation of serum testing markers were obtained. Preoperative serum GGT levels (normal range: 0–55.0 U/L), D-dimer levels (normal range: 0–0.550 mg/L), RDW-CV (normal range: 11.6–14.6%) and RDW-SD (normal range: 37.0–51.0 fl) were measured within 1 week before surgery.

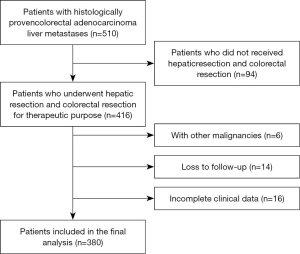

Figure 1 Flow diagram for the selection of CRLM patients. CRLM, colorectal liver metastases.

Treatment

It was recommended to receive neoadjuvant chemotherapy (NAC) for CRLM patients if there were some high-risk factors for recurrence (16). The NAC regimens recommended include FOLFOX (5-fluorouracil+oxaliplatin), FOLFIRI (5-fluorouracil+irinotecan), and CapeOX (capecitabine+oxaliplatin). The targeted therapy regimens included bevacizumb and cetuximab. Patients usually underwent liver resections within 4–6 weeks after the completion of NAC. Liver resections were defined as major liver resection (resections of more than two segments) or minor liver resections. According to the Clavien system (17), postoperative complications were graded, and major complications were defined as grade III or IV complications. The highest grade was used when patients experienced multiple postoperative complications. The postoperative complications were also defined as surgery-related complications (gastrointestinal tract leak, gastrointestinal tract necrosis, intrathoracic or intraabdominal abscess, hemorrhage, ileus, et al.) and general complications (pulmonary, cardiac, hepatic, renal complications, and catheter sepsis) (18). The clinical risk-scoring (CRS) scores were defined as follows: number of CRLM more than 1 (1 point); maximum CRLM diameter more than 5 cm (1 point); CEA level >200.0 ng/mL (1 point); primary lymph node positive (1 point); a disease-free interval of less than 12 months after the diagnosis of primary CRC (1 point).

Follow-up and outcomes

Patients were followed up at regular intervals after surgery. The first follow-up date was one month after surgery, with subsequent ones every 3 months in 2 years, every 6 months between 2–5 years, and every one year thereafter. Overall survival (OS) was defined as the interval from the date of resection to death or the last follow-up. Progression-free survival (PFS) was defined as the interval from the date of resection to progression or the last follow-up.

Statistical analysis

To analyze continuous variables, the Mann-Whitney U test was implemented. And categorical variables were analyzed by the Chi-square or Fisher’s exact test. X-tile analysis was implemented to investigate the optimal cut-off values of the preoperative testing markers for survival (19). The optimal cutoff values for post-operative complications were identified by the highest Youden index (sensitivity+specificity-1). To determine the optimal segmentation threshold for survival curves risk stratification, the X-tile analysis was conducted.

The OS and PFS were measured by the Kaplan-Meier method and compared with the log-rank test Factors predictive of postoperative complications were explored using binary logistic regression analysis. Covariates associated with OS and PFS were evaluated through univariable and multivariate Cox regression analyses. Briefly, as the sample included in this study is limited, only variables that reached statistical significance at P<0.1 in the univariate analysis were allowed to enter the multivariate analyses. Forward method was used to select the final predictors. The independent predictors that retained in the final model were incorporated into a nomogram. The C-index and area under the receiver operating characteristic curve (AUROC) was used to evaluate the discrimination of the nomogram. The calibration plots and the Hosmer-Lemeshow chi-square test were performed to assess the calibration. The decision curve analysis (DCA) was conducted to determine the clinical usefulness by quantifying the net benefits at different threshold probabilities. SPSS version 22 software (Armonk NV, USA) and R software (http://www.r-project.org) were used to perform statistical analysis. Statistical significance was defined as P<0.05.


Results

Clinicopathological characteristics

Three hundred and eighty patients were included in this study, including 144 females and 236 males with an average age of 56.8±10.0 years. Primary tumours located in the colon were found in 205 patients (53.9%). Bilobar distribution of liver metastases was found in 133 patients (35.0%). The median diameter of the largest liver metastasis was 2.6 cm [interquartile range (IQR): 1.8–4.0]. The median number of liver metastases was 2.0 (IQR: 1.0–3.0). Extrahepatic metastases were observed in 46 patients (12.1%). Primary lymph node metastasis of the primary tumour was observed in 69.5% of the patients. Synchronous metastasis was observed in 291 patients (76.6%). A CRS score of 3–5 was observed in 158 patients. One hundred and fifty patients (39.5%) underwent major liver resection. ASA class 1–2 was observed in 339 patients (89.2%). The median operation time was 283.5 min (IQR: 180.0–370.0), and the median intraoperative blood loss was 200.0 mL (IQR: 100.0–400.0). A total of 197 patients (51.8%) received NAC; 136 patients (69.0%) received an oxaliplatin-based NAC regimen, 30 patients (15.2%) received an irinotecan-based regiment and 31 patients (15.8%) received oxaliplatin-based regimen combined with irinotecan-based regiment. Sixty-six patients (33.5%) underwent targeted therapy (bevacizumab: 31 patients; cetuximab: 34 patients; bevacizumab + cetuximab: 1 patient). The median NAC cycles was 5.0 (IQR: 3.0–7.0). One hundred and ninety-three patients underwent postoperative chemotherapy. The preoperative median RDW-SD value was 45.6 fl (IQR: 41.0–51.8). The preoperative median RDW-CV value was 13.7% (IQR: 12.7–15.5). The preoperative median GGT value was 31.0 U/L (IQR: 20.0–50.0). The preoperative median D-dimer value was 0.370 mg/L (IQR: 0.220–0.630). The demographic and clinical characteristics of the patients are listed in Table 1.

Table 1

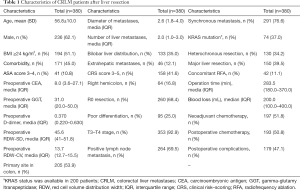

Table 1 Characteristics of CRLM patients after liver resection
Full table

Predictors for postoperative complications

In this study, 179 patients (47.11%) experienced postoperative complications (surgery-related complications: 58 patients, general complications: 87 patients, and surgery-related complications combined with general complications: 34 patients), including 68 major complications and 111 minor complications. According to the highest Youden index, the optimal cut-off points of preoperative RDW-CV level, RDW-SD level, D-dimer level, and GGT level were 14.1%, 48.6 fl, 0.485 mg/L, and 34.5 U/L, respectively. The elevated RDW-CV level, RDW-SD level, D-dimer level, and GGT level were significantly associated with occurrence of postoperative complications.

In the univariate analysis, preoperative serum, preoperative GGT ≥34.5 U/L (P=0.001), preoperative D-dimer ≥0.485 mg/L (P=0.032), preoperative RDW-CV ≥14.1% (P<0.001), preoperative RDW-SD ≥48.6 fl (P=0.004), NAC (P<0.001), diameter of liver metastases ≥3.0 cm (P=0.005), major liver resection (P=0.005), operation time ≥283.5 min (P=0.010), and intraoperative blood loss ≥200.0 mL (P=0.001) were significantly associated with postoperative complications. The predictors (P<0.1) were included in the multivariate analysis, and preoperative GGT ≥34.5 U/L (OR =1.811, 95% CI: 1.178–2.786, P=0.007), preoperative RDW-CV ≥14.1% (OR =1.590, 95% CI: 1.001–2.526, P=0.049), and intraoperative blood loss ≥200.0 mL (OR =1.739, 95% CI: 1.113–2.716, P=0.015) were independently associated with the presence of postoperative complications (Table 2).

Table 2

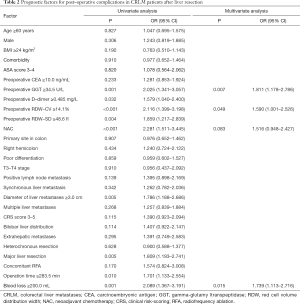

Table 2 Prognostic factors for post–operative complications in CRLM patients after liver resection
Full table

Nomogram for the prediction of postoperative complications

A nomogram with three independent predictors from the multivariate analysis was developed (Figure 2). These factors were assigned specific scores as follows: preoperative serum GGT ≥34.5 U/L, 100; preoperative RDW-CV ≥14.1%, 94; and intraoperative blood loss ≥200.0 mL, 94. The total risk score of each patient based on the nomogram was calculated, and it ranged from 0 to 288. The cut-off value was set at 144 according to the ROC curve, with a sensitivity of 0.631 and a specificity of 0.632. The performance of the model was desirable with an AUROC of 0.658 (95% CI: 0.604–0.712) (Figure 3A). Calibration curves and the Hosmer-Lemeshow test demonstrated acceptable model calibration (chi-square: 3.99, P=0.91) (Figure 3B). DCA revealed that using this nomogram was probably more beneficial (Figure 3C).

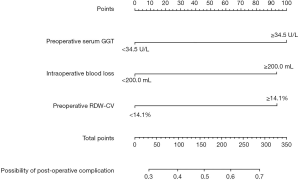

Figure 2 Nomogram predicting the probability of post-operative complications in CRLM patients. CRLM, colorectal liver metastases.
Figure 3 Evaluation of nomogram in the prediction of post-operative complications. (A) The ROC curves of the nomogram. (B) The calibration curves for predicting post-operative complications presence. (C) DCA for the nomogram. ROC, receiver operating characteristic curve; DCA, decision curve analysis.

Best cut-off point of preoperative serum testing markers for survival

The optimal cut-point of preoperative RDW-CV was 16.0%, and elevated RDW-CV was significantly associated with better prognosis (mPFS: 15.0 vs. 8.9 months, P=0.007; mOS: 59.0 vs. 42.0 months, P=0.041) (Figure 4A,B). The optimal cut-point of preoperative RDW-SD was 43.9 fl, and elevated RDW-SD was significantly associated with worse prognosis (mPFS: 8.0 vs. 13.0 months, P<0.001; mOS: 36.8 vs. 70.2 months, P=0.001) (Figure 4C,D). Optimal cut-point of preoperative GGT was 31.0 U/L, and elevated GGT was significantly associated with worse prognosis (mPFS: 7.1 vs. 13.0 months, P<0.001; mOS: 36.0 vs. 57.7 months, P=0.001). The optimal cut-point of preoperative Di-dimer was 0.251 mg/L, and elevated Di-dimer was significantly associated with worse PFS (mPFS: 8.4 vs. 14.0 months, P=0.003) and an equivalent OS (mPFS: 42.0 vs. 54.8 months, P=0.330).

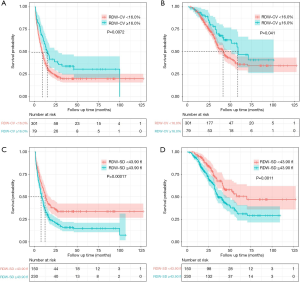

Figure 4 Survival analysis of RDW level. (A) PFS analysis of RDW-CV <16.0% versus RDW-CV 16.0%. (B) OS of RDW-CV <16.0% versus RDW-CV 16.0%. (C) PFS analysis of RDW-SD <43.9 fl versus RDW-SD 43.9 fl. (D) OS analysis of RDW-SD <43.9 fl versus RDW-SD 43.9 fl. RDW, red cell volume distribution width; PFS, progression-free survival; OS, overall survival.

Analysis of CRS score for survival

The Kaplan-Meier analysis of PFS and OS for different values of the CRS score is shown in Figure 5. Patients were stratified by their CRS score into the high-risk group (CRS score 3–5) and low-risk group (CRS score 0–2). Patients in the high-risk group exhibited worse PFS (mPFS: 7.0 vs. 12.0 months, P<0.001) and worse OS (mOS: 35.2 vs. 57.7 months, P<0.001) (Figure 5).

Figure 5 Survival analysis of CRS score and different risk groups. (A,B) Kaplan-Meier estimates of PFS and OS stratified by different values of the CRS score. (C,D) Kaplan-Meier estimates of PFS and OS stratified by risk groups of CRS score. (E,F) Kaplan-Meier estimates of PFS and OS stratified by three different risk groups. CRS, clinical risk-scoring; PFS, progression-free survival; OS, overall survival.

Prognostic factors for PFS

In this study, 286 patients (75.26%) experienced tumour progression. The median PFS was 10.0 months (IQR: 8.6–11.4), and the 1-, 3-, and 5-year PFS rates were 43.9%, 23.1%, and 22.4%, respectively. In the univariable analysis, preoperative CEA ≥10.0 ng/mL, preoperative GGT ≥31.0 U/L, preoperative D-dimer ≥0.251 mg/L, preoperative RDW-CV <16.0%, preoperative RDW-SD ≥43.9 fl, T3-T4 stage, positive lymph node metastasis, multiple liver metastases, bilobar liver distribution, extrahepatic metastases, synchronous liver metastasis, non-R0 resection, major liver resection, operation time ≥283.5 min, complications, and NAC were related to decreased PFS (P<0.05).

Seven independent prognostic factors for PFS were identified in the multivariable analysis: preoperative GGT ≥31.0 U/L (HR =1.369, 95% CI: 1.074–1.744, P=0.011), preoperative D-dimer ≥0.251 mg/L (HR =1.425, 95% CI: 1.081–1.877, P=0.012), preoperative RDW-CV ≥16.0% (HR =0.516, 95% CI: 0.373–0.713, P<0.001), preoperative RDW-SD ≥43.9 fl (HR =1.533, 95% CI: 1.170–2.009, P=0.002), positive lymph node metastasis (HR =1.433, 95% CI: 1.082–1.899, P=0.012), bilobar liver distribution (HR =1.391, 95% CI: 1.068–1.814, P=0.015) and R0 resection (HR =0.629, 95% CI: 0.483–0.819, P=0.001) (Table 3).

Table 3

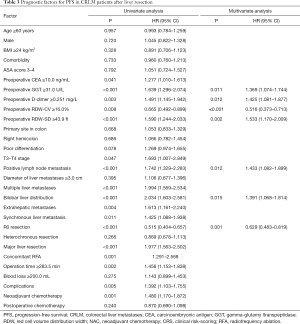

Table 3 Prognostic factors for PFS in CRLM patients after liver resection
Full table

Nomogram for PFS prediction

A prognostic nomogram for PFS with point scales for the above seven independent prognostic factors was established (Figure 6). These factors were assigned specific scores as follows: preoperative GGT ≥31.0 U/L, 47; preoperative D-dimer ≥0.251 mg/L, 53; preoperative RDW-CV <16.0%, 100; preoperative RDW-SD ≥43.9 fl, 64; positive lymph node metastasis, 54; bilobar liver distribution, 49; non R0 resection, 70. The C-statistic for PFS prediction was 0.676±0.016, which was significantly greater than that of the CRS score (0.676 vs. 0.564, P<0.001). A calibration plot for the probability of PFS at 1, 3 and 5 years (Figure 7) demonstrated good calibration between the predictions by the nomogram and the actual observations.

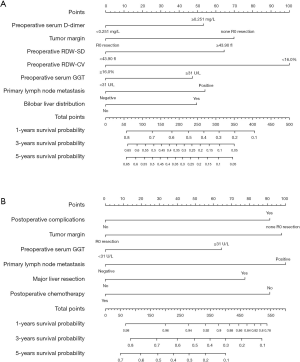

Figure 6 Nomogram for survival. (A) Nomogram for PFS. (B) Nomogram for OS. PFS, progression-free survival; OS, overall survival.

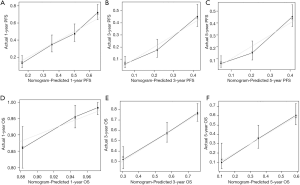

Figure 7 Calibration curves for predicting (A) 1-year, (B) 3-year and (C) 5-year PFS and (D) 1-year, (E) 3-year and (F) 5-year OS. Predicted survival produced by nomogram is plotted on the x-axis, and actual survival is plotted on the y-axis. Dashed lines represent an identical calibration model in which predicted PFS or OS approximate to actual PFS or OS. PFS, progression-free survival; OS, overall survival.

We further calculated the total risk scores of each patient based on the nomogram, and the total points for the scores ranged from 0 to 500. According to the total risk scores, X-tile analysis was conducted to determine the optimal segmentation threshold for dividing patients into three subgroups {high-risk [321–437], middle-risk [219–320] and low-risk [0–218] groups}. As shown in Figure 5, the high-risk group was associated with significantly worse PFS than the middle-risk group (P<0.001; mPFS: 4.7 vs. 7.7 months) and the low-risk group (P<0.001; mPFS: 4.7 vs. 20.2 months). The middle-risk group exhibited significantly worse PFS than the low-risk group (P<0.001; mPFS: 7.7 vs. 20.2 months).

Prognostic factors for OS

In this study, 163 patients (42.9%) died. The median OS was 44.1 months (IQR: 37.5–50.7). In the univariable analysis, preoperative GGT ≥31.0 U/L, preoperative RDW-CV <16.0%, preoperative RDW-SD ≥43.9 fl, positive lymph node metastasis, multiple liver metastases, bilobar liver distribution, extrahepatic metastases, non R0 resection, major liver resection, operation time ≥283.5 min, complications, NAC and non-postoperative chemotherapy were related to decreased OS (P<0.05). Six independent prognostic factors for OS were identified in the multivariable analysis: preoperative GGT ≥31.0 U/L (HR =1.410, 95% CI: 1.009–1.973, P=0.044), primary lymph node metastasis (HR =1.703, 95% CI: 1.158–2.503, P=0.007), R0 resection (HR =0.594, 95% CI: 0.426–0.827, P=0.002), major liver resection (HR =1.512, 95% CI: 1.071–2.133, P=0.019), complications (HR =1.626, 95% CI: 1.184–2.233, P=0.003), and postoperative chemotherapy (HR =0.615, 95% CI: 0.451–0.839, P=0.002) (Table 4).

Table 4

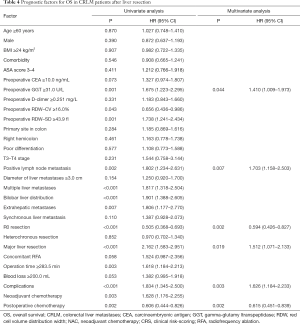

Table 4 Prognostic factors for OS in CRLM patients after liver resection
Full table

Nomogram for OS Prediction

A prognostic nomogram for OS after resection with point scales for the six independent prognostic factors described above was constructed (Figure 6). These factors were assigned specific scores as follows: preoperative GGT ≥31.0 U/L, 53; primary lymph node metastasis, 54; non-R0 resection, 62; major liver resection, 40; complications, 91; and postoperative chemotherapy, 100. The C-statistic for OS prediction was 0.700±0.021, which was significantly larger than that of the CRS score (0.700 vs. 0.574, P<0.001). A calibration plot for the probability of survival at 1, 3, and 5 years (Figure 7) demonstrated good calibration between the predictions by the nomogram and actual observations. The total risk scores ranged from 0 to 523 for each patient based on the nomogram. According to the total risk scores, the optimal segmentation threshold for dividing patients with CRLM into three subgroups was 335–523 (high-risk group), 242–334 (middle-risk group) and 0–241 (low-risk group). As shown in Figure 5, the high-risk group was associated with significantly worse OS than the middle-risk group (P=0.014; mOS: 28.1 vs. 35.2 months) and the low-risk group (P<0.001; mOS: 28.1 months vs. not reach). The middle-risk group was associated with significantly worse OS than the low-risk group (P<0.001; mOS: 35.2 months vs. not reach).


Discussion

This study firstly revealed the relationship between preoperative RDW-SD level, preoperative RDW-CV level, and prognosis. The elevated RDW-CV level was associated with postoperative complications and favorable PFS. The elevated RDW-SD level was associated with unfavorable PFS. Additionally, this study established nomograms exclusively based on preoperative blood markers to predict postoperative complications, PFS, and OS in patients with CRLM after liver resection, which could facilitate the individualized evaluation of patients’ prognosis, distinguish high-risk patients, and determine optimal clinical management strategies.

RDW level, reflected in RDW-CV and RDW-SD levels, is an indicator of the degree of erythrocyte morphology imbalance in the blood, mirroring the heterogeneity of erythrocyte volume (20). RDW level may change as a result of blood diseases, infectious diseases, malnutrition, and even germline mutations associated with CRC (20-22). Additionally, studies have revealed that elevated RDW level was an independent risk factor for unfavorable survival in patients with CRC and bladder cancer (13-15). Consistent with the previous studies, the results of this study revealed that preoperative elevated RDW-SD level was an unfavorable predictor of PFS and elevated RDW-CV level was related to postoperative complications in patients with CRLM. The mechanisms of the relationship between RDW and outcomes were unclear. There were three possible mechanisms. First, elevated RDW level was correlated with elevated IL-6, circulating cytokines, and tumour necrosis factor-alpha which affected aggressive tumour cell behavior (23). Reactive oxygen species and tissue hypoxia increased as RDW level increased, and these factors were associated with high risk of postoperative complications (24). Second, previous studies indicated that RDW level was associated with inflammation markers such as C-reactive protein and erythrocyte sedimentation rate, which demonstrated that RDW level may be an inflammatory marker (25,26). Some studies have shown that inflammatory responses dramatically accelerated tumour growth, progression, and impaired the response to treatment (27). Third, RDW level was associated with dysfunction of various organs. Elevated RDW level indicated that patients may develop organ dysfunction, leading to worse outcome (28-31).

Notably, our study revealed the elevated RDW-CV level was associated with favorable PFS, which was not consistent with the findings of the previous study. Different statistical methods utilized to determine the optimal cutoff values may partially account for the discrepancy in our findings. Firstly, in previous studies, the cutoff values of RDW were determined through ROC analysis or was defined as medians, while in the current study, the cutoff values were obtained through the X tile analysis which fitting the relationship between prognosis and RDW-CV. Secondly, heterogeneity among different malignancies may drive different predictive value of RDW-CV.

This study also constructed novel nomograms for the prediction of survival. Some nomograms have been developed to predict individual survival probabilities for patients with CRLM undergoing liver resection (7,8). However, the nomograms developed here have the following specific advantages. First, preoperative blood markers were incorporated into the novel nomogram. The main advantage of these blood biomarkers is the ease of their collection from routine blood tests before surgery, so clinicians can tailor management strategies to individual patients conveniently. Second, according to the optimal threshold values, patients with CRLM were stratified into high-risk, middle-risk and low-risk groups. A significant difference in PFS and OS was shown between the risk groups. Clinicians could provide individualized prognostic information and rational suggestions for additional individualized therapy to improve survival according to stratification of patients. Third, CRS score has been widely used to stratify the likelihood of recurrence. However, the CRS score was established based on patients undergoing resection during the 1980s and 1990s (32) and relied solely on traditional clinicopathological factors and was not comprehensive (33). Our nomograms consisting of preoperative blood markers, surgical conditions, and tumour biological characteristics were relatively comprehensive. Furthermore, the nomograms showed desirable performance in discrimination and calibration, outperforming the CRS score. In addition, the high incidence of postoperative complications in patients with CRLM often leads to postponed postoperative recovery, increased medical costs, severe physical stress, and worse quality of life, which highlighted the significance of accurate prediction of postoperative complications. To our knowledge, this was the first nomogram incorporating several preoperative blood markers and surgical condition that could predict the occurrence of postoperative complications in patients with CRLM.

There were several limitations in this study. First, this was a retrospective observational study, which could not confidently infer causality between variables due to potential confounding. The prospective cohort study will help further confirm our conclusions. Second, the variation of surgery was also diverse, and there were some unidentified independent factors that could not be included in the analyses. Third, the nomograms in this study may require further validation from cohorts at other medical centres. Despite these limitations, we believe that our study results provide information applicable to routine clinical practice.

In summary, this study first revealed the relationship between preoperative RDW-SD, preoperative RDW-CV, and prognosis. Original predictive nomograms were constructed, especially based on preoperative blood markers, for the survival and postoperative complications of patients with CRLM. The nomograms had relatively good performance and are practical tools to predict prognosis.
