Myocarditis combined with hypertrophic cardiomyopathy: a case report

Introduction

Hypertrophic cardiomyopathy (HCM) is a complex and genetic cardiovascular disorder with an autosomal dominant pattern of inheritance that occurs with an estimated prevalence of 1/1,000 in the general population and is characterized by a highly heterogeneous phenotype, unexplained left ventricular (LV) hypertrophy, cardiac fibrosis and myocyte disarray (1,2). Myocarditis is an inflammatory disease of the cardiac muscle (myocardium) that is caused by different infectious and noninfectious triggers, including viral infections, bacterial infections, immune diseases, toxins, etc. Myocarditis can be acute, subacute, or chronic, and its signs and symptoms vary and include fever, chest pain, fatigue, shortness of breath, and arrhythmia (3). Previous reports have described thickening of the ventricular wall due to transient myocardial interstitial edema in patients with acute myocarditis (AM) (4,5). However, reports of myocarditis in patients with HCM are rare. The present report presents a case of thickening of the ventricular wall a month post-AM, suggesting HCM was pre-existing. We present the following article in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/apm-21-359).

Case presentation

A 30-year-old man presented to our hospital with continuous chest pain and a burning sensation below the breastbone accompanied by profuse sweating that woke him at night. The patient reported to suffered from a fever for two days (maximum body temperature of 38 °C), and conditions had improved following the use of antipyretics as self-administered medication. The patient denied tobacco smoking and alcohol consumption and had no significant past medical history. The man’s parents and brother had a history of hypertension. Physical examination on admission was within the normal limits. The patient’s vital signs were as follows: body temperature 36.5 °C, pulse rate of 78 beats/minin a regular rhythm, respiratory rate of 16 breaths/min, and blood pressure of 111/63 mmHg. Lung auscultation showed normal and clear breath sounds and no rales, and cardiac auscultation revealed normal rate and rhythm and no murmurs. The skin and sclera were not yellow, and no cyanosis of the lips or lower limb edema was found. Electrocardiogram (ECG) exhibited ST-segment elevation in leads I and aVL and non-specific ST-T wave changes in leads II, III, aVF, and V1-V6 (Figure 1). The patient was admitted to the cardiac intensive care unit and was treated with the emergency green channel with 300 mg bayaspirin and 180 mg ticagrelor.

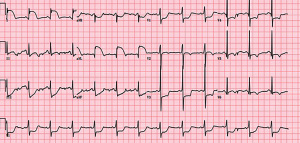

Figure 1 Electrocardiogram on admission showing ST-segment elevation in leads I and aVL, and ST-T wave changes in leads II, III, aVF, and V1-V6.

The patient underwent coronary angiography to further evaluate the ischemic etiology of the chest pain. Coronary angiography revealed no significant coronary artery stenosis with Grade 3 thrombolysis in myocardial infarction (TIMI) flow. The patient’s laboratory data are shown in Table 1. White blood cell count, hemoglobin, and platelets were 8.18×10⁹/L, 162 g/L and 164×10⁹/Lon admission, respectively. Laboratory examination revealed marked elevation of cardiac troponin I (cTnI, 106 ng/mL), creatine kinase-myocardial band (CK-MB, 206.5 ng/mL), and myoglobin (Myo, 502 ng/mL). Laboratory findings also included an increase in the lactate dehydrogenase (LDH) level (1,254 U/L) and its alpha-hydroxybutyrate dehydrogenase of 1,106 U/L, an increase in aspartate aminotransferase (AST, 309.4 U/L) and alanine aminotransferase (ALT, 57.6 U/L), and an increase in serum total bilirubin (TBIL, 28.3 µmol/L) and direct bilirubin (DBTL, 9.1 µmol/L). Serum levels of thyroid-stimulating hormone (TSH, 6.850 uIU/mL) and uric acid (516 µmol/L) were elevated. Free T3 and free T4 levels were within the normal range (Table 1). Evidence of a fluctuating fever and normal coronary arteries subverted the initial impression of coronary heart disease, and the findings were suggestive of myocarditis. Trimetazidine, coenzyme Q, vitamin C pills, sulbenicillin, meicelin, and spironolactone were administrated. Although the effect of spironolactone on myocarditis is not clear, it is recommended for patients with severe LV systolic dysfunction (EF <35%) or symptomatic heart failure. The bedside UCG showed that LVEF was 37%, and the heart failure symptoms were obvious. All blood and sputum cultures were negative. Respiratory tract infection testing showed negative results. A TORCH screen revealed positive herpes simplex virus (HSV), rubella virus (RV), and cytomegalovirus (CMV) IgG but all with negative IgM titer. Intravenous drip of creatine phosphate sodium (1 g, QD) and vidarabine (0.5 g, q8h) was performed for 10 days.

Ultrasonic echocardiography (UCG) showed biatrial enlargement with LV systolic and diastolic dysfunction (LV ejection fraction 44%), diffuse LV hypokinesia (Grade II), asymmetrical septal hypertrophy [ASH; thickness of the interventricular septum (IVS): 17 mm], slightly elevated pulmonary artery pressure, and an end-diastolic diameter of 45 mm. No LV outflow tract obstruction was observed. Moderate mitral and tricuspid regurgitation were noted, and a moderate pericardial effusion was observed (Figure 2). A cardiac magnetic resonance imaging (MRI) was ordered and further confirmed hypertrophy of the ventricular septum and anterior wall. LV anterior wall is 9 mm thick in short axis end-diastole. The lowest wall is 8 mm thick, the lateral wall is 7 mm thick, and the ventricular septum is 22 mm thick at most. A beta-blocker (metoprolol succinate) was added on the third day after admission at a dose of 23.75 mg (QD) and was increased to 47 mg (QD) after MRI. Methylprednisolone was administered on the first day after admission and was stepped down gradually with improvement. The patient showed a significant improvement in symptoms, and laboratory findings were almost normalized. The patient reported that his family members also had interventricular septal hypertrophy detected by UCG. He and his family members were offered genetic testing, and the results showed variant of uncertain significance (VUS). A consultation with the cardiology team was conducted and collectively indicated a diagnosis of HCM with myocarditis. The patient was eventually discharged on day 12 of the hospital stay and was free of chest pain and without other symptoms prior to discharge. A post-discharge one-month follow-up visit showed that the patient was recovering well. However, UCG showed LV hypertrophy, as before. All procedures performed in studies involving human participants were in accordance with the ethical standards of the First Hospital of Jilin University and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Figure 2 Ultrasonic echocardiography showed reduced left ventricular systolic function with asymmetric septal hypertrophy. (A) Two-dimensional ultrasound: the parasternal LV long-axis view showed asymmetric left ventricular wall hypertrophy, mainly interventricular septum and thicker 17 mm. (B) The parasternal short-axis view showed left ventricular wall was asymmetrically hypertrophic, mainly in the interventricular septum. (C) Color Doppler imaging showed that left ventricular outflow tract obstruction was not observed. (D) The long axis section of the great artery of the suprasternal fossa showed that there was no abnormality in the aortic arch and descending part. *Emergency green channel is a special green channel treatment mode for acute myocardial infarction in our hospital since 2009. It requires emergency doctors to establish simple cases, collect ECG and other auxiliary examinations, evaluate the indications of emergency percutaneous coronary intervention, exclude contraindications, and perform green channel intervention surgery. V, ventricle; RV, right ventricle; AO, aorta; LV, left ventricle; LA, left atrium; LVOT, left ventricular outflow tract; AAO, ascending aorta; DAO, descending aorta.

Discussion

It has been shown that AM can mimic HCM by causing an increase in LV wall thickness due to myocardial interstitial edema (5). The signs and symptoms of HCM can vary greatly among affected cases (6). Findings suggest that the diagnosis of HCM may be difficult in cases with AM. In the present study, we encountered a relatively rare case of patients with HCM combined with myocarditis.

There have been several reports of myocarditis combined with HCM (7-11). Takata et al. showed a case of sudden cardiac death from HCM and acute Fiedler’s myocarditis (7). Another report indicated extensive left ventricular wall motion abnormalities and LV hypertrophy with extreme outflow obstruction in a 65-year-old man due to AM in HCM (11). In addition, Kusumoto et al. suggested that AM with HCM should be considered in patients presenting with cardiogenic shock due to left ventricle outflow obstruction and complete atrioventricular block (9). Our case was admitted to our clinic with complaints of chest pain and fever for two days before admission, and myocarditis combined with HCM was diagnosed after a thorough cardiac work-up and consultation with the cardiology team. The presence of virus (HSV, RV, CMV)-specific IgG in the absence of IgM indicated past infection at an undetermined time. In the present case, no LV outflow tract obstruction was observed by UCG. Diffuse LV hypokinesis was identified in the present study, which was suggestive of myocarditis (12), and there were symptoms of LV dysfunction. After resolution of the myocarditis, the diffuse hypokinesis of the left ventricle recovered.

The precise reason why edematous changes and myocardial damage due to myocarditis occurred mainly in the basal area of the IVS in HCM patients is unknown (9). Previous research has suggested that mechanical stress may enhance the damage to the myocardium caused by myocarditis because the basal area of the IVS is subjected to the stress of turbulent flow and high pressure induced by HCM (9).

HCM is a complex genetic cardiac disease. Around 40–60% of all cases of HCM are thought to be caused by a variety of autosomal dominant mutations in genes encoding sarcomeric proteins (e.g., myosin‐binding protein C, myosin light chain 3, β‐myosin heavy chain, cardiac troponin I and T, and tropomyosin α‐1 chain) with a marked heterogeneity in clinical expression, natural history, and prognosis (13). It is well accepted that specific mutations remain unknown or cannot be detected in up to 30% of cases of HCM (14). Unfortunately, although the genetic testing was performed in the present study, we were unable to establish any significant genetic association of this case with HCM. After symptomatic treatment, anti-inflammation therapy, myocardial remodeling therapy, and methylprednisolone treatment, the patient was discharged and recovered well.

The present report presented a case of myocarditis accompanied with HCM. It is necessary to identify the associated abnormalities and evaluate the risk of myocarditis and accompanying HCM through a thorough cardiac work-up to assist clinicians in decisions regarding therapy.
