Evaluation of humoral pattern detection performance of Mindray BC-6000PLUS blood analyzer based on WS/T 662-2020
Introduction
In clinic practice, cerebrospinal fluid, serous cavity effusion, and articular cavity effusion are common and important humoral samples of laboratory tests. The routine test of these samples, especially cell count, has great significances for differential diagnosis, treatment, assessment of disease progression, and prognosis of patients (1). Manual microscopic examination and classification of body fluid samples has become the gold standard of cytological examination for a long time (2). However, it has some drawbacks, such as the high subjectivity on cell discrimination, high requirements of experience and technology, poor repeatability, low precision, and time-consuming operation. With the development of flow cytometry in recent years, many automatic blood cell analyzers have been developed to perform the functions of cell counting and classification for analyzing body fluid samples. These instruments have a high degree of automation and less manual operation-related errors, which improved the detection efficiency, accuracy and precision, and facilitated the procedure of standardization. Given their high application value, cell counting and cell classification of body fluid samples are being more widely processed by automatic hematology analyzers (3-5). The Mindray BC-6000PLUS automatic hematology analyzer (hereinafter referred to as the BC-6000PLUS analyzer; Shenzhen Mindray Biomedical Electronics Co., Ltd., Shenzhen, China) has 2 detection modes (i.e., blood model and humoral mode). The humoral mode can not only count white blood cell-body fluid (WBC-BF) and red blood cell-body fluid (RBC-BF), but can also provide research data such as classified counting of nucleated cells and high fluorescence intensity cells. This study intended to verify the performance of the humoral mode of the BC-6000PLUS analyzer according to the criteria of the current guidelines, and establish the limit of blank (LoB) and limit of detection (LoD) of the cell count in order to evaluate and understand the feasibility of the BC-6000PLUS analyzer’s humoral mode in clinical application. Based on this, we determined the lower detection limits of WBC-BF and RBC-BF. We present the following article in accordance with the MDAR reporting checklist (available at https://dx.doi.org/10.21037/apm-21-1187).
Methods
Study design
This is a retrospective study. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). It only collects the clinical data of patients, does not interfere with the treatment plan of patients, and will not bring physiological risks to patients. Researchers will try their best to protect the information provided by patients, do not disclose personal privacy, and exempt informed consent.
Specimen sources
For specimen collection, 55 humoral samples (23 cerebrospinal fluid and 32 hydrothorax and ascites) from inpatients at the University City Hospital of Guangdong Hospital of Traditional Chinese Medicine in May 2020 were collected and mixed in EDTA-2K anticoagulant tubes and then sent for examination. The samples were counted and classified within 1 hour according to WS/T662-2020 “Clinical Humoral examination technology.”
Instruments and reagents
The following instruments and reagents were acquired: a Mindray BC-6000PLUS automatic blood cell analyzer and its supporting reagents (Shenzhen Mindray Biomedical Electronics Co., Ltd., Shenzhen, China), an Olympus CX-21 binocular microscope (Zeshi Optoelectronics Technology Co., Ltd., Shanghai, China), and a disposable FAST-READ10 urine sediment counting board (Shanghai Sango Biotechnology Co., Ltd., Shanghai, China).
Study methods
The performance parameters of the BC6000PLUS analyzer were verified by referring to the performance evaluation guidelines of the International Committee for Standardization in Haematology (ICSH) humoral cell automatic counter of 2014 and (6,7) the requirements of WS/T662-2020 “Clinical humoral examination technique”. The humoral white blood cell-body fluid (WBC-BF), humoral red blood cell-body fluid (RBC-BF), monocyte (MN), polymorphonuclear (PMN) were measured to verify the performance indicators of the instrument, including background counting, intra-batch precision, accuracy, carrying contamination rate, and linear range. The LoB value and LoD value of WBC-BF and RBC-BF were established by referring to the WS/T514-2017 (Establishment and verification of detection capability for clinical laboratory measurement procedures). All the verification operation procedures were carried out in strict accordance with the instrument instructions and the fourth version of the National Operating Rules for Clinical Testing. In addition, the result judgment criteria were mainly based on the technical indicators provided by the manufacturers.
Background count
The BC-6000PLUS diluent (Shenzhen Mindray Biomedical Electronics Co., Ltd.) was used as a sample to be measured continuously 3 times in the body fluid mode of the analyzer under the normal state of the instrument. In addition, the maximum values of white blood cell (WBC) and red blood cell (RBC) counts were each taken. The maximum value was required to be within the allowable range of background detection set by the manufacturer.
Contamination rate
One clinical sample with high concentration and one with low concentration (the results were close to the linear high and low concentration) were mixed uniformly. Thereafter, the high concentration samples were detected consecutively 3 times (the test results were recorded as H1, H2, and H3). The low concentration sample was then tested consecutively for 3 times as well (the test results were recorded as L1, L2, and L3). The carrying pollution rate of WBC-BF and RBC-BF (%) were calculated with the following formula: carrying pollution rate (%) = (L1-L3)/(H3-L3) ×100%.
Intra-batch precision
One high concentration level sample and one low concentration level sample were tested 11 times repeatedly on the same day according to the conventional method (at least 5 times if the specimen was limited). The last 10 test results were selected to calculate the mean, standard deviation (SD), and coefficient of variation (CV) of WBC-BF and RBC-BF.
Accuracy
The 55 clinical fluid samples were collected, divided into 2 samples, and examined by the BC-6000PLUS analyzer and manual microscope respectively within 1 hour (8). Operation of the manual mode was done in strict accordance with the fourth version of the National Rules of Clinical Examination. Moreover, 2 competent examiners with many years of clinical examination experience counted RBCs and WBCs, with the average of their counts being taken as the final counting results. The samples were centrifuged and stained with Wright’s-Giemsa Staining Solution (GBCBIO Technologies) for leukocyte count. Finally, the correlation between the results of the BC-6000PLUS analyzer including the counting of the WBC, RBCs, mononuclear cells (MNs, including monocyte-macrophage-like cells, lymphocytes mesothelial cells, etc.), and multiple nuclear cells (PMNs, including neutrophils, eosinophils, and basophils) and those of the manual mode were analyzed.
Linear range verification
One cerebrospinal fluid sample whose WBC and RBC were close to the upper LoD (it is not recommended to take the hydrothorax and ascites sample as the linear verification sample because the cells in the high value hydrothorax and ascites sample are easy to gather and adhere) was diluted by the supporting diluent of the instrument with the proportions of 1:2, 1:4, 1:8, 1:16, 1:32, 1:64, 1:128, 1: 512, and 1:1,024. Then, each dilution sample was measured 3 times, and the mean value was calculated under the humoral mode. The measured values were compared with the theoretical values (Y=ax+b), and the measured mean values and theoretical values were analyzed by linear regression analysis.
Establishment of the LoB and LoD
The LoB and LoD was established according to the WS/T514-2017 “Establishment and verification of detection ability of clinical testing methods” (9).
The LoB refers to the highest measured value obtained from multiple blank specimens after repeated measurement. BC-6000PLUS diluent was used as the test sample and was repeatedly tested 10 times a day for 6 days under the humoral mode of the analyzer, yielding 60 data sets. The LoD was determined by low-concentration samples. Six low concentration samples (the optimal concentration range from LoB to 4 times LoB) were tested 10 times in different time periods within 1 day, and 60 data sets were obtained.
Statistical analysis
The data were analyzed by using SPSS 20.0 (IBM Corp.) or Excel 2010 (Microsoft Corp.) software where appropriate. The nonparametric tests were used to analyze the data with nonnormal distribution.
Results
Background count
The diluent was adopted as the sample, and the WBC and RBC counts were determined 3 times in succession. The results were all 0, which met the background requirements of the manufacturers. The results are detailed in Table 1 (the allowable ranges set by the instrument manufacturers were WBC-BF ≤0.001×109/L and RBC-BF ≤0.003×1012/L, respectively).
Full table
Carrying contamination rate
The contamination rate of WBC-BF and RBC-BF measured in BC-6000PLUS humoral mode was 0%, which met the pollution rate requirements of manufacturers (≤0.3%). The determination results of high and low concentration samples are shown in Table 2.
Full table
Intra-batch precision
To determine intra-batch precision, the WBC-BF and RBC-BF values of medium and low concentration humoral samples were measured continuously 11 times under the humoral mode. The results of the 10 most recent measures were statistically analyzed, which revealed that all of the CV values were lower than the standard set by the instrument’s manufacturer. The detailed results are shown in Table 3.
Full table
Accuracy

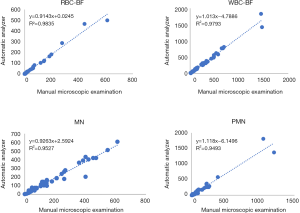

The correlations between the results of WBC-BF, RBC-BF, mononuclear cell MN, and multiple nuclear cell PMN of 55 clinical samples detected by BC-6000PLUS and those of the manual microscopic examination were analyzed by linear regression. The results indicated that the WBC-BF, RBC-BF, MN, and PMN items of the 2 detection methods were highly correlated. The results of the correlation analysis were shown in Table 4 and the corresponding correlation diagrams were showed in Figure 1.
Full table
Linear range
In the linear analysis of WBC-BF and RBC-BF, the linear range of WBC-BF was (0.008–10.235)×109/L; meanwhile, the linear regression equation was the following: y=1.0032x+0.025 (with α=1.0032 and R2=0.9998). In addition, the linear range of RBC-BF was (0.005–4.657)×1012/L; meanwhile the linear regression equation was the following: y=0.9984x−0.0021 (with α=1.0032 and R2=0.9998). This indicated that the linear range of the instrument’s WBC-BF and RBC-BF was wide and was in line with the requirements of the instrument’s manufacturer. The detailed results and diagrams of the linear analysis of WBC-BF and RBC-BF are shown in Table 5 and Figure 2.
Full table
Establishment of the LoB and LoD for WBC-BF and RBC-BF
For the LOB, 10 blank samples (the supporting diluent) were tested each day, and a total of 60 data sets were obtained after 6 days. The results showed that the detection values of WBC-BF and RBC-BF were 0. Thus, for the humoral mode of our BC-6000PLUS analyzer, the LoB value of WBC-BF was 0×109/L, while the LoB value of RBC-BF was 0×1012/L.

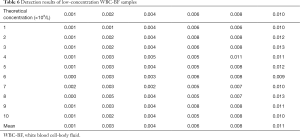

In determining the LoD, only 6 low-concentration samples were analyzed in different time periods within 1 day due to the limited stability of the humoral samples. The detection results of the samples are detailed in Tables 6 and 7. After statistical analysis, the test results did not conform to a normal distribution. As a consequence, the LoD was established by using the nonparametric analysis method. The statistical formula was LoD=LoB+Dsβ, where Dsβ was the interval between the median (M) and the 5th percentile of the test results.
Full table
Full table
The median LoD of WBC-BF was calculated by the following formula: (M) =60×0.5+0.5= the value of the 30.5 rank =0.005×109/L; meanwhile, the 5th percentile was calculated by the formula as following: 5th percentile =60×0.05+0.5= the value of the 3.5 rank =0.001×109/L. Dsβ=0.005×109/L−0.001×109/L=0.004×109/L. Because the LoB of the WBC =0×109/L, the LoD of the WBC = LoB+Dsβ=0.004×109/L
The median LoD of RBC-BF was calculated by the following formula: (M) = the value of the 30.5 rank =0.0055×1012/L; meanwhile, the 5th percentile was calculated as follows: 5th percentile =60×0.05+0.5= the value of the 3.5 rank =0.002×1012/L. Dsβ =0.0055×1012/L-0.002×1012/L=0.0035×1012/L. Because the LOb of the RBC =0×1012/L, the LoD of the RBC = LoB+Dsβ=0.0035×1012/L≈0.004×1012/L.
Discussion
With the progress of the medical science and technology, medical laboratory equipment is developing in the direction of automation and standardization, and the traditional method of manual microscopic examination can no longer meet clinical needs. As a consequence, the automatic analysis of body fluids will become increasingly popular. The Medical Laboratory Quality and Competency Accreditation Guidelines (ISO15189:2012) require medical laboratories to verify or confirm the performance of the selected testing procedures before testing patient samples, confirming that they meet the manufacturer’s criteria and ensuring that the test results meet the intended use and clinical requirements (10). There are no independent calibrators and few supporting quality control products in the humoral mode of automatic hematology analyzers at present. As a consequence, it is difficult to achieve strict daily quality management. Therefore, it is particularly important to verify the performance of the humoral mode of the automatic analyzer before it is applied to routine tests in clinical practice (11).
The performance verification results of this study show that the background count results of WBC-BF and RBC-BF of the BC-6000PLUS analyzer (Shenzhen Mindray Biomedical Electronics Co., Ltd.) are 0. It can thus provide a good background for humoral samples with a low cell count. In addition, the contamination rates of WBC-BF and RBC-BF of the instrument are 0. This indicates that the likelihood of cross-contamination between the samples is very low. The BC-6000PLUS analyzer has a wide linear range for both WBC-BF and RBC-BF. Moreover, there is a good linear relationship between detection concentration and dilution ratio. The correlation coefficient R2≥0.95, which is in line with the manufacturer’s performance statement. Therefore, the linear range of WBC-BF and RBC-BF can be used as the reportable range of the clinical results. It was difficult to verify the inter-batch precision because the Mindray company does not produce the supporting quality control products of the BC-6000PLUS humoral model. Other limitations include unstable conditions such as cell lysis and spontaneous coagulation of humoral samples. As a consequence, only the intra-batch precision parameters of the instrument were verified. The precision results indicated that the intra-batch precision variation coefficients of the WBC-BF and RBC-BF of the BC-6000PLUS instrument under the humoral mode at different concentration levels are far lower than the manufacturer’s standard, and therefore the repeatability of the instrument is good. There is a high correlation between the results under the humoral mode of the BC-6000PLUS analyzer and those of the manual microscopic examination in terms of instrument accuracy evaluation. The data show that the correlation coefficients of WBC-BF, RBC-BF, MN, and PMN are greater than 90%, with the linear slope ranging from 0.95 to 1.05. They all meet the manufacturers’ stated requirements.
Appendix A of the Clinical Humoral Examination Technology of the WS/T662-2020 clearly stipulates that each laboratory should establish the detection of the lower limit of the nucleated cell count and RBC count of the detection system used. In addition, the detection of the lower limit should not be lower than that of the instrument. The instrument is often unable to detect or guarantee the accuracy of low-value results when the cell count of clinical samples is lower than the lower limit of the instrument. As a consequence, it is necessary to recheck the count by manual microscopic examination, which is more common in cerebrospinal fluid specimens, and to establish the lower detection limit of the cell counting under the instrument’s humoral model. Because the Mindray company does not provide any statement regarding the lower detection limits of the items under this instrument’s humoral mode, our laboratory had to independently determine the LoB value and LoD value of the cell counting under humoral mode for the BC-6000PLUS analyzer. The LoB value refers to the maximum measured value that can be observed in the blank sample, and the LoD value refers to the lowest analyte concentration detected from the sample (12). According to our statistical analysis, the LoB values of both WBC-BF and RBC-BF of this instrument are 0. The LoD value of WBC-BF is 0.004×109/L, and the LoD value of RBC-BF is 0.004×1012/L. Thus, our laboratory has set the lower limit of the WBC-BF of the BC-6000PLUS analyzer as 0.004×/L and the lower limit of the RBC-BF as 0.004×1012/L. The laboratory stipulates that manual microscopic examination must be performed to reexamine the samples with low values if the test results of the instrument are lower than the lower limit.
The present study was limited by the fact that the inter-batch precision of the instrument could not be verified due to objective conditions. However, Joob et al. (13) reported that the fully automatic hematology analyzer was equipped with an independent humoral detection mode and can obtain highly accurate results even in humoral samples with a small number of cells; meanwhile the Clinical and Laboratory Standards Institute (CLSI) H56-A guideline (14) also points out that according to the College of American Pathologists (CAP), it is no longer necessary to run humoral cell quality control independently if the instrument is used for blood cell analysis. However, the author suggests that it is still necessary for conditional clinical laboratories to establish an internal quality control management system for automatic detection of humoral samples. It is also believed that in the near future, the indoor or inter-room quality control of automatic detection of humoral samples will be popularized as body fluid quality control products proliferate and costs are reduced.
In conclusion, the BC-6000PLUS has an extremely low background count and carrying contamination rate, high precision, good accuracy and linearity, high correlation with manual microscopic examination, and good overall detection performance. It can fully meet the needs of clinical routine detection. However, it is worth noting that manual microscopic examination is still the gold standard of body fluid tests and cannot be completely replaced by the automatic instrument testing. It is necessary to reexamine the humoral samples by the manual microscopic examination in accordance with the requirements of the procedure documents of the department, especially for the samples whose cell count is lower than the detection limit, or when the scatter plot abnormality indicates that there are special tangible components (abnormal tumor cells, bacteria, fungi, parasites, etc.).
