Comparative study of high flow nasal catheter device and noninvasive positive pressure ventilation for sequential treatment in sepsis patients after weaning from mechanical ventilation in intensive care unit

Introduction

As a systemic infection led by multiple organ diseases, sepsis is a common complication of severe trauma, injury and major surgery. Its incidence is rising year after year, and the mortality rate in China is about 48.7% (1). Respiratory failure is a common organ failure in sepsis patients. It has been widely accepted that patients with severe hypoxemia should receive mechanical ventilation (MV) to improve tissue hypoxia. 2012 SSC guidelines have taken root, which advised for protective pulmonary ventilation strategies of lower plateau pressure (≤30 cmH₂O), lower tidal volume (6 mL/kg), and allowance for hypercapnia, and proper positive end expiratory pressure to improve alveolar collapse. So far, however, no consensus had been reached on which method of oxygen therapy should be used after weaning from MV in sepsis patients.

Traditional oxygen therapy (nasal catheter or mask oxygenation) and non-invasive positive pressure ventilation (NPPV) have been widely used as the pre-treatment and sequential treatment after weaning from MV in septic hypoxemia. However, traditional oxygen therapy has poor efficacy in the treatment of hypoxemia, and NPPV is complex to implement with lower comfort and tolerance along with high incidence of complications such as reflux and aspiration, which limits its application. Recently, the clinical application of high flow nasal catheter (HFNC) device has received increasing attention. HFNC with simple operation, easy management, and high comfort and tolerance has become one of the main methods for treating patients with respiratory failure in the intensive care unit (ICU) (2). This study aimed at comparing the efficacy of HFNC and NPPV in sequential treatment after MV weaning in patients with sepsis in ICU, and at evaluating the value of HFNC in sequential therapy for MV in septic patients.

We present following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/apm-21-8).

Methods

This study was a single-center retrospective cohort study, and it was approved by the Medical Ethics Committee of Zhongshan Hospital affiliated to Fudan University (No. B2018-015). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived.

Participants

Perioperative surgical patients with sepsis admitted to surgical ICU of Zhongshan Hospital affiliated to Fudan University from September 2013 to August 2017 who were treated with MV and HFNC/NPPV therapy after weaning from MV were enrolled.

Inclusion criteria: (I) ≥18 and ≤85 years old; (II) perioperative surgical patients who met diagnostic standards for sepsis (sepsis 3.0) (3), SOFA score >2; (III) ICU admission with MV; (IV) met indications for weaning from MV (see below), passed the spontaneous breathing test and got successfully extubated; (V) HFNC/NPPV therapy was performed within 24 h after MV weaning.

Exclusion criteria: (I) received both HFNC and NPPV treatment; (II) uncontrolled surgical problems (such as hemorrhage or anastomotic fistula) after the first time of MV weaning; (III) GCS score <12; (IV) pregnant.

Research methods

The clinical data of patients who met the inclusion criteria were collected from the database of our institution (including history system, medical order system, nursing record list, respiratory record list, etc.).

All patients were treated according to the protocol of sepsis during hospitalization (4,5). Daily assessments of patients were conducted by clinicians and respiratory therapists. Spontaneous breath tests (T tubes, 30–120 minutes) were given to patients who met the indications for weaning extubation, and tracheal intubation removed for those who passed spontaneous breath test (6). The weaning indications contain six parameters, when the patient meet all the statements, they can weaning from mechanical ventilation. Mask oxygenating was given after weaning (oxygen flow rate 5–8 L/min). Patients with hypoxemia (PaO₂/FiO₂ <250 or SpO₂ <95%) and/or shortness of breath (respiratory rate >25 bpm) were given HFNC or NPPV sequential treatment. The choice of treatment modality was determined by the availability of equipment and once used medical supplies when a patient was enrolled. Patients were divided into two groups according to the way of respiratory support after extubation: the HFNC group and the NPPV group.

Indications for weaning from MV

(I) Improvement in or removal of causes of MV; (II) hemodynamic stability: HR <140 bpm, no significant hypotension (no need for or low dose applications of vasoactive drugs such as dopamine/dobutamine <5 µg/kg/min or norepinephrine ≤0.1 µg/kg/min); (III) no severe metabolic acidosis; (IV) oxygenation indexes: SaO₂ >90% with FiO₂ ≤0.4 (or PaO₂/FiO₂ ≥150), PEEP ≤8 cmH₂O; (V) respiratory rate ≥8 bpm, ≤35 bpm, shallow fast breathing index (RSBI) <105 bpm/L; no obvious respiratory acidosis; (VI) conscious, GCS score ≥12 points, able to cough and remove airway secretions.

HFNC/NPPV parameter settings

The HFNC devices in our center were AIRVO2 (Fisher & Paykel Healthcare, New Zealand, PT 101). Initial parameter settings: HFNC group inhalation oxygen concentration 40–60%, oxygen flow 30–60 L/min, temperature 34 °C. NPPV used nasal and oral non-invasive masks, ventilators models were Evita 2, 4 and XL (Dräger, Germany). Initial parameter settings: inhalation oxygen concentration 40–60%, PEEP 5–10 cmH₂O. The respiratory therapy parameters were set by the clinical physician and respiratory therapist team based on the initial setting routine and adjusted according to patients’ complaints, clinical manifestations, and changes in condition or blood gas analysis results.

Indications for weaning from HFNC/NPPV

Weaning from HFNC/NPPV was defined as the maintenance of a SpO₂ level of over 95% or a PaO₂/FiO₂ >250 with FiO₂ ≤0.4 without any indication for HFNC/NPPV. It represented well weaned if no supportive respiratory care was required for at least 24 hours after the resumption of general oxygen therapy.

Indications for re-intubation

Indications for reintubation included: respiratory arrest, respiratory pauses with loss of consciousness or gasping respiration, encephalopathy, cardiovascular instability, unmanageable secretions, clinical signs of exhaustion, refractory hypoxemia (SpO₂ <90% or PaO₂ <60 mmHg with FiO₂ ≥0.8), or respiratory acidosis [pH <7.30 and partial pressure of arterial carbon dioxide (PaCO₂) ≥50 mmHg] (7). When this was the case, HFNC/NPPV treatment was considered unsuccessful and tracheal intubation was re-performed for mechanical ventilation.

Indications for ICU discharge

Primary disease controlled, hemodynamically stable (no antihypertensives), no severe arrhythmias, no severe acid-base balance disorders or water and electrolytes disorders, stable breathing remained for at 24 hours after weaning (general mask or nasal obstruction oxygenating), no requirement for special life monitoring and supporting, and complications controlled. When the above conditions were met, the decision to transfer out of ICU could be made by attending physicians.

Outcomes and definitions

Primary outcome: re-intubation rate within 72 hours after extubation.

Secondary outcomes:

• Prognostic indicators: ICU LOS, ICU mortality and in hospital 28-day mortality.
• Respiratory function parameters: respiratory rate, oxygenation index, PaCO₂, HFNC/NPPV sequential treatment time.
• Complications of other systems: delirium, reflux aspiration, abdominal distension, pneumothorax, facial pressure sores, etc. The judgment of delirium was made by a bedside responsible nurse every 8 hours for evaluation of CAM-ICU delirium (positive/negative) (8,9) and was recorded on the nursing record sheet. A patient who had been positive for more than one record was deemed to have had delirium. Pressure ulcers were assessed every 8 hours by the bedside nurse (0, none; 1, local erythema; 2, moderate skin breakdown; 3, skin ulcer; 4, skin necrosis). A score of 1 or more stood for pressure sores. The remaining indicators were assessed by respiratory therapists and attending physicians based on patients’ complaints, symptoms, signs, and chest X-ray daily assessment, and recorded in the history or respiratory record list.
• Comfort assessment (Patient Comfort Score): Visual analogue scale (VAS), 0–2 points for comfort, 3–4 points for mild discomfort, 5–6 points for moderate discomfort, 7–8 points for heavy discomfort, 9–10 points for extremely discomfort. Patients were daily asked by respiratory therapists to subjectively tick the corresponding numbers to be recorded in respiratory treatment list. The highest value was used as the patient comfort score.

Statistical analysis

SPSS 22.0 software (IBM Corporation, NY, USA) was used. All the data were tested for normality and homogeneity of variance before statistical test. If the data obeyed the normal distribution and the homogeneity of the variance, t-test would be chosen to compare the statistical differences among the variables in the group to show in mean ± standard deviation (x¯±s). If the data did not obey the normal distribution and homogeneity of variance, the rank sum test would be used to show in the median. Cases and rates were used for count data, and chi-square test for comparison between groups. A P value <0.05 was considered statistically significant. GraphPad Prism 7 (GraphPad Software, San Diego, USA) was used for charting and graphing.

Results

Clinical data

A total number of 326 septic cases met the inclusion criteria were collected from September 2013 to August 2017 in this study. Among them, 5 patients received HFNC and NPPV earlier or later during the treatment, 22 patients had uncontrollable surgical problems after weaning from MV, 14 patients had different degrees of decreased consciousness (GCS score <12), and 2 patients were excluded for pregnant. The rest 283 patients were enrolled with 167 in the HFNC group and 116 in the NPPV group (Figure 1).

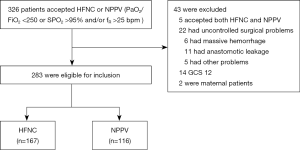

Figure 1 Patient selection flow chart. GCS, Glasgow Coma Scale; HFNC, high-flow nasal catheter device; NPPV, non-invasive positive pressure ventilation

There was no significant difference between the two groups in demographic characteristics (age, sex, BMI, etc.), general clinical status at ICU admission, arterial blood gas indexes at extubation and before sequential therapy, APACHE II score, SOFA score, or invasive MV time before extubation (Table 1).

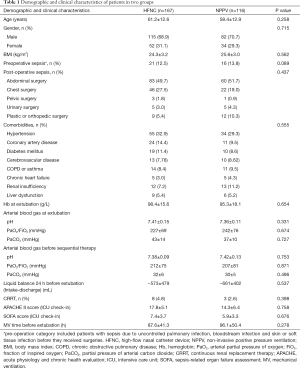

Table 1 Demographic and clinical characteristics of patients in two groups
Full table

Primary outcome and prognostic indicators

There were no significant differences in re-intubation rates within 72 hours in patients in the HFNC group and the NPPV group (4.2% vs. 5.2%, P=0.698). Compared with the NPPV group, the sequential treatment time of the HFNC group was slightly shorter (60.8±29.3 vs. 75.6±36.1, P=0.082). There was no significant difference in ICU mortality, in-hospital 28-day mortality, and ICU LOS between the two groups (Table 2).

Table 2 Primary outcome and prognostic indicators in two groups
Full table

Respiratory outcomes

There was no significant difference in respiratory rate, oxygenation index and PaCO₂ between the two groups before initiating sequential therapy after weaning from MV (P>0.05, Figures 2-4).

Figure 2 Respiratory rate in the HFNC and the NPPV groups. HFNC, high flow nasal catheter; NPPV, noninvasive positive pressure ventilation.

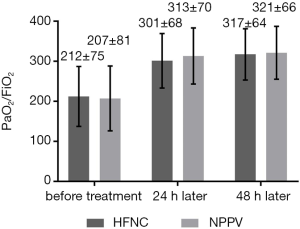

Figure 3 Oxygenation index in the HFNC and the NPPV groups. HFNC, high flow nasal catheter; NPPV, noninvasive positive pressure ventilation.

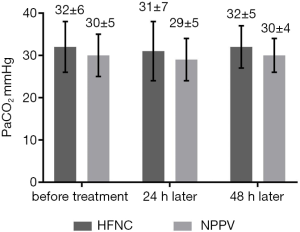

Figure 4 PaCO₂ in the HFNC and the NPPV groups. HFNC, high flow nasal catheter; NPPV, noninvasive positive pressure ventilation; f_R, frequency of respiration; GCS Glasgow Coma Scale.

Respiratory rate (Figure 2) in HFNC group at before treatment, 24 hours after and 48 hours after three points are higher than these in NPPV group without significant difference (P>0.05). The oxygenation index (Figure 3) in HFNC and NPPV groups were improved after 24 and 48 hours of treatment. There is no significant difference when compared between two groups at three time points. No significant difference in PaCO₂ before and after treatment between groups was found (Figure 4).

Other complications and patient comfort scores

Compared with the NPPV group, patients in the HFNC group had better comfort scores (3.6±2.1 vs. 6.9±3.7, P=0.028), lower incidence of pneumothorax (0% vs. 1.7% P=0.326) and facial pressure ulcers (0% vs. 26.7% P<0.001), and lower incidence of delirium and reflux aspiration (P<0.05) (Table 3). As we known, the NPPV ventilation method need facial mask to ensure the ventilation pressure which induced the facial pressure ulcer and the increased pressure may induce pneumothorax.

Table 3 Complications and patient comfort scores in two groups
Full table

Discussion

It had been shown by studies (10-12) that as a model of respiratory support applied to patients with respiratory failure, HFNC is comparable to NPPV therapy which can significantly improve patient’s pulmonary oxygenation function and correct hypoxemia. Compared with NPPV, HFNC can significantly reduce the incidence of pulmonary infection and regurgitation aspiration (11) without requiring for a closed ventilator circuit or leading to significant compression damage to patient’s facial skin. In addition, HFNC is more accessible since it provides more comfort. However, no large-scale clinical study involving the application of HFNC in the sequential treatment of patients with sepsis after MV weaning had been published.

It was shown in our single-center retrospective study that sequential treatment of hypoxemia with HFNC for sepsis patients after MV weaning was not less effective than NPPV with lower incidence of complications and better comfort and tolerance.

Re-intubation rates within 72 hours, and secondary outcomes including ICU LOS, in-hospital 28-day mortality, ICU mortality, sequential treatment time, respiratory rate, oxygenation index and PaCO₂ showed no significant difference in our study, which was similar to the result published by Frat et al. (13) and Hernández et al. (14,15). In our study, re-intubation rates in HFNC group and NPPV group were 4.2% and 5.2% respectively, which were 10–20% lower than other studies (14-16), while ICU mortality and in-hospital 28-day mortality (less than 15%) were also significantly lower than other studies (40–60%) (17,18). This might be due to most of sepsis patients admitted to our center were caused by primary surgical diseases such as biliary tract diseases, digestive tract perforation or intestinal obstruction that could be promptly relieved after surgery and drainage with good overall prognosis. And patients with uncontrolled surgical problems that occurred after mechanical ventilation weaning were excluded in our study, which led to lower overall mortality and re-intubation rate.

It was also suggested that HFNC has better patient comfort and lower incidences of complications such as reflux aspiration and facial pressure ulcers than NPPV, which was similar to previous studies. Delirium as one of the most common mental disorders in septic patients had a significantly lower incidence in the HFNC group than that in the NPPV group (12.6% vs. 21.6%, P=0.044). Recent studies have shown that the incidence of delirium in ICU sepsis patients is as high as 70%, which seriously affects the prognosis of sepsis (19,20). The pathogenesis of delirium has not been fully elucidated, and the risk factors include severity of the disease, sedative and analgesic drugs, mechanical ventilation, high blood pressure, painful stimulation and sleep deprivation (9). The incidence of delirium in this study was significantly lower than that in previous studies, which might be due to the timely control of etiology, reduced mechanical ventilation time and the use of sedative drugs. And HFNC group patients whose better comfort did not affect sleep had significantly lower occurrence of delirium than the NPPV group worth further exploration.

Limitations

There were several limits in this study. First, this was a single-center study with a relatively small sample size, resulting in relatively low number of patients with complications. Second, the method of assigning patients to different groups was based on the availability of equipment and might lead in selection bias. Third, the prognosis of sepsis patients might bias according to the primary disease, treatment, basic status of patients and other aspects. Fourth, this study only compared the application of HFNC or NPPV along. Because the number of patients both receiving HFNC and NPPV in this study was too small (only 5 patients) to be analyzed, the combination group of HFNC+NPPV was excluded. For patients who need to maintain a certain PEEP but are not able to receive NPPV for long periods of time, the use of HFNC during intermittent NPPV treatment may result in different outcomes, which need a well-designed prospective randomized controlled trial to compare the efficacy of the combination therapy with HFNC alone or NPPV alone in the future.

Conclusions

In summary, the results of this study suggested that sequential treatment of hypoxemia with HFNC for patients with sepsis after weaning from MV is comparable to NPPV in extubation failure rate with a lower complication rate as well as better comfort and tolerance. Thus, HFNC has superior application prospects in the sequential treatment after MV weaning in septic patients.

Acknowledgments

Funding: Our study was supported by the National Natural Science Foundation of China (81971832) and Natural Science Foundation of Shanghai (19ZR1432100).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/apm-21-8

Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-21-8

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-21-8). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the Medical Ethics Committee of Zhongshan Hospital affiliated to Fudan University (No. B2018-015). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
