Retrospective study of the ultrasound characteristics of the tibial nerve in patients with type 2 diabetic peripheral neuropathy

Introduction

The wide application of high-frequency linear array ultrasonic probe in recent years has made ultrasound more advantageous than other imaging examinations in the observation of superficial nerves (1), and its use in the diagnosis of diabetic peripheral neuropathy (DPN) holds great promise. In different subjects, the incidence of peripheral neuropathy was significantly different. It is so common for the diabetes peripheral neuropathy, which is up to 51% in type 2 diabetes patients. After the occurrence of peripheral neuropathy, the quality of life decreased and the economic burden increased in half patients with type 2 diabetes mellitus. Early stage intervention around type 2 diabetes is the key to diagnosis and treatment (2,3). DPN is insidious, progresses slowly, and mainly manifests as sensory nerve involvement which may lead to severe sensory loss, painful and refractory ulcers, infections, and wounds that are difficult to heal and can eventually lead to amputation (4,5). This study used 1:1 matched conditional logistic regression analysis to explore which tibial nerve ultrasound diagnostic characteristics were risk factors for DPN. We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/apm-21-1573).

Methods

Participants

The results of 452 patients with type 2 diabetes patients who underwent tibial nerve ultrasound examination from July 2018 to February 2021 were collected. The inclusion criteria were patients who, following the American Diabetes Association’s latest diagnostic criteria for diabetes in 2017, showed glycosylated hemoglobin (HbA1c) ≥6.5%, or fasting plasma glucose (FPG) ≥7.0 mmol/L, or oral glucose tolerance test (OGTT) 2 h blood glucose ≥11.1 mmol/L (6).

The exclusion criteria were any of the following: type 1 diabetes, Guillain-Barré syndrome, severe cervical and lumbar neuropathy, rheumatoid arthritis, alcoholism, syphilis, tarsal duct tibial nerve entrapment syndrome, hereditary neuropathy, such as nerve fat infiltration, and a history of neurosurgery.

Neuropathy was evaluated using the Michigan Neuropathy Screening Instrument physical examination (MNSI-PE), and patients were divided into a DPN group and non-DPN (NDPN) group with 2 points as the cut-off value. Compared with other evaluation methods, MNSI has the advantages of strong reliability, simple and quick operation, and good feasibility, so it is more suitable for early large-scale screening of DPN (6). Patients were matched in a 1:1 ratio according to age, BMI, calf circumference, and gender, resulting in 44 successfully matched pairs. The NDNP group was composed of 44 patients, including 27 males and 17 females, aged 39–73 (54.772±7.278) years old, with a BMI of 19.24–26.27 (22.880±1.624) kg/m², calf circumference of 11.13–20.50 (15.100±1.990) cm, and disease course of 2–6 (4.046±0.963) years. In the DNP group there were 44 patients, including 27 males and 17 females, aged 44–73 (54.046±6.696) years old, with a BMI of 19.91–26.89 (22.996±1.373) kg/m², calf circumference of 11.08–19.97 (14.457±1.730) cm, and disease course of 2–16 (8.841±8.779) years. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was reviewed and approved by the Ethics Committee of North China Medical Treatment Health Group Fengfeng General Hospital (20201-4-11), and all subjects participated in the study with informed consent.

Apparatus and methods

A Hitachi Aloka ARIETTA70 ultrasound diagnostic instrument was used in this study. A probe L44 was selected, the frequency was set to 5–18 MHz, the detection depth was 2 cm, the mechanical index (MI) was 1.1–1.4, the dynamic contrast was 60–70, the tissue harmonic function was turned on, and the resolution was adjusted as priority. Subjects were placed in the supine position with the hips abducted, knees bent, heels slightly adducted, and toes externally rotated, and the thickness, width, and cross-sectional area of the tibial nerves were measured horizontally at the medial malleolus. Changes in tibial nerve echo were observed, and if the tibial nerve cross section had a honeycomb-like structure, but the nerve bundle structure could be displayed, 0 points were given, and if the nerve had a honeycomb-like structure and the display was blurred, 1 point was given.

To establish DPN evaluation criteria, the MNSI was used to perform physical examination on all subjects, with a full score of 10. Feet were evaluated for deformity, dry skin, callus, infection, and ulceration with 0 points given for a normal foot appearance. Patients were given 1 point if any of these signs were present, and an additional 1 point if ulceration was present. Patients with a normal Achilles reflex were given 0 points, while a decreased Achilles reflex attracted 0.5 points and an absent reflex 1 point. Patients with normal toe vibration sensation were given 0 points, those with a weakened vibration sensation were given 0.5 points, and those with no vibration sensation were given 1 point, and those with normal light touch were given 0 points, those with a mild moderate deficit were given 0.5 points, and those with severe deficit were given 1 point. Using 2 points as the diagnostic cut-off value, the patients were divided into a DPN group and NDPN group (Figure 1).

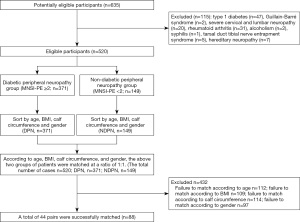

Figure 1 Flow chart. MNSI-PE, Michigan Neuropathy Screening Instrument physical examination; DPN, diabetic peripheral neuropathy; NDPN, non-DPN.

The measurement standard of the tibial nerve was established by selecting the nerve at the unilateral lower limb ankle canal as the measurement plane, and the probe placed perpendicular to the skin. The direction of the connection between the medial malleolus and the calcaneus was selected, and the closest distance between the tibial nerve and the medial malleolus point and calcaneus point was selected to measure the width of the tibial nerve. The distance perpendicular to the width measurement line of the thickest part of the tibial nerve was selected to measure its thickness, and the trajectory method was used to trace the epineurium which was identified by ultra-high-frequency (UHF) ultrasound to measure the cross-sectional area of the tibial nerve (Figure 2). The examination was performed by two experienced doctors who were trained in ultrasound examination of the tibial nerve.

Figure 2 Anatomical diagram of the ankle: the line between the medial malleolus (bent arrow) and the calcaneus is a sectional view of ultrasound scan. Tibial nerve (↑), posterior tibial artery (△), posterior tibial vein (▲) are deformed in the ankle canal. The tibialis posterior tendon (★) and flexor digitorum longus (☆) are supplied by the tibial nerve L4–S3.

Statistical analysis

SPSS 22.0 and MedCalc19.0 software were used in this study. Paired t-test and chi-square test were used to compare the general conditions of the two groups, and a 1:1 matched conditional logistic regression model was established. Receiver operating characteristic (ROC) curve analysis was used for model verification and P<0.05 indicated differences were statistically significant. According to the number of observed variables, when the number of pairs was greater than 40, a logistics regression model was established. Cases with missing date were removed.

Results

Comparison of general conditions

There were no statistically significant differences between the two groups in gender, age, BMI, calf circumference, and tibial nerve width of the left and right legs (P>0.05). Compared with the NDPN group, the DPN group had a longer course of disease, larger tibial nerve thickness, and cross-sectional area (P<0.05, two-sided) (Table 1, Figure 1).

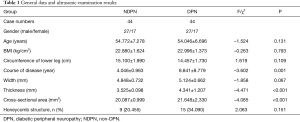

Table 1 General data and ultrasonic examination results
Full table

Logistic regression analysis results and model verification

This revealed tibial nerve thickness (OR =5.176, P=0.043) and cross-sectional area (OR =1.659, P=0.030) were risk factors for DPN, while the width of tibial nerve and an unclear honeycomb-like structure were not (P>0.05). The ROC was drawn using the predicted value of the ultrasound characteristic probability of DPN as the predicted value. The area under the ROC curve was 0.882, the standard error was 0.054, 95% CI (0.805, 0.999), and the sensitivity, specificity, positive predictive value, and negative predictive value were 81.82%, 95.45%, 94.70%, and 84.00%, respectively, indicating that the forecast was relatively accurate (Table 2). For the diagnosis of DPN, the area under the ROC curve of the cross-sectional area of the tibial nerve was 0.747, and the sensitivity, specificity, positive predictive value, and negative predictive value are 61.36%, 95.45%, 93.10%, and 71.20%, respectively. Further, the area under the ROC curve of tibial nerve thickness was 0.867, and the sensitivity, specificity, positive predictive value, and negative predictive value were 81.82%, 90.91%, 90.00%, and 83.30%, respectively (Table 3, Figures 3-5).

Table 2 Conditional logistic regression analysis of the influencing factors of DPN
Full table

Table 3 ROC curves of the observed variables in diabetic tibial neuropathy
Full table

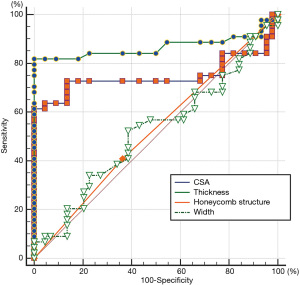

Figure 3 ROC curve of each observed variable. Ultrasonic characteristics include the following four variables: (I) CSA (the blue line); (II) thickness (the green line); (III) honeycomb structure (the orange line); (IV) width (the green dotted line). CSA, cross-sectional area.

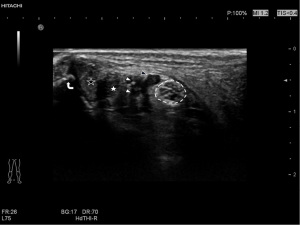

Figure 4 A 50-year-old man with type 2 diabetes without peripheral neuropathy. The tibial nerve (dotted lines indicate) is oval in shape with a honeycomb-like structure visible inside, posterior tibial artery (△), posterior tibial vein (▲), tibialis posterior tendon (★) and flexor digitorum longus (☆).

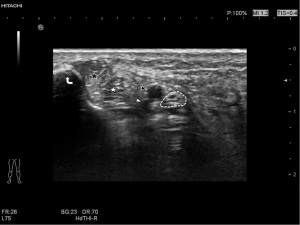

Figure 5 A 57-year-old man with type 2 DPN and the tibial nerve edema. Ultrasound shows the nerve (dotted lines indicate) is thickened and round with a honeycomb-like structure inside., posterior tibial artery (△), posterior tibial vein (▲), tibialis posterior tendon (★) and flexor digitorum longus (☆). DPN, diabetic peripheral neuropathy.

Discussion

Ultrasound examination is an efficient examination, which is non-invasive, radiation-free, reliable and real-time. With the rapid development of ultrasonic transducer and the promotion of various efficient algorithms, the high-resolution ultrasound equipment can clearly display the subtle structure of the peripheral nerve without the need for contrast-enhanced ultrasound. Therefore, ultrasound examination has become the optimal imaging method of peripheral nerve examination.

While commonly used methods for the clinical diagnosis of DPN include ultrasound, natural electrophysiological test (NET), MNSI, and the Toronto clinical scoring system (TCSS), the diagnostic criteria have not yet been unified (7-14). At present, the most objective, sensitive and reliable method to diagnose DNP is NET. NET electrophysiological examination is the gold standard for diagnosis, but the operation is complicated and costly (15-19), and if it is used as a routine examination item, patient compliance is poor. The screen efficiency of MNSI for DPN is better than that of the TCSS and the MNSI has the same diagnostic consistency with NET. The MNSI scoring system is a relatively quick and simple scoring tool for DPN. So it can be used for clinical and epidemiological screen and evaluation of DPN. Compared with other evaluation methods, MNSI has the advantages of strong reliability, simple and quick operation, and good feasibility, making it more suitable for early large-scale screening of DPN (6,20-26). In this study, MNSI was used for screening and grouping.

Previously most experts and researchers believed that the above four ultrasonographic morphological parameters (width; thickness; cross-sectional area; honeycomb structure) were statistically significant in the diagnosis of DPN (27-29). However, the results of this study showed that the thickness and cross-sectional area of the tibial nerve in high-frequency ultrasound characteristics were risk factors, while the width and unclear honeycomb-like structure of the tibial nerve was not.

Ultrasound examination in the DPN group showed that the thickness and cross-sectional area of the tibial nerve increase to varying degrees, which was further confirmed in this study. The sensitivity of tibial nerve thickness is close to that of its cross-sectional area, while the specificity of the cross-sectional area is higher than that of thickness. In the clinical setting, nerve measurement needs to be repeated many times, while thickness measurement is relatively simple. In this study, the OR value of the tibial nerve thickness in this model was 5.176, and the OR value of the cross-sectional area was 1.659, and DPN was 5.176 times more common in subjects with tibial nerve thickness changes than in subjects without tibial nerve thickness changes. DPN was 1.659 times more common in subjects with tibial nerve cross-sectional area changes than in those without cross-sectional area changes. In this model, the thickness of the tibial nerve was used as the criterion to draw the ROC curve. The Youden index was 0.818, and 3.6 mm was selected as the cut-off value to obtain higher sensitivity and specificity. In recent years, with the development of a large number of basic research, our understanding of the pathogenesis of peripheral neuropathy is constantly improving. The study showed that the metabolic mechanism, immune mechanism, genetic mechanism and the influence mechanism of hypoglycemic drugs were all related to the peripheral neuropathy. Nerve biopsy shows axonal damage and in severe cases varying degrees of demyelination and remyelination, axonal injury, and inflammatory cell infiltration. In randomized controlled trials, the risk factors of DPN were increased BMI, triglyceride and hypertension (30,31).

DPN is characterized by the early absence of obvious symptoms, a long course of disease, and many confounding factors. It is often difficult to perform RCT studies on the ultrasonographic morphological features of DPN (32,33), and previous studies have shown different results using different inclusion methods and observation target values. The following are the results of studies by different authors: (I) Ishibashi et al. divided diabetic patients into by into five stages: a control group (n=40), stage I (n=47), stage II (n=72), stage III (n=48), and stage IV + V (n=33), to compare differences in the cross-sectional area of the tibial nerve between each group, and the results showed that there was no statistical correlation between HbA1C level and peripheral nerve cross-sectional area (34). The cross-sectional area of the tibial nerve is closely related to the severity of diabetes, and neurological changes can be detected using ultrasound even before the onset of neuropathy. (II) Singh et al. divided subjects into three groups based on the TCSS, which saw a control group (n=75), NDPN group (n=58), and DPN group (n=75). The results of the study suggested that the cross-sectional area and maximum thickness of the tibial nerve in patients with DPN were larger than in healthy non-diabetic controls (35). (III) Singh et al. enrolled 37 patients with DPN and found the mean cross-sectional area of the posterior tibial nerve 3 cm above the medial malleolus was higher in patients with moderate to severe DPN as compared to that in patients with mild DPN (V ≤42 m/s or L ≥4.4 ms on nerve conduction study) (36). However, the small sample size in that study may have contributed to the results not holding statistical significance.

Compared with previous studies, this model gives the following different results. The width of the tibial nerve and the unclear honeycomb-like structure were not risk factors in this model, which may be because of neuroanatomical or pathophysiological factors. The nerve bundle structure includes three layers of inner membrane, perineum, and outer membrane, which have protective and regenerating effects. The measurement of tibial nerve width has a large dispersion, and its increase is small, and sensitivity is low when edema occurs. The diagnostic sensitivity of tibial nerve width is only 52.27%, and the specificity is 61.36%. The tibial nerve and its branches below the ankle joint also innervate the skin and plantar muscles, and plantar paresthesia is an early manifestation of DNP (37-39). MNSI-PE evaluates nerve cell function and nerve conduction damage through ankle reflexes, toe vibration, and light touch sensation. An unclear honeycomb-like structure is the main manifestation of the neuropathic morphological changes of the tibial nerve, and changes in its function appear earlier than changes in morphology (36,40). For the evaluation of tibial nerve cell function and nerve conduction impairment, MNSI-PE is more sensitive. Photoshop software has been previously used to conduct quantitative analysis and research on neural brightness. However, choosing different neural brightness cut-off values will result in different research results, and the research methods need to be unified (41).

Differential diagnosis and clinical treatment principle of Diabetic polyneuropathy. Peripheral neuropathy is a general term for a class of diseases caused by structural and functional damage of peripheral nerves. Clinical features of peripheral neuropathy are sensory dysfunction, motor dysfunction, autonomic dysfunction, and reduced or lost tendon reflexes. Peripheral neuralgia variants were divided into primary peripheral neuropathy and secondary peripheral neuropathy, 80% of which were secondary peripheral neuropathy. Secondary peripheral neuropathy is the main manifestation of sensory nerve dysfunction, and the common diseases are metabolic disorders, infections, amyloidosis, autoimmune diseases, paraneoplastic diseases and genetic diseases. The premise of secondary peripheral neuropathy is primary disease, and there is a close pathological relationship between them. Tracing the primary disease is the method of distinguishing DPN. Type 2 diabetes is the most common cause of secondary peripheral neuropathy. Around the world, type 2 diabetes leads to peripheral neuropathy which is the most common condition. A preventative treatment plan for peripheral neuropathy is to glycemic control and foot care until the onset of pain. However, there is insufficient evidence that prevention strategies are effective in reducing foot symptoms in patients. Pain management, while proven to be effective in clinical randomized controlled trials, does not reverse the outcome of peripheral neuropathy (42).

The novel idea of the paper: (I) the researchers established 1:1 conditional logistics regression model. In this study, general clinical indicators (age, BMI, calf circumference, and gender) were obtained by 1:1 approximation matching. This method can eliminate the influence of confounding factors to the greatest extent and improve the reliability of the test results. The selected data will be screened to establish a logistics regression model to find the risk factors of DPN. (II) The opposite risk of risk factors (width, thickness, cross-sectional area, honeycomb structure) and their diagnostic value were compared. (III) MNSI (>2 points) was used in this study as the standard to judge type 2 DPN. ROC curve was drawn to find the best diagnostic cut-off value of tibial nerve thickness for DPN.

One limitation of this study is that the tibial nerve is very small, and its measurement requires considerable experience, ability, and compliance with operating specifications. Other limitations concern the retrospective and single center nature of the study, and future research should involve multi-center randomized controls

It is relatively convenient to measure the thickness of the tibial nerve in the clinical setting. On the premise of standardized tibial nerve ultrasound examination and evaluation, its thickness and cross-sectional area are risk factors for diagnosing DPN, and when the thickness is close to 3.6 mm, the sensitivity and specificity will be higher.
