A case report of bilateral pseudo-doubling of the optic discs

Introduction

The optic papilla, also known as the optic disc, is a small oval-shaped area on the retina with a diameter of about 1.5 mm at 3 mm on the medial side of the macula lutea, marking the site of entrance into the eyeball of the optic nerve. There is a funnel-shaped sunken pit, known as the physiological pit, which is caused by imperfect filling when the optic nerve fibers converge. The central retinal artery and vein enter and exit the eye from the optic papilla (1). They enter the eyeball through the choroid fissure during embryonic development and develop from the proximal segments of vitreous arteries and veins (2). Congenital doubling of the optic disc is rare in the clinic. The clinical reports of unilateral doubling of the optic disc are more common than those of bilateral doubling of the optic disc. The cause of congenital doubling of the optic disc is still unknown, but it is speculated to be related to the overlap of the optic nerve or the division of the distal optic nerve into 2 segments. Most patients have a “main” optic disc and a “satellite” optic disc, each of which has its vascular supply (3). Because of the existence of genetic tendency, it is possible that this condition may be an autosomal recessive genetic disease. We present the following article in accordance with the CARE reporting checklist (available at https://apm.amegroups.com/article/view/10.21037/apm-21-1087/rc).

Case presentation

We report an extremely rare case of bilateral pseudo-doubling of the optic discs in Tangdu Hospital, Air Force Military Medical University. A 35-year-old woman presented to the clinic for a physical examination. The patient's best-corrected visual acuity was 0.6 OD with +2.25 DS/3.50 DC×175°, and 0.9 OS with –3.00 DS/0.50 DC×145°. The intraocular pressure of each eye was normal. Examination of the anterior segment was generally normal. The patient had no relevant medical, family, and psycho-social history. Fundoscopy examination revealed clear light-red optic discs in both eyes (C/D=0.8). An enlarged suspected optic disc was located inferiorly in each eye. The normal inferior temporal vessel of the optic disc passed through the suspected optic disc cup. It was concave and curved (Figure 1). Visual field examination revealed an additional blind spot corresponding to the rudimentary disc with a contiguous arcuate scotoma superiorly in each eye (Figure 2). Optical coherence tomography (OCT) examination showed that areas of the actual and suspected optic discs were sunken in both eyes (Figures 3,4). OCT analysis showed a normal macula thickness and profile (Figure 5). B-scan ultrasound revealed a single optic nerve shadow in each eye. A second optic nerve was not detected in additional planes (Figure 6). Cranial computed tomography (CT) showed only 1 optic foramen and 1 optic nerve in each eye (Figure 7). All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Figure 1 Fundus photography of each eye showing an enlarged suspected optic disc inferiorly.

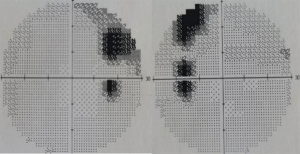

Figure 2 The automated visual field of each eye demonstrating an additional blind spot corresponding to the rudimentary disc with a contiguous arcuate scotoma superiorly.

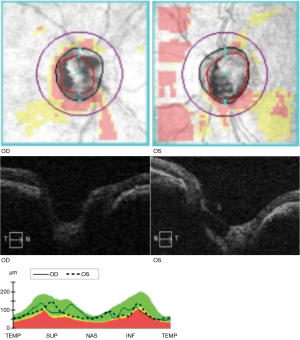

Figure 3 Optical coherence tomography analysis of each main optic disc showing an intact neuroretinal rim (C/D ratio =0.8) but normal retinal nerve fiber layer in each eye. OD, oculus dexter; OS, oculus sinister; TEMP, temporal; SUP, superior; NAS, nasal; INF, inferior.

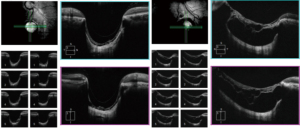

Figure 4 Optical coherence tomography analysis of the bilateral suspected optic discs showing the presence of the disc pits.

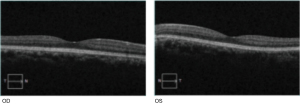

Figure 5 Optical coherence tomography analysis of each eye showing normal macular thickness and profile. OD, oculus dexter; OS, oculus sinister.

Figure 6 B-scan ultrasound of each eye showing a single optic nerve shadow. A second optic nerve was not detected in additional planes. OD, oculus dexter; OS, oculus sinister.

Figure 7 Cranial computed tomography scan showing a single optic nerve in each eye.

Discussion

Cases of bilateral doubling of the optic discs are extremely rare and must be differentiated from pseudo-doubling of optic discs (4,5). Previous studies include 3 cases of unilateral doubling of the optic disc (6,7). It can be diagnosed as a true doubling of an optic disc if the suspected optic disc has both optic nerves and an independent vascular supply, or at least one vessel communicating from the actual optic disc (8). Some researchers have indicated that if the nerve fibers of the second optic disc merge into the optic nerve trunk on the inner surface of the sclera, becoming 1 optic nerve at the posterior segment of the eyeball, this can be diagnosed as pseudo-doubling of the optic disc (9).

In our case, the diagnosis of bilateral pseudo-doubling of optic discs was based on the evidence of no independent vascular supply shown on the fundus image. B-scan and cranial CT examinations did not show the presence of 2 optic nerves in either eye, even though the patient did not receive fundus angiography due to contrast agent allergy. Although double-blind spots were demonstrated by visual field examination, and pits in both optic disc regions for both eyes were shown by OCT, it was not enough to support the diagnosis of true doubling of the optic disc. Also, the patient had an increased value of C/D but normal retinal nerve fiber layer thickness and still needs to be closely observed for the possibility of other ophthalmic diseases.
