Efficacy and safety of dissimilar acupuncture intervention time-points in treating stroke: a systematic review and network meta-analysis

Introduction

Stroke, an increasing public health problem worldwide, which seriously affects patients’ physical and mental well-being as well as the quality of life (1). Previous studies have revealed that stroke is the second most common source of mortality and a leading source of disability in adults all over the world, also showing a younger trend (2). In China, due to an aging population and insufficiency of medical resources, the incidence of stroke has risen significantly and become the first cause of death (3). Neurologic sequelae, such as impairments in motor, sensory, and cognitive functions are common among post-stroke survivors, consequently, their activities of daily living are severely compromised. Therefore, stroke is not only an individual health concern, but also finally brings about an enormous burden on their families as well as the health care system (4).

The prevention and treatment of stroke have been a challenge to us for a long time. With the advancement of medical science, methods such as surgical operations, pharmaceuticals, and rehabilitation interventions have been widely used in the process of stroke according to the individual condition (5). However, these approaches also have aroused the concerns such as the invasive risk of the surgery, side effects of the drugs, increasing costs of interventions (6). Meanwhile, how to deal with post-stroke sequelae remains to be a severe problem. It is impossible to ignore the consistently high incidence of motor dysfunction and impairment in the activities of daily living after stroke (7).

Acupuncture, an important part of Chinese medicine, has been used as an alternative and complementary therapy in the clinical treatment of a wide range of diseases. Nowadays, there has been a growing concern about acupuncture for dealing with stroke (8-10), besides, some evidence indicated that acupuncture can be very helpful in the improvement of limb motor dysfunction and quality of life for post-stroke patients (11-13). The promotion of cytogenesis and neurogenesis in the lesioned area as well as the modulation of neurochemicals induced by acupuncture are considered to be its main therapeutic mechanism (14,15). However, the quality of related studies is uneven (16,17), apart from this, most studies have focused on comparing the efficacy of different acupuncture therapies in post-stroke patients, with few high-quality studies on the optimal time-point of acupuncture interventions. Until now, there has been no clear conclusion about when should acupuncture be adopted to maximize the benefit to patients with stroke. It is obvious that a deeper exploration of this issue will greatly facilitate the application and development of acupuncture.

In recent years, the number of randomized controlled trials (RCTs) of acupuncture therapy on stroke has been a gradual increase and the acupuncture intervention time-point varies from the early stage of the stroke to the advanced stage, accordingly, the outcomes are different (18-20). However, we can figure out which is the best acupuncture intervention time-points for post-stroke patients by processing these clinical data through Bayesian network meta-analysis (NMA). This work will help patients recuperate better and the result is expected to save more health resources. Therefore, we designed the NMA of RCTs in the hope of providing an evidence-based reference for both clinicians and researchers.

Methods

The study was performed strictly according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses for Network Meta-Analysis (PRISMA-NMA) guidelines and its extension statement for NMA as well (21) (available at https://dx.doi.org/10.21037/apm-21-1127). We have followed the protocol that was registered in INPLASY (INPLASY2020120060), which is available from https://inplasy.com/inplasy-2020-12-0060/.

Data sources and search strategy

A comprehensive search for potentially relevant literature has been performed in seven online databases from their establishment to October 2020: the Cochrane Library, PubMed, EMBASE Database, China Biological Medicine Database (CBM), Chinese Scientific Journals Database (VIP), Wan Fang databases and China National Knowledge Infrastructure (CNKI). Search strategy based on MeSH terms combining with free text words was applied in English databases, while counterpart terms in Chinese were used in Chinese databases. Besides that, conference literature, as well as related references, have also been screened carefully under the guidance of the snowball strategy, and the language was limited to English or Chinese. When the information we need was incomplete, we contacted the corresponding author to obtain it, and an intention-to-treat (ITT) analysis was also conducted for missing or unreachable data. The full retrieval details are attached in Appendix 1.

Selection criteria

The selection criteria were based on the ‘PICOS’ (participants, intervention, comparator, outcomes, and study designs).

Types of studies

Only RCTs testing acupuncture for stroke have been enrolled and the language was limited to Chinese or English. Besides that, literature should be available in full papers and the original data should be sufficient and clear. These non-RCTs such as system reviews, case reports, meeting abstracts, clinical experience, and animal trials have been excluded.

Types of participants

Adults, diagnosed with stroke regardless of ischemic or hemorrhagic stroke by a clear and internationally accepted criterion were eligible and irrespective of nationality, age, gender. However, patients who were medically unstable or unable to follow basic instructions were unqualified.

Types of interventions and comparators

Non-acupuncture interventions including recommended main treatments such as surgery, drug, rehabilitation or combined with symptomatic and supportive measures were allowed in the control group. Besides the approaches of the control group, acupoint-related therapy including scalp-acupuncture, hand-acupuncture, auricular-acupuncture, electro-acupuncture, warm-acupuncture must be applied extra in the experimental group.

Types of outcomes

At least one of the following outcomes should be included in these studies: Fugl-Meyer assessment (FMA) score and Barthel Index (BI). The former has been broadly used to assess the limb motor function in post-stroke patients (22,23), while the latter can evaluate the activities of daily living (24). In addition, safety assessments including adverse events have been taken into account.

Study screening and data extraction

First of all, the articles retrieved from these databases were imported into EndNote X7 to remove duplicate articles automatically, then primary screening was performed independently by two reviewers (Yue Zhuo and Boyu Wu) based on titles and abstracts, and trials not meeting the selection criteria were excluded directly. Secondly, these two researchers conducted a full-text screening to select eligible articles, while the exclusion reasons were recorded individually. Thirdly, the reviewers cross-checked the results to ensure the consistency of the screening. When the disagreements appeared, a third senior assessor (Shifeng Deng) was asked to assist in the ultimate judgement.

After completing the above steps, a table for data extraction was established in Microsoft Excel 2016. The main content included: first author’s name, nationality, publication year, participants’ characteristics, interventions, comparators, and outcomes (i.e., FMA score, BI, and adverse events). Given that baseline situation among different stages of the stroke may be potentially varying, the data finally included in the analysis was estimated by the following formula, which was recommended in the Cochrane Handbook for Systematic Reviews of Interventions (version 5.1) and r is a correlation coefficient with a value of 0.5 (25). This approach allowed for a better presentation of the changes before and after treatment of dissimilar acupuncture intervention time-points.

x¯change=x¯post−treatment−x¯baseline[1]

SDchange=(SDbaseline)2+(SDpost−treatment)2−2×r×SDbaseline×SDpost−treatment[2]

Quality assessment

Two trained researchers (Ming Xu and Xiaoye Lu) independently assessed the bias risk of all the included RCTs by the Cochrane Collaboration tool (26), which consisted of the following aspects: assignment concealment, random sequence generation, blinding of outcome assessors, blinding of participants and personnel, selective reporting, the integrity of outcome data, and other sources of bias. Each field has been classified as high risk, low risk, or unclear risk. Any disagreements have been resolved by discussion with a third senior assessor (Yuchen Zhang).

Statistical analysis

First of all, a pairwise meta-analysis was performed using Revman 5.3. (Cochrane Collaboration, Oxford, UK) for the direct comparisons. The heterogeneity of the results was assessed with I-square (I²). More specifically, a fixed-effects model was used when I²< 50%, otherwise a random-effects model was chosen. As for our study, the results of the continuous variable (i.e., FMA score, BI) were reported by mean difference (MD) with 95% confidence interval (CI).

Secondly, considering the anticipated heterogeneity, the NMA within a Bayesian framework was conducted by WinBUGS 1.4.3 (MRC Biostatistics Unit, Cambridge, UK) based on the random effect model for the results of the indirect comparison. Besides, models were calculated with Markov chain Monte Carlo algorithm (MCMC) (27): four chains were employed for simulation analysis, the step size was set to 10, the number of annealing times was set to 20,000 for reducing the impact on arbitrary values, and the number of iterations was set to 50,000. Additionally, the continuous outcomes were measured by standard mean difference (SMD) with 95% CI for indirect comparisons.

Thirdly, the plot of surface under the cumulative ranking (SUCRA) curve was computed by STATA 14.0. (Stata Corporation, College Station, TX, USA) to forecast the possible ranking order (28). In our study, a higher SUCRA score represented the better intervention time-point for acupuncture in stroke (29). Z-values as well as corresponding P values were calculated, and P values less than 0.05 demonstrated a significant difference. Besides, the inconsistency between indirect and direct evidence was assessed by the loop inconsistency test and node-splitting method. Sensitivity analysis was conducted to evaluate the robustness of the results, while publication bias was taken into consideration as well.

Results

Study search

As illustrated in Figure 1, a total of 27,399 studies were identified from the above databases based on the established search strategy. After eliminating duplicates, 12,742 studies were left for screening the titles and abstracts. Then, 433 studies were potentially eligible for full-text screening. Finally, 38 trials with 3,836 participants were included in our NMA.

Figure 1 Flow chart of study selection.

Study description

Key characteristics of the included studies were listed in Table 1. These studies were published between 1993 and 2020, and most of the participants were from China, while others were from Sweden and Norway, accordingly, 24 studies were written in Chinese and 14 in English. The sample size of these studies ranged from 12 to 179, while the participants’ mean ages ranged from 15 to 78 years old. Apart from this, there are 28 of 38 studies reported the FMA score, 34 of 38 studies reported BI, while adverse events were reported in four studies. In addition, the network plot of indirect comparisons was illustrated in Figure 2. To distinguish dissimilar intervention time-points, based on the information from included studies and the actual clinical situation of stroke, we have divided the intervention time points for stroke into four stages: stage I (within 48 h post-stroke), stage II (within 2–15 d post-stroke), stage III (within 16–30 d post-stroke), stage IV (within 1 month to half a year post-stroke). Next, depending on the additional application of acupuncture in the experimental group, we have assigned them to eight categories and named them for short as “acupuncture treatment (Acu) I”, “Acu II”, “Acu III”, “Acu IV”, “non-acupuncture treatment (Non-Acu) I”, “Non-Acu II”, “Non-Acu III” and “Non-Acu IV”.

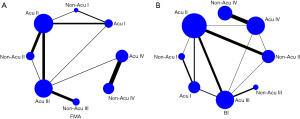

Figure 2 Network plots (A for FMA score, B for BI). Acu I, acupuncture within 48 h post-stroke; Acu II, acupuncture within 2–15 d post-stroke; Acu III, acupuncture within 16–30 d post-stroke; Acu IV, acupuncture within 1 month to half a year post-stroke; Non-Acu I, non-acupuncture within 48 h post-stroke; Non-Acu II, non-acupuncture within 2–15 d post-stroke; Non-Acu III, non-acupuncture within 16–30 d post-stroke; Non-Acu IV, non-acupuncture within 1 month to half a year post-stroke. FMA, Fugl-Meyer assessment; BI, Barthel Index.

Methodological quality assessment

The risk of bias assessment of the 38 included studies was shown in Figure 3 and Figure 4. Seven studies were judged as high risk for random sequence generation because they were allocated in order of admission. Twenty-six studies didn’t describe clearly the method of allocation concealment, which were judged as unclear risk. Considering the features of clinical research in acupuncture, it was hard to conduct a double-blinding method, and informed consent was signed in most of the included studies, thus they were judged as high risk or unclear risk. Because of the drop-out cases, 15 studies were judged as high risk for incomplete outcome data, while the others were low risk. Selective outcome reporting was not commonly found in included studies. In terms of other bias, except for a few high-quality studies with large samples, most of the included studies were difficult to judge accurately.

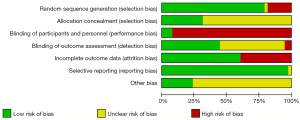

Figure 3 Reviewers’ judgements about each risk-of-bias item for included studies.

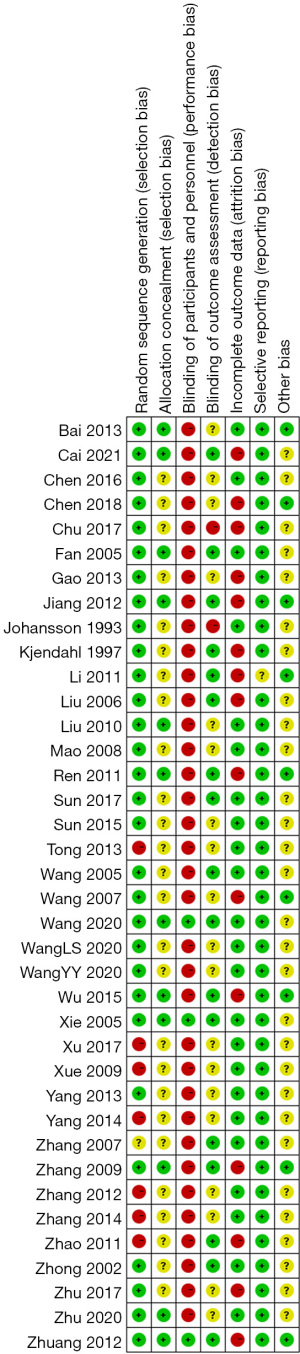

Figure 4 Reviewers’ judgements about each risk-of-bias item presented as percentages across all included studies.

Pairwise meta-analyses

FMA score

As shown in Table 2, we performed 10 direct pairwise meta-analyses to compare the FMA score of dissimilar acupuncture intervention time-points. The FMA score of Acu I showed a greater increase than those of Non-Acu I (MD: 20.95; 95% CI, 11.60 to 30.31); Acu II (MD: 6.90; 95% CI, 3.47 to 10.33); Acu III (MD: 12.11; 95% CI, 6.78 to 17.44). Besides, the FMA score of Acu II was significantly higher than those of Non-Acu I (MD: 6.46; 95% CI, 1.74 to 11.18); Non-Acu II (MD: 15.31; 95% CI, 7.36 to 23.26); Acu III (MD: 14.87; 95% CI, 7.84 to 21.90). Furthermore, the FMA score of Acu III was significantly higher than those of Non-Acu III (MD: 12.49; 95% CI, 2.31 to 22.67); Acu IV (MD: 6.38; 95% CI, 3.22 to 9.54). When compared to Non-Acu IV, Acu IV showed a stronger effect in improving FMA score (MD: 9.66; 95% CI, 5.54 to 13.78). No statistically significant difference between Non-Acu II and Acu III (MD: 6.16; 95% CI, −2.44 to 14.76).

BI

Similarly, we conducted 10 direct pairwise meta-analyses, which can be seen in Table 2, to compare the changes of BI among dissimilar acupuncture intervention time-points. The BI of Acu I was significantly higher than those of Non-Acu I (MD: 11.06; 95% CI, 4.14 to 17.98); Acu II (MD: 6.35; 95% CI, 0.42 to 12.28); Acu III (MD: 12.82; 95% CI, 7.73 to 17.90). Besides, the BI of Acu II showed a greater increase than those of Non-Acu I (MD: 5.43; 95% CI, 0.74 to 10.39); Non-Acu II (MD: 19.55; 95% CI, 16.04 to 23.06); Acu III (MD: 10.55; 95% CI, 6.54 to 14.56). Furthermore, the BI of Acu III was significantly higher than those of Non-Acu III (MD: 14.27; 95% CI, 1.46 to 27.08); Acu IV (MD: 7.82; 95% CI, 4.47 to 11.17). During stage IV, the BI of acupuncture was better than that of Non-acupuncture (MD: 9.78; 95% CI, 6.91 to 12.64). There was no significant difference between Non-Acu II and Acu III (MD: 6.55; 95% CI, −1.94 to 15.04).

NMA

FMA score

The results of the FMA score were presented in Figure 5, the NMA indicated that Acu I was significantly more efficacious than others. Vary from stage I to IV of stroke, the FMA score of treating without acupuncture was all lower than that of treating with acupuncture (SMD: −19.89; 95% CI, −26.65 to −13.13; SMD: −14.26; 95% CI, −19.10 to −9.42; SMD: −11.88; 95% CI, −17.12 to −6.64; SMD: −9.76; 95% CI, −13.56 to −5.96). Besides, the earlier acupuncture was applied, the better the FMA score: such as the comparison between Acu I and Acu II (SMD: 7.17; 95% CI, 1.11 to 13.22); comparison between Acu II and Acu III (SMD: 13.56; 95% CI, 8.79 to 18.33); comparison between Acu II and Acu IV (SMD: 19.78; 95% CI, 8.74 to 30.82). Furthermore, as for the FMA score, our NMA confirmed that it was better to treat early (SMD: 12.72; 95% CI, 2.51 to 22.93; SMD: 11.18; 95% CI, 2.90 to 19.46; SMD: 15.28; 95% CI, 2.83 to 27.73; SMD: 16.82; 95% CI, 3.07 to 30.57), and the combination of acupuncture would be more effective (SMD: 25.44; 95% CI, 18.38 to 32.50; SMD: 29.54; 95% CI, 17.87 to 41.21; SMD:15.98; 95% CI, 5.32 to 26.64), additionally, acupuncture was never too late to be used such as the comparison between Non-Acu I and Acu II (SMD: −12.72; 95% CI, −20.59 to −4.85).

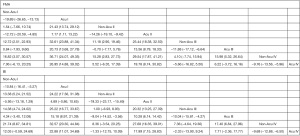

Figure 5 NMA for FMA score and BI. Acu I, acupuncture within 48 h post-stroke; Acu II, acupuncture within 2–15 d post-stroke; Acu III, acupuncture within 16–30 d post-stroke; Acu IV, acupuncture within 1 month to half a year post-stroke; Non-Acu I, non-acupuncture within 48 h post-stroke; Non-Acu II, non-acupuncture within 2–15 d post-stroke; Non-Acu III, non-acupuncture within 16–30 d post-stroke; Non-Acu IV, non-acupuncture within 1 month to half a year post-stroke. NMA, network meta-analysis; FMA, Fugl-Meyer assessment; BI, Barthel Index.

BI

As shown in Figure 5, the results of BI based on our NMA suggested that Acu I was the most effective. From stage I to IV of stroke, in the view of BI, treating without acupuncture was significantly lower than that of treating with acupuncture (SMD: −10.84; 95% CI, −16.41 to −5.27; SMD: −19.33; 95% CI, −23.17 to −15.49; SMD: −10.04; 95% CI, −15.81 to −4.27; SMD: −9.69; 95% CI, −12.88 to −6.50). Apart from that, the earlier acupuncture was used, the better the BI, for instance, the comparison between Acu II and Acu III (SMD: 10.28; 95% CI, 6.14 to 14.42); comparison between Acu II and Acu IV (SMD: 17.99; 95% CI, 7.15 to 28.83). Moreover, from the BI results of NMA, we can conclude that treating early is better (SMD: 13.38; 95% CI, 5.24 to 21.52; SMD: 14.38; 95% CI, 4.74 to 24.02; SMD: 21.74; 95% CI, 8.67 to 34.81); while the combination of acupuncture would be more effective (SMD: 20.32; 95% CI, 13.25 to 27.39; SMD: 27.68; 95% CI, 16.35 to 39.01; SMD: 17.40; 95% CI, 6.84 to 27.96), and the comparison between Non-Acu II and Acu III (SMD: −9.04; 95% CI, −14.52 to −3.56) indicated that late application of acupuncture was still helpful sometimes.

Ranking

The SUCRA-based rankings were displayed in Figure 6. The results showed that, on the aspect of FMA score, Acu I (99.9%) was the optimal intervention time-point, followed by Acu II (85.8%), Non-Acu I (57.9%), Acu III (55.7%), Non-Acu II (51.5%), Acu IV (32.1%), Non-Acu III (13.4%), Non-Acu IV (3.7%), which was ranked as the worst. As for BI, Acu I (99.3%) was still the optimal intervention time-point, followed by Acu II (85.6%), Non-Acu I (69.8%), Acu III (58.1%), Acu IV (33.5%), Non-Acu II (27.5%), Non-Acu III (23.4%), Non-Acu IV (2.8%), which was ranked as the worst, too.

Figure 6 SUCRA curves (A for FMA score, B for BI). Acu I, acupuncture within 48 h post-stroke; Acu II, acupuncture within 2–15 d post-stroke; Acu III, acupuncture within 16–30 d post-stroke; Acu IV, acupuncture within 1 month to half a year post-stroke; Non-Acu I, non-acupuncture within 48 h post-stroke; Non-Acu II, non-acupuncture within 2–15 d post-stroke; Non-Acu III, non-acupuncture within 16–30 d post-stroke; Non-Acu IV, non-acupuncture within 1 month to half a year post-stroke. SUCRA, surface under the cumulative ranking; FMA, Fugl-Meyer assessment; BI, Barthel Index.

Inconsistency assessment

FMA score

In terms of loop inconsistency test outcome of FMA score, 95% CI of two loops included 0, indicating that no significant inconsistency was found. However, one loop (Acu I to Acu II to Non-Acu I) was found statistical inconsistency between indirect and direct comparisons. Apart from this, the P value of the global inconsistency test in our NMA was 0.16 (P>0.05), and the node-splitting method showed that there were no inconsistencies between direct and indirect comparisons (P>0.05), except for the comparison between Acu II and Non-Acu I (P=0.011<0.05).

BI

For the loop inconsistency test outcome of BI, 95% CI of five loops included 0, indicating that no significant inconsistency was found. However, one loop (Acu III to Acu IV to Non-Acu II) was found statistical inconsistency between indirect and direct comparisons. Besides, as for the global inconsistency test, the P value in our study was 0.92 (P>0.05), and the node-splitting method showed that there were no inconsistencies between direct and indirect comparisons (all P>0.05). More details were provided in https://cdn.amegroups.cn/static/public/apm-11-1127-1.pdf.

Safety assessment

Although adverse events were reported in four studies (36,40,48,58), no serious acupuncture-related complications were identified in any of the included studies. Specifically, 10 cases of mild subcutaneous hematoma following an Acu were reported by these four research teams (36,40,48,58), and the hematoma disappeared within a few days. In addition, two cases of syncope during an Acu, which were characterized by dizziness, sweating, and weakness, were reported in two studies (36,48), and the symptoms were relieved promptly with no subsequent physical discomfort after needle withdrawal and resting. Given that most included trials did not record the acupuncture-related adverse events in a standard way, it was hard to conduct a quantitative analysis of safety in our NMA.

Sensitivity analysis and publication bias

The sensitivity analysis indicated that the results were generally robust (Appendix 2), while no evidence of publication bias was revealed in our funnel plots (Appendix 3).

Discussion

A considerable number of people suffer from post-stroke motor dysfunction as well as impairment in the activities of daily living around the world (2). Acupuncture has been broadly applied to post-stroke patients as a complementary and alternative therapy in East Asian countries, especially in China, for many years (68). The advantages of acupuncture include safety, reliability, and easy operation. As a result, the experimental and clinical research on acupuncture in treating stroke has been increasing significantly in recent years, and most results have been promising (69). However, most studies have focused on how to make acupuncture more effective or the mechanisms by which it works, while many of these studies have not been uniform or standardized in their design and the outcomes always stay in a low level of evidence. As for stroke, the intervention time-point for acupuncture in different trials is non-uniform, which indicates there is no unified consensus on this issue, further, it still confuses clinical choices. Although, some related studies have been conducted in this area (70,71), the comparisons are limited in scope, and more importantly, there is a lack of evidence based on Bayesian NMA, which can combine direct and indirect comparisons across multi-dimensions. Thus, the purpose of our NMA is to identify the efficacy and safety of dissimilar acupuncture intervention time-points for stroke, especially in motor function and the activities of daily living, then confirm whether acupuncture is helpful in stroke, if so, whether the early application is better than late. To our knowledge, this study is the first attempt in this field.

In our NWA, the association of Acus and Non-Acus with dissimilar acupuncture intervention time-points for improving stroke-related impairments was compared by the combination of indirect and direct evidence from 38 RCTs in 3,836 participants. To avoid the impact resulting from the process of stroke recovery on our data analysis, we included the Non-Acu group from each of the same studies as a comparator, while also allowing us to compare the efficacy and safety of Acu and Non-Acu. Meanwhile, the classification of intervention time-point was based on the commonalities among included studies as well as the actual clinical situation of stroke.

Four important findings have been obtained in the end. First, acupuncture is effective in improving capacity in motor function as well as the activities of daily living after stroke with good safety. Second, at similar baseline levels or course of the stroke, compared to Non-Acus, a combination of treatments including acupuncture can deliver greater benefits to patients and mitigate their sequelae. In other words, acupuncture can be helpful for patients with stroke regardless of disease duration. Third, we can conclude from the ranking graphs that earlier intervention for stroke is better than later with a course-dependent decreased levels of improvement of FMA and BI score by acupuncture. In brief, the earlier acupuncture is used, the better the prognosis of stroke. Fourth, the optimal acupuncture intervention time-point for stroke is within 48 h post-stroke, and the significant validity period lasts until 15 days after onset.

In previous studies and guidelines on stroke, whether acupuncture should be applied as soon as possible is still controversial, and some scholars believe that acupuncture should only be used at the end of clinical treatment or the beginning of functional rehabilitation. However, the notion of early rehabilitation for stroke has been increasingly accepted (72). It has been reported that early rehabilitation not only promotes better neurological recovery and regulates central neural excitability (73,74), but also improves blood circulation in the affected limb and facilitates the recuperation of motor function as well as the emergence of normal movement patterns, thereby enhancing the patient’s ability to perform daily activities (75). From the pathology perspective, myogenic fibers begin to shorten or atrophy after 3 days of hemiparesis and after 2 weeks, the dense connective tissue hyperplasia appears around the joint. Some studies have found that when the vital signs and neurological status stabilized, 24–48 h post-stroke is regarded as the optimal time window to conduct a combined rehabilitation of passive and active methods (76-78), while clinical gains began to diminish 14 d post-stroke (79). Obviously, our findings are largely consistent with it. Acupuncture, an alternative passive rehabilitation method, combined with active functional exercise can better facilitate the resumption of motor function and activities of daily living (80). In addition, based on the plasticity and functional reorganization of the nervous system, early intervention of acupuncture can accelerate the establishment of cerebral collateral circulation, increase cerebral blood flow, improve cerebral oxygen metabolism, protect central neurons, reduce the apoptosis of cerebral neurons, promote the reorganization and compensation of peri-lesion tissue or healthy brain cells (81-84). In brief, it can better exploit neuroplasticity. On the contrary, since neurons are difficult to regenerate, late application of acupuncture can be less effective, even though it is still effective.

There are several attractive advantages of this NMA. Although cerebral infarction and hemorrhage are pathologically distinct, they have a lot in common in terms of rehabilitation and Acu, thereby expanding the scope of the study. Furthermore, we performed an all-around search and included all qualified studies to compare the efficacy of dissimilar intervention time-points among Acus and Non-Acus under a Bayesian framework. What’s more, the rank test of effectiveness provides data to favor acupuncture as well as early application, which may lead to publication bias.

However, there are still some limitations to our study. Firstly, due to a limitation of languages and most included studies were conducted in China among Chinese populations, selection bias was inevitable, which may limit the generalization of our findings. Secondly, to some extent, positive results tend to be preferred by acupuncture practitioners, which increase the risk of publication bias. Thirdly, it was hard for us to rule out heterogeneity because of the difference in acupoint selections, acupuncture techniques, and treatment frequency. Fourthly, owing to poor reporting, most included studies were judged as having an unclear risk of bias in terms of blinding, allocation concealment, which may lower the credibility of our findings to some extent. Finally, due to lack of follow-up duration data in many included RCTs, unaddressed concerns still exist regarding the long-term impacts of treating stroke with acupuncture. All the above issues need to be addressed in the future to improve the quality of acupuncture research.

Conclusions

Because of the poor quality of the included studies, the credibility of our conclusions is low, however, our NMA indicate that treatments with acupuncture are more helpful in improving motor function and the activities of daily living after stroke with good safety, what’s more, the soon use of acupuncture the better the efficacy. The optimal acupuncture intervention time-point for stroke is within 48 h post-stroke and the significant validity period lasts until 15 days after onset. Besides, well-designed studies on acupuncture with high quality and large samples are greatly needed in the future.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (No.81473753, No. 81173327); The Integrative Medicine Open Fund Project of “Domestic First-Class Training Discipline” of Hunan Province (2020ZXYJH37); Changsha Municipal Natural Science Foundation (kq2007041); The Scientific Research Project of Department of Education of Hunan Province (No. 18C0367).

Footnote

Reporting Checklist: The authors have completed the PRISMA-NMA reporting checklist. Available at https://dx.doi.org/10.21037/apm-21-1127

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/apm-21-1127). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
