Novel ceruloplasmin gene mutation causing aceruloplasminemia with diabetes in a Chinese woman: a case report
Introduction
Hereditary aceruloplasminemia (ACP) (OMIM#604290, ORPHA48818) is a rare adult-onset autosomal recessive disease characterized by a ceruloplasmin (CP) gene mutation and defective or absent CP function. Human CP is encoded in 20 exons encompassing approximately 65 kb of DNA localized on chromosome 3q23-q24 (1). It is a copper-containing ferroxidase that is involved in maintaining iron homeostasis (2). Mutations in CP result in a strong reduction or absence of CP, a ferroxidase activity, and subsequently lead to an accumulation of iron in organs, causing retinopathy, liver disease, anemia, and progressive neurological degeneration presenting with movement disorders (e.g., motor delay, dystonia, spasticity, and parkinsonism), cognitive dysfunction, ataxia, and diabetes mellitus (DM) (3). It was estimated that the incidence of APC was 1 per 2,000,000 in non-consanguineous marriages (4), which was first described in 1987 by Miyajima (5). Although ACP has also been described in other areas (6-8), most of the published cases originated in Japan. However, detailed case reports are limited, especially in China. Most importantly, DM could result from ACP due to the accumulation of iron in the pancreas. However, there is limited awareness regarding the association between DM and ACP, since hyperglycemia was an uncommon clinical manifestation of ACP. Additionally, it was difficult to identify and diagnose a diabetes patient suffering from ACP.

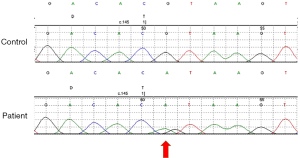

In this report, we describe a Chinese patient with ACP who suffered from diabetes for more than 5 years before we recognized she had a homozygous mutation of the CP gene inherited from her parents, and this mutation site has not been reported in China before. We present the following article in accordance with the CARE reporting checklist (available at https://apm.amegroups.com/article/view/10.21037/apm-21-1086/rc).
Case presentation
All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.
A 34-year-old woman was admitted to our clinic with a history of diabetes for more than 5 years. She was hospitalized with complaints of fasting hyperglycemia despite receiving multiple oral antidiabetic agents, with fasting blood glucose levels ranging between 8.4 and 12 mmol/L during the last 2 years, even though the postprandial blood glucose level was well controlled. In addition, the patient also suffered from fatigue, anxiety, and progressive remembrance loss.
Physical examination revealed no obvious abnormalities except for a lean body. Her BMI was 20 kg/m2. Table 1 presents the primary laboratory findings. Her complete blood count showed that she had a low hemoglobin of 10.5 g/dL (normal 13.0–17.5 g/dL) associated with microcytosis. The daily glucose monitoring (8 times) revealed that the postprandial blood glucose range from 6.8 to 9.6 mmol/L; however, the fasting blood glucose was always greater than 7.8 mmol/L. Homeostatic Model Assessment of Insulin Resistance (HOMA-IR) was elevated, whereas the quantitative insulin sensitivity check index (QUICKI) was decreased. Although insulin and C-peptide levels were within the normal range, the Stumvoll first-and second-phase insulin secretion disposition indices were very low, indicating low beta cell function in the patient (Table 1). Furthermore, her anti-glutamic acid decarboxylase antibody and anti-IA2 antibody were negative, which ruled out the possibility of T1DM.
Table 1
Parameter | Value | Normal value |
---|---|---|
WBC (×109/L) | 3.6 | 3.5–9.5 |
RBC (×1012/L) | 4.52 | 4.3–5.8 |
Hb (g/L) | 105 | 130–175 |
Ht (%) | 36.3 | 40–50 |
MCV (fL) | 80.3 | 82–100 |
MCH (pg) | 23.2 | 27–34 |
MCHC (g/L) | 289 | 316–354 |
Plt (×109/L) | 148 | 125–350 |
Albumin (g/L) | 49 | 35–55 |
ALT (U/L) | 61 | 0–65 |
AST (U/L) | 40 | 8–37 |
ALP (U/L) | 84 | 15–112 |
γ-GTP (U/L) | 28 | 0–50 |
BUN (mmol/L) | 4.6 | 2.5–6.4 |
T-Bil (μmol/L) | 3.0 | 0.0–6.0 |
Cr (μmol/L) | 45 | 53–115 |
UA (μmol/L) | 310 | 210–430 |
Na (mmol/L) | 144 | 135–145 |
K (mmol/L) | 4.3 | 3.5–5.5 |
Cl (mmol/L) | 101 | 95–105 |
FPG (mmol/L) | 8.28 | 3.9–5.8 |
2hPG (mmol/L) | 8.94 | 3.9–7.8 |
HbA1C (%) | 5.3 | 4.3–6.5 |
GA (%) | 15.6 | 11.0–17.0 |
TC (mmol/L) | 5.5 | 2.8–5.9 |
TG (mmol/L) | 1.36 | 0.45–1.81 |
FINS (μU/mL) | 10.7 | 1.25–10.50 |
FC-peptide | 1.49 | 0.82–2.5 |
2hINS (μU/mL) | 24.71 | – |
2hC-peptide | 4.14 | – |
β cell function | ||
HOMA-β | 44.8 | – |
1st-phase secretion | ‒768.57 | – |
2nd-phase secretion | 17.71 | – |
Insulin resistance | ||
HOMA-IR | 3.93 | – |
QUICKI | 0.62 | – |
WBC, white blood cell; RBC, red blood cell; Hb, hemoglobin; Ht, hematocrit; MCV, mean corpuscular volume; MCH, mean corpuscular hemoglobin; MCHC, mean corpuscular hemoglobin concentration; Plt, platelet; AST, aspartate transaminase; ALT, alanine transaminase; ALP, alkaline phosphatase; γ-GTP, γ-glutamyltranspeptidase; BUN, blood urea nitrogen; T-Bil, total bilirubin; Cr, creatinine; Na, serum sodium; K, serum potassium; Cl, serum chloride; FPG, fasting plasma glucose; 2hPG, 2 hours postprandial blood glucose; HbA1c, hemoglobin A1c; GA, glycated albumin; TC, total cholesterol; TG, triglycerides; FINS, fasting insulin; FC-peptide, fasting C-peptide; 2hINS , 2 hours postprandial insulin; 2h C-peptide, 2 hours postprandial C-peptide; HOMA-β, Homeostatic Model Assessment of β-cell function; HOMA-IR, Homeostatic Model Assessment of Insulin Resistance; QUICKI; quantitative insulin sensitivity check index.
Chest computed tomography (CT), urinary ultrasound, and cardiac ultrasound findings were within normal limits. Ophthalmological examination (including fundoscopy and visual field tests) did not reveal retinal degeneration. However, abdominal ultrasound showed splenomegaly and intrahepatic hyperechogenicity, indicating metal deposits in the liver. To further explore, the abdominal CT examination of the liver was performed, and a moderate iron overload in the liver was determined and quantified as average of 95 HU (Figure 1A). Furthermore, CT also showed a mildly increased density of the bilateral thalami and basal ganglia (Figure 1B). All of this evidence indicated iron overload in the body.
To confirm this, we detected some relative indexes of iron metabolism, such as serum iron, total iron binding capacity, transferrin saturation, ferritin, and serum CP. As shown in Table 2, the serum iron content was low, even though transferrin levels were normal. Moreover, transferrin saturation was low (5%), and ferritin level was extremely high above 2,000 µg/L in the patient. It is noteworthy that her serum CP levels was extremely low (<0.0183 g/L; 0.2 to 0.6 g/L). Therefore, CP gene analysis of the patient and her parents was performed. A homozygous CP gene mutation inherited from his father and mother (Figure 2) c.146+1G>A was identified. Her consanguineous parents carried the same heterozygous mutation in the CP gene, which could be attributed to the ACP. Segregation analysis is shown in Figure 3.
Table 2
Parameter | Value | Normal value |
---|---|---|
Fe (μmol/L) | 6 | 11.0–29.0 |
Ferritin (ng/mL) | >2,000 | 5–120 |
TIBC (μmol/L) | 43.3 | 45.00–82.00 |
TS (%) | 13.9 | 20.0–50.0 |
Ceruloplasmin (g/L) | <0.0183 | 0.2–0.6 |
Copper (μmol/L) | 3.3 | 12.0–15.0 |
Fe, serum iron; TIBC, total iron binding capacity; TS, transferrin saturation.
In the area of treatment, iron chelation therapy is the mainstay for ACP. Considering the poor economic situation of this patient, we suggested accepting intravenous infusions of 500 mg of desferrioxamine twice a week for 6–10 months and serum ferritin (SF) levels were measured every 2 months. After 6 months, her SF levels decreased and were maintained at 500–1,000 ng/mL. Furthermore, to further control the blood glucose levels, we administer red neutral protamine Hagedorn (NPH) insulin, which may improve fasting hyperglycemia. During the follow-up period, her fasting blood glucose level was no more than 8 mmol/L. Unfortunately, she was lost to follow-up after 6 months. Therefore, we had no information about the treatment outcome.
Discussion
In the present study, we reported a case of ACP in a 34-year-old Chinese woman with diabetes, fatigue, anxiety, and progressive remembrance loss with a homozygous mutation (c.146+1G>A) in the CP gene, and a heterozygous mutation (c.146+1G>A) of the gene in the family pedigree. To date, only two cases of ACP have been reported in China and less than 60 families’ cases worldwide (9,10). To the best of our knowledge, the c.146+1G>A mutation in the CP gene has not been previously reported in China.
To date, approximately 28 missense, 17 frameshift, 13 splicing, and 8 nonsense mutations of CP in ACP have been described worldwide (11). The majority of cases are due to homozygous mutations (related to the family history of consanguinity), but compound heterozygosity has also been described (12). Most of these mutations lead to the formation of a stop cordon, and the produced protein does not have the necessary structures for enzymatic function in cellular iron transport (13). In the present case, a homozygous mutation in the CP gene c.146+1G>A was identified, and a type of mutation has only been reported in a Caucasian case in Belgium (12). In addition, 14 members of this family were screened for genetic mutations, and blood biochemical parameters were measured. Among them, four family members (one of two elder sisters, one elder brother, and her parents) were found to have a heterozygous mutation in the CP gene (c.146+1G>A), which might be due to the fact that the parents of the index case were second cousins. The homozygous mutations of CP (c.146+1G>A) in the present case resulted in a complete lack of CP, a decrease in transferrin saturation, and an elevated SF level.
CP is an oxidase characterized as a copper (Cu)-containing protein that binds 40–70% of Cu in the plasma. There are two isoforms of this protein, a secretory form and a glycosylphosphatidylinositol (GPI)-linked form (2). Secretory CP plays a role as an antioxidant (14), while the GPI-linked form plays a key role in iron efflux from cells as a ferroxidase (15). It mediates the oxidation of ferrous iron (Fe2+) to ferric iron (Fe3+) and regulates the efficiency of iron efflux (16). The absence of CP impairs iron efflux from cells, resulting in marked iron accumulation in visceral organs such as the liver, pancreas, and central nervous system (17,18). This mutation (c.146+1G>A) in the patient was localized at the 3’ splice site of exon 1, an area with a highly conserved sequence, which might result in altered mRNA splicing and reduced transcript expression or lead to rapid mRNA degradation and abnormalities in CP synthesis. The absence of CP leads to pathological iron overload in the liver, pancreas, retina, and central nervous system. Subjects with CP suffer from DM, anemia, retinal degeneration, and neurological abnormalities, including neurological symptoms such as blepharospasm, orolingual, mandibular dystonia, chorea, dysarthria, ataxia, parkinsonism, and cognitive decline. From most reports published so far, it is estimated that 17% of cases would manifest neurological symptoms as the first sign, and 74% of cases would suffer from neurological sequelae over time (19). Given that the average age of onset of neurological manifestations of ACP is around 50 years, the present case also had no obvious neurodegenerative characteristic clinical symptoms and signs, except for mild memory decrease and blunt responses, even though iron was deposited in her basal ganglia and dentate nuclei on CT.
DM was the initial clinical feature of our case. In a systematic review of 55 ACP patients, 68.5% of patients had DM as the first sign at a median age of 38.5 and 39.5 (20). As mentioned in our report, the patient was diagnosed with DM. Although she had received all kinds of oral antidiabetic agents with well-controlled postprandial blood glucose levels, she still suffered from chronic fasting hyperglycemia and had to be administered with NPH insulin injection to reduce the fasting blood glucose levels. Iron overload is associated with an increased diabetes risk. The exact mechanisms underlying the association of ACP with diabetes in our ACP patients have not yet been completely elucidated. Features related to both insulin resistance and beta cell dysfunction were present in the patients. First, a moderate iron overload in the liver with splenomegaly was observed on abdominal CT and ultrasound examinations. The liver plays an important role in glucose homeostasis. Deposition of iron in the liver has been reported to be linked to insulin resistance and hyperinsulinemia (21-23). Hepatic insulin resistance is the earliest and most common feature observed under iron overload conditions. Overloaded iron may impede insulin extraction in the liver and interfere with its suppressive effect on hepatic glucose production (24), which is the most important cause of fasting hyperglycemia. The higher level of HOMA-IR and lower level of QUICKI support elevated insulin resistance of the patient, in which the 75th percentile value was used as the cutoff point to define insulin resistance, which corresponds to a HOMA-IR value of 2.31 as per the Shanghai Diabetes Studies background population study (25). In addition, deficiency of CP may lead to direct iron deposition in pancreatic β-cells as well. Accumulation of iron in β-cells enhances Fe2+ influx into the mitochondria, inhibits ATP synthesis, and eventually impairs insulin secretion (26). Moreover, iron is a strong pro-oxidant that serves as a catalyst in several cellular reactions that produce reactive oxygen species (27). There is evidence that excess iron results in β-cell oxidative stress and decreased insulin secretory capacity secondary to β-cell apoptosis and desensitization of glucose-induced secretion (28,29). Consistently, the first and second insulin deposits were relatively low (based on the Shanghai Diabetes Studies background population study) in the present case (25).
Moreover, subjects with CP gene mutations present with iron overload in the tissues, a phenotype that is difficult to distinguish from hereditary hemochromatosis (HH). Both diseases share similar specific clinical features, including hyperglycemia secondary to pancreatic iron accumulation and increased hepatic iron stores (30,31). In the present case, considering the consanguineous marriage in her parents, family history, and the finding of parenchymatous accumulation of iron in the liver led us to perform genetic screening focusing on hemochromatosis. HH is also an autosomal recessive disorder and the most common genetic iron overload disease (31). The most common forms of HH are inherited mutations in the HFE gene, characterized by elevated SF, serum iron, and transferrin-iron saturation levels in patients (32). However, an extremely high value of ferritin but low serum iron and transferrin saturation together with absent CP in serum were observed in the present case, which is not consistent with the laboratory features of HH. Furthermore, no mutations in HFE were found upon extended genetic examination for HH.
In summary, we report a case of ACP diagnosed with diabetes with mild neurological symptoms. Although the diabetes of ACP is not included in the genetic etiology of DM as classified by the American Diabetes Association (33), hyperglycemia is one of the most common signs of ACP. Awareness of ACP should be considered in diabetic patients in routine clinical practice.
Acknowledgments
Funding: This work was funded by grants from the Shanghai Municipal Commission of Health and Family Planning Fund Project (20184Y0311 to YX) and Shanghai Sixth People’s Hospital East Outstanding Young Fund Project (2019006 to YX).
Footnote
Reporting Checklist: The authors have completed the CARE reporting checklist. Available at https://apm.amegroups.com/article/view/10.21037/APM-21-1086/rc
Peer Review File: Available at https://apm.amegroups.com/article/view/10.21037/APM-21-1086/prf
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://apm.amegroups.com/article/view/10.21037/APM-21-1086/coif). YX reports that this work was funded by grants from the Shanghai Municipal Commission of Health and Family Planning Fund Project (20184Y0311) and Shanghai Sixth People’s Hospital East Outstanding Young Fund Project (2019006). The other authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee (s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
