Identification of vasospasm biomarkers for cerebral hemorrhage via bio-informatics analysis

Introduction

Cerebral hemorrhage is a form of stroke which is characterized by high incidence, high risk of disability, and a high mortality rate. Cerebral hemorrhage accounted for 1/3 of stroke cases worldwide in 2013 (1). There are several types of cerebral hemorrhage, including intracerebral hemorrhage (ICH), subarachnoid hemorrhage (SAH), and intraventricular hemorrhage (IVH). The main cause of cerebral hemorrhage is vascular disruption. Furthermore, cerebral hemorrhage can induce blood-brain barrier (BBB) dysfunction, and this process plays a significant role in brain damage after initial cerebral hemorrhage. BBB dysfunction will lead to circulating leukocyte extravasation and enhances brain injury (2,3). All of these forms of cerebral hemorrhage cause increased BBB permeability, brain edema, and neuroinflammation. The vasculature is critical to cerebral hemorrhage but also plays a significant role after the initial hemorrhage, since it forms an integral part of the BBB.

There are several mechanisms involved in endothelial or vascular dysfunction. The main alterations occur in the junctions [particularly tight junctions (TJs)], which are significant regulators of endothelial cell death and transcytosis. However, only few studies have investigated the changes in vascular function after cerebral hemorrhage.

Several studies have examined brain endothelial junctions in ischemia but not in cerebral hemorrhage (4). In various cerebral hemorrhage types, many changes to the endothelium or vasculature can occur, with the main changes occurring in endothelial cell junctions. ZO-1, claudin-5, and occludin protein expression levels have been shown to decrease 1–3 days after ICH (5-10). All of these proteins are TJ proteins. Furthermore, brain claudin-5 and occludin mRNA expression levels were shown to be downregulated 1–3 days after ICH (7). SAH can lead to reductions in cerebral blood flow, which can be influenced by intracranial pressure, hemorrhage mass effect, and macro/microvascular vasospasm (11). TJ proteins have also been detected in SAH (12-14). Cytoskeletal abnormal alterations have been found in smooth muscle cells after SAH, and the underlying mechanism may be a change in the expression of S-100 (15). Except for cerebral hemorrhage, TJ proteins and mRNA expression levels have been reported to be altered in ischemia (4). Based on the fact that endothelial and vascular functions are critical for cerebral hemorrhage, studies have explored therapy targets after hemorrhage (16). However, most of these studies only focused on TJ protein expression and the endothelial cell junction, rather than vasospasm. We therefore performed this study to investigate the biomarkers of vasospasm after cerebral hemorrhage, aiming to further understand vascular regulation after cerebral hemorrhage and find novel therapies for the treatment of vascular dysfunction. Besides, we also analyze the relationship between vasospasm and immune cell infiltration in cerebral hemorrhage in an attempt to find a new target for immunotherapy. We present the following article in accordance with the STREGA reporting checklist (available at https://apm.amegroups.com/article/view/10.21037/apm-21-3717/rc).

Methods

Raw data

The transcriptome data and clinical data of GSE37924 was downloaded from the Gene Expression Omnibus (GEO, https://www.ncbi.nlm.nih.gov/geo/) database, including 128 cases with cerebral hemorrhage. Of these, there were 66 cases with cerebral vasospasm and 62 cases without cerebral vasospasm. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Acquisition of differentially expressed genes (DEGs) related to cerebral vasospasm

Analysis of DEGs between cases with cerebral vasospasm and those without cerebral vasospasm were performed in R software via the limma package, and log2 fold change |logFC| >0.4 and false discovery rate (FDR) <0.05 were the criteria for determining DEGs.

Functional enrichment analysis of DEGs

We conducted Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) functional enrichment analysis of DEGs through the clusterProfiler package in R, and the results were presented via the ggplot2 package in R.

Construction of the protein-protein interaction (PPI) network

The PPI network of DEGs was constructed through the STRING database (https://string-db.org/) and generated via Cytoscape software.

Acquisition of immune genes associated with cerebral vasospasm

An immune-related gene list was downloaded from the ImmPort database, and immune-related cerebral vasospasm genes were obtained by intersecting immune-related genes and cerebral vasospasm DEGs. We then analyzed the expression levels of immune-related DEGs in patients with and without cerebral vasospasm.

Immune infiltration analysis

We used single sample gene set enrichment analysis (ssGSEA) to calculate the immune infiltration landscapes of the GSE37924 cohort. The ssGSEA method is a machine learning algorithm used to characterize intratumoral immune landscapes and can identify the expression of 28 kinds of immune cells (17). We compared the infiltration of 28 immune cells between cases with cerebral vasospasm and those without cerebral vasospasm. Furthermore, we also analyzed the relationship between the abundance of the 28 immune cells and the expression of immune-related cerebral vasospasm genes.

Validation experiments

Establishment and evaluation of cerebrovascular spasm

Rat brain hemorrhage models were established as previously described (18) using the non-anticoagulant autologous artery blood injection model. After weighing, rats were injected with 10% hydrated chloroform for anesthesia and fixed in the brain stereo positioning instrument (Shenzhen Ruiford Life Technology Co., Ltd., China), and the right caudate nucleus was localized according to the Rat Stereotaxic Atlas. The map was used to perform right tail nuclear positioning: a 1 cm longitudinal incision was made in the middle of the head to expose the fontanelle, the three-dimensional positioning instrument was adjusted so that the front was 1 mm after 1 mm, the right side was 3 mm, and a small hole of about 1 mm in diameter was created direct to the brain (19). The right femoral artery was fully exposed, the syringe puncture was traced, and non-anti-condensate artery blood (100 µL) was extracted. The brain was slowly entered by drilling, slowly injected at 10 µL/min, after the blood is completed, 10 min, twice Neither, prevent blood return, medical bone wax to enclose drilling. After observing bleeding cessation, the scalp and the groin area incisions were monitored, and the rats were kept warm postoperatively until recovery. After resuscitation, the rats were scored according to the Longa method (20). 0 point: no nerve function; 1 point: the opposite front limb could not be completely stretched; 2 points: to the opposite side of the circle; 3 points: dump on the opposite side; 4 points: loss of consciousness. A score of 1 to 3 was considered model construction successful. At 72 hours after model establishment, the brain was removed from the head, and hematoma formation in the basal nucleus is found to be formed.

Base artery disease test

After model establishment, rats were administered with anesthesia, perfused with saline, depressed with 4% polymethylaldehyde (pH 7.4), and the complete brain base artery (BA) and middle cerebral artery (MCA) were obtained. After incubation at 4 ℃ in 4% paraformaldehyde overnight, tissues were dehydrated and embedded in paraffin. In order to avoid arterial branches, the BA was cross-cut at the same intermediate position (2 mm) each time. Every 4 slices cut in the coronal plane was stained with hematoxylin and eosin (HE) and observed under the microscope. The basilar arteries in the no-vasospasm group were found that the tube walls were thin, the lumen was large, and the endometrium was smooth. Angiogenesis of the base artery was visible, the tube wall was thickened, the lumen was small, endothelial cell deformation, and tortuous intimal folds were observed in vasospasm group.

RNA extraction and quantitative real-time polymerase chain reaction (qRT-PCR)

The total RNA of rat brain vascular tissues was extracted using TRIzol and RNAISO Plus Total RNA Extraction reagents (Japan Takara). The concentration and purity of RNA samples were measured by NanoDrop 2000 (Thermo Fisher Scientific, USA). Reverse transcription was performed with a random primer, and removal of genomic DNA was performed with the Primescript TMRT Reagent Kit and the GDNA ERASER kit (Japan Takara). Then, cDNA amplification was performed using TB Green Premix EX TAQ II (Japan, Takara) and the Applied Biosystems 7500 Fast Real Time PCR Systems Sequence Detection System (US Applied Biosystems). GAPDH and β-actin were used as internal controls, and each experiment was performed in triplicate. The relative quantification of mRNA expression was compared to internal parametrin, and the 2^−ΔΔCt method was used. Finally, we performed validation of the selected genes to confirm the gene expression levels.

Ethical statement

Experiments were performed under a project license (No. 202110002) granted by institutional ethics board of the First Affiliated Hospital of Guangxi Medical University, in compliance with the First Affiliated Hospital of Guangxi Medical University guidelines for the care and use of animals.

Statistical analysis

All statistical analyses were performed in R software. Difference analysis and correlation analysis were performed using the Wilcoxon test and Spearman correlation analysis, respectively. P<0.05 was considered statistically significant.

Results

Analysis of DEGs

DEG analysis indicated that compared with cerebral hemorrhage patients without vasospasm, there were 24 upregulated and 21 downregulated genes in the vasospasm samples (Figure 1).

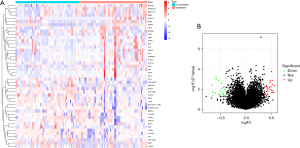

Figure 1 DEGs in cerebral hemorrhage patients. (A) Heatmap of DEGs in cerebral hemorrhage patients; (B) volcano plot of all DEGs, where red and green represent upregulated and downregulated genes, respectively. DEGs, differentially expressed genes.

Functional enrichment analysis results of DEGs

The GO functional enrichment analysis results of DEGs indicated that negative regulation of transmembrane receptor protein serine/threonine kinase signaling pathway, BMP signaling pathway, response to BMP, cellular response to BMP stimulus, and natural killer cell chemotaxis were the top 5 biological processes (BP) in cerebral hemorrhage patients. COPII-coated ER to golgi transport vesicle, MHC class II protein complex, MHC protein complex, integral component of lumenal side of endoplasmic reticulum membrane, and lumenal side of endoplasmic reticulum membrane were the top 5 cell components (CC). Receptor ligand activity, signaling receptor activator activity, MHC protein complex binding, MHC class II receptor activity, and MHC class II protein complex binding were the top 5 molecular functions (MF) in cerebral hemorrhage patients (Figure 2A,2B).

Figure 2 Functional enrichment analysis of DEGs in cerebral hemorrhage patients. (A) Bubble diagram of Gene Ontology functional enrichment analysis; (B) circle diagram of specific genes in terms of biological processes determined from functional enrichment analysis; (C) bubble diagram of the top 5 signaling pathways of the DEGs; (D) circle diagram of the specific genes of the signaling pathways. The size of the bubble represents the number of enriched genes, and the color represents the q value. DEGs, differentially expressed genes. BMP, bone morphogenetic protein.

The results of KEGG pathway analysis indicated that Epstein-Barr virus infection, antigen processing and presentation, B-cell receptor signaling pathway, rheumatoid arthritis, and Th17 cell differentiation were the top 5 enriched KEGG pathways (Figure 2C,2D).

The PPI network of DEGs

We constructed a PPI network for 45 DEGs via the STRING database. The results showed that there were 17 DEGs which interacted with each other, comprising 9 upregulated genes and 8 downregulated genes (Figure 3).

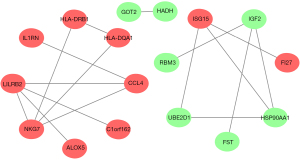

Figure 3 The PPI network of DEGs, where red and green represent upregulated and downregulated genes, respectively. PPI, protein-protein interaction; DEGs, differentially expressed genes.

Immune-related genes associated with cerebral vasospasm

Venn analysis results revealed that there were 10 overlapping genes between immune-related genes and DEGs in cerebral vasospasm (Figure 4A). Differential expression analysis results showed that C-C motif chemokine ligand 4 (CCL4), major histocompatibility complex, class II, DQ alpha 1 (HLA-DQA1), major histocompatibility complex, class II, DR beta 1 (HLA-DRB1), interleukin 1 receptor antagonist (IL1RN), ISG15 ubiquitin like modifier (ISG15), and lymphotoxin beta (LTB) were expressed at low levels in patients with cerebral vasospasm, while heat shock protein 90 alpha family class A member 1 (HSP90AA1) and insulin like growth factor 2 (IGF2) were expressed at high levels in cerebral vasospasm patients (Figure 4B).

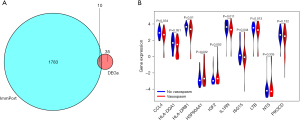

Figure 4 Immune-related genes associated with cerebral vasospasm. (A) Venn diagram of immune-related genes and DEGs; (B) expression levels of immune-related cerebral vasospasm genes. Blue and red represent no-vasospasm and vasospasm, respectively. DEGs, differentially expressed genes.

Levels of immune cell infiltration in cerebral hemorrhage patients

Each of the 28 immune cells in the ssGSEA analysis are shown in a histogram (Figure 5A). Correlation analysis between immune cells showed that type 17 T helper cells and effector memory CD4 T cells were negatively correlated with the abundance of most other immune cells, while most of the other 26 types of immune cells were positively correlated (Figure 5B). Myeloid derived suppressor cells, neutrophils, effector memory CD8 T cells, immature B cells, activated dendritic cells, and mast cells showed high levels of infiltration in cerebral hemorrhage patients (Figure 5C). Correlation analysis results demonstrated that the expression levels of CCL4, IL1RN, PIK3CD, HLA-DQA1, LTB, HLA-DRB1, and ISG15 were positively correlated with the infiltration levels of most immune cells, while the expression levels of HSP90AA1, IGF2, and NTS were negatively correlated with the infiltration levels of most immune cells (Figure 5D).

Figure 5 Immune cell infiltration analysis in cerebral hemorrhage patients. (A) Histogram of the infiltration abundance of 28 immune cells in each sample. The X-axis represents each sample, and the Y-axis represents the relative abundance of each type of immune cell. (B) Heatmap of the correlation analysis between the 28 immune cells, where blue and red represent positive and negative correlations, respectively. (C) The infiltration level of 28 immune cells in patients with and without cerebral vasospasm. (D) Heatmap of the correlation analysis of immune cell infiltration level and intracerebral hemorrhage-related immune genes, where red represents positive correlation and gray represents negative correlation. *, P<0.05; **, P<0.01.

Differential gene expression levels

The validation experiments showed that CCL4, Rasgpr1, and Spp1 were significantly expressed in vasospasm samples, while VEGFC, IL17B, HCST, and Crb1 were downregulated in vasospasm samples (Figure 6).

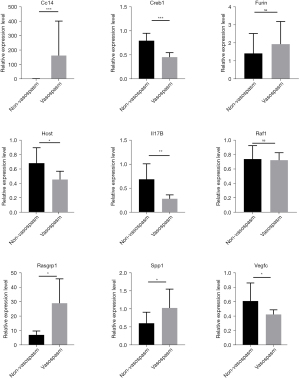

Figure 6 The PCR results of several genes between vasospasm and without vasospasm. The ns represents P>0.05. *, P<0.05; **, P<0.01; ***, P<0.001. PCR, polymerase chain reaction.

Discussion

Cerebral hemorrhage is a form of stroke characterized by high mortality. Risk factors of cerebral hemorrhage include hypertension and atherosclerosis, among others. The dysfunction of blood vessels has a critical influence on the treatment choice, and can even distinguish the outcomes of these patients. At present, there is a lack of sensitive and specific markers and imaging diagnostic tools to identify the patients with or without vasospasm. Several factors have a strong influence on vascular function during the initial stages or after cerebral hemorrhage, especially gene alterations (4,15). Thus, we analyzed DEGs between patients with and without vasospasm, and performed enrichment analysis of the selected genes to determine their roles in cerebral vasospasm.

Of the DEGs found in our study, there were 24 upregulated and 21 downregulated genes in the vasospasm samples compared to those without vasospasm. Furthermore, we selected DEGs for validation experiments via the hub PPI network. Gene expression level results showed that only CCL4 was significantly expressed in vasospasm patients. CCL4, a CC chemokine, also known as macrophage inflammatory protein (MIP)-1β, has a variable influence on multiple immune and non-immune cells via its interaction with its specific receptor, CCR5. Several studies have shown that the CCL4 signaling pathway is important for tumorigenesis and progression (21-24). Zhu et al. revealed that CCL4 may play a critical role in ischemic stroke, and may be significantly correlated with sex (25). CCL4 has also been shown to regulate human vascular smooth muscle cells (26). Furthermore, Chang et al. indicated that CCL4 can act as an inhibitor for atherosclerosis via regulating macrophage cells (27). However, there are no studies on the relationship between CCL4 and cerebral hemorrhage.

To determine the fundamental biological functions of these DEGs, we performed functional enrichment analysis. The results showed that these genes play key roles in several biological processes and signaling pathways such as the bone morphogenetic protein (BMP) signaling pathway, cellular response to BMP stimulus, natural killer cell chemotaxis, negative regulation of transmembrane receptor protein serine/threonine kinase signaling pathway, MHC protein complex binding, and receptor ligand activity, among others. The BMP signaling pathway has not been investigated in cerebral hemorrhage, but there are several studies that have demonstrated its critical function in various vascular diseases (28-30). The transmembrane receptor protein serine/threonine kinase signaling pathway also acts as the significant regulator for vascular (31). MHC class II antigen but not MHC protein complex binding has been detected in traumatic brain injury (32). According to natural killer cell chemotaxis, it is the immune cells that have been clarified in the cerebral hemorrhage. Kim et al. revealed that natural killer cell chemotaxis plays a significant role in delayed cerebral ischemia following SAH (33). From these findings, the DEGs found in this study play significant roles in the regulation of vascular diseases, but there is no research on the involvement of these DEGs in cerebral stroke.

Several studies have shown that inflammation plays a significant role in angiogenesis (34-36). The relationship between inflammation and the vasculature has been well investigated in cancer, but few studies have been performed in others diseases. Capitão et al. showed that inflammation has a significant influence on diabetic retinopathy (34). Inflammation is also strongly correlated with immunity. In this study, we conducted an analysis of the intersection between DEGs and immune-related genes, as immune-related genes often work via the regulation of immune cell infiltration. We selected the intersecting immune-related genes and explored the relationships between immune-related genes and the infiltration of various immune cells. The results showed that CCL4, HLA-DQA1, HLA-DRB1, HSP90AA1, IGF2, IL1R, NISG15, LTB, NTS, and PIK3CD were intersecting genes. LTB4 has been investigated for its role in cerebral hemorrhage (37-40). Hijioka et al. indicated that LTB can promote neutrophil infiltration, leading to neuroinflammation (41). Zhu et al. showed that IGF2 could regulate vascular smooth muscle cells (42). IGF2 is also a novel target for psychiatric and neurological disorders (43). Durocher et al. showed that PIK3CD was the immune response hub gene for ICH (44). Our results showed that there were differences in immune cells between patients with and without vasospasm. Neutrophils and natural killer cells had higher infiltration in vasospasm patients. Our findings show that these immune-related genes and immune cells may act as significant factors in cerebral hemorrhage and vascular dysfunction such as vasospasm. Xue et al.’ review indicated that in animal models and early clinical trials in intracerebral haemorrhage, several drugs have reduced detrimental neuroinflammation without substantial compromise of the beneficial reparative aspects of an inflammatory response (45). Other genes have been not yet been determined in cerebral hemorrhage. The limitation of this study is the lack of in vitro and in vivo experiments. Further, we will conduct vitro and in vivo experiments on the hub genes in present study to verify the relationship between gene expression regulation and cerebral vasospasm, so as to lay a foundation for accurate target therapy of cerebral hemorrhage.

Conclusions

The immune-related gene CCL4 may act as a critical regulator of cerebral hemorrhage patients with vasospasm, but the fundamental biological function of this gene remains unclear. Our present study may pave the way for further research in vasospasm after cerebral hemorrhage.

Acknowledgments

Funding: This work was supported by National Natural Science Foundation of China (Nos. 81860222, 82060226) and Guangxi Natural Science Foundation (No. 2019GXNSFDA185008).

Footnote

Reporting Checklist: The authors have completed the STREGA reporting checklist. Available at https://apm.amegroups.com/article/view/10.21037/apm-21-3717/rc

Data Sharing Statement: Available at https://apm.amegroups.com/article/view/10.21037/apm-21-3717/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://apm.amegroups.com/article/view/10.21037/apm-21-3717/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Experiments were performed under a project license (No. 202110002) granted by institutional ethics board of the First Affiliated Hospital of Guangxi Medical University, in compliance with the First Affiliated Hospital of Guangxi Medical University guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
