Efficacy of transanal drainage tube and self-expanding metallic stent in acute left malignant colorectal obstruction

Introduction

Colorectal cancer (CRC) is a severe threat to human health. The latest data show that there were about 1.80 million new cases of CRC worldwide in 2018 (1). Among these CRC patients, approximately 7–29% of patients were discovered with subtotal or total bowel obstruction as the first symptom (especially on the left side) (2-4). The general condition for these patients is reduced, and CRC is often accompanied by many syndromes such as electrolyte imbalance, dehydration, and anemia, which are difficult to correct in a short period, resulting in poor surgical tolerance. For example, the edema of the intestinal wall and the dilation of the proximal intestine increase the likelihood of anastomotic leak (5). Overall, these complications have substantially impacted patients’ prognosis and survival (6). Therefore, it is necessary to explore a better way to treat malignant colorectal obstruction (MCO).

Traditionally, to treat MCO, emergency colostomy followed with stomas has been the preferred choice (7). However, this process was complicated and usually brought patients a substantial economic burden (8), with approximately 40 percent of patients having permanent stomas (9). To reduce the considerable risk and laborious process of the surgery, preoperative decompression was generally adopted, which included placement of a self-expanding metallic stent (SEMS) or a transanal drainage tube (TDT). Due to the appearance and application of SEMS and TDT, the rate of primary anastomosis has increased, which has made the alleviation a bridge to elective surgery and significantly reduced the incidence of various complications (10-15). Compared with an emergency colostomy, the mean decompression period of SEMS and TDT is visibly shorter.

In recent years, both SEMS and TDT have been applied in clinical practice and possess high technical success rates (16,17). SEMS facilitates both the evaluation of the status of the patient's proximal colon and the relief of obstruction while permitting patients to intake food. Furthermore, SEMS allows relief of obstruction in palliative cases (18), which could lead to a better condition. As for TDT, it can be used flexibly and efficiently removed after the alleviation of the colorectal obstruction. Meanwhile, the material cost of the TDT is cheap. SEMS and TDT have their own merits and faults, and systematic comparisons between SEMS and TDT is needed to ensure their selection is suitable for a given patient. However, studies systematically comparing the efficacy and characteristics between SEMS with TDT are limited, especially in a large-scale Chinese population.

This study aimed to compare the efficacy and characteristics of SEMS and TDT in patients with malignant left colorectal obstruction. We also compared the short-term outcomes after a surgical operation for patients receiving SEMS or TDT. We present the following article in accordance with the STROBE Reporting Checklist (available at http://dx.doi.org/10.21037/apm-19-458).

Methods

Patients

This was a retrospective comparative study of patients with acute malignant left colorectal obstruction who underwent a preoperative decompressive procedure with SEMS or TDT intervention between December 2014 and October 2017 in the First Affiliated Hospital of China Medical University. The trial was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Regional and Institutional Human Medical Biological Research Ethics Committee of China Medical University (No. AF-SOP-07-1). Written informed consent was obtained from all patients included in our study.

Inclusion criteria were the presence of acute obstructive symptoms such as difficulty in defecating, accompanied by abdominal distension and pain, abdominal X-ray or abdominal computed tomography (CT) suggesting left colorectal obstruction and histology indicating cancer by endoscopic biopsy or postoperative pathology. Patients with peritonitis, bowel perforation, or necrosis were excluded. The selection of intervention depended simply on the period. From December 2014 to December 2015, TDT was the first-choice treatment. From 2016 onwards, we used SEMS for all cases, except for a small number of cases with surrounding abscess formation.

Eventually, 206 patients needed endoscopic intervention to relieve obstruction, with 139 being treated with SEMS and 67 being treated with TDT. All patients were treated by experienced endoscopic surgeons with standard oncological principles.

Outcome measures

The whole study was divided into 2 stages. The first stage was aimed to alleviate the obstruction condition by TDT or SEMS intervention, and to calculate the incidence of technique success, clinical success, complications, and reinterventions. Technical success was defined as the achievement of instrument placement. Clinical success was defined as the resolution of obstructive symptoms (abdominal distension, vomiting, abdominal pain, and no passage of gas or stool) along with technical success. The presence of complications was defined as the occurrence of symptoms, including obstruction, infection, displacement, perforation, etc. Reintervention was defined as the SEMS or TDT intervention being given again after the last intervention. The second stage focused on the follow-up treatment of patients, especially those who underwent surgical resection of the tumor, and aimed to calculate the operation time, postoperative hospitalization time, hospitalization cost, and incidence of anastomotic leakage.

Placement of TDT

For TDT, the guidewire was inserted through the narrow segment under endoscopy and X-ray monitoring, and the contrast agent was injected under fluoroscopy. After the stenosis section was confirmed with a radiocontrast agent, the TDT (CLINY, Create Medic, Japan) was placed following the guidewire crossing the narrow segment. After re-injection of contrast agent to confirm a proper TDT placement, we injected 30 ml of water into the water sac to prevent migration.

Placement of SEMS

The placement of SEMS was guided under guidewire. The guidewire was inserted through the narrow segment under endoscopy and X-ray monitoring, and the contrast agent was injected under fluoroscopy. After the stenosis section was confirmed with a radiocontrast agent, we choose the stent with a suitable length, which ran across the entire length of the stenosis over 2 cm. Then, the SEMS (Boston Scientific Corp., USA) was placed following the guidewire that crossed the narrow segment. Finally, the contrast agent was injected to confirm the correct placement of the stent to expand the stenosis.

Statistical analysis

According to the distribution of the data, an independent t-test was used to compare the means of the continuous variables by mean ± standard deviation. Mann-Whitney U test was used in the non-normal distribution measurement data. The enumeration data were represented by the Chi-square test and Fisher’s exact test with a constituent ratio. All P values were two-sided, and P<0.05 was considered statistically significant. Statistical testing was done with SPSS version 17.0 (IBM, Armonk, NY, USA).

Results

Patient characteristics

To evaluate the quality of 2 interventions, we divided the 206 patients into 2 groups according to the decompression measures: 139 patients were in the SEMS group, and 67 patients were in the TDT group. The detailed process of our study design was shown in Figure 1 and the baseline characteristics of the included patients are shown in Table 1. There were no significant differences in sex, age, and site of tumor between the 2 groups.

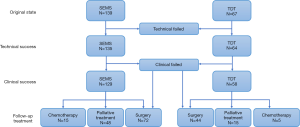

Figure 1 The flow diagraph of the study design.

Table 1 Basic characteristics of patients
Full table

Technical and clinical success rates of each intervention

Due to the location and morphology of the tumor, 4 patients and 3 patients did not complete the placement of SEMS or TDT, respectively. SEMS placement was successfully performed in 135 patients and was decompressed in 129 patients. Meanwhile, TDT placement was performed in 64 patients and was adequately decompressed in 58 patients. The technical success rates of the SEMS and TDT groups were 97.1% and 95.6%, while the clinical success rates were 92.8% and 86.6%, respectively (Table 2). Both technical (P=0.56) and clinical (P=0.15) success rates were not significantly different between the 2 groups.

Table 2 Technical and clinical success rates for each intervention
Full table

Complications after endoscopic treatment

The complications after endoscopic treatment are summarized in Table 3. After successful SEMS or TDT implantation, 95.6% (129/135) and 85.9% (55/64) of the patients in the 2 groups, respectively, had no apparent complications. In the SEMS group, there were 2 cases of re-obstruction, 1 case of SEMS displacement, which was removed by endoscopy, 2 cases of diffuse peritonitis, and 1 case of perforation after stenting. In the TDT group, re-obstruction occurred in 4 cases, which was relieved after SEMS, and there were 4 cases of TDT displacement and 1 case of perforation.

Table 3 Postoperative effect of each intervention
Full table

The displacement rates of the SEMS and TDT groups were 0.7% (1/135) and 6.3% (4/64), respectively. TDT was more prone to displacement than SEMS (P=0.02). There was no significant difference in the incidence of other complications such as infection and perforation, but the complication rate was higher in the TDT group overall (P=0.02, Table 3).

Post-intervention oral feeding time in the SEMS group and TDT group was 2.4±1.5 and 8.1±3.8 days, respectively, and the time for oral feeding after SEMS implantation was significantly shorter than that after TDT (P<0.01, Table 3). Also, the time interval between SEMS/TDT insertion and surgery presented no significant difference (Table 3).

Follow-up treatment

In the SEMS group, 72 cases received surgical treatment, 15 cases received chemotherapy, and 48 cases received palliative treatment. In the TDT group, 44 patients received surgical treatment, 5 received chemotherapy, and 15 received palliative treatment (Figure 1). There was no significant difference between the 2 groups (Table 4).

Table 4 follow-up treatment after each intervention
Full table

Post-operation conditions

Operation time in the SEMS group and TDT group was 162.0±56.8 and 194.4±75.9 minutes, respectively. Operation time was significantly shorter in SEMS than in TDT (P=0.01). There were no significant differences in post-operation conditions, including in one-stage anastomosis rate, postoperative hospital stay, and hospital cost, between SEMS and TDT (Table 5).

Table 5 condition after surgical tumor resection
Full table

Discussion

The comparison of baseline data showed that malignant colorectal obstruction was higher in older adults, with an average age of 65 or older. In this research, the sigmoid colon is also the most common location of cancer, which is consistent with domestic and foreign literature (19). Recent research reports that the technical success rate of SEMS and TDT is more than 80% on average, with the success rate gradually increasing (20-22). The rates of the 2 groups in this study were 97.1% and 95.6%, respectively. As the effective diameter of TDT is smaller than that of SEMS, dry feces at the obstruction are more likely to block the catheter in TDT, so the drainage speed and relief speed of the obstruction in TDT are slightly slower than those of SEMS. It has been reported that the average decompression period of TDT is 8 days, while the decompression period of SEMS is 2.2–5 days (21). Compared with the 12-day average decompression period of first-stage emergency colostomy (23), both the and SEMS the TDT have advantages in decompression speed, with the SEMS performing better. In our study, no direct comparison was made between the 2 groups of patients in terms of the time to relieve obstruction through catheters or stents. However, if the patients were fed orally, it could be inferred that the obstruction was relieved, and the exhaust and defecation were unobstructed. Therefore, the time of oral feeding can also represent the time when the catheter or stent can relieve the obstruction. In our research, the oral feeding time of patients in the SEMS group and TDT group was 2.4±1.5 and 8.1±3.8 days, respectively, which was consistent with the domestic and foreign research data and conclusions. Compared with TDT implantation, SEMS can quickly relieve the obstruction symptoms of the patients, which has a distinct time advantage (P<0.01). Furthermore, the complication rate of SEMS was significantly lower than that of TDT (P<0.05), with similar results been reported in other research centers (24-26).

Due to the bridging effect of SEMS and TDT, the obstruction was relieved, and intestinal edema was alleviated at the same time, which significantly increased the probability of one-stage anastomosis (end-to-end anastomosis) after tumor resection. The clinical success rate of both the SEMS group and TDT group was higher than 85%, with no significant difference, indicating that both can effectively relieve the clinical symptoms of intestinal obstruction. The colostomy rate of TDT group (36.3%) was higher than that of the SEMS group (26.4%) in our research, but the difference was not statistically significant and may be related to the small sample size. Compared with the traditional staging surgery method, the stoma rate of the 2 methods was around 30%, so the use of both methods can improve the rate of one-stage anastomosis in surgery. Although there was no statistically significant difference in postoperative hospitalization duration between the 2 groups, the operation time of the SEMS group was shorter than that of the TDT group (P=0.01). The research of Kinki University found that histopathologic edema was significantly more alleviated after the placement of SEMS than after the placement of TDT (5). Also, the colostomy rate of patients with a high level of intestinal edema was significantly higher than that of patients with a low level in our study. The short operation time of patients in the SEMS group was related to the fact that the stents could quickly relieve intestinal edema, thereby reducing the difficulty of intraoperative resection and anastomosis.

In our hospital, the cost of SEMS alone was about 20,000 renminbi (RMB), and the TDT cost was about 10,000 RMB. Excluding other tests unrelated to the disease, the total treatment cost of patients receiving surgery in the SEMS group and TDT group averaged 87,562 RMB and 84,547 RMB, respectively (P=0.26). Although the cost of endoscopic operation alone varies greatly, SEMS can rapidly improve the condition of intestinal obstruction, while shortened hospitalization time (before and after surgery) can also reduce part of the hospitalization costs. Therefore, there was no significant difference in total treatment cost between the SEMS group and TDT group.

Some patients with advanced tumors have multiple metastases or surgical contraindications, so alleviating obstruction symptoms, improving the quality of life, and prolonging the survival period as far as possible has become the focus of treatment.

For patients with lower rectal obstruction, SEMS may irritate the rectal mucosa, so TDT is preferred. However, long-term TDT indwelling is not convenient for the patients' daily activities and results in discomfort from the friction of the anus, which affects the independent defecation and increases the difficulty of nursing. Therefore, for patients with palliative cancer treatment, SEMS implantation is more accepted. However, according to the studies of other institutions, some patients receiving palliative care for cancer who continue to receive radiotherapy and chemotherapy after receiving SEMS treatment may experience tumor shrinkage, stent displacement, and shedding, so the necessity of operation should be weighed more carefully for these patients.

Also, SEMS may cause tumor damage while expanding and pressing the tumor. As the tumor itself is a tissue rich in blood supply, cells entering the blood can accelerate the multi-organ metastasis of the tumor. Some researchers believe that when SEMS is used as a bridge for surgery (27,28), it can induce tumor proliferation and reduce the long-term survival rate. At the same time, studies have suggested that the 5-year survival rate of patients treated with SEMS is lower than that of patients undergoing emergency surgery (29). However, several studies have concluded that there is no significant difference in the long-term tumor recurrence rate between patients receiving SEMS and those undergoing emergency surgeries. The comparative measure of circulating tumor cells before and after SEMS implantation has a specific significance. In Japan, research in this vein concluded that SEMS increases the risk of tumor metastasis to some extent. Meanwhile, whether SEMS treatment will affect the long-term survival rate of patients with malignant colorectal cancer remains to be studied.

In conclusion, with safe and reliable results, both SEMS and TDT can effectively relieve the acute malignant left colorectal obstruction. Short-term efficacy can be confirmed, but long-term efficacy still requires more extended follow-up observation. Compared with traditional staging surgery, both methods can effectively reduce the colostomy rate, providing a bridge for the selective surgery of patients with acute left malignant colorectal obstruction, with SEMS being a little faster. However, consideration for the conclusion of this study should also take into account its small, non-randomized, retrospective design, which limits its generalizability. In the future, further prospective clinical studies are required.
