Application of shear wave elastography as a diagnostic method for esophageal varices

Introduction

Rupture of esophageal varices (EV) is the most common cause of upper gastrointestinal bleeding in cirrhosis, with an incidence reported as high as 50% in the literature. The mortality rate of EV rupture bleeding is 20–30%, with shock and even death most often being caused by untimely treatment (1-3). Consequently, early detection and intervention can reduce the risk of EV rupture and ultimately reduce mortality. The current gold standard for the discovery of EV is endoscopic examination, as recommended by the United States and European Union for all patients with cirrhosis (4,5). However, this examination causes patient discomfort and is expensive, meaning that follow-up requirements often cannot be met.

Another clinical approach for the detection of EV is ultrasound elastography, which can be used to objectively and quantitatively analyze liver stiffness (LS). This procedure is mainly conducted using transient elastography (TE), acoustic radiation force impulse imaging (ARFI), and real-time shear wave elastography (SWE). As the earliest elastography technique to be applied in clinical practice (6), TE is used for the classification of hepatic fibrosis and to predict the occurrence of diseases such as EV and portal hypertension (7-9). However, this method is prone to measurement errors in patients with obesity, severe ascites, and narrow intercostal spaces. Furthermore, TE lacks 2D imaging capabilities and requires specialized equipment. For these reasons, this method is being gradually replaced by ARFI and SWE.

Although widely used in the diagnostic grading of liver fibrosis (7,10), SWE is seldom used to predict the severity of EV and rupture bleeding. Indeed, previous studies have relied on TE and aspartate aminotransferase (AST) to platelet count ratio index (APRI), rather than SWE, for predicting the occurrence of EV (11,12). The purpose of our present study was to investigate the predictive value of SWE for EV grading and rupture bleeding, and to compare the diagnostic performance of SWE with that of other noninvasive methods.

We present the following article in accordance with the Tripod Reporting Checklist (available at http://dx.doi.org/10.21037/apm-20-306).

Methods

Patients

Between October 2017 and October 2018, 120 patients who were clinically diagnosed with cirrhosis in our hospital were enrolled in this study. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the medical Ethics Committee of the Affiliated Hospital of Qingdao University, and written informed consent was provided by all study participants. Inclusion criteria required successful measurements of LS, spleen stiffness (SS), and other parameters. Exclusion criteria included hepatic and splenic tumor or other neoplasms (n=24), portal vein thrombosis (n=3), types of cirrhosis other than viral hepatitis B (n=19), and a history of portal hypertension operation (splenic embolization, transjugular intrahepatic portosystemic shunt, splenectomy, etc.) (n=17). In addition, three cases were also excluded due to severe obesity and gastrointestinal gas measurement. Therefore, of the 186 participants initially enrolled, 120 (98 men and 22 women) were ultimately included in the study.

SWE

All patients were examined in the morning in a fasted state using the Supersonic Imagine Aixplorer SC6-1 convex array probe (SuperSonic Imagine SA, Aix-en-Provence, France). The patients were placed in a supine position, and the SWE examination was performed using brightness (B)-mode ultrasound. The elasticity image box was set 1 cm deeper than the Glisson capsule and splenic capsule, and the vascular system was avoided during measurement. Measurements of LS were performed on the right lobe of the liver through the intercostal space, with patient’s right upper limb in maximal abduction. The probe was placed on the right side of the 7^th to 9^th intercostal space. When the target area of the liver was located, the B-mode ultrasound was switched to the SWE mode for measurement of LS. The patient was asked to hold a breath for about 10 s during the measurement. The measurement was repeated five times, and the results were averaged. Measurements of the splenic diameter and SS were performed between the 9^th and 11^th intercostal space, with the participant’s left upper limb in maximal abduction. Again, 5 measurements were obtained and averaged. Only patients with a coefficient of variability (CV) <0.3 for the LS and SS values obtained were included in further analyses (13).

Laboratory examination

All laboratory data for each patient, including the APRI (APRI = AST/AST_ULN ×100, AST_ULN =40 U/L), were obtained on the day of ultrasonography by a seasoned physician (≥20 years of clinical experience) who was blinded to the results of other tests.

Upper gastrointestinal endoscopy

The endoscopy was performed by a clinician (with 14 years of clinical experience) within a week of completing the ultrasound and relevant laboratory examinations. The clinician was also blinded to other data. The diagnosis of EV was made according to the Japanese Standard (14), which classifies EV as F1–F3. A red sign indicates a high-risk factor for rupture and bleeding of EV. Low-risk EVs are defined as F1 without red signs or Child-Pugh class C, while high-risk EVs are defined as F2–F3 or F1 with red signs or Child-Pugh class C. And, Figure 1 is the flow of participants through the study.

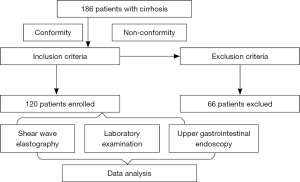

Figure 1 The flow of participants through the study.

Statistical analysis

The statistical software systems SPSS 21.0 (SPSS Inc., IBM, Chicago, IL, USA) and MedCalc15 (MedCalc Software Ltd., Ostend, Belgium) were used for statistical analysis. Variables are represented by median ($\overline{x}$) and percentile. The Chi-squared (χ²) test was used to test gender effects, while age, body mass index (BMI), APRI, portal vein diameter, platelet count, spleen thickness, LS, and SS effects were analyzed using the Mann-Whitney U test. Correlations between multiple parameters and EV classification were analyzed by Spearman’s correlation analysis. The cutoff values for APRI, portal vein diameter, platelet count, spleen thickness, LS, and SS were determined using receiver operating characteristic (ROC) curves, and the comparison of ROC curves was performed using the DeLong method. The area under the curve (AUC), specificity, sensitivity, Youden index, positive likelihood ratio (+LR), and negative likelihood ratio (−LR) were also calculated for further analysis. A value of P<0.05 was considered statistically significant.

Results

Patient characteristics

The endoscopic examinations revealed that 36 patients were non-EV and 84 were EV, of whom 49 were low-risk EV and 35 were high-risk EV. Among the 84 patients with EV, 17 were hemorrhagic and the other 67 were not. The characteristics of all 120 patients are summarized in Table 1.

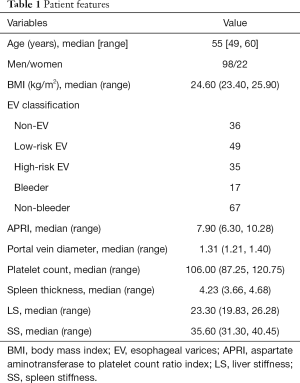

Table 1 Patient features
Full table

Diagnostic ability of variables to differentiate the severity of EV

The variables of gender, age, and BMI had P values of 0.548, 0.600, and 0.078, respectively; they could not be used as diagnostic indicators of the presence or absence of EV. By contrast, APRI, portal vein diameter, platelet count, spleen thickness, LS, and SS all had P values <0.05, so they potentially could serve as indicators (Table 2). However, no difference was observed for platelet count and APRI (P=0.301, 0.564, respectively) between patients with low-risk EV versus high-risk EV (Table 3). Only SS was a statistically significant indicator (P<0.001) for the identification of EV with or without bleeding (Table 4).

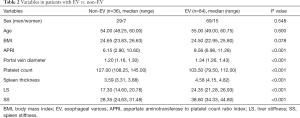

Table 2 Variables in patients with EV vs. non-EV
Full table

Table 3 APRI, portal vein diameter, platelet count, spleen thickness, LS, and SS in patients with low-risk EV vs. high-risk EV
Full table

Table 4 Difference in various parameters in non-bleeder vs. bleeder patients
Full table

Comparisons of diagnostic performance among variables

The ROC curve analysis showed AUCs for APRI, portal vein diameter, platelet count, spleen thickness, LS, and SS diagnosed with or without EV of 0.76, 0.81, 0.82, 0.89, 0.84, and 0.91, respectively. In diagnosing EV, SS was superior to APRI, portal vein diameter, platelet count, spleen thickness, and LS (Figure 2A). The AUCs for portal vein diameter, spleen thickness, LS, and SS were 0.67, 0.65, 0.66, and 0.77, respectively, for diagnosing low-risk EV and high-risk EV (Figure 2B). The cutoff values, specificity, sensitivity, Youden index, +LR and −LR of the APRI, portal vein diameter, platelet count, spleen thickness, LS, and SS for diagnosing cirrhosis with or without EV and diagnosing of low-risk EV and high-risk EV are shown in Tables 5,6. In distinguishing EV with hemorrhage or without hemorrhage, the cutoff value of 39.3 KPa for SS had a specificity of 98.60%, sensitivity of 70.15%, Youden index of 0.72, +LR of 3.35, and −LR of 0.01. The distribution of LS and SS in EV classification is shown in Figure 3.

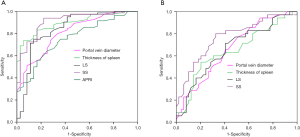

Figure 2 ROC of SWE as diagnosis method. (A) ROC curves for the APRI, portal vein diameter, spleen thickness, LS and SS for the diagnosis of EV; (B) ROC curves for LS and SS for the diagnosis of high EV. ROC, receiver operating characteristic; APRI, aspartate aminotransferase to platelet ratio index; LS, liver stiffness; SS, spleen stiffness; EV, esophageal varices; SWE, shear wave elastography.

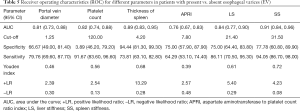

Table 5 Receiver operating characteristics (ROC) for different parameters in patients with present vs. absent esophageal varices (EV)
Full table

Table 6 Receiver operating characteristics (ROC) of different parameters in patients with low-risk EV vs. high-risk EV
Full table

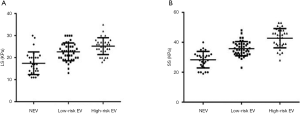

Figure 3 Distribution of liver stiffness (LS) (A) and spleen stiffness (SS) (B) subdivided according to esophageal varices (EV) status.

Correlation between variables and the severity of EV

Spearman’s correlation analysis indicated a moderate correlation between the occurrence of EV and APRI, portal vein diameter, platelet count, and LS (r=0.41, 0.49, 0.51, 0.54, P<0.05), and a high correlation with spleen thickness and SS (r=0.63, 0.65, P<0.05).

Discussion

The rupture and bleeding of EV is one of the most serious complications of portal hypertension in cirrhosis, and is the main cause of death under this condition. Especially, the risk of gastrointestinal hemorrhage is higher in patients with moderate and severe EV. Accordingly, great significance has been placed upon the early determination of the existence and severity of EV, prediction of the risk of rupture and bleeding, and timely action of corresponding interventions to reduce mortality and improve the prognosis of patients with cirrhosis. Therefore, an efficient, accurate, and reliable non-invasive detection method has been a crucial need in the evaluation of EV. The emergence of ultrasonic elastic imaging can perhaps fulfill this need, and SWE imaging in particular can quantitatively detect organ hardness and reflect the degree of organ fibrosis.

In this study, APRI, portal vein diameter, platelet count, spleen thickness, LS, and SS were found to be applicable for the diagnosis of EV (P values all <0.05), as their AUC values were 0.76, 0.81, 0.82, 0.89, 0.84, and 0.91, respectively. The LS and SS cutoff values were 21.4 and 31.5 KPa, which is consistent with the values reported by Grgurević et al. (15). Platelet count and APRI were unsuitable for the diagnosis of low-risk EV and high-risk EV (all P values >0.05), in agreement with the findings of Sharma et al. (16) and Shi et al. (17).

The platelet count and APRI were not discriminatory for the diagnosis of low-risk EV versus high-risk EV, and the specificity of platelet count (63.89%) and sensitivity of APRI (64.29%) were not sufficiently high for the diagnosis of EV. Nevertheless, these are all simple and rapid methods for evaluating cirrhosis and for predicting EV, so their clinical value should not be ignored. Of all the parameters assessed, only portal vein diameter, spleen thickness, LS, and SS were able to identify both low-risk EV and high-risk EV. The LS and SS cutoff values were 23.8 and 38.1 KPa, respectively, which were contrary to the values reported by Sharma et al. (16), who dismissed LS as useless in identifying low-risk and high-risk EV. This discrepancy could be a result of our study solely recruiting participants with hepatitis B cirrhosis, and not patients diagnosed with hepatitis B cirrhosis, alcoholic cirrhosis, or other types of hepatic cirrhosis who may present variable LS measurements. In addition, SWE is superior to TE in terms of its diagnostic performance (18). Other influencing study design factors might be differences in sample size and subject nationality. In fact, as by reported by Sporea et al. (19,20), the LS differed between Asian and European patients even for the same type of liver disease and fibrosis classification.

Although the diagnostic value of LS and SS for discriminating between low-risk EV and high-risk EV is contentious and needs further investigation, the preferable diagnostic efficiency of SS versus LS has been confirmed. In addition, the range of increase of SS is higher than that of LS, which may be associated with portal perfusion and spleen perfusion; LS decreases with a decrease in portal perfusion, whereas SS increases with an increase in spleen perfusion (21).

Portal hypertension is a major risk factor for EV bleeding. As suggested by Egawa et al. (22), a hepatic venous pressure gradient (HVPG) >10 mmHg could result in bleeding of EV. However, this is difficult to control in clinical practice because of the invasiveness of the examination. The first evaluation of SWE as a tool for non-invasive diagnosis of EV was performed by Grgurević et al. (15), but these researchers did not investigate the ability of SWE to provide a differential diagnosis of low-risk EV and high-risk EV, or its effectiveness at predicting EV bleeding. In the present study, SS predicted EV bleeding with high diagnostic efficiency (AUC =0.93). For diagnosing rupture bleeding, a high sensitivity and specificity can be achieved with SS at a cutoff value of 39.3 KPa.

In the present study, SWE was confirmed as effective for the diagnosis of EV classification and rupture bleeding. As indicated, both LS and SS increased with the increase in EV, and the increase was higher for SS than for LS, indicating that SS had a better diagnostic performance. The reason for this is that the measurement of LS is affected by liver inflammation, congestion, cholestasis, etc., as well as alanine aminotransferase (ALT) and bilirubin (23) levels. In addition, portal hypertension and hemodynamic changes cannot be accurately measured in practice, and portal hypertension is one of the main risk factors for EV rupture and hemorrhage.

This study had some limitations. Firstly, the sample size was small, and secondly, it was a single-center study. The findings should be verified in future using larger sample sizes and multicenter data.

In summary, SWE has a high predictive value for EV classification and bleeding. The use of SWE for diagnosis can reduce unnecessary endoscopy and portal hypertension monitoring, and thus this method may have considerable value in the diagnosis and treatment of EV.
