A perspective of the relationship of serum HBV DNA and HBsAg apportioned by the same hepatic parenchyma cell volume with inflammation in the natural history of chronic hepatitis B

Introduction

Chronic hepatitis B virus (HBV) infection remains an inconvenient public health burden, and the major epidemic areas of HBV infection among adults are Asia and Africa. In the course of natural infection, the development of chronic hepatitis B (CHB) leads to progressive liver fibrosis, cirrhosis, and an increased risk of liver cancer (1). Despite the existence of effective prevention and treatment interventions, HBV infection still causes nearly over 500,000 people to die around the world each year (2). During the viral infection, the majority of patients could remain in the phase of immune tolerance for a long time. In some CHB patients, after the disease enters the immune clearance phase, the continual aggravation of hepatocyte injury mediated by HBV infection activates would cause the development of liver inflammation and fibrosis (3). The progression of hepatic inflammation and fibrosis will lead to hepatocellular necrosis and the reduction of hepatic parenchyma cells gradually. The more accumulation of inflammation and fibrosis caused by a viral infection, the less hepatic parenchyma cell volume (HPCV) can be provided to HBV replication (4,5). In clinical practice, the replication of HBV is usually assessed by viral DNA load and HBV surface antigen (HBsAg) in serum (6,7), and the decline of these two clinical parameters was often observed in CHB patients with hepatic fibrosis in different degree (8,9). However, the dynamic changes of serum HBV DNA and HBsAg levels in different liver inflammation grades are not well clear. Furthermore, whether the change in serum HBV DNA and HBsAg level during different liver inflammation phase is a true reflection of HBV replication level in HPCV in the natural history of CHB needs to be assessed. In the study, we detected the dynamic expression pattern of serum HBV DNA as well as HBsAg titers apportioned by the same HPCV at liver histological inflammation grades 1, 2, 3, and 4. It helps to clarify the pathogenesis and natural history of CHB, and is more helpful in monitoring, following up, or making antiviral therapy of CHB.

We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/apm-20-635).

Methods

Patients

An across-sectional study was performed in 254 CHB patients, including 210 male and 44 female with a median age of 36.7 years (min. 10, max. 67 years), were enrolled before any anti-HBV therapies, in the Department of Infectious Disease, the Third Affiliated Hospital of Sun Yat-sen University, Guangzhou, China, between 2008 and 2012. Hepatic steatosis, nonalcoholic steatohepatitis (NASH), or the patients with severe alcohol consumption that influenced serum HBV DNA levels, HBsAg titers, or liver inflammation grades were excluded. Furthermore, the superinfection or coinfection of hepatitis A, C, D, E, and human immunodeficiency virus (HIV) had been excluded by texting the serum markers of those pathogens with Enzyme-Linked Immunosorbent Assay (ELISA).

Ethics statement

This work was approved by the ethical committee of the Third Affiliated Hospital of Sun Yat-sen University (the ethical number: [2018]02-429-01). All 254 CHB patients in our retrospective investigation had been informed of possible complications with liver biopsies clearly before the invasive operation, and informed consent forms had been signed. All patients’ data we used were fully anonymized. None of the authors of this study participated in the liver biopsy for the assessment of the degree of inflammation in CHB patients. This study has been performed in accordance with the principles of Declaration of Helsinki (as revised in 2013).

Serum HBV DNA levels and serum HBsAg titers

HBV DNA levels were determined by real-time polymerase chain reaction (PCR) (Da-an Gene Co., Guangzhou, PR China). The lower limit of detection is 100 IU/mL. HBsAg titers were performed with Elecsys (Roche Diagnostics GmbH, Mannheim). The judgment standards are stated as follows: reference ranges of HBsAg, anti-HBs, HBeAg, anti-HBe and anti-HBc are <1.0 (cut off index, COI), 0–10 IU/L, <1.0 COI, >1.0 COI and >1.0 COI, respectively. The test results of COI values read positive within the reference ranges while negative without it.

Liver histopathological diagnosis and measurements of hepatic fibrosis proportion

Liver biopsies in these 254 chronic hepatitis B patients were performed by automatic gun mating 16G needle and were guided by Esaote AU4 color Doppler system (Esaote, USA). The obtained section of each sample was about 20 millimeters in length. The biopsy specimens were fixed with Bouin’s solution and embedded in paraffin. Then stain them with Hematoxylin-Eosin and Masson’s trichrome, respectively. Liver histological inflammation grades and hepatic fibrosis stages were diagnosed according to Desmet VJ chronic hepatitis classification by liver pathologists in our hospital (10,11). Using a JVC-KY-F30B3-CCD lens (Japan) and Zeiss Axiotron microscope (Carl Zeiss AG, Germany), the measurements of hepatic fibrosis proportion were assessed with an automatic imaging analysis system (Kontron IBAS 2.5, Germany). Images of each microscope were magnified 400 times. Five fields of each vision were randomly selected from four corners and center respectively on a section to average fibrous percentages in different fibrosis stages. According to the results of automatic imagine analysis, the proportions of hepatic fibrosis were 8.31%±2.90%, 11.43%±2.76%, 14.97%±5.88% and 20.73%±4.44% in hepatic fibrosis stages 1, 2, 3 and 4, respectively.

Calculation of HPCV by the fibrosis proportion in different hepatic inflammation grades

The calculation of serum HBV DNA and HBsAg levels apportioned by the same HPCV in different liver inflammation grades was described previously (11). In short, the serum HBV DNA and HBsAg levels apportioned by HPCV in different liver fibrosis grades were equal to the serum HBV DNA and HBsAg level in each patient with the same liver histological necroinflammation grade divided by the percentage of HPCV of their liver fibrosis stage.

According to the ken principles of the microscope, 100% rotundity areas of each vision consist of different proportions of the hepatic parenchyma area and different proportions of the hepatic fibrosis area approximately. Based on automatic imaging analysis, the proportions of hepatic parenchyma cell areas are equal to 100% rotundity area of each vision minus hepatic fibrosis areas, calculated as 91.69% (100–8.31%), 88.57% (100–11.43%), 85.03% (100–14.97%), and 79.27% (100–20.73%) in hepatic fibrosis stages 1, 2, 3, and 4, respectively.

Because the rotundity area formula is A=πR², radii (R) of internal smaller rotundity hepatic parenchyma cell area is equal to the root of the ratio of internal smaller rotundity hepatic parenchyma cell area (A) to pi (π), namely $\text{R}=\sqrt{A/\pi }$. The radii of the rotundity area of hepatic parenchyma cell area in hepatic fibrosis stages 1, 2, 3, and 4 is $\sqrt{91.69\text{\%/3}\text{.14}}$=0.5404, $\sqrt{88.57\text{\%/3}\text{.14}}$=0.5311, $\sqrt{85.03\text{\%/3}\text{.14}}$=0.5204, and $\sqrt{79.27\text{\%/3}\text{.14}}$=0.5023, respectively. Furthermore, as the formula of sphere volume (V) is 4/3πR³, the three-dimensional sphere HPCV volume is V1=4/3πR1³=4/3× 3.14×0.54043=66.07%, V2=4/3πR2³=4/3×3.14×0.53113=62.72%, V3=4/3πR3³=4/3 ×3.14×0.52043 =59.00% and V4=4/3πR4³=4/3×3.14×0.50233=53.06%, in hepatic fibrosis stages 1 to 4, respectively. Figure 1 was shown as the calculation process. Table 1 showed the results of serum HBV DNA and HBsAg before and after being apportioned by the same HPCV in different inflammation stages, which was were equal to the serum HBV DNA and HBsAg level with the same liver fibrosis stages as mentioned above.

Figure 1 Sketch map of calculation of hepatic parenchyma cell volume (HPCV) in liver inflammation grades 1 to 4.

Table 1 Serum HBV DNA and HBsAg, serum HBV DNA and HBsAg apportioned by the same HPCV in different inflammation grades
Full table

Statistical analysis

Statistical analyses were performed using SPSS 20.0 software. The comparisons in serum HBV DNA and HBsAg levels before and after apportioned by the same HPCV in liver inflammation grades 1 to 4 were assessed with ANOVA test. P values <0.01 were considered significant. The correlation of serum HBV DNA/HBsAg levels with liver inflammation grades was investigated using Pearson analysis.

Results

Dynamic changes of serum HBV DNA/HBsAg and serum HBV DNA/HBsAg apportioned by the same HPCV indifferent inflammation grades

As the results showed in Table 1, no significant differences were found in the dynamics of serum HBV DNA, or HBsAg titers among different liver inflammation grades in CHB patients. However, the severer the inflammation was, the higher the serum HBV DNA and HBsAg titers apportioned by the same HPCV were observed.

Statistical analysis of serum HBV DNA/HBsAg, serum HBV DNA/HBsAg apportioned by the same HPCV in different inflammation grades

There were no differences in serum HBV DNA levels or HBsAg titers in liver inflammation grades from 1 to 4. (F=2.098, P=0.101 or F=1.517, P=0.211, respectively), but the significant differences were found in serum HBV DNA levels or HBsAg titers apportioned by the same HPCV in different hepatic inflammation grades (F=6.375, P<0.001 and F=37.254, P<0.001, respectively) (Table 2).

Table 2 Statistical analysis of serum HBV DNA and HBsAg, serum HBV DNA and HBsAg apportioned by the same HPCV in different inflammation grades (P value)
Full table

Pearson correlations of serum HBV DNA/HBsAg or HBV DNA/HBsAg apportioned by the same HPCV with inflammation grades

As shown in Figure 2, both the serum HBV DNA levels and HBsAg apportioned by the same HPCV were shown to have a strong positive correlation with liver inflammation grades (HBV DNA apportioned by the same HPCV: R=0.249, P<0.001; HBsAg apportioned by the same HPCV: R=0.554, P<0.001), while no significant correlation was found before apportion (HBV DNA: R=0.083, P=0.186; HBsAg: R=0.083, P=0.078).

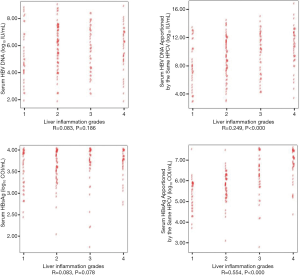

Figure 2 Pearson correlations of serum HBV DNA/HBsAg or HBV DNA/HBsAg apportioned by the same HPCV and inflammation grades.

Discussion

Until now, serum HBV DNA levels and HBsAg titers are the main and classic markers in monitoring viral replication, and evaluating antiviral therapeutic effect in patients with chronic HBV infection (12,13). There is a good positive correlation of intrahepatic cccDNA levels with HBV DNA and HBsAg levels released into peripheral blood, and both serum HBV DNA and HBsAg can be affected by virus replication activity (14-16). However, the dynamic changes of serum HBV DNA and HBsAg in CHB patients with different stages of viral infection are not well clear.

Injury of hepatocytes is typically caused by liver inflammation activity, accompanied by fibrosis formation. Progress of liver inflammation is usually accompanied by the accumulation of hepatic fibrosis. It means that hepatic parenchyma cell volume is affected, and efficient hepatic cell quantity is shrinking with the development of liver inflammation and fibrosis. Undoubtedly, the less hepatic parenchyma cells can be provided to HBV replication, the less serum HBV DNA and HBsAg can be released into the circulation. As some studies showed, both serum HBV DNA levels and HBsAg titers decline as liver inflammation and fibrosis progress in HBeAg positive CHB (17-20). But other researches indicated that both serum HBV DNA levels and HBsAg titers are independent of liver inflammation and fibrosis (21,22). Nevertheless, the impact of inflammation on HPCV was not taken into consideration by the studies above. Whether the HPCV could affect viral replication and the level of serum HBV DNA levels and HBsAg titers is not well clear. Therefore, it is necessary to figure out the dynamic expression patterns of serum HBV DNA and HBsAg levels apportioned by the same HPCV in different liver inflammation grades.

Current studies indicated that the expression of HBV DNA and HBsAg is declined in CHB patients with hepatic fibrosis (8,9). However, the previous study showed that the decrease in HBV DNA level from liver fibrosis stage from 1 to 4 is not a true reflection of a decline of viral replication level in hepatic parenchyma cells. HBV DNA released by the same HPCV in hepatic fibrosis stages 1–4 is similar during the natural course of CHB (11,23). The result of these studies inspired us that “the natural decline” of serum HBV DNA levels, as well as HBsAg titers in the natural history of CHB, does not represent the reduction of viral replication nor the easing of liver inflammation. This is a new understanding of “natural decline” of serum HBV DNA and HBsAg titers in the natural history of CHB from a pathological perspective, and it reminds us that we should be cautious about these CHB patients whose serum HBV DNA levels and (or) HBsAg titers monitored “declining” naturally. We should be aware of the impact of liver inflammation and companied hepatic fibrosis on HPCV, where HBV replicates.

In the study, we mainly focus on exploring the effect of hepatic inflammation on the serum HBV DNA and HBsAg titers apportioned by the same HPCV. Consistent with previous reports (21), no significant differences in inflammation grades 1–4 were found, and these results indicated that serum HBV DNA levels and HBsAg titers are independent of liver inflammation grades in CHB patients. However, after serum HBV DNA levels and HBsAg titers were apportioned by the same HPCV at different liver histological inflammation grades, with the increase of hepatic inflammation, the expression of HBV serum DNA and HBsAg were elevated. The above results suggest that inflammation could stimulate the release of HBV DNA and HBsAg from the same HPCV during the natural course of CHB. Furthermore, although HBV DNA and HBsAg were not associated with liver inflammation grades, a strong positive correlation with liver inflammation grades were observed with the levels of serum HBV DNA and HBsAg apportioned by the same HPCV.

In our study, only a limited number of patients were enrolled to explore the relationship of serum HBV DNA and HBsAg apportioned by the same HPCV with inflammation in CHB patients. To better understand the effect of inflammation on the level of serum HBV DNA as well as HBsAg apportioned by the same HPCV, a large cohort in the future study is needed. Based on our results, it should be noted that liver histopathologic inflammation evaluation through invasive or noninvasive methods is necessary to assess the influence of the same HPCV on serum HBV DNA and HBsAg in the natural history of CHB. Furthermore, effective antiviral-therapy should be applied according to liver pathological inflammation diagnosis, even if serum HBV DNA and (or) HBsAg detected at low levels, and the clinicians should strengthen monitoring and follow-up to these CHB patients whose serum HBV DNA levels and (or) HBsAg titers seemed “declining” naturally. Taken together, this study provided a better understanding of the change of serum HBV DNA levels and HBsAg titers released by the same HPCV in various inflammation stages in the natural history of CHB, and it might be helpful to understand and monitor the progress of CHB.

Acknowledgments

Funding: The manuscript was supported by Youth Program of National Natural Science Foundation of China Science Fund Project 81702375; Young Teacher Training Project of Sun Yat-sen University 19ykpy32; Youth Program of Hengrui Hepatobiliary and Pancreatic Cancer Research Fund CXPJJH11800001-20183331.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-635

Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-635

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-635). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This work was approved by the local ethical committee of the Third Affiliated Hospital of Sun Yat-sen University (the ethical number: [2018]02-429-01). All 254 CHB patients in our retrospective investigation had been informed of possible complications with liver biopsies clearly before the invasive operation, and informed consent forms had been signed. This study has been performed in accordance with the principles of Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
