Ipsilateral ultrasound-monitoring technique for reducing malpositions of peripherally inserted central catheters in the intensive care unit

Introduction

A peripherally inserted central venous catheter (PICC) is inserted via a peripheral vein, with the tip residing in a central vein (1). PICCs are widely used in the intensive care unit (ICU) for mid- and long-term central venous access (2). Compared with the traditional central venous catheter (CVC), a PICC inserted into the upper arm is safer and has a lower infection rate and a longer duration of use (3,4).

In general, an interventional radiologist places a PICC under fluoroscopic guidance. However, most patients in the ICU are unable to move to the interventional radiology suite because of respiratory failure or hemodynamic instability. In these cases, which require PICC placement in the ICU, fluoroscopy cannot be used, and the position of the catheter tip must be confirmed using radiography after insertion. This also monitors the catheter movement into the internal jugular vein (IJV) after insertion. A CVC tip located at or above the level of the upper superior vena cava (SVC) is more likely associated with thrombosis and an increased risk of migration (5,6).

In this study, more than half of PICC malpositions went to the head through the IJV. We performed ultrasonographic examinations of the IJV after PICC insertion to indirectly confirm whether the catheter was present and to compare these findings with the previous radiographic confirmations after PICC placement.

We present the following article in accordance with the STROBE Statement reporting checklist (available at http://dx.doi.org/10.21037/apm-20-1201).

Methods

We conducted a retrospective, case-control, single-center study of patients aged 18–95 years who required a PICC in the ICU of a single institution from January 1, 2018, to December 31, 2018. All PICC procedures in the ICU took place at the bedside and were performed in the upper arm by a single vascular surgeon.

From January to June 2018, PICCs were inserted with the arm abducted at 90° from the patient’s body and the head turned toward the ipsilateral side (if possible) under ultrasonic guidance. The presence of the PICC in the ipsilateral IJV was not confirmed using ultrasonography during this timeframe (procedure A). From July to December 2018, PICCs were inserted with the same posture as in procedure A. This time, however, the presence of the PICC in the ipsilateral IJV was confirmed using ultrasonography (procedure B) to compare the accuracy of the PICC tip positioning using the two methods. The same LOGIQ e ultrasound (GE Healthcare, Chicago, IL, USA) was used for both PICC procedure and ipsilateral IJV monitoring.

The catheter tip position ideally rests at the junction of the SVC and the right atrium, also called the cavoatrial junction (CAJ). The CAJ was defined to be 5 cm below the right tracheobronchial angle, based on the reported median distance of 4.9 cm (range, 2.9–6.8 cm) from the right tracheobronchial angle to the CAJ (7). Catheter tip position was graded according to the following classification scheme: 0 indicated containment within the body of one thoracic spine containing the junction; −1 signified one spine body cephalad to the thoracic spine containing the junction; −2 denoted greater than the body of the thoracic spine containing the junction, at two spine bodies cephalad; and +1 was defined as one spine body caudal to the body of the thoracic spine, including the junction (Figure 1).

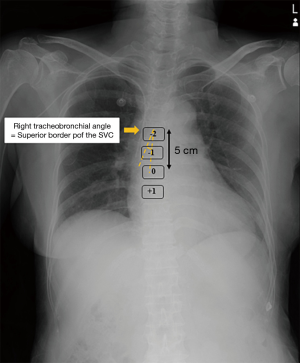

Figure 1 Definitions of peripherally inserted central catheter tip positions. The catheter tip position was based on the junction of the superior vena cava (SVC) and right atrium, also called the cavoatrial junction (CAJ). The CAJ was defined as the site 5 cm below the right tracheobronchial angle. 0: the catheter tip was contained within the body of one thoracic spine containing the junction; −1: the catheter tip was located in one spine body cephalad to the thoracic spine containing the junction; −2: the location of the catheter tip was greater than the body of the thoracic spine containing the junction, at two spine bodies cephalad; +1: the catheter tip was located in one spine body caudal to the body of the thoracic spine including the junction.

Operative procedure

One cardiovascular surgeon performed all PICC insertions (Figure 2). The surgeon used a 5-Fr dual-lumen Xcela^® Power Injectable PICC (Navilyst Medical Inc., MA, USA) or a 6-Fr triple-lumen Pro-PICC CT Injectable Catheter (Medcomp, PA, USA). Maximal barrier precautions, including cap, mask, sterile gown, sterile gloves, and vast sterile field, were consistently used during the procedures. Peripheral venous access was obtained through the basilic or brachial veins with ultrasound guidance. A standard 5- to 12-MHz linear ultrasound probe was used. Lidocaine (2%, 1–2 mL) was injected into the subcutaneous tissue for local anesthesia.

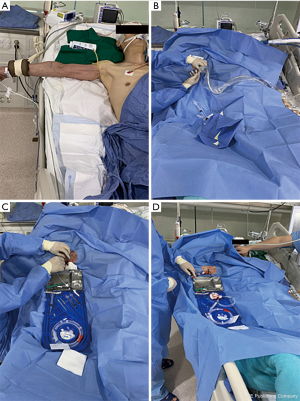

Figure 2 Procedure B. (A) The peripherally inserted central catheter (PICC) was inserted with the arm abducted 90° from the patient’s body with the head turned toward the ipsilateral side (if possible); (B) maximal barrier precautions were consistently used during the procedure, including a cap, mask, sterile gown, sterile gloves, and vast sterile field. Under ultrasound guidance, the target vessel was punctured with a 20-gauge needle and blood return was confirmed; (C) the catheter was inserted into the micro-introducer sheath; (D) the position of the catheter tip in the ipsilateral internal jugular vein was immediately checked using ultrasonography.

Under ultrasound guidance, the target vessel was punctured using a 20-gauge needle, and blood return in the needle was confirmed. A 0.018-inch guide wire was then introduced into the vein blindly. The puncture site was then enlarged slightly with a scalpel blade, and a 5-Fr micro-introducer assembly was introduced over the guidewire. The length of the PICC was determined as the distance from the puncture site to the humeral head, sternal notch, and third intercostal space. The catheter was inserted into the micro-introducer sheath. In procedure B, the presence of the catheter tip in the ipsilateral IJV was immediately checked using ultrasonography. When the catheter was seen on the sonogram, it was pulled back sufficiently and repeatedly positioned until no part of the catheter was visible on sonogram (Figure 3). After completion of procedures A and B, a chest radiograph was obtained to confirm the position of the catheter tip. A malposition was defined as a catheter tip location in the innominate vein or IJV and not in the SVC (Figure 4). The dressing was changed every 7 days or when soiled.

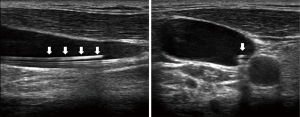

Figure 3 Peripherally inserted central catheter (PICC) tip in the internal jugular vein. The presence of a PICC catheter (white arrows) in the internal jugular vein can be confirmed using ultrasonography.

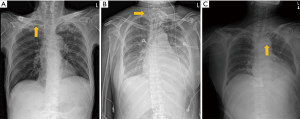

Figure 4 Examples of peripherally inserted central catheter (PICC) malpositions. (A) The catheter tip is located in the right subclavian vein (arrow); (B) the catheter tip is located in the right internal jugular vein (arrow); (C) the catheter tip is located in the left innominate (brachiocephalic) vein (arrow).

Statistical analysis

A two-sample t-test or Wilcoxon rank-sum test was used for continuous variables, and Fisher’s exact test was used for categorical variables. All analyses were performed using SAS version 9.3 (SAS Institute., Cary, NC, USA), and a P<0.05 was considered statistically significant.

Ethical statement

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional review board from the Pusan National University Hospital (H-1909-017-083), and individual consent for this retrospective analysis was waived.

Results

From January 2018 to December 2018, there were 794 PICC placements in 650 patients. Procedures A and B were performed on 418 and 376 patients, respectively. The characteristics of the two groups are described in Table 1. PICC malpositions were identified by chest radiography in 5.7% and 2.4% of patients after procedures A and B, respectively. There were significantly less malpositions during procedure B (P=0.02). A significant difference was found in the catheter tip location between the two groups (P=0.02). When the arm was abducted at 90°, it seemed to be more accurate to manually determine the length of the PICC. Table 2 shows the results of the classification based on the location of the malposition, as shown in Figure 4. Malposition B, with the catheter tip located in the IJV, occurred less often in procedure B than in procedure A; however, there were no statistically significant differences. The outcomes associated with PICC insertions are described in Table 3. The causes of PICC removals were also examined. There were no significant differences between the two groups based on discharge, death, infection, malfunction, or self-removal.

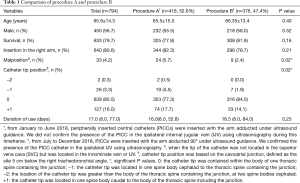

Table 1 Comparison of procedure A and procedure B
Full table

Table 2 Classification by malposition location
Full table

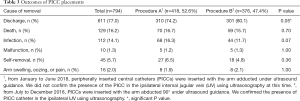

Table 3 Outcomes of PICC placements
Full table

Discussion

CVC placement is a routine central venous access procedure performed in the ICU setting for administration of drugs, including vasopressors, inotropes, antibiotics, or chemotherapy, central venous pressure monitoring, central venous oxygen saturation measurements, and total parenteral nutrition. Unlike other types of central venous access, PICC is increasingly being used for its ease of placement and its low rate of insertion-related mechanical complications, including venous thromboses and infections (8-12). Although a PICC is inserted to maintain central venous access in patients admitted to the ICU, it is not easy to correctly position the catheter without using fluoroscopy.

The bedside ultrasonography and saline flush technique have both been identified as methods to reduce PICC malpositions in settings where fluoroscopy is not available, such as in the ICU (13,14). Despite its proven usefulness, the saline flush technique requires additional heart ultrasound probes and a professional assistant to identify saline bubbles in the right atrium using ultrasonography. In a meta-analysis conducted by Bou Chebl et al. (14), contrast-enhanced ultrasonography showed a pooled sensitivity of 72%, pooled specificity of 100% (95% CI, 99–100%), positive predictive value of 92.1%, and negative predictive value of 98.5% compared to chest radiography for confirming CVC placement.

Li et al. used an electrocardiograph (ECG)-guided PICC tip location technique to confirm the catheter tip location (15). When the catheter was inserted almost up to the estimated length, the right arm lead was removed, and the clamps were sterilized and attached to the guide wire. The guide wire was then advanced slowly, 0.5 to 1 cm at a time, while observing the P-wave changes on the monitor. The ECG test group (99.3%) achieved a significantly more accurate tip placement than did the control group (92.3%, P<0.001); however, this method cannot be used in patients with heart disease or arrhythmia and can present risks of contamination (16).

In the present study, malpositions were reduced by half with procedure B (2.4%) compared with procedure A (5.7%) because ultrasonography successfully identified malpositions from the IJV upwards. This finding was observed because ultrasonography identified malpositions from the IJV upwards (Figure 4B). As shown in Table 2, 14 cases of malposition B occurred in procedure A and two cases in procedure B. Even though we observed the IJV using ultrasonography, we missed two cases. It is presumed that despite the monitoring of the IJV using ultrasonography, these cases were missed because of the insufficient monitoring to the proximal portion of the IJV. Malpositions A and C could not be resolved by ultrasound observation of the IJV because the catheter tip was located in the right subclavian vein and left innominate vein. Although the number of malposition B cases decreased significantly, malposition of 2.4% occurred.

According to Schweickert et al., when monitoring the ipsilateral IJV while placing PICCs at the bedside, the malposition of the ipsilateral IJV was significantly lower than that of the unmonitored ipsilateral IJV (0.7% vs. 7.4%, P=0.003). The number of cases where the PICC was accurately located in the SVC was statistically significantly higher in the ipsilateral IJV-monitored group (68.9% vs. 58.4%, P=0.06). In addition, malposition to other proximal vein (subclavian vein, brachiocephalic vein, and axillary vein) occurred in this study, and no statistically significant difference was found between ipsilateral IJV monitoring and non-monitoring (17).

In this study, the accuracy of the catheter tip location was similar to that of the bedside ultrasonography and saline flush technique and an ECG-guided PICC tip location technique and was more accurate than other studies that monitored the ipsilateral IJV using ultrasonography; however, the technique for ultrasound monitoring of the ipsilateral IJV did not require a professional assistant nor an echocardiography probe, and patients with arrhythmias or heart disease could safely go through this procedure.

In both procedures, chest radiographs were essential for determining the catheter tip positions. Nevertheless, PICC placement continues to be a challenge in the context of venospasm, venous tortuosity, and venous valves (1). The limitation of this method is that it cannot identify malpositions, as illustrated in Figure 3A,C.

Most guidelines recommend that the catheter tip should be located in the inferior third of the SVC at the junction of the right atrium; however, the ideal location for the CVC tip is still a matter of debate (18-20). The right tracheobronchial angle is considered the best landmark for catheter tip positioning (20) and the most reliable radiographic landmark to define the borders of the SVC. This angle is created as the right main bronchus bifurcates from the trachea. The superior border of the SVC is always superior to the right tracheobronchial angle (7,21). The median distance from the right tracheobronchial angle to the CAJ is 4.9 cm (range, 2.9–6.8 cm) (7). We found that procedure B allowed for significantly more accurate positioning of the catheter tip than procedure A. Nevertheless, the effect of increasing operator experience over time as a possible bias between the methods cannot be ruled out.

There were some limitations to this study. There was a limitation in statistical analysis because this study was not a randomized trial, and both groups were not conducted simultaneously. In addition, all procedures were performed by one operator. Nevertheless, there have been no previous studies confirming PICC placement in the ipsilateral IJV using ultrasonography to reduce malpositions in settings where fluoroscopy is not available. This technique was simple and easy to perform, did not require echocardiography probes or trained assistants, could be performed in patients with or without arrhythmias or heart diseases, and had a similar accuracy compared to previous methods. In the future, a method to monitor the location of the catheter tip in real time and without an interventional suite should be developed.
