Effects of Salvia miltiorrhiza injection on apoptosis of Schwann cells induced by hydrogen peroxide
Introduction
With the development of tissue engineering and molecular biology technology, research on peripheral nerve injury is now extensive (1-3). After peripheral nerve injury, the preservation of nerve cells and prevention of apoptosis are important for nerve regeneration. The gradual restoration of its regenerative ability depends on the microenvironment provided by the relevant cytokines. As an important glial cell in the peripheral nervous system, Schwann cell (SCs) play a key role in the process of nerve injury, regeneration, and repair (4,5). Damage to SCs likely induces cell apoptosis, which will cause neurodegenerative diseases and restrict the functional recovery of peripheral nerves (6-8).
Various reactive oxygen species, such as superoxide anion, hydrogen peroxide (H2O2), and nitric oxide, are all associated with cell apoptosis (9,10). If the body overproduces these reactants, it will accelerate cell damage and tissue dysfunction. As a permeable membrane oxidant, H2O2 can freely diffuse into various cells and organelles, and induce oxidative stress effects, which may lead to mitochondrial dysfunction and ultimately destroy cell function integrity (11,12). Many studies have found that the SC apoptosis induced by H2O2 can affect nerve regeneration (13,14).
The advantages of traditional Chinese medicine are mainly reflected in the definite clinical efficacy and relatively safe medication, which has generated interest among researchers. In recent years, many studies have reported the protective effect of Salvia miltiorrhiza on myocardial ischemia-reperfusion injury, which fully shows that Salvia miltiorrhiza is widely used in the treatment of cardiovascular diseases and its anti-inflammatory and anti-apoptotic effects (15-17). There are also studies to observe the protective effect of Salvia miltiorrhizaafter exposing cardiomyocytes to H2O2, but there are few studies on the protective effect of Salvia miltiorrhizaon SCs with oxidative damage (18-20).
In the present study, we used an H2O2-induced SCs apoptosis model to investigate the potential protective role of different concentrations of Salvia miltiorrhiza injection. The findings indicated that Salvia miltiorrhiza injection can protect SCs from apoptosis caused by H2O2. We hope these findings could provide an experimental basis for the clinical application of Salvia miltiorrhiza.
We present the following article in accordance with the MDAR checklist (available at http://dx.doi.org/10.21037/apm-20-2580).
Methods
Ethics Statement
Experiments were performed under a project license (No.: 20190303-15) granted by Laboratory Animal Ethics Committee of Nantong University, in compliance with Nantong University institutional guidelines for the care and use of animals.
Cell culture
SCs were cultured from the sciatic nerves of 1-day-old Sprague-Dawley rats, and digested by collagenase and trypsin, as previously described (21). The 1-day-old rats were acquired from the Experimental Animal Center of Nantong University [license No. SCXK (Su) 2014-0001 and SYXK (Su) 2012-0031, No. 20190225-004]. Briefly, the SCs were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum (Gibco, Grand Island, NY, USA) containing Recombinant Human NRG1-β1/HRG1-β1 (HRG) (R&D System, Minneapolis, MN, USA) and forskolin (Sigma, St. Louis, MO, USA). Then anti-Thy1.1 antibody (Sigma, St. Louis, MO, USA) and rabbit complement (Invitrogen, Carlsbad, CA, USA) were further added to SCs isolated, and the purified SCs was observed and photographed.
Immunofluorescence staining
Cells were fixed in 4% formaldehyde for 15 min at room temperature. After washing with phosphate-buffered saline (PBS) twice; blocking solution was added at room temperature for 90 min. After incubation with anti-S100 (1:500; Abcam) antibody at 4 °C overnight, the secondary antibody (donkey anti-mouse IgG-Alex-488, 1:200; Invitrogen) was incubated for 1 h at room temperature under dark conditions. After staining the nucleus with Hoechst 33258, the cells were observed under a fluorescence microscope (AxioImager M2; Zeiss).
Cell treatment
Prior to each experiment, H2O2 was freshly diluted to a 1 mM final concentration with DMEM. Salvia miltiorrhiza injection (Zhengda Qingchunbao, China) was diluted into different concentrations (1/160, 1/80, 1/40) with DMEM, according to the concentration of the stock solution (1–1.5 g/mL). To determine the effect of Salvia miltiorrhiza injection, SCs were pretreated with Salvia miltiorrhiza injection for 24 h, followed by co-treatment with 1 mM H2O2 for 30 min. In a single experiment, each treatment was performed in triplicate.
Cell viability assay
The cells were inoculated onto 96-well plates, and each group was subjected to corresponding treatment. A total of 20 µL 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) was added to each well and cultured at 37 °C for 4 h. The supernatant was discarded, and 150 µL dimethyl sulfoxide (DMSO) was added to each well and gently shaken. The light absorption value of each group was determined at a wavelength of 490 nm with a microplate analyzer.
Morphological observation of cells
SCs were inoculated onto a 24-well plate at a density of 5×104/mL. After the treatment of cells in each group, morphological changes of cells were observed under an inverted microscope. Six fields were randomly selected for each group, and the experiment was repeated 3 times.
Flow cytometry
To detect the apoptosis rate of SCs, flow cytometry apoptosis was detected in each group. Cells were resuspended in binding buffer and stained with 5 µL Annexin V-FITC and 10 µL propidium iodide (PI) at room temperature for 15 min under dark conditions. Apoptotic cells were analyzed by flow cytometry (BD Biosciences, San Jose, CA, USA), and the number of early apoptotic cells were calculated.
Terminal deoxynucleotidyl transferase-mediated dUTP nick end labeling (TUNEL) assay
Cells were seeded at a density of 2×105 cells/mL with different treatments. TUNEL assay (Promega, Madison, WI, USA) was used to detect apoptotic cells. Hoechst 33342 was added for observation. The apoptotic rate was observed by calculating the number of TUNEL-positive cells in each field.
Western blotting analysis
After the cell model was established, the proteins of each group were extracted; 30 µg cell proteins were separated on 10% sodium dodecylsulfate polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to polyvinylidene fluoride (PVDF) membranes (Millipore, Bedford, MA, USA). After blocking for 2 h with 5% skim milk, anti-Bcl-2 (1:1,000; Abcam), anti-Bax (1:1,000; Abcam), and anti-GAPDH (1:5,000; Abcam) antibodies were added and incubated overnight at 4 °C. The secondary antibody was incubated at room temperature for 1 h, and protein data were analyzed.
Statistical analysis
All data are presented as mean ± standard error. Statistical significance was conducted by one-way analysis of variance. Differences between groups were compared by t-test, and P<0.05 was considered to be statistically significant.
Results
Establishment of SC apoptosis model induced by H2O2

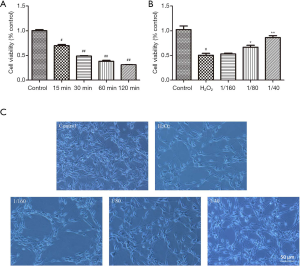

The purity of primary cultured SCs was determined by immunochemistry with anti-S100 staining (Figure 1). After adding 1 mM H2O2 to the SCs for 15, 30, 60, and 120 min, the cell activity decreased significantly. As shown in Figure 2A, an obvious decrease of viability was observed at 30 min with 1 mM H2O2 exposure (51.3%±1.01%, compared with the control). Treatment with 1 mM H2O2 for 30 min was used for subsequent experiments.
Effect of Salvia miltiorrhiza injection on H2O2-induced cytotoxicity of SCs
To evaluate the potential cytoprotective effect of Salvia miltiorrhiza injection against H2O2-induced SC death, SCs were pretreated with Salvia miltiorrhiza injection at various concentrations (1/160, 1/80, 1/40) for 24 h, followed by exposure to H2O2 at a final concentration of 1 mM for 30 min. As shown in Figure 2B, a low concentration of Salvia miltiorrhiza injection had no significant effect on the viability of apoptotic SCs, while moderate and high concentrations of Salvia miltiorrhiza injection increased the survival to 71.8%±1.6% and 85.4%±1.2%, respectively (P<0.05). These data suggest that Salvia miltiorrhiza injection at these concentrations was not significantly cytotoxic.
Effect of Salvia miltiorrhiza injection on H2O2-induced morphological changes of SCs
After treatment with different concentrations of Salvia miltiorrhiza injection, we observed the morphology of SCs in each group. As shown in Figure 2C, cells in the control group had good morphology. The number of cells in the H2O2 group was significantly reduced, and shrinking and rounding of cell bodies and decreased connections between cells were observed. There was little change in cell number and morphology in the low concentration group. The number of cells in the moderate concentration group increased significantly. Compared with the moderate concentration group, the number of cells in the high concentration group increased more and the cells are better connected to each other.
Salvia miltiorrhiza injection protects SCs against H2O2-induced cell apoptosis

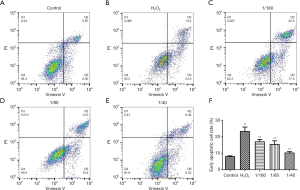

Flow cytometry results showed that the apoptosis of SCs increased rapidly in the H2O2 group. The number of apoptotic cells decreased significantly after treatment with different concentrations of Salvia miltiorrhiza injection, and the protective effect became more obvious with the drug concentration increase. Compared with the control group, the difference was statistically significant (P<0.01) (Figure 3). TUNEL-positive cells significantly increased from 3.78%±1.05% (control) to 13.88%±1.89% after exposure to H2O2 alone (P<0.01). After treatment with different concentrations of Salvia miltiorrhiza injection, the number of TUNEL-positive cells reduced to 9.03%±1.92%, 8.46%±1.23%, and 4.88%±2.24%, respectively (P<0.01) (Figure 4).
Salvia miltiorrhiza injection inhibits apoptosis, as measured by Bax and Bcl-2 in SCs

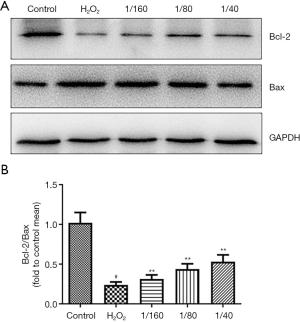

To confirm the protection of Salvia miltiorrhiza injection against H2O2-induced apoptosis, apoptosis-associated protein levels were measured. Treatment with different concentrations of Salvia miltiorrhiza injection significantly increased the expression of Bcl-2 and significantly decreased the expression of Bax compared with that of H2O2 treatment alone (Figure 5).
Discussion
Salvia miltiorrhiza is a well-known traditional Chinese medicine with many functions and effects, including enhancing myocardial contractility, regulating heart function and lowering blood lipids (22,23). In the present study, we found that Salvia miltiorrhiza injection could protect SCs from H2O2-induced damage. To the best of our knowledge, our study is the first to report on the protective effect of Salvia miltiorrhiza injection on SCs during oxidative stress.
In the process of nerve regeneration, SCs can secrete a large number of growth factors to promote axon growth and myelin formation, which play a key role in peripheral nerve regeneration (24,25). Oxidative stress can affect DNA synthesis and mitochondrial function, and completely destroy cell integrity. Therefore, apoptosis induced by oxidative stress is an important pathogenic factor in many neurodegenerative diseases (26).
In the present study, we constructed a H2O2 injury model in primary SCs to explore the protective effects of different concentrations of Salvia miltiorrhiza injection on SC apoptosis induced by H2O2. We found that Salvia miltiorrhiza injection can significantly improve the morphological changes and the viability of SCs exposed to H2O2. Annexin V-FITC/PI flow cytometry and TUNEL test results also showed that Salvia miltiorrhiza injection can inhibit the apoptosis of SCs induced by H2O2 in a dose-dependent manner. In addition, it was also found that the expression of Bax and Bcl-2 both changed significantly after adding different concentrations of Salvia miltiorrhiza injection.
The findings of the present study indicate that different concentrations of Salvia miltiorrhiza injection can protect SCs from apoptosis caused by H2O2. The findings provide a basis for the application of Salvia miltiorrhiza in peripheral nerve injury repair, but further research on its molecular mechanism warrants further investigation.
Acknowledgments
Funding: This work was supported by grants from the Basic Research Project of the Jiangsu Education Department (Grant No. 19KJD310001, 18KJD310002), the Innovation and Entrepreneurship Training Program project for College Students of Jiangsu Province (Grant No. 201913993012Y), the National Natural Science Foundation of China (Grant No. 81901256), and the Science Foundation of Xinglin College, Nantong University (Grant No. 2016K135).
Footnote
Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-2580
Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-2580
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-2580). The authors have no conflicts of interest to declare.
Ethics Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (No.: 20190303-15) granted by Laboratory Animal Ethics Committee of Nantong University, in compliance with Nantong University institutional guidelines for the care and use of animals.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
References
- Shabeeb D, Najafi M, Keshavarz M, et al. Recent Finding in Repair of the Peripheral Nerve Lesions Using Pharmacological Agents: Common Methods for Evaluating the Repair Process. Cent Nerv Syst Agents Med Chem 2018;18:161-72. [Crossref] [PubMed]
- Hainline B. Peripheral nerve injury in sport: an overview. Handb Clin Neurol 2018;158:381-4. [Crossref] [PubMed]
- Dong R, Liu Y, Yang Y, et al. MSC-Derived Exosomes-Based Therapy for Peripheral Nerve Injury: A Novel Therapeutic Strategy. Biomed Res Int 2019;2019:6458237. [Crossref] [PubMed]
- Ju DT, Liao HE, Shibu MA, et al. Nerve Regeneration Potential of Protocatechuic Acid in RSC96 Schwann Cells by Induction of Cellular Proliferation and Migration through IGF-IR-PI3K-Akt Signaling. Chin J Physiol 2015;58:412-9. [Crossref] [PubMed]
- Jesuraj NJ, Santosa KB, Newton P, et al. A systematic evaluation of Schwann cell injection into acellular cold-preserved nerve grafts. J Neurosci Methods 2011;197:209-15. [Crossref] [PubMed]
- Zhao Z, Li X, Li Q. Curcumin accelerates the repair of sciatic nerve injury in rats through reducing Schwann cells apoptosis and promoting myelinization. Biomed Pharmacother 2017;92:1103-10. [Crossref] [PubMed]
- Liu CY, Yin G, Sun YD, et al. Effect of exosomes from adipose-derived stem cells on the apoptosis of Schwann cells in peripheral nerve injury. CNS Neurosci Ther 2020;26:189-96. [Crossref] [PubMed]
- Nishio Y, Nishihira J, Ishibashi T, et al. Role of macrophage migration inhibitory factor (MIF) in peripheral nerve regeneration: anti-MIF antibody induces delay of nerve regeneration and the apoptosis of Schwann cells. Mol Med 2002;8:509-20. [Crossref] [PubMed]
- Quan YY, Qin GQ, Huang H, et al. Dominant roles of Fenton reaction in sodium nitroprusside-induced chondrocyte apoptosis. Free Radic Biol Med 2016;94:135-44. [Crossref] [PubMed]
- Wang Z, Li S, Cao Y, et al. Oxidative Stress and Carbonyl Lesions in Ulcerative Colitis and Associated Colorectal Cancer. Oxid Med Cell Longev 2016;2016:9875298. [Crossref] [PubMed]
- Daverey A, Agrawal SK. Curcumin alleviates oxidative stress and mitochondrial dysfunction in astrocytes. Neuroscience 2016;333:92-103. [Crossref] [PubMed]
- Jiang D, Fu C, Xiao J, et al. SGK1 Attenuates Oxidative Stress-Induced Renal Tubular Epithelial Cell Injury by Regulating Mitochondrial Function. Oxid Med Cell Longev 2019;2019:2013594. [Crossref] [PubMed]
- He B, Wu F, Fan L, et al. Carboxymethylated chitosan protects Schwann cells against hydrogen peroxide-induced apoptosis by inhibiting oxidative stress and mitochondria dependent pathway. Eur J Pharmacol 2018;825:48-56. [Crossref] [PubMed]
- Chao PY, Lin JA, Ye JC, et al. Attenuation of Oxidative Stress-Induced Cell Apoptosis in Schwann RSC96 Cells by Ocimum Gratissimum Aqueous Extract. Int J Med Sci 2017;14:764-71. [Crossref] [PubMed]
- Su CY, Ming QL, Rahman K, et al. Salvia miltiorrhiza: Traditional medicinal uses, chemistry, and pharmacology. Chin J Nat Med 2015;13:163-82. [Crossref] [PubMed]
- Ren J, Fu L, Nile SH, et al. Salvia miltiorrhiza in Treating Cardiovascular Diseases: A Review on Its Pharmacological and Clinical Applications. Front Pharmacol 2019;10:753. [Crossref] [PubMed]
- Jin YC, Kim CW, Kim YM, et al. Cryptotanshinone, a lipophilic compound of Salvia miltiorrriza root, inhibits TNF-alpha-induced expression of adhesion molecules in HUVEC and attenuates rat myocardial ischemia/reperfusion injury in vivo. Eur J Pharmacol 2009;614:91-7. [Crossref] [PubMed]
- Yu YG, Yang J, Cheng XH, et al. The protection of acute spinal cord injury by subarachnoid space injection of Danshen in animal models. J Spinal Cord Med 2019;42:355-9. [Crossref] [PubMed]
- Chang CC, Chang YC, Hu WL, et al. Oxidative Stress and Salvia miltiorrhiza in Aging-Associated Cardiovascular Diseases. Oxid Med Cell Longev 2016;2016:4797102. [Crossref] [PubMed]
- Duan ZZ, Li YH, Li YY, et al. Danhong injection protects cardiomyocytes against hypoxia/reoxygenation- and H2O2-induced injury by inhibiting mitochondrial permeability transition pore opening. J Ethnopharmacol 2015;175:617-25. [Crossref] [PubMed]
- Yu B, Qian T, Wang Y, et al. miR-182 inhibits Schwann cell proliferation and migration by targeting FGF9 and NTM, respectively at an early stage following sciatic nerve injury. Nucleic Acids Res 2012;40:10356-65. [Crossref] [PubMed]
- Choi S, Tang A, Murthy S, et al. Preoperative Evaluation and Clinical Decision Making for Giant Paraesophageal Hernias: Who Gets an Operation? Thorac Surg Clin 2019;29:415-9. [Crossref] [PubMed]
- Zhang J, Liang R, Wang L, et al. Effects and mechanisms of Danshen-Shanzha herb-pair for atherosclerosis treatment using network pharmacology and experimental pharmacology. J Ethnopharmacol 2019;229:104-14. [Crossref] [PubMed]
- Wang H, Zhang P, Yu J, et al. Matrix metalloproteinase 7 promoted Schwann cell migration and myelination after rat sciatic nerve injury. Mol Brain 2019;12:101. [Crossref] [PubMed]
- Webber CA, Christie KJ, Cheng C, et al. Schwann cells direct peripheral nerve regeneration through the Netrin-1 receptors, DCC and Unc5H2. Glia 2011;59:1503-17. [Crossref] [PubMed]
- de Jager TL, Cockrell AE, Du Plessis SS. Ultraviolet Light Induced Generation of Reactive Oxygen Species. Adv Exp Med Biol 2017;996:15-23. [Crossref] [PubMed]
