Stereotactic radiosurgery for treatment of large cerebellum metastases from lung cancer

Introduction

Brain metastases are the most common type of intracranial tumor, the incidence of which is increasing due to the improved outcome of systemic therapy and the now routine use of brain magnetic resonance imaging (MRI) screening in detecting tumors. The management of brain metastases is determined by factors such as the number, location and size of tumors, the volume of peritumoral edema, and patient factors such as primary diseases factors and patient age and performance status. A small number of studies have demonstrated single-session and multisession-session stereotactic radiosurgery (SRS) to be effective and safe in treating large brain metastases (1-4), however, clinical radiation oncologists are cautious about the use of SRS in their treatment. Although large cerebellum lesions are often amenable to surgical resection, neurological function is difficult to restore. Cerebrotomy may also cause wound complications and leptomeningeal spreading, especially in the posterior fossa, and delay in establishing further systemic oncological therapies. SRS may enlarge peritumoral edema in the cerebellum, leading to severe neurological complications.

Most studies to date have focused on the diameter or volume of the lesion in defining the size of brain metastases. Lesions with a diameter >2 or 3 cm, or volume >10 or 15 cc, have been defined as large in different studies (2,5-7), however there appears to be no standard definition. Whilst these studies have paid close attention to tumor size and volume, the volume and extent of peritumoral edema has, however, been ignored, in spite of this having a significant impact on the status of patients and increasing the risk of adverse effects from SRS.

In this study, we evaluate the efficacy and safety of SRS in patients with large cerebellum metastases from lung cancer. As space in the posterior fossa is limited, we define a tumor as large if it exceeds 2 cm in diameter. The study also evaluates clinical features, tumor volume and peritumoral edema volume in these patients.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-2237).

Methods

Inclusion criteria and exclusion criteria

Between September 2016 and January 2020, a total of 44 patients with cerebellum metastases from lung cancer were evaluated according to the inclusion and exclusion criteria as follows: inclusion criteria, (I) age >18 years, with histologically proven lung cancer; (II) cerebellum metastases with a diameter >2 cm; (III) receiving SRS treatment. Exclusion criteria: (I) raised severe intracranial pressure for which drugs were ineffective; (II) pregnant or breast-feeding patients.

The study was approved by IRB of Guangdong Sanjiu Brain Hospital (No. 2020-020-083) and written informed consent was obtained from all patients. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).

SRS

SRS was performed by using iPlan 4.0 treatment planning system (BrainLAB, Heimstetten, Germany) or Varian Eclipse treatment planning systems (Varian Medical Systems, Palo Alto, USA). Patients were immobilized with a thermoplastic mash mask. Treatment planning CT images were acquired with a 1.5 mm slice thickness. Brain MRI including 5.5 mm slices axial/sagittal/coronal T2 FLAIR-weighted sequences, 2 mm slices axial T2 FLAIR-weighted sequences, 5.5 mm slices axial/sagittal/coronal T1-weighted gadolinium enhanced sequences and 2 mm slices axial T1-weighted gadolinium enhanced sequences were also obtained. The MRIs images were registered and automatically fused with the planning CT images in the treatment-planning system to facilitate the delineation of the tumor volume (equal to the planning target volume). The critical organ structures including the brainstem, the eyes, the lens, the optic nerves and the chiasm would be delineated. Generally, radiation dose was selected based on the recommendations from the trial Radiation Therapy Oncology Group (RTOG) 90-05, with modifications based on individual cases and considering tumor size, location, and patient status. We prescribed doses of 16–18 Gy in single session or 6–12 Gy in two or three daily fractions via isocenter plans.

Follow-up and statistical analyses

After SRS treatment, each patient was followed up with neurological and radiological examinations. Follow-up MRI scans were obtained routinely at 1 to 3 months after treatment or in the event of neurological deterioration. The first follow-up brain MRI was reviewed to assess the post-SRS condition of the brain lesion and its relation to neurological symptoms. Treatment response assessments were based on the Response Assessment in Neuro-Oncology for brain metastases (the RANO-BM criteria) (8).

Overall survival (OS) and neurological progression-free survival (PFS) were estimated using the Kaplan-Meier method calculated from the date of treatment start to the date of events or the last follow-up. Factors possibly affecting the survival were tested using the log-rank test for univariate analysis and the Cox proportional hazards models with variable selection, which included age, gender, smoking, symptom, tumor location, numbers of tumor, status of primary cancer, presence of extracranial metastases, pretreatment KPS score, Radiation Therapy Oncology Group-recursive partitioning analysis (ROTG-RPA) class, graded prognostic assessment (GPA) score, hemorrhage, hydrocephalus and systemic therapy. All statistical tests were conducted using SPSS version 21.0. Statistical significance was set at P<0.05.

Results

Characteristics of patients

The baseline characteristics of this study are summarized in Table 1. Of the 44 patients, 30 (68.2%) were >50 years old and 14 (31.8%) were ≤50 years old. There were 29 (65.9%) male patients and 15 (34.1%) female. Only 1 patient was asymptomatic, their tumor being detected during a routine check, whilst 43 (97.7%) were symptomatic. The KPS score was ≥70 in 35 patients (79.5%), and adenocarcinoma was present in 26 patients (59.1%). The ROTG-RPA classification saw 5 patients (11.4%) designated as class I, 32 patients (72.7%) as class II, and 7 (15.9%) as class III. The GPA score was ≤1 in 10 patients (22.7%), 1.5–2.5 in 21 patients (47.7%) and ≥3 in 13 patients (29.5%). The primary cancer was under control in 10 patients (22.7%) and uncontrolled in 6 patients (13.6%). The remaining patients (28/44, 63.6%) were newly diagnosed. At the time of SRS, metastases to organs other than the brain were present in 19 patients (43.2%). Brain metastases were located in the subtentorial area in 10 patients (22.7%) and in both the supratentorial and subtentorial area in 34 patients (77.3%). Hemorrhage was present in 9 patients (20.5%), and hydrocephalus in 7 (15.9%). The median number of tumors was 4 (range, 1–24). The median diameter and volume of the metastases were 3.5 cm (range, 2.1–5.7 cm) and 12.5 cc (range, 1.8–39.7 cc), respectively. The median volume of the peritumoral edema was 36.3 cc (range, 3.7–100.3 cc). The median ratio of tumor volume to cerebellum volume was 8.7% (range, 1.3–27.0%). The median ratio of peritumoral edema volume to cerebellum volume was 25.0% (range, 2.5–68.6%).

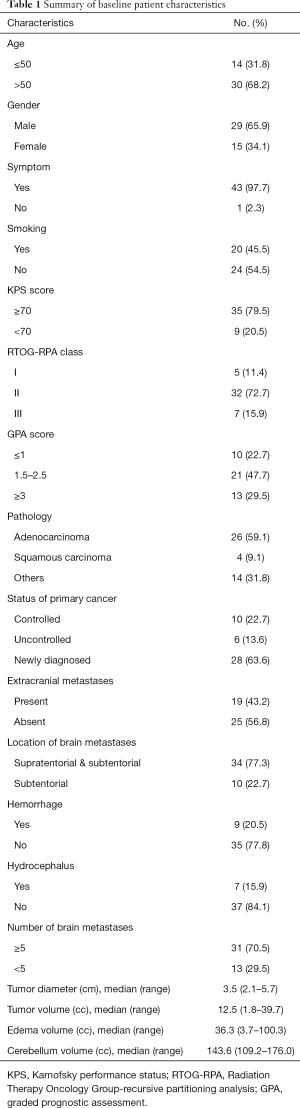

Table 1 Summary of baseline patient characteristics
Full table

PFS and survival

Of the 44 patients, 2 worsened following SRS. One patient underwent emergency life-saving surgery and was alive at the time of writing. The other patient was accepted for palliative care and died three months later. In the remaining 42 patients, 21 patients achieved the optimal effect of partial response, and 21 patients achieved stable disease during the follow-up period. The 6- and 12-month PFS rates were 68.2% and 31.8% respectively with median neurological PFS of 9.0 months (range, 1–32 months) as shown in Figure 1. None of the variables tested was predictive of local PFS (Table 2).

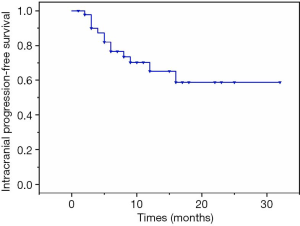

Figure 1 Kaplan-Meier curve showing intracranial progression-free survival in 44 patients with large cerebellum metastases.

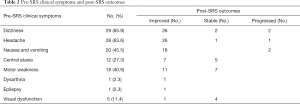

Table 2 Pre-SRS clinical symptoms and post-SRS outcomes
Full table

At the completion of the study, 11 patients (25%) were alive and 33 patients (75%) deceased. Death occurred in 9 patients (27.3%) as a result of neurological progression, whilst 24 (72.7%) patients died due to progression of extracranial disease. The OS rate at 6 and 12 months was 79.5% and 43.2%, respectively (Figure 2). Female, central ataxia, high GPA score, metastases only located in subtentorial area (Figure 3A), number of metastases <5, systemic therapy after SRS (Figure 3B) were significant on univariate analysis (Table 2). Metastases only located in subtentorial area (hazard ratio, 4.515; 95% confidence interval, 1.297–15.719; P=0.018) and systemic therapy after SRS (hazard ratio, 0.227; 95% confidence interval, 0.074–0.703; P=0.010) were significant risk factors associated with survival in multivariate analysis. Tumor diameter, tumor volume and peritumoral edema volume were not significant with survival in univariate analysis (Table 2).

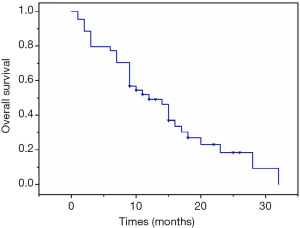

Figure 2 Kaplan-Meier curve showing survival in 44 patients with large cerebellum metastases.

Figure 3 Overall survival (OS) in relation to: (A) location of brain metastases; (B) systemic therapy after SRS. SRS, stereotactic radiosurgery.

Neurological and functional outcomes

Focal neurologic deficits such as dizziness, headache, nausea and vomiting, central ataxia, motor weakness, dysarthria, epilepsy and visual dysfunction, improved in most of the patients (Table 3). Two patients reported worsened dizziness, nausea and vomiting after SRS treatment, whilst one reported an increase in headaches. The KPS score improved with a mean pre-treatment KPS score of 72.05 (median, 70; range, 50–90) vs. a mean KPS score of 74.77 (median, 75; range, 50–100) after treatment.

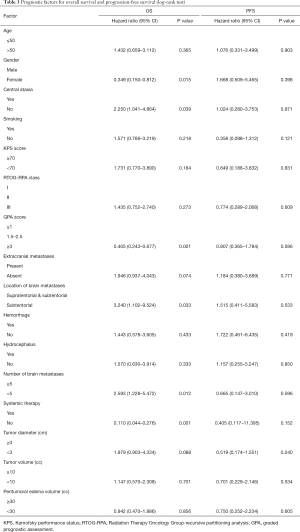

Table 3 Prognostic factors for overall survival and progression-free survival (log-rank test)
Full table

Toxicity

On the basis of the Common Terminology Criteria for Adverse Events by RTOG, acute toxicities were observed in 20 patients (grade 1 in 17 patients, grade 2 in 2 patients, grade 3 in 1 patient). Radiation necrosis was not observed during the follow-up period.

Discussion

SRS is an effective option in the treatment of large brain metastases, especially in radiosensitive cancers. The National Comprehensive Cancer Network (NCCN) guidelines recommend fractionated SRS in the treatment of brain metastases >3 cm. Large brain metastases are more abundant with hypoxic tumor cells than small brain metastases (9,10). Fractionated administration of the radiation dose is beneficial to reoxygenation and redistribution of the cell cycle, which renders hypoxic tumor cells more radiosensitive. In addition, fractionated SRS minimizes toxicity to late-responding healthy tissue and decreases the incidence of brain necrosis. The suitable dose selection and numbers of sessions for large brain metastases, however, remains controversial. Factors such as tumor locations, size, number, peritumoral edema volume and the performance of patients may influence clinical decision making.

It is generally true that the larger the metastases, the more serious the symptoms produced. However, peritumoral edema, by causing neurological effects, will also influence this, particularly when the oedema area is larger than that of the tumor. This study revealed tumor and peritumoral edema volumes of between 1.8–39.7 cc, and 3.7–100.3 cc respectively. The median volume of the peritumoral edema seen accounts for 25% of that of the posterior fossa. In this limited space, the presence of large tumors and edema may result in cerebral hernia, oppressing the brainstem and causing respiratory and cardiac arrest.

The results of this study demonstrate that SRS is safe and effectively relieves the symptoms of large cerebellum metastases from lung cancer.

With the exception of two patients, all others achieved remission of their symptoms. This indicates that tumor volume reduction alleviating brain edema contributes to symptomatic improvement (11). However, both tumor volume and peritumoral edema volume did not significantly influence survival.

Although surgical resection has been considered an effective choice for large brain metastases, SRS is an alternative treatment for patients who have progressive cancers. Whilst symptoms can be quickly improved by surgical resection when the tumor is located in a non-functional area, when in a functional area, post-operative neurological deterioration may occur. In such cases postoperative SRS is recommended following resection (12).

SRS can relieve neurological symptoms and systemic treatment can prolong the survival of patients with large cerebellum metastases. In this study, 27% patients died from cranial disease progression and 73% patients from extracranial disease progression. Systemic treatment following SRS was not provided in 29.5% of the deceased patients thus the results of local therapy to the brain may be influenced by extracranial disease progression. Systemic treatment for primary sites appears to be essential.

Limitation

The current study is a retrospective study with limited sample size. The biases of patient selection, treatment and clinical institution selection exist.

Conclusions

The present results confirm those of our earlier study. Tumor volume and peritumoral edema volume cause neurological deficits. SRS for large cerebellum metastases in lung cancer patients provides effective neurological palliation with a low incidence of severe toxic effects.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-2237

Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-20-2237

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-2237). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by IRB of Guangdong Sanjiu Brain Hospital (No. 2020-020-083) and written informed consent was obtained from all patients. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Park K, Kim JW, Chung HT, et al. Single-Session versus Multisession Gamma Knife Radiosurgery for Large Brain Metastases from Non-Small Cell Lung Cancer: A Retrospective Analysis. Stereotact Funct Neurosurg 2019;97:94-100. [Crossref] [PubMed]
2. Lehrer EJ, Peterson JL, Zaorsky NG, et al. Single versus Multifraction Stereotactic Radiosurgery for Large Brain Metastases: An International Meta-analysis of 24 Trials. Int J Radiat Oncol Biol Phys 2019;103:618-30. [Crossref] [PubMed]
3. Lovo EE, Torres LB, Campos FJ, et al. Two-session Radiosurgery as Initial Treatment for Newly Diagnosed Large, Symptomatic Brain Metastases from Breast and Lung Histology. Cureus 2019;11:e5472. [Crossref] [PubMed]
4. Yamamoto M, Higuchi Y, Serizawa T, et al. Three-stage Gamma Knife treatment for metastatic brain tumors larger than 10 cm3: a 2-institute study including re-analyses of earlier results using competing risk analysis. J Neurosurg 2018;129:77-85. [Crossref] [PubMed]
5. Zindler JD, Schiffelers J, Lambin P, et al. Improved effectiveness of stereotactic radiosurgery in large brain metastases by individualized isotoxic dose prescription: an in silico study. Strahlentherapie und Onkologie 2018;194:560-9. [Crossref] [PubMed]
6. Yomo S, Hayashi M, Nicholson C. A prospective pilot study of two-session Gamma Knife surgery for large metastatic brain tumors. J Neurooncol 2012;109:159-65. [Crossref] [PubMed]
7. Higuchi Y, Serizawa T, Nagano O, et al. Three-staged stereotactic radiotherapy without whole brain irradiation for large metastatic brain tumors. Int J Radiat Oncol Biol Phys 2009;74:1543-8. [Crossref] [PubMed]
8. Eisele SC, Wen PY, Lee EQ. Assessment of Brain Tumor Response: RANO and Its Offspring. Curr Treat Options Oncol 2016;17:35. [Crossref] [PubMed]
9. Shibamoto Y, Yukawa Y, Tsutsui K, et al. Variation in the hypoxic fraction among mouse tumors of different types, sizes, and sites. Jpn J Cancer Res 1986;77:908-15. [PubMed]
10. Rampling R, Cruickshank G, Lewis A, et al. Direct measurement of pO2 distribution and bioreductive enzymes in human malignant brain tumors. Int J Radiat Oncol Biol Phys 1994;29:427-31. [Crossref] [PubMed]
11. Hasegawa T, Kato T, Yamamoto T, et al. Multisession gamma knife surgery for large brain metastases. J Neurooncol 2017;131:517-24. [Crossref] [PubMed]
12. Ling DC, Vargo JA, Wegner RE, et al. Postoperative stereotactic radiosurgery to the resection cavity for large brain metastases: clinical outcomes, predictors of intracranial failure, and implications for optimal patient selection. Neurosurgery 2015;76:150-6; discussion 156-7; quiz 157.
