The efficacy of therapeutic apheresis in patients with refractory neuromyelitis optica spectrum disorders: a single-center retrospective study
Introduction
Neuromyelitis optica spectrum disorders (NMOSD) are a heterogeneous group of autoimmune inflammation-mediated diseases characterized by demyelination and axonal injury in the central nervous system. Inflammatory lesions mainly affect the optic nerve and spinal cord, in addition to a possible influence on the brain stem and cerebrum (1,2). Serum aquaporin-4 immunoglobulin G antibodies (AQP4-IgG) play a significant role in the pathogenesis of NMOSD. Acute episodes of NMOSD are currently managed by high-dose intravenous methylprednisolone pulse (IVMP). However, in clinical practice, some patients show poor response to high-dose IVMP or do not tolerate long-term administration of methylprednisolone. Refractory NMOSD occurs when symptoms of acute relapse persist after IVMP administration. Numerous studies have demonstrated that therapeutic plasma exchange (TPE) is an effective treatment in the acute phase of NMOSD (3-9). TPE has been recommended by the American Society for Apheresis (ASFA) for NMOSD patients when IVMP therapy is unsuccessful (10).
In addition to the pathogenetic role of B cells and humoral immunity, activated AQP4-specific T cells are believed to play a critical role in the induction of NMOSD lesions (11). Therefore, theoretically, extracorporeal removal of circulating proinflammatory molecules and activated lymphocytes might be a therapeutic option. Lymphoplasmapheresis (LPE) is a combined technique that integrates both TPE and lymphocytapheresis, resulting in both pathogenic antibody removal and immunoregulation (12). In previous studies, lymphocytapheresis was shown to be efficacious in the treatment of autoimmune disorders including psoriasis vulgaris and multiple sclerosis (13,14). Recently, LPE was reported to be effective in patients with Guillain-Barre syndrome by directly removing immunoglobulins, complements, monocytes, and fibrinogen, as well as regulating lymphocyte subsets in the peripheral blood (15). Indeed, LPE has been performed on patients with refractory NMOSD in our hospital since 2015 with positive results.
This study examined the application of LPE in cases of refractory NMOSD. To the best of our knowledge, to date, there have been no published reports regarding the feasibility, effectiveness, or adverse events (AEs) of LPE treatment in patients with NMOSD. The goal of this single-center retrospective study was to investigate the treatment benefits and safety profile of LPE and TPE in a similar cohort of patients with refractory NMOSD and provide a reference for effective NMOSD treatment in clinical practice. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/apm-21-177).
Methods
Patients
This was a retrospective single‐center study performed in the Chinese People’s Liberation Army General Hospital (PLAGH) from January 2015 to January 2018. The medical records of NMOSD patients who underwent either LPE or TPE were reviewed. Patients with complications such as other neurological diseases, patients who were withdrawn from treatment early due to thrombosis, and patients who were anti-AQP4 antibody negative or intolerant to the intervention treatment were excluded from this analysis. Patients with primary NMOSD following the definition suggested by the 2015 International Consensus Diagnostic Criteria were finally enrolled into this study (16).
All acute phase patients received preoperative first-line IVMP therapy and demonstrated poor therapy response rates. Therapeutic apheresis was followed by maintenance treatment consisting of oral prednisone that was tapered accordingly with a treatment course of 5 months and patients were counseled to take azathioprine, mycophenolate mofetil or rituximab for life at standard doses to prevent a recurrence. The expanded disability status scale (EDSS) and visual outcome scale (VOS) were applied to evaluate the response rate of treatment. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). This study was been approved by the Ethics Committee of the People’s Liberation Army General Hospital. All patients provided signed informed consent for treatment.
Apheresis procedures
LPE and TPE were performed through peripheral veins using the Fresenius COM.TEC cell separator instrument with version 3.0 software (Fresenius Kabi AG, Bad Homburg vor der Höhe, Germany). During LPE, the thin white cell layer containing monocytes/lymphocytes was separated from the whole blood by procedures that enrich for mononuclear cells (MNCs). TPE was performed based on the lymphocytapheresis procedure. Approximately (2–3)×109 lymphocytes were removed per procedure. The treatment course for both TPE and LPE comprised of five procedures every other day. During a TPE session, patients received 1.0–1.2 plasma volume exchanges with 10% albumin and plasma replacement fluid. Approximately 2,000 to 3,500 mL of plasma were removed.
Prior to therapeutic apheresis, total plasma volume (TPV) was calculated based on height, weight, and hematocrit (HCT) using the following standard formula: TPV = 0.065 × (1 − HCT) × weight (kg). In this study, 1 to 1.5 TPV was removed. Replacement fluid included plasma, 10% albumin solution, and normal saline, wherein plasma accounted for 70% of the volume. The selection of replacement fluid was based on the patient’s coagulation function. In the apheresis procedures, fluid balance was 100%. Acid citrate dextrose (ACD) solution was used as an anticoagulant, and the anticoagulant ratio of ACD to whole blood was 1:12 to 1:16. All patients received 10% intravenous calcium gluconate during the procedures. According to the patient’s vascular condition, venipuncture or central venous catheterization was selected.
Efficacy of treatment

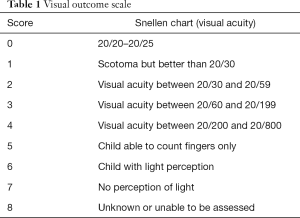

The effectiveness of the treatment was quantified using standardized performance scales including the visual outcome scale (VOS) (Table 1) and the expanded disability status scale (EDSS) (17). Severity of impairment in the optic nerve and the spinal cord was rated with a scoring system including VOS and EDSS 48 hours before and after treatment. The best corrected visual acuity (VA) for both the right and left eye was assessed using the Snellen eye test chart or the international type visual acuity chart. For patients with myelitis lesions, physical disability was assessed using the EDSS. ∆VA and ∆EDSS (defined as VA score and EDSS score before apheresis minus the score of VA and EDSS after apheresis) were compared between the two groups of patients.
Full table
Relapse was clinically defined as the occurrence of a new neurological symptom 30 days after a previous relapse and an increase in the EDSS score by at least 1 point (9,18). The annualized relapse rates (ARR = total number of relapses/disease duration) before the start of therapy and one year after therapy were computed for each group. During the one-year follow-up, visual acuity, stepping ability, and self-care agency were assessed to determine the frequency of relapse. Furthermore, ∆ARR (defined as ARR before apheresis minus ARR in the first year) were assessed in both patient cohorts.
Safety
Safety outcomes were primarily evaluated based on the reports of adverse reactions and clinical laboratory tests. All patients accepted screening for infectious diseases, hepatitis B surface antigen, hepatitis C virus antibody, and human immunodeficiency virus antibody. Cardiac function and vein conditions were assessed in each patient prior to treatment. Blood cell count, coagulation function, electrolyte levels, ionized calcium levels, and albumin/globulin concentrations were assessed before and after treatment. Electrocardiogram (ECG) and blood pressure were monitored during the procedures. All symptoms of adverse reactions to the apheresis procedure were recorded by the bedside nurse and evaluated by the transfusion physicians.
Statistical analysis
In this study, measurement data of normal distribution were expressed as mean ± standard deviation (SD), and independent sample t-tests were used for two-group comparisons, and paired t-tests were applied for within-group comparisons. Data with non-normal distribution were expressed as median and interquartile range [M(P25,P75)]. Comparison between two groups was performed by Mann-Whitney U test. Wilcoxon rank-sum test was applied for within-group comparison. Enumerated data between the treatment groups were conducted by frequency and proportion. Statistical comparisons between groups for categorical variables were performed by chi-square (χ2) test. All statistical tests were performed using SPSS 20.0 (IBM Corp., Armonk, NY, USA) and P values <0.05 were considered statistically significant.
Results
Clinical demographics and characteristics

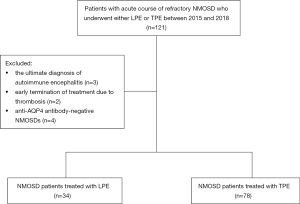

During the 3-year study period, a total of 121 patients with NMOSD were admitted and treated with LPE or TPE. There were 3 patients with autoimmune encephalitis, 2 patients with early termination of treatment due to venous thrombosis, and 4 anti-AQP4 antibody-negative NMOSD patients, all of whom were excluded from this analysis (Figure 1).
Finally, 112 eligible patients with refractory NMOSD were enrolled into this retrospective study, and 34 of these patients received LPE, while 78 patients received TPE. The main demographic and clinical characteristics of the two treatment groups are shown in Table 2.
Full table

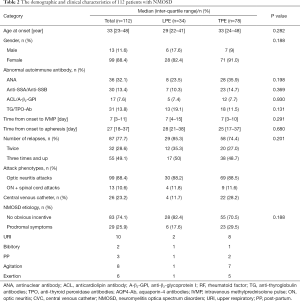

Eighty-two point four percent of the patients in the LPE cohort were female, and the median age was 29 years. Most patients experienced more than 2 relapses, and 50% of patients relapsed 3 times or more. Acute attacks of optic neuritis were present in 88.2% of the patients at inclusion, and 11.8% of patients showed simultaneous presentation of both optic neuritis and severe acute attack myelitis. A total of 6 patients presented with prodromal symptoms preceding an attack of NMOSD. The median intervals from onset of NMOSD to the time of IVMP and therapeutic apheresis was 7 and 28 days, respectively.
The TPE and LPE cohorts were broadly comparable in demographic and most clinical characteristics at inclusion including age of onset, gender, etiology, type of attack at onset, and number of relapses. Before therapeutic apheresis, the 34 LPE patients experienced a mean of 1.5 relapses per year, while the 78 TPE patients showed a mean of 1.6 relapses (Table 3).
Full table
Therapeutic evaluation
The overall rate of improvement in neurological function was 76.5% (26 of 34 patients) at the end of LPE treatment and 83.3% (65 of 78 patients) at the end of TPE treatment (P=0.392). The rate of visual improvement was 66.7% (28 of 42 eyes) and 71.3% (72 of 101 eyes) for the LPE group and the TPE group, respectively (P=0.583, Table 3).
Figure 2 shows the pre- and post-therapy visual acuities in 42 eyes of the 34 LPE patients and 101 eyes of the 78 TPE patients. The visual acuity significantly improved in both groups. The median differences in the visual acuity scores in the LPE cohort before and after treatment was 5 [4–5] and 4 [2–5], respectively (P<0.001, Figure 2A), and 5 [5–6] and 4 [4–5], respectively for the TPE group (P<0.001, Figure 2B; Table 3).
The changes in the mean EDSS scores and the ARR between the LPE and TPE cohorts are presented in Figures 3 and 4. In the LPE group, the EDSS scores significantly decreased from a mean of 3.4 before treatment to 2.9 after the last treatment (P=0.002, Figure 3A). In the TPE cohort, the EDSS scores also dropped significantly from 4.5 to 3.6 (P=0.011, Figure 3B).
Before treatment, patients with LPE had a mean of 1.5 relapses per year. In the first year after LPE treatment, 26 patients remained relapse-free, and the mean ARR was 0.6 (P<0.001, Figure 4A). In patients treated with TPE, the ARR decreased from 1.6 to 0.2 (P<0.001, Figure 4B), and the reduced ARR occurred in 74 patients (95%), 64 of whom were relapse-free. The primary end points of the study including visual acuity score, EDSS score, and ARR did not significantly differ between the LPE and TPE cohorts (P=0.421, Figure 2C; P=0.236, Figure 3C; P=0.117, Figure 4C).
Feasibility and safety

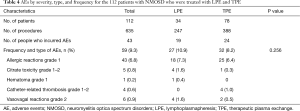

The overall incidence of AEs was similar in the LPE cohort (27/247, 10.9%) and the TPE cohort (32/388, 8.2%). A total of 112 patients were treated with 635 sessions of therapeutic apheresis and a total of 59 (27 in the LPE group and 32 in the TPE group) AEs were recorded. All AEs were mild to moderate in severity. No patients experienced severe adverse reactions such as mucosal swelling (angioedema), dyspnea, hypoxia, or shock. As shown in Table 4, the most common AEs were allergic reactions (43/635, 6.8% of all AEs), followed by vasovagal reactions (6/635, 0.9%), citrate toxicity (5/635, 0.8%), catheter-related thrombosis (4/635, 0.6%), and hematoma (1/635, 0.2%).
Full table
Table 5 shows the changes in laboratory indicators before and after therapy in the 2 treatment groups. Blood clotting time remained within the normal laboratory reference range throughout the treatment period. The hemoglobin, platelet counts, fibrinogen levels, total protein, and serum albumin, as well as serum calcium levels in both groups decreased significantly after treatment. The LPE cohort had significantly lower serum albumin and platelet counts compared to the TPE cohort.
Full table
Discussion
In this retrospective single-center study, 88.4% of patients were female and the median age at onset was 33 years (range, 22–38 years). A total of 112 Chinese patients were treated with 635 sessions of therapeutic apheresis. Both LPE and TPE were effective in the treatment of refractory NMOSD. Approximately 81.3% of the patients in this report achieved satisfactory improvement in neurological function.
TPE treatment can be helpful in the recovery from acute attacks of NMOSD (grade 1B evidence II) (10). Out of the 78 patients receiving TPE treatment, 83.8% showed disability improvement, which is broadly consistent with the TPE response rates detected in other reports (19-21). Due to cost constraints, relevant tests were not conducted to determine the expression of AQP4-IgG after treatment.
There is a high recurrence of NMOSD and this can lead to progressive disability. Within 5 years of disease onset, half of the individuals diagnosed with neuromyelitis optica (NMO) will require the use of a wheelchair or become functionally blind (22). Therefore, prevention of relapse is essential. It is widely accepted that NMOSD is mediated by humoral-immunity and B cells can enhance humoral immune responses and antigen presentation, produce pro- and anti-inflammatory cytokines, and immunoglobulin generation in the NMO (23). In addition, AQP-4 antibody production requires the help of T lymphocytes (24). Thus, we speculated that LPE may partially modify the function of the inflammatory network or eliminate immune cell clones non-specifically by removing the peripheral blood lymphocytes. Most importantly, this study demonstrated that LPE might have a beneficial clinical effect in patients with refractory NMOSD. First, LPE improved neurological disability (3.4 vs. 2.9, P<0.001) and significantly reduced the frequency of NMOSD relapses (1.5 vs. 0.6, P<0.001). In this study, 26 of 34 patients (76.5%) were relapse-free after LPE treatment, and 76.5% showed improved neurological function. Second, the LPE procedure was feasible and well tolerated, with an AE rate of 10.9%. A study by Kim et al. demonstrated that rituximab therapy resulted in a strong reduction in ARR (2.4 vs. 0.1, P<0.001) and EDSS score (4 vs. 3, P<0.001) with a median treatment period of 67 months. Of the 100 patients, 70% were relapse free (25). AEs were experienced by 26% of patients including infusion-related reactions. However, none required discontinuation of treatment. Another study by Chen et al. reported that almost 72% of patients treated with tacrolimus were relapse-free (26). Although these studies demonstrated that immunomodulatory and immunosuppressive agents are effective, their efficacy can be limited by frequent adverse effects.
The apheresis technique is a relatively safe procedure with a low incidence of adverse reactions. Different types of AEs have different predisposing factors, mainly related to the type and volumes of replacement fluid, anticoagulant, and vascular access. A total of 59 AEs occurred among 635 procedures (9.3%) in this current report. Most AEs reported were of mild-to-moderate intensity and occurred at similar frequencies in both the TPE and LPE cohorts. The most commonly observed AEs were allergic reactions, mainly involving cutaneous symptoms. The frequency of allergic reactions in the LPE and TPE group was 7.3% (18/247) and 6.4% (25/388), respectively. Most allergic reactions were associated with antibody development in a transfusion recipient specific to the donor protein or the patient’s allergic constitution, such as family history of asthma or individual history of hypersensitivity (27). In addition, multiple plasma exchanges can increase the risk of allergic reactions. Currently, antihistamines are most often used in the management of allergic reactions (28). Appropriate normal saline and albumin replacement of plasma can also reduce allergic reactions. In our study, 8% (5/59) of all AEs presented as citrate toxicity of moderate intensity including paresthesia, flushed sensation, nausea, and/or vomiting. Approximately 0.9% (6/635) of the apheresis procedures resulted in vasovagal reactions, mainly manifesting as pallor, weakness, dizziness, diaphoresis, nausea and/or vomiting, hypotension, and presyncope. Four catheter-related thrombotic events (0.6%) occurred in 26 patients with indwelling central venous catheters. No complications such as infection, bleeding, pneumothorax, and vessel puncture, developed in relation to central venous catheter placement.
Lymphocyte removal involves the separation and collection of white blood cells enriched for MNCs from whole blood using centrifugation‐based techniques. Due to the proximity of the platelet layer to the MNCs, platelet depletion can be a significant clinical concern (29). Accordingly, patients treated with LPE showed significantly lower platelet counts compared with patients treated with TPE. This suggested that patients with low platelet counts require particular consideration as they may warrant regular monitoring for blood cell count and avoidance of invasive manipulation during the LPE treatment.
The present study included several limitations. First, this was a single-center retrospective study with a small number of LPE patients enrolled. In addition, the criteria for LPE or TPE treatment were based on the decision of the attending physicians. Consequently, selection biases cannot be ruled out. Furthermore, the follow-up period of one year was relatively short and the recurrence of AEs during long-term follow-up remains to be examined. Second, due to constraints of time and cost, this study did not assess whether changes in B and T cell numbers, and increased T suppressor function mediated the improvements in neurological function. Further studies are warranted to further elucidate the mechanisms involved.
Overall, the data demonstrated that both apheresis techniques could efficiently alleviate disability and reduce relapse over a one-year period and is therefore highly feasible for refractory NMOSD patients. Future prospective randomized controlled comparative trials will be beneficial to provide high-quality evidence to evaluate the treatment efficacy of LPE and TPE in NMOSD patients.
Acknowledgments
The authors thank the physicians and nursing staff in the Department of Blood Transfusion Medicine, the First Medical Center of the Chinese People’s Liberation Army General Hospital for their dedication.
Funding: None.
Footnote
Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/apm-21-177
Data Sharing Statement: Available at http://dx.doi.org/10.21037/apm-21-177
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-21-177). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). This study was been approved by the Ethics Committee of the People’s Liberation Army General Hospital. All patients provided signed informed consent for treatment.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
