A rare KIF5B-ALK fusion variant in a lung adenocarcinoma patient who responded to crizotinib and acquired the ALK L1196M mutation after resistance: a case report

Introduction

Anaplastic lymphoma kinase (ALK) receptor tyrosine kinase gene rearrangement is a common driving oncogene for patients with non-small cell lung cancer (NSCLC), accounting for approximately 5% of all NSCLC patients (1). In addition to echinoderm microtubule-associated protein-like 4 (EML4) gene, the most prevalent partner for ALK in NSCLC, approximately 10 other partners have been reported (2,3). Located on the short arm of human chromosome 10 and encoding member 5B of the kinesin family of proteins, KIF5B is a rare partner for ALK, and exons 1 to 24 fused to exon 20 of ALK, generating a fusion protein (4). Although KIF5B-ALK fusion genes with different breakpoints have been reported in several lung cancer cases, only one study reported the efficiency of crizotinib in a case of large-cell neuroendocrine carcinoma (LCNEC) with KIF5B exon 17 to ALK exon 20 (5). Furthermore, different ALK fusions, even the same fusion with different breakpoints, exhibit different responses to ALK-TKIs. For example, different EML4-ALK variants exhibited differential responses to crizotinib (6). However, the responses of KIF5B-ALK gene fusions with different breakpoints to crizotinib remain unknown.

Both alectinib and crizotinib were recommended as category 1 agents for first-line therapy in patients with ALK-positive NSCLC in the National Comprehensive Cancer Network (NCCN) guidelines, version 5. 2018 (7), but alectinib is preferred. However, given its high cost, alectinib is unlikely to be cost-effective for populations in China (8). Crizotinib, a selective ATP-competitive inhibitor of ALK, is an inhibitor of ALK phosphorylation and signal transduction, leading to G1-S phase cell cycle arrest and inducing apoptosis in NSCLC patients harboring an ALK translocation (9,10).

Herein, we first reported a rare KIF5B-ALK (K20:A20) fusion variant in a lung adenocarcinoma that responded well to crizotinib. The ALK L1196M mutation was identified in the setting of crizotinib resistance. Finally, we revealed that ceritinib potently overcomes the ALK L1196M mutation, and liquid biopsy is an available method to assess molecular changes after resistance and guide treatment strategies. We present the following case in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-2081) (11).

Case presentation

A 70-year-old nonsmoking Chinese man, with a negative family history of genetic disease, presented to our hospital with a 3-month history of cough and expectoration. On March 22, 2018, a computed tomography (CT) scan revealed a 4.2 cm × 4.1 cm mass in the upper lobe of the right lung (Figure 1) with liver and bone metastasis. Transthoracic needle biopsy established the pathologic diagnosis of lung adenocarcinoma (T4N3M1c, stage IVB). KIF5B-ALK (K20:A20) fusion was identified in tissue by capture-based next-generation sequencing (NGS), and the tumor was positive for ALK-Ventana by immunohistochemistry staining (Figure 2).

Figure 1 Computed tomography (CT) scan of the thorax before treatment. Lung adenocarcinoma in the upper lobe of the right lung (white arrow) revealed by radiologic.

Figure 2 Histological findings (40× magnification). (A) Hematoxylin and eosin-stained biopsy specimen reveals adenocarcinoma; (B) immunohistochemical analysis showing anaplastic lymphoma kinase (ALK)-positive staining; (C) keratin 7 (CK7)-positive staining; (D) pancytokeratin (PCK)-positive staining; (E) thyroid transcription factor-1 (TTF-1)-positive staining. Scale bars represent 50 µm.

The patient was administered a first-generation tyrosine-kinase inhibitor targeting ALK, crizotinib (250 mg twice daily), beginning on April 18, 2018. The disease achieved a partial response (PR) (Figure 3A,B,C) that lasted 11 months before intracranial progression (Figure 3D). Plasma circulating tumor DNA (ctDNA) genomic analysis by NGS revealed the known KIF5B-ALK fusion (22.35% allele frequency) and an ALK exon 23 L1196M missense mutation (0.12% allele frequency) (Figure 4) after progression. Preclinical data and clinical studies indicated that the ALK L1196M mutation was sensitive to the second-generation inhibitors ceritinib or brigatinib (12). Then, 450 mg ceritinib once daily was prescribed, which led to a partial radiographic response with regression of brain lesions (Figure 5A,B). The response was maintained for 9 months, and the patient continues to undergo follow-up with no significant drug related adverse reactions were found.

Figure 3 Dynamic computed tomography (CT) scan of lung masses and brain lesions revealed by magnetic resonance imaging (MRI) scan (white arrow). (A,B,C) CT scan of lung masses after 2, 6 and 11 months of crizotinib therapy. (D) MRI scan of the brain revealed intracranial progression after crizotinib resistance (3.0 cm × 2.5 cm).

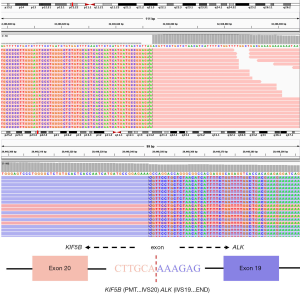

Figure 4 The rare kinesin family member 5B (KIF5B)-anaplastic lymphoma kinase (ALK) fusion variant and sequencing reads of ALK and KIF5B are presented using Integrative Genomics Viewer.

Figure 5 Dynamic magnetic resonance imaging (MRI) scan of brain lesions and the location of mass marked with white arrow. (A,B) Follow-up MRI scan after 2 months of ceritinib therapy (3.2 cm × 2.7 cm) and after 5 months of ceritinib therapy (1.7 cm × 1.6 cm).

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Discussion

ALK encodes anaplastic lymphoma kinase, which is associated with cell survival, angiogenesis, and proliferation and is frequently involved in chromosomal translocations, resulting in fusion genes with different partners. KIF5B is a rare partner for ALK, and the KIF5B-ALK variant accounts for approximately 0.4% of fusion partners (1 of 266 tumors) (13).

It is necessary to evaluate the sensitivity of a rare KIF5B-ALK to ALK-TKIs to provide a better understanding of ALK-TKIs applications. Takeuchi et al. (4) reported a lung adenocarcinoma patient harboring the KIF5B-ALK fusion where intron 24 of KIF5B was ligated to intron 19 of ALK. Another variant of the KIF5B-ALK fusion was reported by Wong et al. (13), namely, KIF5B exon 15 fusion to ALK exon 20 in a patient with primary lung adenocarcinoma. However, neither of the cases reported the sensitivity of KIF5B-ALK to ALK-TKIs. Shimizu et al. (5) reported a case of LCNEC with KIF5B exon 17 fusion to ALK exon 20. The patient was administered crizotinib for 10 months until presenting with multiple metastases in the brain. Although several KIF5B-ALK fusions with different breakpoints have been reported, the sensitivity of other rare fusion variants to ALK inhibitors remains unknown. KIF5B-ALK contains the same tyrosine kinase domain as EML4-ALK, and it is possible that patients with the KIF5B-ALK fusion may also respond well to ALK inhibitors (14). However, this hypothesis should be assessed in more cases and studies. In our case, the patient with lung adenocarcinoma harbored another rare fusion variant in which intron 20 of KIF5B was ligated to intron 20 of ALK. After crizotinib was administered, the patients achieved progression-free survival (PFS) for 11 months. This is the first report to demonstrate that KIF5B-ALK (K20:A20) is a fusion variant that is sensitive to crizotinib. Future studies should assess whether other KIF5B-ALK fusion variants with different breakpoints also respond to crizotinib.

Although the effects of crizotinib are initially substantial, patients inevitably develop resistance (15). Second and third ALK-TKIs play different roles in inhibiting secondary mutations in the treatment of drug resistance related to the use of other ALK-TKIs (12). ALK kinase domain mutations were noted in 66.7% of patients after treatment with crizotinib, and mutations that confer resistance, including G1202R, G1269A, I1171T, L1196M, C1156Y and F1245V, were investigated (16). L1196M is a common secondary mutation in NSCLC and a point mutation in the ALK tyrosine kinase region that can dramatically alter protein conformations. This mutation plays an important role in sterically blocking the binding of crizotinib, which also affected the flexibility of loops L1 and L2 in ALK and induced the conformational drift of ALK (17). The L1196M mutation is located in the protein kinase domain of the ALK protein (UniProt.org: Q9UM73) and similarly demonstrated to be a resistance mutation in the crizotinib-resistant patient in our report. However, optimal sequential administration of ALK inhibitors after resistance to crizotinib in patients harboring the L1196M missense mutation has not been elucidated, especially patients with brain metastasis. Crizotinib does not easily penetrate the blood-brain barrier. However, second-generation ALK-TKIs effectively prevent intracranial progression (18,19). A preclinical evaluation demonstrated that ceritinib can overcome crizotinib resistance, particularly inhibiting ALK harboring L1196M, but without PFS data (20). Fortunately, the patient reported in our case achieved a long PFS of 9 months with the administration of ceritinib with ongoing follow-up.

In conclusion, this case presented a rare crizotinib-sensitive KIF5B-ALK (K20:A20) fusion and a resistance mutation after disease progression, highlighting the importance of dynamic genomic analysis on ALK-TKIs treatments. Similarly, analysis of the mechanisms of postprogression is extremely valuable. These analyses not only facilitate a better understanding of the molecular mechanisms of resistance and predictions of clinical outcomes but also assist clinicians in personalizing ALK-targeted strategies.

Acknowledgments

We thank all medical staffs for their essential assistance with collection of information regarding this case.

Funding: This work was supported by the National Science Foundation of China (82072598, 81871890, and 91859203), the National Major Science and Technology Project of China (2017ZX10103004-012), the National Key Development Plan for Precision Medicine Research of China (2017YFC0910004), the Science and Technology Program of Sichuan, China (2020YFS0572) and the Major Science and Technology Innovation Project of Chengdu City, China (2020-YF08-00080-GX).

Footnote

Reporting Checklist: The authors have completed the CARE reporting checklist. Available at http://dx.doi.org/10.21037/apm-20-2081

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/apm-20-2081). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures in studies involving human participants were performed in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
