The role of spontaneous portal-systemic shunts in liver transplantation: case report and literature review

Introduction

Spontaneous portal-systemic shunt (SPSS) is defined as communications spontaneously formed between the portal and systemic venous circulation. SPSS are usually formed secondary to portal hypertension caused by liver cirrhosis. SPSS may cause hepatic encephalopathy (HE) and further deterioration of liver function. In patients with end-stage liver disease who are candidates for liver transplantation (LT), the incidence of SPSS varied from 3.8% to 60% (1). SPSS might have a portal flow “stealing” effect, which could decrease the portal inflow into the graft and compromise graft function recovery (2). However, SPSS might prevent small-for-size syndrome (SFSS) by limiting the portal hypertransfusion, transient portal hypertension and sinusoidal damage that frequently occur after revascularization of small-for-size grafts (3,4). Therefore, the management of SPSS in LT is still complicated and needs to be further investigated.

We present the following article in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/apm-20-2431).

Case presentation

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Case 1

A 48-year-old male patient was admitted to our center because of decompensated cirrhosis a HE (grade III) secondary to hepatitis B virus infection. He had a history of type 2 diabetes and hepatitis B for 2 years without regular treatments. The Model for End-Stage Liver Disease (MELD) score for him was 18. The serum ammonia increased significantly (maximum 176 μmol/L). CT scan revealed complete occlusion of the portal vein (PV), splenomegaly and a large splenorenal shunt (SRS) with 1.8 cm in diameter (Figure 1A,B,C). He received a standard orthotopic LT. Before the operation, the anesthetist found his central venous pressure (CVP) was remarkably high, reaching 30 cmH₂O. During the operation, the SRS was found and ligated (Figure 1D). End-to-end anastomosis of PV was conducted after removing the old thrombus. Consequently, an efficient portal flow was obtained visually. The operation was successful, with CVP and blood ammonia decreased to normal range on postoperative day (POD) 1 after operation (Figure 2). Regular ultrasound examination found PV blood flow was adequate (Figure 3). His liver function was almost completely normal since POD 5 and he was discharged uneventfully (Figure 4).

Figure 1 The perioperative image of case 1. (A) SMV and SV were well filled with contrast medium and PV was completely occlusive; (B) SRS with 1.8 cm in diameter between SV and LRV; (C) 3-D reconstruction of PV system showed SMV, SV, LRV and SRS between SV and LRV; (D) ligation of SRS after LT. SMV, superior mesenteric vein; SV, splenic vein; PV, portal vein; SRS, splenorenal shunt; LRV, left renal vein; LT, liver transplantation.

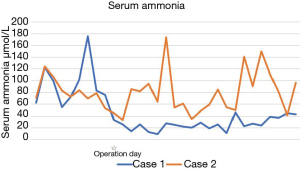

Figure 2 Postoperative serum ammonia level was lower in case 1 than that in case 2.

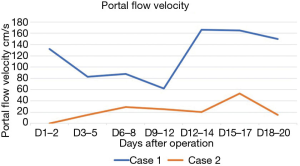

Figure 3 Postoperative PV flow velocity was higher in case 1 than that in case 2. PV, portal vein.

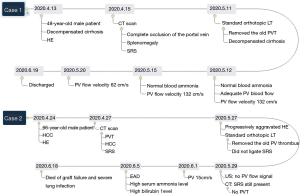

Figure 4 Timeline of the patient’s therapy. HE, hepatic encephalopathy; SRS, splenorenal shunt; LT, liver transplantation; PVT, portal vein thrombus; PV, portal vein; HCC, hepatocellular carcinoma; EAD, early allograft dysfunction.

Case 2

A 66-year-old male patient was admitted to our center because of hepatocellular carcinoma (HCC) and HE (grade III). He was diagnosed of HCC and received transcatheter arterial chemoembolization (TACE) 2 years ago. We also found portal vein thrombus (PVT) (from the junction of splenic vein (SV) and superior mesenteric vein (SMV) to the bifurcation of the left and right branches of the PV) and a large SRS with 2 cm in diameter (Figure 5A). Standard orthotopic LT was performed because of progressively aggravated HE. The PV flow was satisfactory by visual examination after a 1.5 cm old PVT removed (Figure 5B). The SRS was not ligated, because the portal flow was sufficient before PV anastomosis. PV was then anastomosed in an end-to-end fashion without stenosis. However, on POD 2, ultrasound examination revealed no portal blood flow signal with an increased hepatic artery flow velocity (maximum velocity 210 cm/s). The hepatic veins and inferior vena cava (IVC) were patent. Therefore, an emergency enhanced CT scan was performed. The scan showed the PV and its branches were well filled with contrast medium without dilation or stenosis (Figure 5C). The SRS was still present, and its diameter did not decrease (Figure 5D). Regular abdominal ultrasound examination after operation showed the PV flow velocity was low (from 15 to 53 cm/s, the average velocity was 23 cm/s, Figure 3). His transaminase level peaked on POD 8 and then dropped back to normal, but his bilirubin level continued to rise, peaking at 390 μmol/L on POD 13. Early allograft dysfunction (EAD) was diagnosed based on bilirubin level (229 μmol/L) and INR value (1.63) on POD 7. The serum ammonia level remained high after operation, possibly due to liver dysfunction and SRS (Figure 2). The patient eventually died of graft failure and a severe lung infection on POD 18 (Figure 4).

Figure 5 The perioperative image of case 2. (A) SRS with 2 cm in diameter between SV and LRV; (B) old PVT was removed during the operation; (C) postoperative CT showed PV and its branches were patent; (D) postoperative CT showed the diameter of SRS did not decrease. SRS, splenorenal shunt; SV, splenic vein; LRV, left renal vein; PV, portal vein; PVT, portal vein thrombus.

Discussion

The increasing resistance to portal outflow and a growth in splanchnic blood flow can cause portal hypertension (5,6). In order to compensate the portal hypertension, splanchnic vessels frequently develop a vast variety of SPSS (7). According to their localization to left or right side of the spleno-porto-mesenteric confluence, SPSS can be classified into left-sided and right-sided (central) shunts. Left-sided shunts include gastro-renal shunt, gastro-caval shunt and SRS. Right-sided (central) shunts include meso-renal shunt, paraumbilical shunt, rectal varices and esophageal varices (8). SPSS in different types have different clinical characteristics. Gastro-renal shunt and gastro-caval shunt are characterized by gastric varices bleeding. SRS, meso-renal shunt and paraumbilical shunt are characterized by HE. Rectal varices and esophageal varices are characterized by lower gastro-intestinal bleeding or hematemesis and melena. PVT can be seen in different types of SPSS. The above symptoms may occur alone or in combination with each other.

SPSS can only alleviate the chronic portal hypertension, but it causes more damages to liver function and nervous system (7-9). Deterioration of liver function is caused by reduced portal flow or PVT. With the progression of cirrhosis and portal hypertension, the flow of portal-systemic shunt is increasing, the splanchnic vessel (splenic and mesenteric) natural outflow to PV can be taken over by exceptionally large portal-systemic shunts (with or without varices). The liver disease, portal hypertension and portal-systemic shunt become an enclosed vicious cycle (10). As the size of SPSS increases, the PV flow will decrease and become hepatofugal ultimately. PVT eventually block PV completely. Liver atrophy, liver synthetic dysfunction and HE would get more serious at advanced stage (11).

HE frequently occurs in patients with cirrhosis caused by accumulation of toxins due to hepatocellular dysfunction or by portal-systemic shunt (9,12,13). According to the underlying disease, HE is subdivided into three types, including type A resulting from acute liver failure (ALF), type B resulting predominantly from portosystemic bypass or shunt and type C resulting from cirrhosis (13). Type-B HE can also occur after LT (14), that’s because blood ammonia from the gastrointestinal tract enters the systemic circulation directly through the large SPSS not ligated during operation. SPSS also occurs in non-cirrhotic patients (15). Therefore, SPSS should be considered if we find HE with elevated blood ammonia while other hepatic function indexes are normal.

SPSS may have distinct effects in different liver transplant recipients. For non-small size graft, SPSS might have a portal flow “stealing” effect, which could decrease the portal flow into graft, lead to post-operative PVT and liver graft dysfunction (2). The effect of SPSS on liver graft function recovery depends on its size. SPSS could be classified as large and small size according to its maximum diameter, with a cut-off of 8 mm (16). SPSS with a large diameter should be ligated, and small shunts are expected to disappear after physiological splanchnic circulation restored by implantation of a normal liver. Left renal vein ligation (LRVL) is considered as a safe and effective method to increase portal flow. If the portal flow is still poor (<1 L/min) after clamping the left renal vein (LRV), a reno-portal anastomosis (RPA) or other surgical methods should be considered (17). It’s worth noting that even some obvious shunts are ligated, post-operative recurrence of portal stealing phenomenon may also occur.

For small size liver graft transplantation, SPSS might have a protective effect by limiting the portal hypertransfusion and portal hypertension, which are primary causes of SFSS (4). Allard et al. found that SPSS do not negatively affect the outcome after LDLT and suggested “do-nothing” approach in living donor LT. Furthermore, dissection of the spleen or ligation of the shunts could induce additional adverse events (18). Although Gomez Gavara et al. found the incidences of post-LT HE and PVT were lower in the ligated SPSS group than those in non-ligated SPSS group, they still supported the “do-nothing” idea in case of small size graft (split-liver living donor graft or small whole liver graft with low graft-to-body weight ratio) (19). Only when portal flow is deemed insufficient either on the basis of visual examination or doppler ultrasonography (portal flow velocity <20 cm/s or portal flow <1 L/minute), the SPSS should be sought, isolated, and ligated after a positive clamping test (18). In case of spontaneous SRS, we could clamp the LRV on the left border of the IVC to test the effect of SRS on portal flow, in other case, the SPSS can be controlled directly. If the portal flow is better after SPSS clamping, the SPSS should be ligated after revascularization of the graft. Percutaneous endovascular intervention also could be considered to deal with SPSS before or after operation when needed (20).

There is no clear consensus on the “best approach” to manage SPSS in the peri-transplant period. The approach to manage SPSS should be made specifically to each institution during LT. We recommend that SPSS greater than 8 mm in diameter should be ligated in LT with non-small size graft to ensure adequate portal flow and preserved in LT with small size liver graft to avoid portal hypertransfusion and portal hypertension except obviously insufficient portal blood flow. We should pay attention to the changes of SPSS and take appropriate measures to deal with it when necessary in postoperative follow-up LT patients.
