Myocarditis related to immune checkpoint inhibitors treatment: two case reports and literature review

Introduction

By promoting T cell-mediated recognition and elimination of tumor cells, immune checkpoint inhibitors (ICIs) have dramatically improved clinical outcomes in various malignances (1). However, T cell activated by ICIs not only targets tumor cells but also induces autoimmune toxicities. Diverse immune-related adverse events (irAEs) involving pulmonary, cardiovascular, neurological, endocrine, gastrointestinal, and renal system can occur out of ICIs treatment (2). Myocarditis is a rare but potentially life-threatening complication of treatment with ICIs (3). ICIs associated myocarditis accounting for 1.14% of irAEs, but was correlated with a mortality of 46% (4). Besides, this condition can overlap with myositis or myasthenia gravis in more than 30% of patients receiving ICIs treatment (5). In this report, we described a case of lung adenocarcinoma and a case of chordoma, both of which developed myocarditis after receiving PD-1 inhibitors therapy. We present the following article in accordance with the CARE reporting checklist. Available at: http://dx.doi.org/10.21037/apm-20-2620.

Case presentation

Case 1

A 77-year-old male with chordoma was treated by third-line sintilimab, a PD-1 antibody, combined with anlotinib, a tyrosine kinase inhibitor that targets VEGFR, FGFR, PDGFR and c-kit. At that time, he was evaluated as progressive disease after first line radiotherapy and second line treatment of anlotinib. He did not have any autoimmune disease or heart disease before.

The patient presented with symptoms of chest tightness, shortness of breath and upper eyelid ptosis three weeks after receiving his first dose of combination treatment. Physical exam was notable for bilateral upper eyelid ptosis, ocular motility limitation and lower limb weakness. Electrocardiogram (ECG) showed ST segment depression in leads I, II, aVF, V4, V5, and V6, with T wave changes in leads I and aVL. Echocardiogram revealed a left ventricular ejection fraction (LVEF) of 61% (normal value >50%) with an enlarged left atrium, and decreased left ventricular diastolic function. Cardiac troponin T (cTnT) level was 1.29 ng/mL (normal value <0.014) and rose to 1.5 ng/mL 6 hours later. N-terminal pro-brain natriuretic peptide (NT-proBNP) level was 581.8 ng/L (normal value <125). Creatine kinase-myocardial band (CK-MB) and creatine kinase (CK) levels were 140.7 ng/mL (normal value <4.87) and 706 U/L (normal value <310), respectively. Aspartate aminotransferase (AST) and alanine aminotransferase (ALT) levels were 403 U/L (normal value <40) and 168 U/L (normal value <50), respectively. Anti-acetylcholine receptor antibody (anti-AChR-Ab) level was 0.743 nmol/L (normal value <0.45) and anti-Titin body level was 1.269 nmol/L (normal value <0.5), respectively. Cardiac 18F-fluorodeoxyglucose (18F-FDG) position emission tomography magnetic resonance imaging (PET-MRI) demonstrated increased FDG metabolism at the base of the left ventricular wall and increased T2WI signals at the base of the ventricular septum (Figure 1). Based on his clinical symptoms, elevation of myocardial injury biomarkers, changes in ECG and echocardiogram, and characteristic findings on cardiac 18F-FDG PET-MRI, he was diagnosed with ICIs-related myocarditis. Immune-related hepatitis also occurred on this patient. Myositis-myasthenia gravis overlap syndrome was also highly suspected based on the symptoms of upper eyelid ptosis and elevated acetylcholine-receptor antibodies.

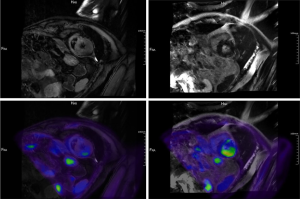

Figure 1 Position emission tomography magnetic resonance imaging (PET-MRI) demonstrated increased fluorodeoxyglucose (FDG) metabolism at the base of the left ventricular wall. The high signal area can be seen on T2-weighted imaging (T2WI).

An immunosuppressive therapy of 480 mg/d methylprednisolone was given immediately for five days. The dose of methylprednisolone was gradually reduced to 40 mg/d in 4 weeks, with the CK and cTnT levels declined in the same time. Despite the good response to immunosuppression, the patient subsequently developed abdominal infection after 15 days of methylprednisolone treatment. The patient refused further intervention and requested to be discharged. He gave up all treatment and died at home three days later.

Case 2

A 69-year-old female with past medical history of arterial hypertension was diagnosed with advanced non-small cell lung cancer with EGFR/ALK wild-phenotype and was treated with pemetrexed combined with bevacizumab as first-line therapy. Camrelizumab, an anti-PD-1 monoclonal antibody, was added after two cycles of chemotherapy.

The patient presented with palpitations 20 days after the camrelizumab treatment. ECG showed sinus tachycardia, atrial premature beats, atrial tachycardia and ST segment depressed in leads I, II and aVF. Echocardiogram showed a LVEF of 59% with enlarged inner diameter of the left atrium, decreased left ventricular diastolic function and normal left ventricular systolic function. cTnT level was 0.806 ng/mL (normal value <0.014), and rose to 0.952 ng/mL the next day. NT-proBNP and CK-MB levels were 321 ng/L (normal value <125) and 81.8 ng/mL (normal value <4.87), respectively. AST and ALT levels were 339.4 U/L (normal value <40) and 144.2 U/L (normal value <50). The patient failed to do the cardiac MRI examination due to claustrophobia. A clinical diagnosis of immune-related myocarditis was made and were initiated with methylprednisolone at a dose of 240 mg/d for five days. The clinical symptoms improved and the myocardial injury biomarker levels declined, and the dose of methylprednisolone was decreased to 120 mg/d in the next two weeks. Subsequently the patient received 40 mg/d prednisolone orally and was discharged.

However, she was admitted for shortness of breath and progressive muscle weakness one week later. Physical examination found left upper eyelid ptosis and symmetrical weakness of the lower limbs. Initial arterial blood gas analyses demonstrated type II respiratory failure and non-invasive positive pressure ventilation (NIPPV) was applied. ECG and echocardiogram were the same as before. CK-MB was 37.8 ng/mL (normal value <4.87) and cTnT was 0.175 ng/mL (normal value <0.014), which was same as before. NT-proBNP rose to 2,509 ng/L (normal value <125). The thyroid hormones showed notably decreased free T3 of 0.88 pg/dL (normal value 0.80–2.00) and free T4 of 0.60 ng/ dL (normal value 0.93–1.70), normal TSH level of 1.02 µIU/mL (normal value 0.27–4.20). At the mean while the anti-thyroglobulin antibody and anti-thyroid peroxidase autoantibody were detected. 50 µg/d levothyroxine was prescribed and steroid treatment was changed to intravenous 40 mg/d methylprednisolone.

However, the weakness in respiratory muscles barely responded to the treatments. The patient was transferred to ICU due to the worsen carbon dioxide retention. Anti-AChR-Ab was normal, but anti-Ryanodine-Receptor-Ab and anti-Titin-Ab was positive. With suspicion of myasthenia gravis, the dose of methylprednisolone was adjusted to 120 mg/d. Immunoglobulin was given intravenously for 15 days to prevent infections. Immune-related myocarditis, hepatitis and hypothyroidism were improved, and methylprednisolone was weaned off over 3 weeks by tailing down 20 mg/d every week until a dose of 40 mg daily was reached. Although the patient demonstrated a good response to steroid therapy initially, the weakness of respiratory muscle did not improve but progressed finally. She died of respiratory failure and pulmonary encephalopathy 52 days after her second admission.

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Discussion

Herein we present a case of non-small cell lung cancer treated with camrelizumab and a case of chordoma treated with sintilimab, resulting in myocarditis concurrent with other irAEs. Different initial doses of methylprednisolone in two cases led to different outcomes, indicating that the initial dosage of methylprednisolone playing an important role in the prognosis of ICIs-related myocarditis. It was a pity that the first patient gave up further treatment for economic reasons, who was hopeful to get disease remission and live longer.

As ICIs are used widely to treat solid tumors, an increasing number of irAEs have been reported. Myocarditis is a one of the rare but fatal irAEs. The incidence of immune-related myocarditis is reported to be around 1% (4), which is possibly under-estimated in the real world due to the challenging in diagnosis and a general lack of awareness of this condition (6). Because of the relatively low incidence, knowledge of the clinical manifestation and management of this condition is also limited.

These two patients in our report developed ICI-related myocarditis in an early period, after the first dose of ICIs treatment, which is consistent with prior studies (4,5,7). Based on published reports, most ICI-related myocarditis occurred within the first three months of ICI therapy. Johnson et al. reported a median onset time of 17 days and a range of 13–64 days (8). In the study performed by Moslehi et al., myocarditis appeared after a median of 27 days after the initiation of immunotherapy, but with a wider range of 5–155 days (5). Both of our patients received a combined therapy of ICIs, one patient was treated with anti-angiogenesis therapy combined with PD-1 inhibitor, and the other received a chemotherapy and ICI combined treatment. It is reported that ICIs combination therapy is associated with a significantly higher incidence and mortality of myocarditis than monotherapy (4,5). Other conditions like presence of cardiovascular risk factors or prior exposure to chest radiotherapy or agents with known cardiovascular toxicities may also increase the risk of ICI-associated cardiotoxicity (4,5,7,9,10). Closer monitoring is needed especially for these patients.

The clinical manifestations of immune-related myocarditis are quite variable, which could range from nonspecific symptoms like fatigue, chest pain, or palpitation as the cases in our report, to heart failure and even sudden death. One typical feature of myocarditis is an elevated level of myocardial injury biomarkers such as BNP or NT-proBNP, cardiac troponin, and CK-MB. ECG and echocardiogram were also helpful tools for initial evaluation (6). In our report, increased cardiac biomarkers and abnormality in ECG were presented in both patients. Although LVEF was normal, Immune-related myocarditis could not be ruled out. According to Mahmood et al. (4), over a half of patients diagnosed with Immune-related myocarditis remained a normal LVEF. For now, there was no consensus of diagnosis criteria for immune-related myocarditis. The application of endomyocardial biopsy, the gold-standard to diagnose myocarditis was limited for risk of severe complications, including fatal cardiac perforation. On the other hand, the pathological features of Immune-related myocarditis were sometimes similar with findings in acute allograft rejection in cardiac transplantation (8). Recently, 18F-FDG PET/MRI, which can provide both metabolic information and structural information by combing 18F-FDG PET and cardiac MRI in one study, is being increasingly recognized as a valuable tool in the detection of myocarditis (11,12). Overall, a precise diagnosis of Immune-related myocarditis should involve a combination of clinical features, myocardial injury biomarkers and ECG, and/or endomyocardial biopsy if necessary. Emerging new procedures like PET/MRI may be beneficial to make the diagnosis.

Glucocorticoid is the first-line treatment for immune-related myocarditis. For the patients with stable fatal signs, oral or intravenous prednisone (1–2 mg/kg/d) is recommended (13). If the patient did not respond immediately, dose of glucocorticoid could be upregulated to 1.0 g/d intravenous methylprednisolone (13). For patients with fatal myocarditis, the dosage of glucocorticoid still lacks consensus. Limited reports and researches supported a trend that there was a lower major adverse cardiac events rate with higher starting doses of immunosuppression (4). The dose of steroids should be gradually reduced after 3–5 days, tapering over one month and even longer in some severe cases (9). Both of our patients were treated with corticosteroids while the first patients received a higher dose of methylprednisolone and a slower course of dose reduction. It seemed that both patients responded well initially, but the second patient was admitted to hospital again afterwards, indicating a higher-dose of methylprednisolone may lead to better prognosis. Other immunosuppressive therapy such as intravenous immunoglobulins and/or plasma exchange also should be considered (14,15). The patients in our report also overlapped other irAEs, including myasthenia gravis, hepatitis and hypothyroidism. In a report of 101 cases of ICI-related myocarditis carried out by Moslehi et al., 42% of cases were concurrent with other severe irAEs, most commonly were myositis (25%) and myasthenia gravis (11%) (5). Johnson et al. demonstrated that myasthenia gravis presenting with myocarditis or myositis had higher mortality compared with myasthenia gravis alone (16). In particular, myasthenia gravis caused by PD-1 inhibitors appears to have some unique characteristics. It has been reported that myasthenic crisis or respiratory failure requiring ventilatory support in particular was common and occurred in nearly half of cases (17). Early identification of these conditions is needed.

Conclusions

Myocarditis is an uncommon but potentially fatal complication during the treatment with ICIs. Serum level of cardiac biomarkers, ECG, echocardiography, and cardiac imaging are valuable tools for the diagnosis of ICI-induced myocarditis. Patients usually can benefit from high-dose corticosteroid, but extra attention should be paid when patients presented with other irAEs like MG.

Acknowledgments

Funding: This work was supported by Clinical Plateau Discipline Project in Shanghai Pudong New Area (PWYgy2018-06).

Footnote

Reporting Checklist: The authors have completed the CARE reporting checklist. Available at: http://dx.doi.org/10.21037/apm-20-2620

Peer Review File: Available at: http://dx.doi.org/10.21037/apm-20-2620

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at: http://dx.doi.org/10.21037/apm-20-2620). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
