The effect of balloon dilatation eustachian tuboplasty combined with grommet insertion on the structure and function of the eustachian tube in patients with refractory otitis media with effusion

Introduction

Refractory otitis media with effusion (OME) is characterized as continuous OME with a history of grommets insertion several times (1,2). OME is a disease with adult prevalence of around 0.6%, compared with incidence about 90% of children before school (3,4). Most children with OME could resolve spontaneously within 3 months, except that about 5% to 10% of children have repeated OME episodes lasting ≥1 year (4). OME may be caused mainly by Eustachian tube dysfunction (ETD), an ear infection (acute otitis media), some syndromes such as Down’s syndrome and cleft palate which might affect the shape of the face and skull base, secondary to subclinical bacterial infection, and partly in association with gastroesophageal reflux disease (3). The treatments for refractory otitis media with effusion usually choose long-term grommet insertion (4,5). However, repeated ventilation tube insertion is not successful treatment option for recurrent OME, which is difficult to cure, even might cause tympanic membrane perforation, infection, and tympanosclerosis. Unfortunately, repeated attacks of symptoms such as hearing loss, aural fullness, otalgia, tinnitus, feeling of pressure, or popping in the ears seriously affects the quality of life of patients (3-6). ETD may lead to recurrent or persistent OME. Tympanic tube insertion surgery can not directly resolve ETD and may be associated with complications [such as infection, persistent perforation, and tympanosclerosis (7)]. Thus, a new balloon dilation of the eustachian tube technique [known as balloon eustachian tuboplasty (BET)], which is a safe and effective treatment option of ETD, was first applied clinically in patients in 2010 (8). The BET technique was performed with superior postoperative outcomes compared to other medical interventions, such as the placement of tympanostomy tubes, and other conventional medical treatments, including nasal steroids, decongestants, or antihistamines (9).

BET has been a recent development for the treatment of ETD. However, Schröder et al. found that BET surgery did not achieve significant symptom improvement in OME, with an effective rate of only 66% (10). Some studies have suggested that the severely thickened mucosa of the middle ear might be one of the reasons for the unsatisfactory result of BET in some patients (11). Meanwhile, other studies have reported short-term symptom relief and a declining effective rate in the long-term effect (≥3 years) (12-14). One previous study reported the effect of balloon dilatation eustachian tuboplasty combined with tympanostomy tubes in children patients with recurrent otitis media with effusion, which indicated that ETS was improved after the treatment. However, there is still lacking more comprehensive evaluated indicator, particularly for the adults (15). In this study, we aimed to evaluate the effect of BET combined with grommet insertion on the function and the opening structure of the eustachian tube. Assessment and quantification of Eustachian tube function involved subjective or objective methods before and after surgery. The subjective methods included an assessment of patient symptoms or the use of the seven-item Eustachian Tube Dysfunction Questionnaire scores (ETDQ-7). The objective methods included the appearance of tympanic membrane, pure-tone hearing threshold, eustachian tube score (ETS), quantitative examination of eustachian tube function (dynamic observation of tympanogram peak pressure point), and the results of computed tomography (CT) examination of the eustachian tube.

We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/apm-21-1280).

Methods

Materials

All procedures performed in this observational study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Shandong Provincial ENT hospital ethics committee (registration number of the ethics board: XYK20161201), and informed consent was taken from all the patients. We undertook this study enrolled 57 adult patients with refractory OME between January 1, 2017, and April 1, 2019. Study participants were recruited from the ENT (ear, nose and throat) clinic at Shangdong Provincial ENT Hospital affiliated to Shandong University, and included 33 male patients and 24 female patients. The mean age of study participants was 35.3 years (range, 18–66 years). The follow-up time was 12 months postoperatively.

Study methods

The clinical assessment included examination of the appearance of the tympanic membrane with an oto-endoscope, as well as pure-tone hearing threshold evaluation. Eustachian tube function was evaluated via the ETS, quantitative examination of eustachian tube function (dynamic observation of tympanogram peak pressure point), Valsalva’s manoeuvre, Toynbee’s manoeuvre, and the results of CT examination of the eustachian tube.

The following parameters were used: pure-tone audiometry (PTA): 500, 1,000, 2,000, and 4,000 Hz; air conduction and bone conduction gap (ABG): the gap of auditory thresholds between air conduction and bone conduction at 500, 1,000, 2,000, and 4,000 Hz for PTA.

Quantitative examination of eustachian tube function (dynamic observation of tympanogram peak pressure point, when the tympanic membrane is intact)

• The first tympanogram records resting middle-ear pressure.
• Valsalva’s manoeuvre, and then record the second tympanogram.
• The subject swallows several times, and then record the third tympanogram.

When eustachian tube function is normal, the peak pressure point of the second curve in the acoustic admittance chart usually deviates more than 10–15 daPa. Peak pressure point movement of less than 10–15 daPa or no movement is indicative of ETD.

Modified inflation-deflation test (when the tympanic membrane is not intact)

An open pressure (less than 250 mmH₂O) signifies that the eustachian tube is unobstructed. If the eustachian tube opens only between 250 mmH₂O and 360 mmH₂O, it can be assumed that partial mechanical obstruction is present. A high opening pressure (>360 mmH₂O) may indicate total obstruction. Meanwhile, a low opening pressure (<100 mmH₂O) is indicative of a semipatulous eustachian tube.

ETS

The ETS is a tool that combines both the subjective and objective elements for the assessment of eustachian tube function, including tubomanometry (TMM), clicking sound when swallowing, and positive subjective Valsalva. The ETS ranges from 0 to 10 points, with a score of 0 denoting no tubal function and the maximum score of 10 signaling the highest tubal function (8) (Table 1). An ETS ≤5 suggests diagnosis of chronic ETD.

Table 1 Eustachian tube score (ETS) (8)
Full table

The seven-item Eustachian Tube Dysfunction Questionnaire (ETDQ-7)

ETDQ-7, a valid and reliable symptom score, was used to quantify the ETD symptoms (16) (Table 2).

Table 2 Eustachian Tube Dysfunction Questionnaire-7 (ETDQ-7) (16)
Full table

Three-dimensional reconstruction of iohexol-enhanced CT image was used to evaluate the structural and length changes of the eustachian tube at resting and Valsalva maneuver states. In addition, the absence of internal carotid artery (ICA) dehiscence into the eustachian tube lumen was confirmed by a CT scan involving the temporal bone.

Instruments and equipment

• GE Lightspeed 64-row spiral CT scanner (GE LightSpeed Ultra multi-detector spiral CT scanner, GE Medical Systems, Milwaukee, Wisconsin, USA). A 0.625 mm-thick image was reconstructed by using the multi-planar reconstruction technique.
• Image processing software version of workstation: GE AW4.6 (GE LightSpeed Ultra multi-detector spiral CT scanner, GE Medical Systems, Milwaukee, Wisconsin, USA).
• Grayson-Stadler Audio star Pro dual-channel diagnostic audiometer (Minnesota, USA).
• GSI Tympstar otoadmittance (Minnesota, USA).

Tuboplasty method

The BET procedures were performed as previously described by Ockermann et al. (8). A Bielefeld balloon catheter (Spiggle and Theis, Overath, Germany) was used to dilate the eustachian tube. The balloon was inflated with normal saline to 10 bars (1,000 kpa) for 2-min once inside the cartilaginous part of the eustachian tube.

Follow-up

Postoperative follow-up was carried out from 1 to 12 months. Re-visits were conducted every 3 months until the function of eustachian tube was no longer changed, including at 4 months postoperation. Audiometry and tympanometry were performed, and the ETS, ETDQ-7 scores, quantitative examination of eustachian tube function (dynamic observation of tympanogram peak pressure point), and results of three-dimensional reconstruction of iohexol-enhanced CT scan of the eustachian tube were obtained.

Statistical analyses

Data were analyzed using the SPSS24.0 Statistical Analysis Software (SPSS Inc., Chicago, IL, United States). The pure-tone hearing threshold, air-bone conduction gap, and open length of the eustachian tube were compared before and after surgery using the paired t-test. Spearman correlation analysis was used to assess the changes of the open length of the eustachian tube after three-dimensional reconstruction of the iohexol-enhanced CT scan, as well as quantitative examination of eustachian tube function. P value less than 0.05 was considered statistically significant.

Results

Fifty-seven patients underwent BET and grommet insertion, including 33 males and 24 females. All 57 cases were unilateral, with a mean age of 35.3 years.

The pure-tone auditory threshold at 1 day postoperatively was significantly lower than those before the operation (P<0.05), and then remained stable and decreased slightly at 9 months postoperatively. The air-bone gap exhibited the same result. The ventilation tube was removed at 3 months after operation (the eustachian tube function was stable). There was no significant difference between the pure-tone auditory thresholds at 6- and 9-month postoperatively, and the same result was observed for the air-bone conduction gap (Figure 1).

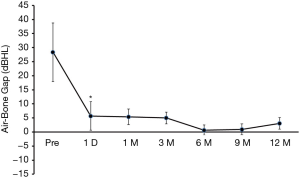

Figure 1 Air-bone gap. *, P<0.05.

The quantitative examination peak pressure deviation in the tympanogram of eustachian tube function was less than 10 daPa preoperatively, and was significantly increased at 6 months post-surgery (P<0.05), with the deviation being greater than 15 daPa (Figure 2). There was a significant difference in the quantitative examination peak pressure deviation and ETS between 4- and 6-month postoperatively. The peak pressure deviation of tympanometry at 6 and 9 months postoperatively were both higher than the value at 12 months after surgery (P<0.05).

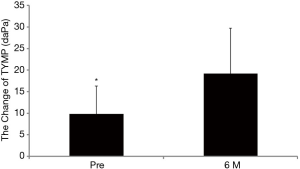

Figure 2 The quantitative examination peak pressure deviation in tympanogram. *, P<0.05.

Regarding the subjects who received BET combined with grommet insertion, the open pressure of the eustachian tube was still higher than 360 mmH₂O at 1 day post-surgery. This gradually decreased and reached a stable level at 3 months postoperatively, which suggest that the tube can be removed at this time (Figure 3). The tympanic ventilation tube was removed at 3 months postoperatively, however OME occurred in five patients at 9 months and in seven patients at 12 months after the operation. The close pressure did not change obviously.

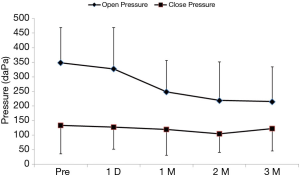

Figure 3 The open and close pressures of eustachian tube.

The ETS was improved at 1-month post-surgery, and was stable from 3 months postoperatively. The ETS at 1, 3, 6, 9, and 12 months postoperatively was significantly higher than that before surgery (all P<0.05). There was a marked difference between the ETS at 6- and 12-month after the operation (P<0.05) (Figure 4).

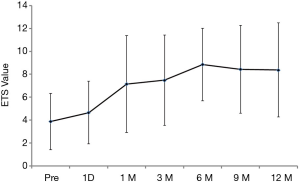

Figure 4 Changes in the ETS. ETS, eustachian tube score.

There was a significant difference in the ETDQ-7 scores at 6- and 12-month postoperatively (P<0.05) (Figure 5). The quantitative examination peak pressure deviation of eustachian tube function and ETS were both correlated with the change in the development length of the eustachian tube according to the three-dimensional CT reconstruction (P<0.05).

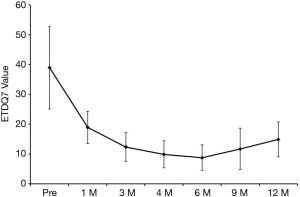

Figure 5 Changes in the ETDQ-7 scores. ETDQ-7, seven-item Eustachian Tube Dysfunction Questionnaire scores.

At the 6-month follow-up, the overall number of BET combined with grommet insertion subjects with normalized tympanograms and those with normalized ETDQ-7 scores remained unchanged relative to those at 4 months.

At the 12-month follow up, the air-bone gap increased in seven patients (12.3%), the quantitative examination peak pressure deviation decreased in nine patients (15.8%), the ETS decreased in 10 patients (17.5%), and the ETDQ-7 scores became abnormal in 12 patients (21.1%).

The developing length of contrast medium 3 months postoperatively (Figure 6) significantly increased compared with that before surgery (P<0.01) (Table 3, Figure 7). There was a linear correlation between the developing length of the contrast medium and the ETS, r=0.81, P<0.05.

Figure 6 CT (oblique coronal position) iohexol imaging, 3 months after eustachian tube balloon dilatation. Red arrow represents the eustachian tube enhanced by iohexol contrast medium.

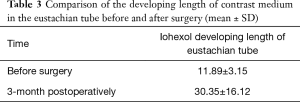

Table 3 Comparison of the developing length of contrast medium in the eustachian tube before and after surgery (mean ± SD)
Full table

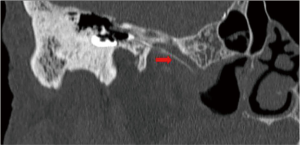

Figure 7 CT (oblique coronal position) iohexol imaging before eustachian tube balloon dilation. Red arrow represents the eustachian tube enhanced by iohexol contrast medium.

Discussion

The eustachian tube is a complex osseocartilaginous connection between the protympanum and the nasopharynx. It is an organ consisting of a lumen with its mucosa, cartilage, surrounding soft tissue, paratubal muscles, and bony support. The eustachian tube is divided into three portions: cartilaginous, junctional, and osseous. The cartilaginous portion opens into the nasopharynx (17).

Failure of the eustachian tube to function correctly is a common cause of morbidity. ETD may lead to recurrent or persistent OME, hearing loss, temporary lag in speech development in children, retraction of the tympanic membrane, or even cholesteatoma. Treatments such as the placement of tympanostomy tubes create an alternative route for ventilation of the middle ear space, but do not directly address the problem of the eustachian tube (7). BET aims to improve the ventilatory and pressure-equalising function of the eustachian tube in order to prevent, reverse, or stop the progression of ETD conditions by widening the medial cartilaginous part of the eustachian tube. A histological study of BET suggested that balloon-mediated compression of irreversibly injured hypertrophic mucosa, submucosal inflammatory lymphoid infiltrate, and follicular hyperplasia may allow for a replacement layer of thinner and healthier layers (9). Kivekäs et al. also found that diffuse crush injuries and shearing of the mucosa and submucosa were restored to largely healthy ciliated pseudo-columnar epithelium at 5–12 weeks postoperatively following BET (18). It is likely that BET removes irreversibly injured or inflamed mucosal and submucosal tissue, promoting recovery with normal cell lining (19). Therefore, with the return of the normal ciliated epithelium and reduced inflammatory infiltrate, it is possible that BET could cause some permanent changes to the cartilaginous eustachian tube that could provide lasting benefit in widening the lumen and facilitate the dilatory action of the tensor veli palatini (TVP) muscle (20). With the maintenance of a correct middle ear pressure, information provided by chemoreceptors and baroreceptors of the tympanic plexus is transmitted to the nuclei of the solitary tract, and then a neural circuit promotes the activation of eustachian tube muscles. Perturbations of the middle ear pressure may also stimulate saliva production, with consequent swallowing, opening of the eustachian tube, and endotympanic pressure rebalancing (21).

In our study, patients treated with BET and grommet insertion had a satisfying outcome in terms of their subjective symptoms and objective evaluations, and also achieved good results in eustachian tube function and structure, which is consistent with the findings of Yin et al. (22). The quantitative examination peak pressure deviation of eustachian tube function significantly increased postoperatively (P<0.05), as did the ETS. After the operation, the pure-tone auditory threshold and air-bone gap were significantly lower than those before surgery (P<0.05). There was no significant difference in the pure-tone auditory threshold between 3- and 6-month postoperatively. Meanwhile, there was a significant difference in the quantitative examination peak pressure deviation and ETS between 4- and 6-month postoperatively. The reason for this may be that although the function of the eustachian tube gradually recovered, there was no inflammatory change or effusion in the tympanum. However, there was an inflammatory reaction and scar formation after physical extrusion of the eustachian tube mucosa, submucosa, and peri-eustachian tube at 3 months after surgery. The function of eustachian tube was not restored to normal until 6 months postoperatively.

Given that visualizing the eustachian tube lumen could perhaps provide information on its patency and the level of obstruction, and radiological assessment of the eustachian tube could provide a useful non-invasive solution to assessing eustachian tube function (23), we applied iodine-based contrast mediums to visualize the eustachian tube. The length of the contrast agent of eustachian tube was significantly increased both before and after the operation. This is related to the enlargement of the cartilaginous segment of eustachian tube, the increase of the patency of eustachian tube, and the improvement of the active and passive opening function of the eustachian tube. At the same time, it may also be that in the inflammatory state of the middle ear, the secretion of the glands in the eustachian tube increases. Following BET, the autonomic nerves in the mucosa and surrounding tissues of the eustachian tube are damaged, and thus, that the effect of promoting secretion and vasodilation is weakened.

In our study, at the 12-month follow up, the air-bone gap increased in seven patients (12.3%), the quantitative examination peak pressure deviation decreased in nine cases (15.8%). the ETS decreased in 10 patients (17.5%), and the ETDQ-7 scores became abnormal in 12 cases (21.1%). These results indicate that the function of eustachian tube decreased, and that not all patients ultimately benefit from BET (24-26). Of the 57 patients/ears, OME recurred after BET in seven cases. Among these seven cases, one case had allergic rhinitis and asthma, which may explain the fact that the operation did not treat the allergic inflammatory reaction in the middle ear and eustachian tube. Therefore, treating the allergic diseases that affect the function of eustachian tube and removing the obstruction is key.

In the remaining six cases, although there were no allergic diseases of the nose and respiratory tract, the recurrence of OME after BET may be related to the following: the insufficient traction force after the formation of the soft tissue scar around the eustachian tube caused by the single BET operation, the insufficient opening of lumen, the weakening of passive opening ability, and the insufficient reduction of impedance to the tensor veli palatine muscle. Six cases got better improvement after the combined treatment, unfortunately, they recurrented finally. Even after recurrence, the symptom was better than that before the combined treatment. Also, despite the fact that OME recurred after the operation, both the Valsava and Toynbee maneuvers were easier than before, and eustachian tube function was partially improved. In these patients, perhaps appropriate hyperbaric dilation, delayed dilation, and repeated dilation are effective methods to solve these problems.

After balloon dilatation, the eustachian tube was enlarged and the development length of the eustachian tube was increased. Balloon dilation can effectively improve the active and passive opening function of the eustachian tube. Eustachian tube balloon dilatation combined with grommet insertion is an effective treatment for refractory otitis media with effusion.
