Pericardial tamponade after chronic total occlusion revascularization: a case report and literature review

Introduction

Chronic total occlusion of coronary artery (CTO) refers to a lesion in which the degree of coronary angiography is 100% occlusion. Numerous observational studies have showed that successful CTO revascularization is associated with better cardiovascular outcomes and enhanced quality of life. PCI is considered as one of the most effective methods of revascularization (1). However, in some cases, PCI could cause severe complication, including contrast induced nephropathy, acute stent thrombosis, stent dislodgement, malignant ventricular arrhythmia and pericardial tamponade (2,3). Usually, we identify vascular rupture by coronary angiogram. But in this case report, we describe an unusual case of pericardial tamponade after CTO revascularization. This patient had pericardial tamponade without contrast agent leakage from coronary artery after PCI procedure. This situation puzzled and confused us.

We present the following article in accordance with the CARE reporting checklist (available at https://dx.doi.org/10.21037/apm-20-2455).

Case presentation

A 67-year-old woman was admitted to our hospital with paroxysmal chest pain and out of breath for nearly two years. The symptoms which often occurred after activity, lasted about 10 minutes and can be relieved by rest or nitroglycerin. She had taken clopidogrel l (75 mg/d), isosorbide mononitrate (40 mg/d) and atorvastatin calcium (20 mg/d). Serum triglyceride level was 3.76 mmol/L. Electrocardiogram (ECG) showed T wave was low in aVL lead (Figure 1). Echocardiogram displayed that the left atrium was slightly enlarged. Left ventricular ejection fraction (LVEF) was 60% and there was mild mitral valve insufficiency. Coronary angiogram showed that the right coronary artery (RCA) was completely occluded, and the proximal segment to middle segment of left anterior descending artery (LAD) was occluded about 30–50%, with a length of 50 mm lesion. The proximal segment of left circumflex artery (LCX) was occluded about 50–85%, with a length of about 18 mm lesion. We first opened the LCX to alleviate the patient’s symptoms by placing a stent (Helios, China; 4.0 mm × 22 mm) (Figure 2). The chest pain and out of breath of the patient were relieved significantly after LCX PCI, but there was still chest tightness after severe activity. Compared to preoperation there was no significant difference in ECG (Figure 3). The patient took aspirin (100 mg/d), clopidogrel (75 mg/d) and atorvastatin calcium (20 mg/d) for postoperative treatment. After 6 weeks, ECG showed that the ST depression and T inversion in V1–V4 (Figure 4). Therefore, we planned to revascularize the RCA. By SAL 1.0 guiding, we used XT-R and Gaia First wire going through the lesion part of RCA. We used 1.25 mm × 10 mm balloon (Tazuna, Japan), 1.5 mm × 15 mm balloon (Sprinter, USA) and 2.0 mm × 20 mm balloon (Traveler, USA) to expand vascular. We placed 2.25 mm × 8 mm and 2.5 mm × 28 mm XIENCE X stents from distal to proximal by the sequence. Finally, we used 2.5 mm × 15 mm non-expansive balloon (Sapphire, the Netherlands) to modify stents. Angiography showed that blood flow of RCA was TIMI 3 (Figure 5).When we withdrew Sal 1.0 guiding, the patient was unconscious suddenly. The echocardiogram showed that the liquid area of pericardial cavity in the posterior wall of the left ventricle was 10/7 mm (SD), that of the anterior wall of right ventricle was 5/3 mm (SD), and that of the pericardial cavity of the right apex was 10/6 mm (S/D). Pericardial effusion is between the low and moderate level. Right coronary angiography showed that the blood flow of RCA was normal. There was no contrast agents leaking, but the patient suffered the pericardial effusion. The blood flow of the RCA stent was normal, and there was no loss of lumen or retention of contrast agent (Figure 6). Pericardial puncture was then performed, and about 670 mL of blood was drained from the pericardium. In order to maintain blood pressure, the patient received intravenous drip infusion of dopamine hydrochloride, noradrenaline bitartrate and transfusion of 800 mL red blood cells. After assessing the patient’s condition, the attending physician decided to transfer the patient to the department of cardiovascular surgery for thoracotomy. After opening pericardium, a large amount of bleeding was cleared and the blood pressure was increased up to 121/68 mmHg. On the surface of RCA, the hematoma at the distal end of the RCA was detected, but there was no significant bleeding. Hemostasis was carried out on the surface of coronary artery by cardiac surgery. After surgery, the patient continued to take aspirin, clopidogrel and atorvastatin and she was discharged without any symptoms. Three months later, she was admitted to our department for a check, and the echocardiogram showed she recovered well. After 2-year follow-up, the ECG showed T wave inversion in V1–V6, aVL leads (Figure 7) while the patient felt well.

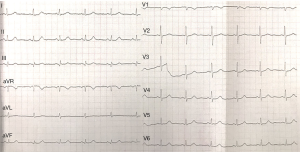

Figure 1 Electrocardiogram (ECG) showed T wave was low in aVL lead.

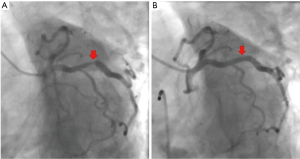

Figure 2 Coronary angiography of the left coronary arteries. (A) The stenosis site of left circumflex artery (LCX, arrowhead). (B) The stenosis site of left circumflex artery (LCX) after percutaneous coronary angioplasty (PCI, arrowhead).

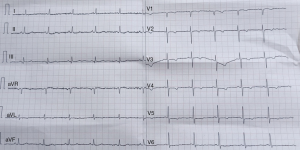

Figure 3 Electrocardiogram (ECG) showed T wave was low in aVL lead.

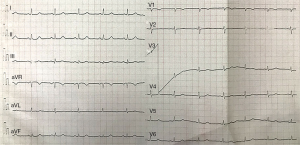

Figure 4 Electrocardiogram (ECG) revealed ST depression and T waves inversion in V1–V4 leads.

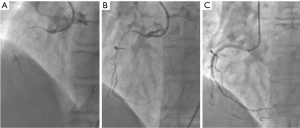

Figure 5 Coronary angiography showed the process of percutaneous coronary angioplasty (PCI) operation to open the occluded right coronary artery (RCA).

Figure 6 Coronary angiography shows no the rupture of the coronary artery after percutaneous coronary angioplasty (PCI).

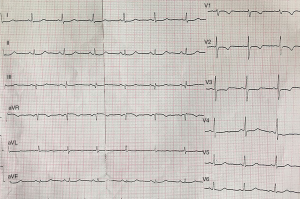

Figure 7 Electrocardiogram (ECG) showed ST depression and T wave inversion in V1–V6, I, AVL leads.

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Discussion

CTO refers to the gradual occlusion of chronic coronary artery (4). CTO can cause insufficient blood supply to the myocardium, and lead to clinical symptoms (5). Many studies confirm that the revascularization of CTO (CTO-PCI) is associated with reducing the incidence of angina pectoris and improving heart function and the quality of life (6). However, there were some serious complications in CTO-PCI procedure, for example the coronary artery rupture. Coronary artery rupture is one of the most worrying complications in CTO-PCI (7,8), because it may lead to more dangerous clinical conditions such as pericardial tamponade, which causes hypotension and shock, eventually resulting to death.

Usually, coronary angiogram is carried out to determine the rupture spot of the coronary artery (9). In our case, there was no contrast agent leaking from coronary arteries. But the consistently increased pericardial effusion led to decreased blood pressure. We faced confusion and difficulty of treatment. Then, we transferred the patient to Cardiac Surgery Department. The hematoma was found under the direct vision after thoracotomy and no definite rupture of coronary vessels was detected.

The patient had pericardial tamponade but coronary angiogram was normal. The reason may be as follow. Firstly, we used those hard and slipper wires such as XT-R, Gaia wire to revascularize. During the procedure, the wire may go through between the intima and the outer elastic membrane of the blood vessel, then we used balloons and stents to expand, which may lead to the increased permeability of the blood vessel. Secondly, there may be small amount of bleeding at the distal end of the coronary artery where a blood clot formed. The blood clot stopped the bleeding from the rupture of the vessel. However, in the certain limited angiography posture, we may miss the bleeding sites. Thirdly, the diameter of vascular wall leakage spot maybe bigger than that of red blood cell, but smaller than that of contrast agent. Therefore, there was pericardial effusion, but we didn’t find contrast agent leaking from coronary artery.

This case indicated that there was still the possibility of coronary artery rupture, although the coronary angiogram showed no rupture of the coronary artery after PCI. We could use IVUS examining coronary artery after vascularization. Maybe IVUS could find the rupture spot of coronary artery. And the symptoms of patients must be observed after the PCI operation.

During follow up, we found the changes of the ECG. After 6 weeks of LCX PCI procedure, the ST stage depressed in V1–V5 leads. And the ST depression and T inversion in V1–V6, I, aVL leads were found 2 years after CTO revascularization. Actually, we didn’t know why the changes of ECG. Maybe we still need the nuclide imaging of myocardial inspect. Maybe probably due to the microvascular occlusion during the PCI procedure (10,11).

Conclusions

In conclusion, coronary angiogram was performed to make sure the rupture of coronary artery in our report, and it was not completely accurate. The combined use of IVUS and coronary angiogram may improve the accuracy of vascular rupture and the safety of PCI procedure.
