Application value of double-layer spectral detector CT in differentiating central lung cancer from atelectasis

Li-Juan Wen1#, Qi-Yu Zhao2#, Yue-Hui Yin3, Bing Wang1, Ming-Xin Fan1, Yuan-Gang Qi2, Qing Zhang1

1Department of Radiology, The Third Affiliated Hospital of Shandong First Medical University (Affiliated Hospital of Shandong Academy of Medical Sciences), Jinan, China; 2Department of Radiology, Shandong Cancer Hospital and Institute, Shandong First Medical University and Shandong Academy of Medical Sciences, Jinan, China; 3Department of Radiology, Weifang People’s Hospital, Weifang, China

Contributions: (I) Conception and design: Q Zhang, YG Qi; (II) Administrative support: Q Zhang, YG Qi; (III) Provision of study materials or patients: YG Qi; (IV) Collection and assembly of data: LJ Wen, QY Zhao, YH Yin, B Wang, MX Fan; (V) Data analysis and interpretation: LJ Wen, QY Zhao, YH Yin; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Qing Zhang. Department of Radiology, The Third Affiliated Hospital of Shandong First Medical University (Affiliated Hospital of Shandong Academy of Medical Sciences), 38# Wuyingshan Road, Jinan 250031, China. Email: radiozq@qq.com; Yuan-Gang Qi. Department of Radiology, Shandong Cancer Hospital and Institute, Shandong First Medical University and Shandong Academy of Medical Sciences, 440# Jiyan Road, Jinan 250117, China. Email: qiyuangang2004@126.com.

Background: Central lung cancer with obstructive atelectasis is very common in clinical practice. Determination of the tumor borderline is important. Conventional computed tomography (CT) alone may not be sufficiently accurate to distinguish central lung cancer from obstructive atelectasis. Spectral CT can improve the soft-tissue resolution greatly. In this study, we evaluated the application value of double-layer spectral detector CT in differentiating central lung cancer from atelectasis.

Methods: A total of 51 patients (37 males) with pathologically confirmed central lung cancer accompanied by atelectasis were enrolled. The rates of differentiation between tumors and atelectasis were retrospectively analyzed using conventional CT and three types of spectral images (40 keV virtual monoenergetic imaging, iodine density map, and their fusion image) of unenhanced scans as well as arterial and venous phases. Cochran’s Q test and Friedman test were used to compare the differentiation rates and the maximal diameters of the tumors in each image.

Results: Among the 51 cases, conventional CT, 40 keV monoenergetic, iodine density, and their fusion images of the venous phase were successful in differentiating tumors from atelectasis in 17 (33.33%), 35 (68.63%), 39 (76.47%), and 38 (74.51%) cases, respectively. The differentiation rates of the 40 keV monoenergetic, iodine density, and fusion images were significantly higher than those of conventional images (χ2=−0.35, −0.43, and −0.41, respectively, all P<0.001). There were no significant differences in the differentiation rates among the 40 keV monoenergetic, iodine density, and fusion images (χ2=−0.06, −0.08, 0.02, respectively, all P=1.00). The maximal tumor diameters in the four images did not significantly differ (χ2=3.61, P=0.31). Conventional and spectral images of unenhanced and arterial phases could not/barely identify the tumor borderlines.

Conclusions: Venous-phase spectral images of double-layer spectral detector CT can differentiate most central lung cancers from atelectasis, and the maximal diameter measurement of the tumor is reliable. Double-layer spectral detector CT can accurately identify the borderlines of most central lung cancers through spectral images during routine CT examinations without requiring other imaging modalities. Therefore, this method has considerable clinical value for applications in tumor staging, efficacy evaluation, and radiotherapy.

Keywords: Central lung cancer (CLC); atelectasis; double-layer spectral detector computed tomography (CT)

Submitted Sep 28, 2021. Accepted for publication Nov 25, 2021.

doi: 10.21037/apm-21-3083

Introduction

Central lung cancer (CLC) with obstructive atelectasis is very common in clinical practice. Determination of the tumor borderline is important for tumor staging, resectability assessment, efficacy evaluation, and radiotherapy target delineation (1,2). computed tomography (CT), positron emission tomography/computed tomography (PET-CT), and Magnetic Resonance Imaging (MRI) are currently the most common imaging modalities for tumor diagnoses. However, due to the low soft-tissue resolution, conventional CT alone may not be sufficiently accurate to distinguish CLC from obstructive atelectasis (3). MRI and PET-CT are more commonly used for this type of tumor (4,5). Nevertheless, both of them have some limitations, such as vulnerability to movement, more contraindications for MRI, and high costs and low popularity for PET-CT. With the development of technology, dual-energy spectral computed tomography (DESCT) has been increasingly applied in clinical practice. Compared with MRI and PET-CT, DESCT has the advantages of convenience, cheapness and fewer contraindications. DESCT can provide multiple postprocessing spectral images, including virtual monoenergetic images (MonoE), iodine density (ID) maps, effective atomic number maps (Zeff), and fusion images, which greatly improve soft-tissue resolution (6). Unlike other dual-energy techniques, double-layer spectral detector computed tomography (DLSDCT) allows the simultaneous measurement of low- and high-energy photons at the exact same spatial and angular location, facilitating dual-energy postprocessing in the projection domain. The remarkable reduction in the noise of spectral images and radiation dose is very convenient for clinical use (7).

In this study, we examined the feasibility of using DLSDCT in differentiating CLC from atelectasis and analyzed the best imaging in various postprocessing spectral functions. To our knowledge, this kind of topic had not been reported. We present the following article in accordance with the MDAR checklist (available at https://apm.amegroups.com/article/view/10.21037/apm-21-3083/rc).

Methods

Patients

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013), and was approved by the institutional ethics committee of Shandong Cancer Hospital and Institute (No. SDTHEC2021001001). Individual consent for this retrospective analysis was waived. The DLSDCT images of patients with pathologically confirmed CLC were retrospectively analyzed. The inclusion criteria were pathologically confirmed CLC with obvious atelectasis and no previous tumor treatment. The exclusion criteria were incomplete DLSDCT images or obvious artifacts.

DLSDCT examinations

All scans were performed on a clinically available DLSDCT scanner (IQon, Philips healthcare, Best, The Netherlands). The scan protocol included unenhanced chest scans, arterial phase scans, and venous-phase-enhanced scans. The scanning range was from the thoracic entrance to the diaphragm level, including the whole lung field. The contrast agent, iodiazol (350 mg/mL, Beilu Pharmaceutical Co. Ltd., Beijing, China), was injected with a high-pressure bolus injector, with an injection flow velocity of 2.5 mL/s and a dose of 80 mL. Arterial and venous scans were performed 30 s and 60 s post-injection, respectively. The parameters used for CT scanning were as follows: collimation 0.625 mm ×64; pitch 1.015; 120 kilovolt peak (kVp); automatic milli-Ampere Times Second (mAs) technology; tube speed 0.5 s/cycle; reconstruction layer thickness and spacing, 1 mm; and image matrix, 512×512. The lung (window width/level 1,600/−600 HU) and mediastinal (window width/level 400/40 HU) images were routinely reconstructed.

Imaging analysis

The three-phase mediastinal images of the unenhanced scan, arterial phase, and venous phase were uploaded to the Philips Spectral Diagnostic Suite 9.0 (Philips healthcare, Best, The Netherlands) and postprocessed. Two senior physicians observed the conventional CT and three types of spectral images (40 keV MonoE, ID, and MonoE-ID fusion images) of each phase to determine the differentiation of tumors from atelectasis. Differentiable tumor was defined as a clear tumor boundary that could be clearly delineated with a mouse. If the density difference between the tumor and atelectasis area was mild or there was a fuzzy transition area between them, the tumor with a boundary that could not be clearly delineated was defined as undifferentiable. Disagreements were resolved by consultation. The axial maximal diameter of the tumor was measured for averaging in cases where the tumor borderline was differentiable in all conventional CT and spectral images in one phase.

Statistical analysis

SPSS 20.0 (SPSS Inc., Chicago, IL, USA) was used for statistical analysis. The maximal tumor diameter was expressed as the mean ± SD. The rates of differentiating tumors from atelectasis in each image were compared using Cochran’s Q test. Dunn’s test (Bonferroni correction) was then used for pairwise comparisons. The maximal diameters of the tumors were compared with the Friedman test. A P value <0.05 was considered significantly different.

Results

General clinical information

A total of 51 patients with pathologically confirmed CLC between Jan. 2020 and Dec. 2020 were enrolled in this study. There were 37 males and 14 females (aged 42–83 years, with a median age of 63 years), all of whom were complicated with obstructive atelectasis. Twenty-seven cases were confirmed by bronchoscopy, 11 cases by operation, nine cases by percutaneous biopsy, and the remaining cases by sputum or pleural effusion cytology. The pathological types were as follows: squamous cell carcinoma in 21 cases, adenocarcinoma in 22 cases, small cell carcinoma in six cases, and other types of malignant tumors in two cases.

Differentiation of tumors from atelectasis in three phases of each image

Conventional CT, 40 keV MonoE, ID, and MonoE-ID fusion images of unenhanced scans could not effectively identify the tumors and atelectasis. The tumor and atelectasis areas were identified by conventional CT, 40 keV MonoE, ID, and MonoE-ID fusion images in the arterial phase in 4 (7.84%), 5 (9.80%), 5 (9.80%), and 6 (11.76%) cases, respectively. Overall, 6 (11.76%) cases were differentiable in the arterial phase. In the conventional arterial phase CT images, all cases showed high enhancement, with adenocarcinoma occurring in five cases and typical carcinoid tumors occurring in one case.

The tumor and atelectasis areas were identified by conventional CT images and 40 keV MonoE, ID, and MonoE-ID fusion images in the venous phase in 17 (33.33%), 35 (68.63%), 39 (76.47%), and 38 (74.51%) cases, respectively (Figure 1). The Cochran’s Q results showed that the differentiation rates of tumors from atelectasis areas were significantly different among the four images (χ2=52.40, P<0.001). Pairwise comparison with Dunn’s test (Bonferroni correction) indicated that the differentiation rates of 40 keV MonoE, ID, and MonoE-ID fusion images were significantly higher than those of conventional CT images (χ2=−0.35, −0.43, −0.41, respectively, all P<0.001 after correction). There were no significant differences in the differentiation rates of 40 keV MonoE, ID, and MonoE-ID fusion images (χ2=−0.06, −0.08, 0.02, respectively, all P=1.00) (Table 1).

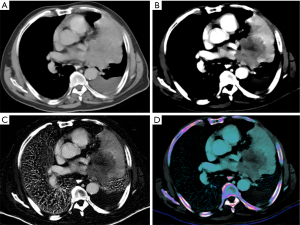

Figure 1 Differentiation of tumors from atelectasis in four types of images in the venous phase. A 69-year-old male with poorly differentiated squamous cell carcinoma and atelectasis. In the venous phase, conventional CT (A) failed to identify the tumor boundary and atelectasis. However, this was possible when using 40 keV virtual monoenergetic (MonoE) images (B), ID maps (C), and MonoE-ID fusion images (D). ID, iodine density.

Table 1

Pairwise comparison of the differentiation rates of tumors from atelectasis in four types of images in the venous phase

Pairwise comparison χ2 P
CT vs. MonoE −0.35 0.00
CT vs. ID −0.43 0.00
CT vs. MonoE-ID −0.41 0.00
MonoE vs. ID −0.08 1.00
MonoE vs. MonoE-ID −0.06 1.00
ID vs. MonoE-ID 0.02 1.00

CT, conventional CT images in the venous phase; MonoE, 40 keV virtual monoenergetic image; ID, iodine density map; MonoE-ID, fusion image of 40 keV MonoE and ID.

Comparison of the maximal tumor diameters

There were 17 cases that were differentiable among all of the conventional CT, 40 keV MonoE, ID, and MonoE-ID fusion images in the venous phase. The maximal diameters of the tumors in the four images were 50.00±22.66, 49.52±23.10, 49.63±22.97, and 49.60±23.07 mm, respectively. The Friedman test showed no significant difference in the maximal diameters of the tumors in the four images (χ2=3.61, P=0.31).

Discussion

In this study, we analyzed the application value of DLSDCT in differentiating CLC from atelectasis. The differentiation rates of tumors from atelectasis were retrospectively analyzed using conventional CT and three types of spectral images of unenhanced scans as well as arterial and venous phases. We found that none of these unenhanced scan images could effectively distinguish the tumor and atelectasis areas; only 11.76% of tumors could be distinguished in the arterial phase. Therefore, except for a few tumors enhanced obviously in the arterial phase, conventional CT and the three types of spectral images of unenhanced scan and arterial phase were hardly useful in identifying tumor boundaries. Among 51 cases, conventional CT, 40 keV MonoE, ID, and MonoE-ID fusion images of the venous phase were successful in differentiating tumors from atelectasis in 17 (33.33%), 35 (68.63%), 39 (76.47%), and 38 (74.51%) cases, respectively. The results showed that the venous phase was more efficient in identifying tumor boundaries, which was consistent with the findings of Gao et al. (8). It was speculated that the contrast agent had fully penetrated into the tumor in the venous phase. As the iodine content difference between the tissues increased, the tumor boundary became clearer. However, our study showed that the differentiation rates of tumors from atelectasis were lower than those in other similar studies (8). A possible reason is that our definition of differentiable tumors was stricter. For example, if there is a density difference between a tumor and an atelectasis area but there is a fuzzy transition area between them, the tumor that cannot be clearly delineated is defined as undifferentiable.

DLSDCT can provide 161 MonoE images (from 40 to 200 keV). Studies have shown that MonoE with low keV increases the detectability of inconspicuous hilar lymph nodes and osteoblastic metastases (9,10) because MonoE with low keV provides an increased contrast-to-noise ratio (11) and contrast enhancement of vessels, even if the scan is not performed during the early enhancement phase (12). However, in other DESCTs, MonoE with too low keVs exhibits a high noise level and, consequently, an impaired image quality (13). In contrast, DLSDCT facilitates the simultaneous measurement of spatially and temporally perfectly aligned high- and low-energy projection datasets, and thus, can utilize the noise anti-correlation between the detector layers for noise suppression. A previous study indicated that the image noise remains relatively low over the whole energy spectrum from 40 to 200 keV (14). Therefore, the 40 keV MonoE image recommended by the expert consensus (7) was used for tumor observation in this study. In addition, ID could reflect microvessel density and blood supply, and could serve as a biomarker of tumor vascularity and help to correctly measure the degree of pulmonary nodule enhancement (15,16). Therefore, ID may be sensitive to the enhancement difference between CLC and atelectasis. Also, some researchers found that the default window width/level of the DLSDCT MonoE image was not suitable, affecting observation (17). In the practical process, we also found that the anatomical structures of 40 keV MonoE, ID, and MonoE-ID fusion images were difficult to identify when using the system default width/level, especially the ID image, which often requires manual adjustment but does not have an impact on the tumor measurement. Therefore, we suggest that the DLSDCT system can be properly optimized in the default window width/level settings.

Currently, the application of MRI and PET-CT in differentiating tumors from atelectasis has become a research hotspot (4,5). Studies have reported that the differentiation rate of tumors and atelectasis by MRI T2 weighted image (T2WI) and diffusion weighted image (DWI) is higher than 80% (18). PET-CT can easily distinguish tumor and atelectasis areas (19), and the delineation of tumor volume by MRI and PET-CT is more accurate than that by conventional dynamic enhanced CT (20). However, MRI and PET-CT still have some limitations, among which the low spatial resolution is difficult to overcome. For example, due to the partial volume effect, there is a deviation of 7–9 mm between the PET and the real boundary of the tumor (21), inevitably reducing the accurate definition of the PET-CT fusion image's tumor delineation. Moreover, vulnerability to movement, contraindications of MRI, as well as high costs and low popularity of PET-CT restrict their clinical usage. In this study, we found that the differentiation rate of the three types of spectral images in the venous phase, especially ID and MonoE-ID fusion images, was as high as approximately 75%, and the measurement of the maximal tumor diameter was reliable. In addition, the excellent spatial resolution of CT images suggested that spectral images in the venous phase were sensitive and accurate in identifying tumors and atelectasis, thus indicating great clinical application value.

This study has a few limitations that should be noted. Firstly, we only observed the differentiation rate of CLC from atelectasis by DLSDCT in this study, so the strengths and weaknesses of DLSDCT compared with other imaging modalities, such as MRI or PET-CT, remain unclear. Secondly, in addition to the spectral images we observed in this study, DLSDCT can also provide another pseudocolor spectral image, the Zeff image. In the practical process, we found that Zeff images were more sensitive to the difference between tissues, and that inhomogeneity or necrosis within the tumor could be marked with different colors. However, Zeff images are greatly affected by the window width/level settings, so it is difficult to determine the tumor boundary with Zeff images alone. Therefore, this study did not involve Zeff-related content, which will be investigated in the future. Thirdly, similar to other studies, the reliability of the tumor boundary delineated by DLSDCT remains unclear because the true boundary is difficult to confirm. Finally, this study was retrospective and the sample size was small. So multi-center clinical trials with larger sample will be performed later.

Conclusions

In this study, we confirmed that the spectral images in the venous phase of DLSDCT could distinguish most CLCs from atelectasis, with highly consistent tumor measurements. DLSDCT could accurately identify the boundaries of most CLCs with spectral postprocessing images in routine CT examinations without the need for other imaging modalities; thus, it has great clinical value for applications in tumor staging, efficacy evaluation, and radiotherapy.

Acknowledgments

Funding: This work was supported by the Shandong Medical and Health Science and Technology Development Project (No. 2019WS200 to YGQ, QZ, and MXF).

Footnote

Reporting Checklist: The authors have completed the MDAR checklist. Available at https://apm.amegroups.com/article/view/10.21037/apm-21-3083/rc

Data Sharing Statement: Available at https://apm.amegroups.com/article/view/10.21037/apm-21-3083/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://apm.amegroups.com/article/view/10.21037/apm-21-3083/coif). All authors report the language of this work was edited by AJE. This work was supported by the Shandong Medical and Health Science and Technology Development Project (No. 2019WS200 to YGQ, QZ, and MXF). The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013), and was approved by the institutional ethics committee of Shandong Cancer Hospital and Institute (No. SDTHEC2021001001). Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
